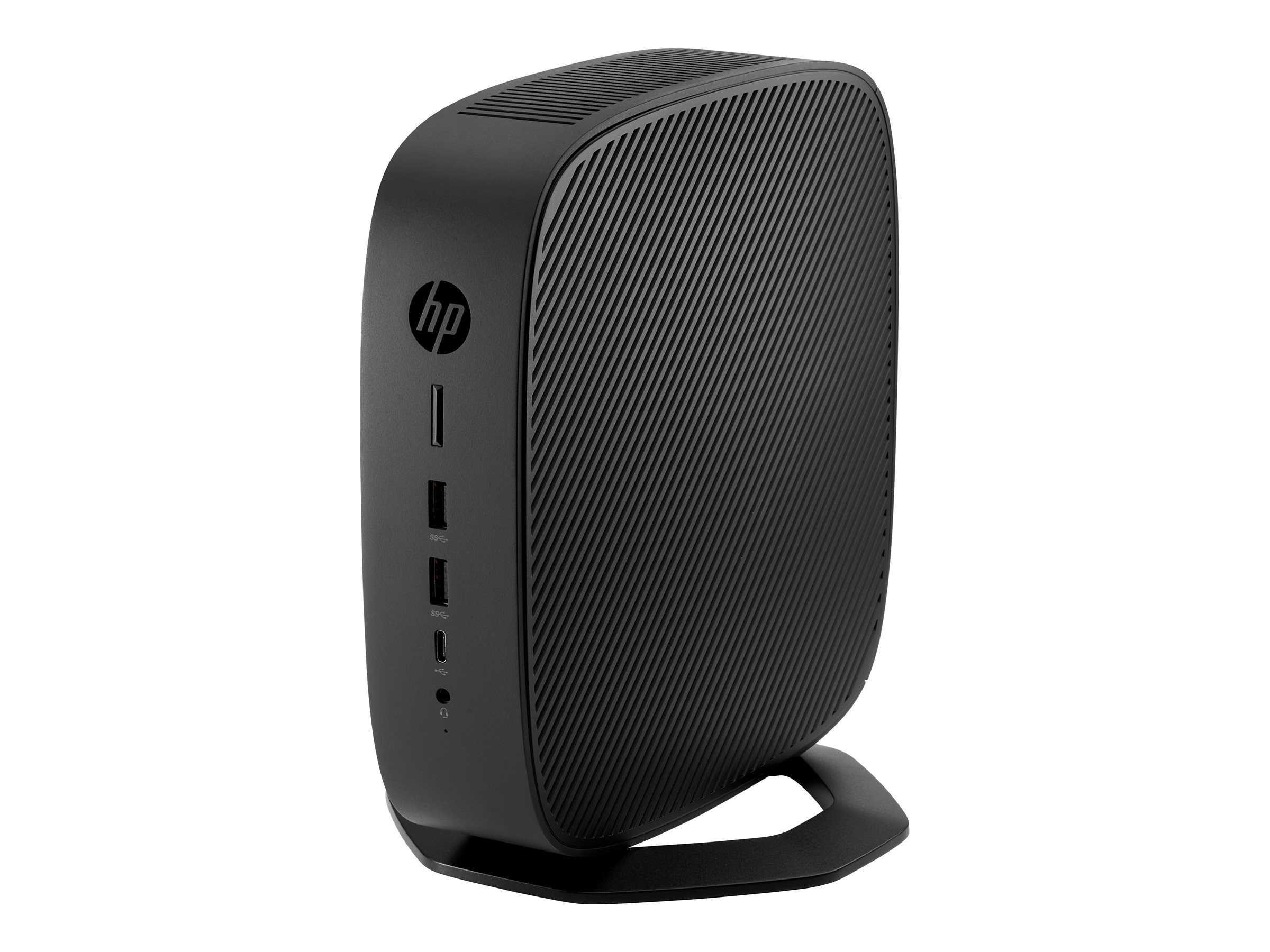

HP t740 - Thin client
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
HP t740 - Thin client
- SFF
- 1 x Ryzen Embedded V1756B / 3.25 GHz
- RAM 8 GB
- flash 64 GB
- Radeon Vega 8
- GigE
- WLAN: 802.11ac, Bluetooth 5.0
- Windows 10 IoT Enterprise for Thin Clients 64-bit
- monitor: none
- keyboard: US
| Additional Details | |
|---|---|
| Mfr Part #: | 7RQ28UT#ABA |
| SHI Part #: | 38632032 |
| Category: | Thin client or diskless workstations |
| UNSPSC: | 43211506 |
| Manufacturer: | HP, Inc. |
| Product Type: | Hardware |
Audio/Video Cables
- Video adapter
- DisplayPort (M) to HDMI (F)
- 4K support
- for HP 260 G4, t540; Desktop Pro 300 G6; Elite Slice G2; EliteDesk 805 G6; ProDesk 405 G6
- DisplayPort (M) to DisplayPort (M)
- 2 m
- for Elite t655; Presence Small Space Solution with Zoom Rooms; Pro t550
Control/Interface Boards
- RS-232 x 1
- black
- for HP 260 G4, 280 G5, 285 G6, 295 G6; Desktop Pro 300 G6; EliteDesk 805 G6; ProDesk 405 G6
- Video converter
- DisplayPort
- VGA
- for Desktop Pro 300 G6, Pro A G3; Elite Slice G2; ENVY Curved 34; ProDesk 405 G6
| General Information | |
|---|---|
| Category | Thin client or diskless workstations |
| Description | HP t740 - Thin client - SFF - 1 x Ryzen Embedded V1756B / 3.25 GHz - RAM 8 GB - flash 64 GB - Radeon Vega 8 - GigE - WLAN: 802.11ac, Bluetooth 5.0 - Windows 10 IoT Enterprise for Thin Clients 64-bit - monitor: none - keyboard: US |
| Manufacturer | HP, Inc. |
| UNSPSC | 43211506 |
| Main Specifications | |
| Chassis / Form Factor | Small form factor |
| Dimensions & Weight / Depth | 21 cm |
| Dimensions & Weight / Height | 21 cm |
| Dimensions & Weight / Weight | 1.323 kg |
| Dimensions & Weight / Width | 5 cm |
| Display / Type | None. |
| Hard Drive / Capacity | 64 GB |
| Header / Brand | HP |
| Header / Country Kits | United States |
| Header / Localization | English |
| Miscellaneous / Product Color | Black |
| Networking / Data Link Protocol |
|
| Networking / Wireless LAN Supported | Yes |
| Networking / Wireless Protocol |
|
| Optical Storage / Drive Type | No optical drive |
| Optical Storage / Type | None |
| OS Provided / Type | Windows 10 IOT Enterprise for Thin Clients 64-bit Edition |
| Packaged Quantity | 1 |
| Processor / Clock Speed | 3.25 GHz |
| Processor / Manufacturer | AMD |
| Processor / Number of Cores | Quad-Core |
| Processor / Processor Number | V1756B |
| Processor / Type | Ryzen Embedded |
| RAM / Form Factor | SO-DIMM 260-pin |
| RAM / Memory Speed | 2400 MHz |
| RAM / Technology | DDR4 SDRAM |
| Service & Support / Type | 3-year warranty |
| System / Hard Drive Capacity | 64 GB |
| System / Type | Thin client |
| Video Output / Graphics Processor | AMD Radeon Vega 8 |
| Cache Memory | |
| Cache Per Processor | 4 MB |
| Installed Size | L3 cache - 4 MB |
| Dimensions & Weight | |
| Depth | 21 cm |
| Height | 21 cm |
| Weight | 1.323 kg |
| Width | 5 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 3.798 kg |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 10 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| Slots |
|
| General | |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Localization | Language: English / region: United States |
| Product Form Factor | SFF |
| Type | Thin client |
| Graphics Controller | |
| Graphics Processor | AMD Radeon Vega 8 |
| Max Monitors Supported | 4 |
| Video Interfaces | DisplayPort |
| Hard Drive | |
| Capacity | 1 x 64 GB |
| Type | Flash - M.2 |
| Input Device | |
| Type | Mouse, keyboard |
| Keyboard | |
| Interface | USB |
| Keyboard Name | HP Business Slim Keyboard |
| Localization & Layout | US |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years |
| Miscellaneous | |
| Compliant Standards | FCC Class B certified, UL, BSMI, GS, CB, CCC, EMC, RoHS, ICES Class B, WEEE, KCC Class B, ERP, CECP, VCCI Class B, CISPR Class B, SEPA, low halogen, HP GSE, EN, CNS |
| Manufacturer Selling Program | HP Smart Buy |
| Security Slot Type | Kensington security slot |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Monitor | |
| Monitor Type | None. |
| Mouse | |
| Interface | USB |
| Technology | Optical |
| Networking | |
| Compliant Standards | IEEE 802.11ac, Bluetooth 5.0 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0 |
| Ethernet Controller | Realtek RTL8111EPH-CG |
| Wireless LAN Supported | Yes |
| Wireless NIC | Intel Wireless-AC 9260 |
| Operating System / Software | |
| OS Provided | Windows 10 IoT Enterprise for Thin Clients 64-bit Edition English |
| Optical Storage | |
| Type | No optical drive |
| Power | |
| Device Type | Power adapter |
| Power Provided | 90 Watt |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Processor / Chipset | |
| Clock Speed | 3.25 GHz |
| CPU | AMD Ryzen Embedded V1756B |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Max Turbo Speed | 3.6 GHz |
| Number of Cores | Quad-Core |
| RAM | |
| Configuration Features | 2 x 4 GB |
| Effective Memory Speed | 2400 MHz |
| Features | Dual channel memory architecture |
| Form Factor | SO-DIMM 260-pin |
| Installed Size | 8 GB (installed) / 32 GB (max) |
| Rated Memory Speed | 2400 MHz |
| Slots | 2 (total) / 0 (empty) |
| Technology | DDR4 SDRAM |
| Sustainability Information | |
| Carbon Footprint | 240 kg carbon emissions |
| ENERGY STAR Certified | Yes |
| EOL (kg CO2e) | 0.8 |
| Manufacturing (kg CO2e) | 88 |
| TCO Certified | TCO Certified Desktops 9 |
| Use (kg CO2e) | 147 |
