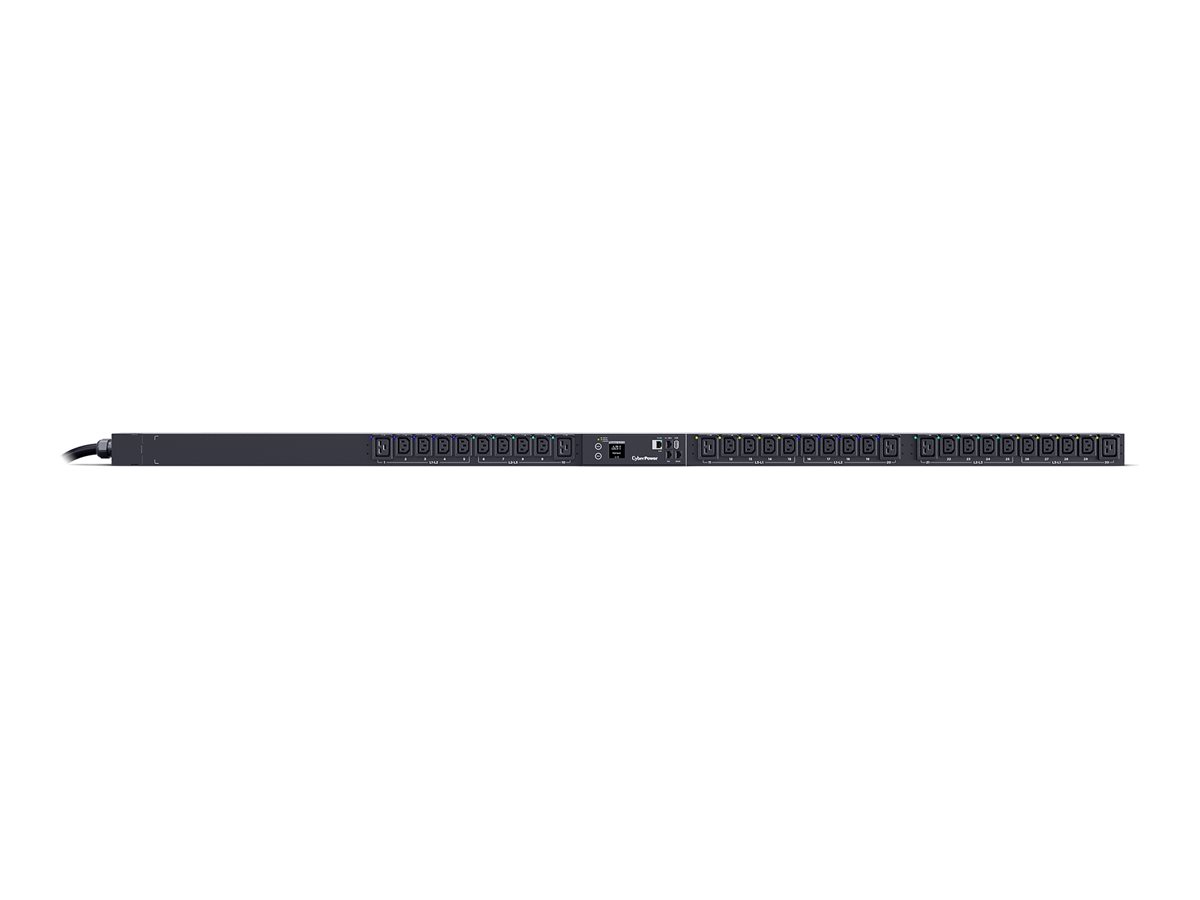

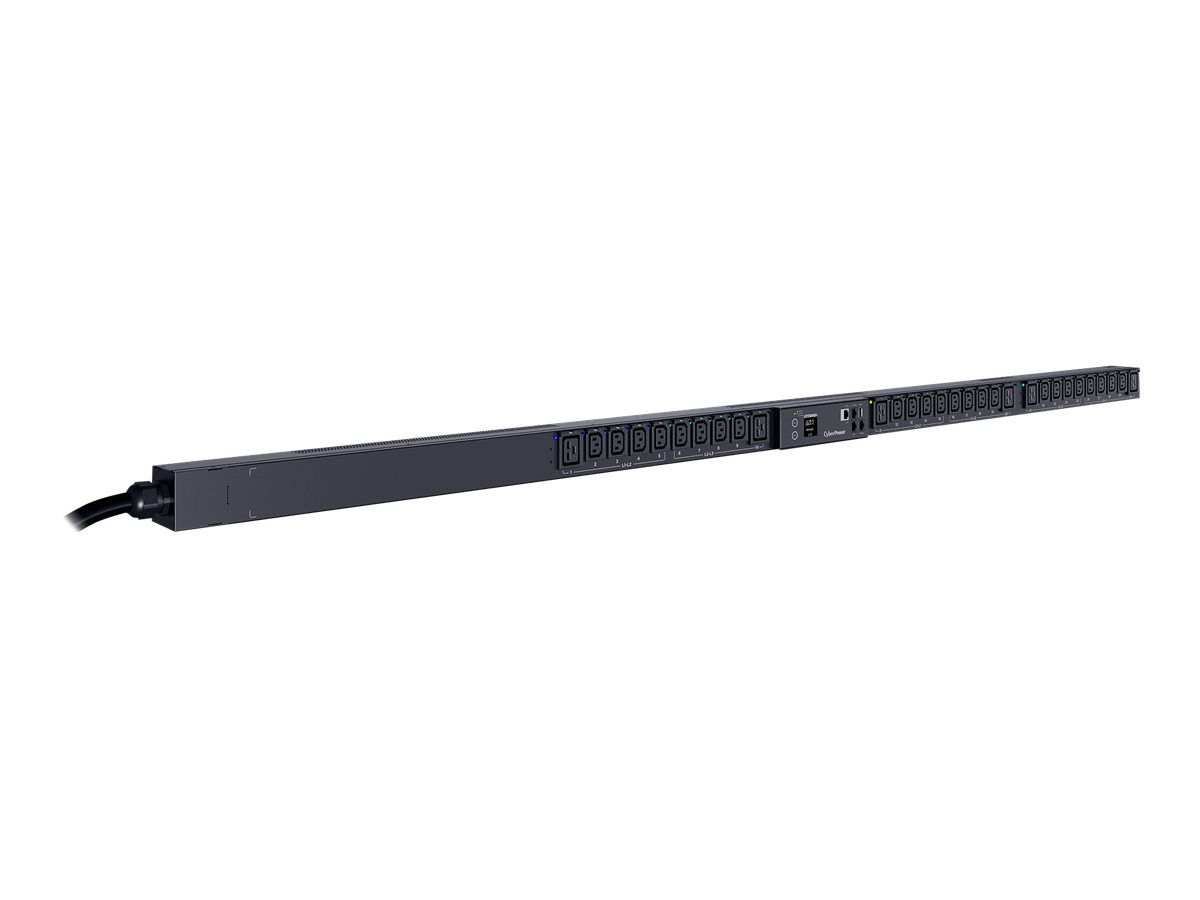

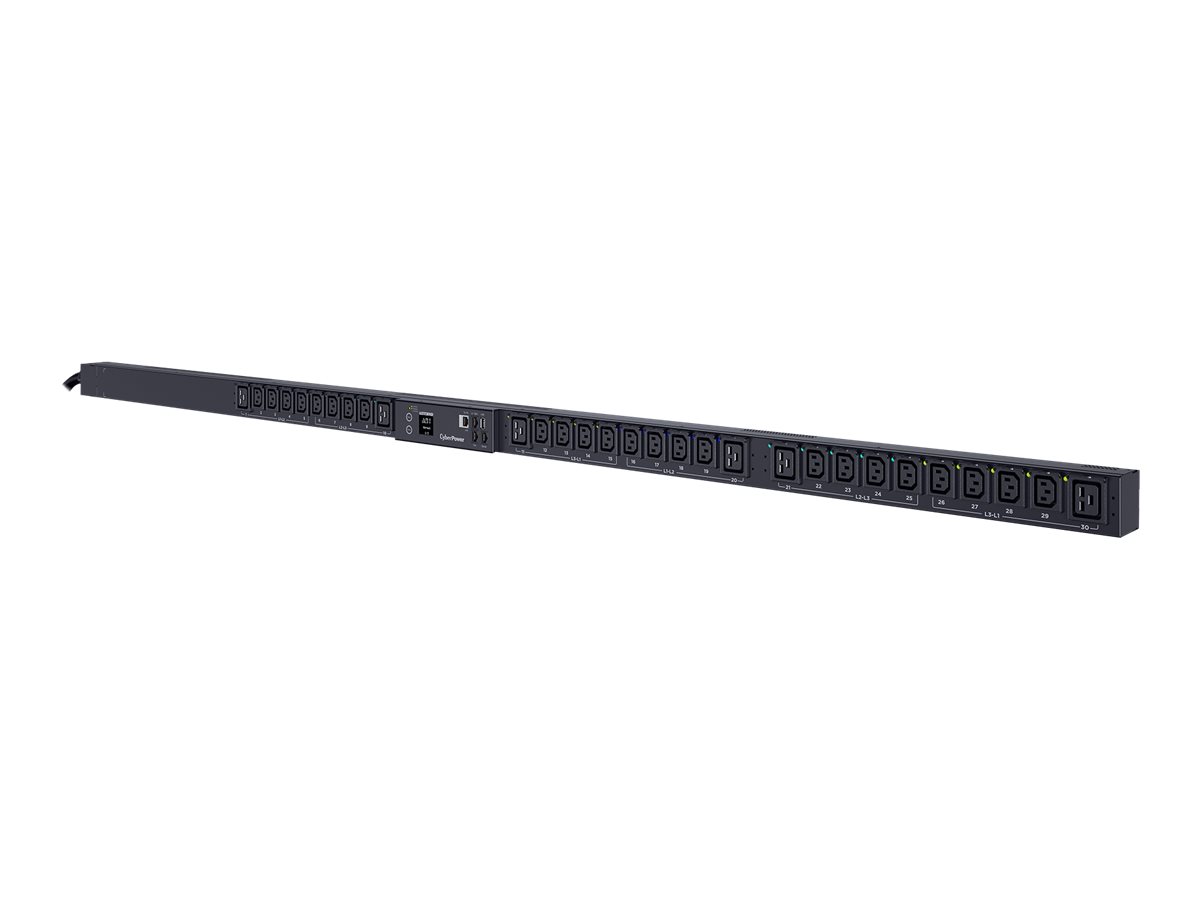

CyberPower Switched Metered-by-Outlet PDU83103
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
CyberPower Switched Metered-by-Outlet PDU83103
- Power distribution unit (rack-mountable)
- AC 200-240 V
- 3-phase
- Ethernet, USB, serial
- input: NEMA L15-20
- output connectors: 30 (6 x IEC 60320 C19, 24 x IEC 60320 C13)
- 0U
- 3.05 m cord
- black
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | PDU83103 |
| SHI Part #: | 38614733 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | CyberPower |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | CyberPower Switched Metered-by-Outlet PDU83103 - Power distribution unit (rack-mountable) - AC 200-240 V - 3-phase - Ethernet, USB, serial - input: NEMA L15-20 - output connectors: 30 (6 x IEC 60320 C19, 24 x IEC 60320 C13) - 0U - 3.05 m cord - black |
| Manufacturer | CyberPower |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 5.59 cm |
| Dimensions & Weight / Height | 179.07 cm |
| Dimensions & Weight / Weight | 6.3 kg |
| Dimensions & Weight / Width | 5.59 cm |
| Header / Brand | Cyberpower |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 30 |
| Power Device / Voltage Required | AC 200-240 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 3-year warranty |
| Dimensions & Weight | |
| Depth | 5.59 cm |
| Height | 179.07 cm |
| Weight | 6.3 kg |
| Width | 5.59 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 205.74 cm |
| Shipping Height | 15.24 cm |
| Shipping Weight | 9.71 kg |
| Shipping Width | 17.15 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | -5 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Black |
| Cord Length | 3.05 m |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Cables Included |
|
| Compliant Standards | FCC Class A certified, UL 60950-1, UL 62368-1 |

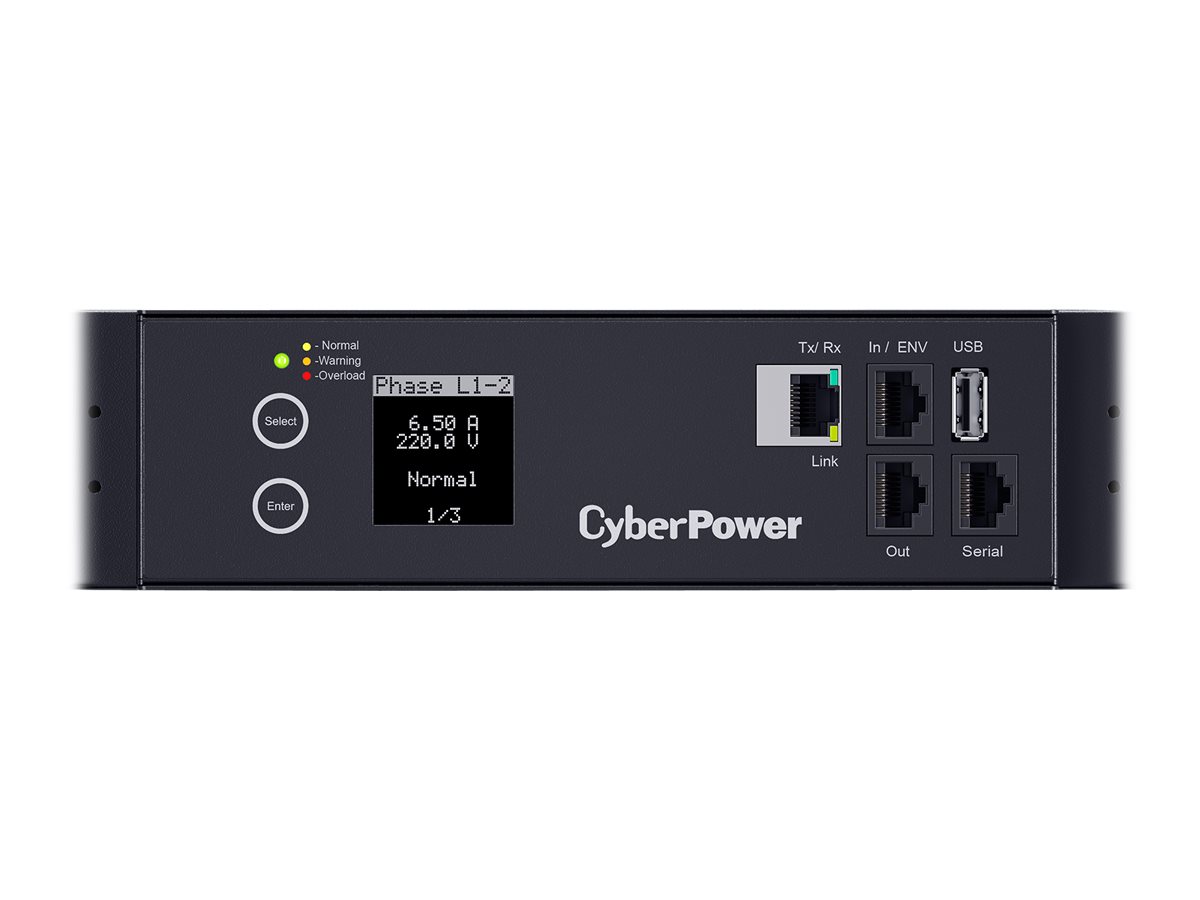

| Features | Abrasion-resistant, impact-resistant, vertical orientation, metal housing, LCD display, voltage monitoring, current meter, digital power meter, email alerts support, firmware upgradable, remote outlet switching, metering per input line, SMS notification, monitored per outlet, switched per outlet, frequency meter, load monitoring, multi-color outlet LEDs |
| Included Accessories | 2 mounting brackets, 6 M5x12 mounting screws, 6 M4x5 mounting screws, 50 cable ties, cord retention tray |
| Rack Mounting Kit | Included |
| Networking | |
| Remote Management Interface | Ethernet, USB, serial |
| Remote Management Protocol | SNMP 1, Telnet, SNMP 3, HTTP, HTTPS, SSH, CLI, SMTP, NTP, DHCP, IPv4, IPv6, LDAP, RADIUS |
| Power Device | |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA L15-20 |
| Input Voltage | AC 200-240 V |
| Input Wiring | 3-phase |
| Max Electric Current | 20 A |
| Output Voltage | AC 200-240 V |
| Power Output Connectors Details |
|
| Regulatory Derated Current | 16 A |
| Software / System Requirements | |
| Software Included | PowerPanel Business Edition |
