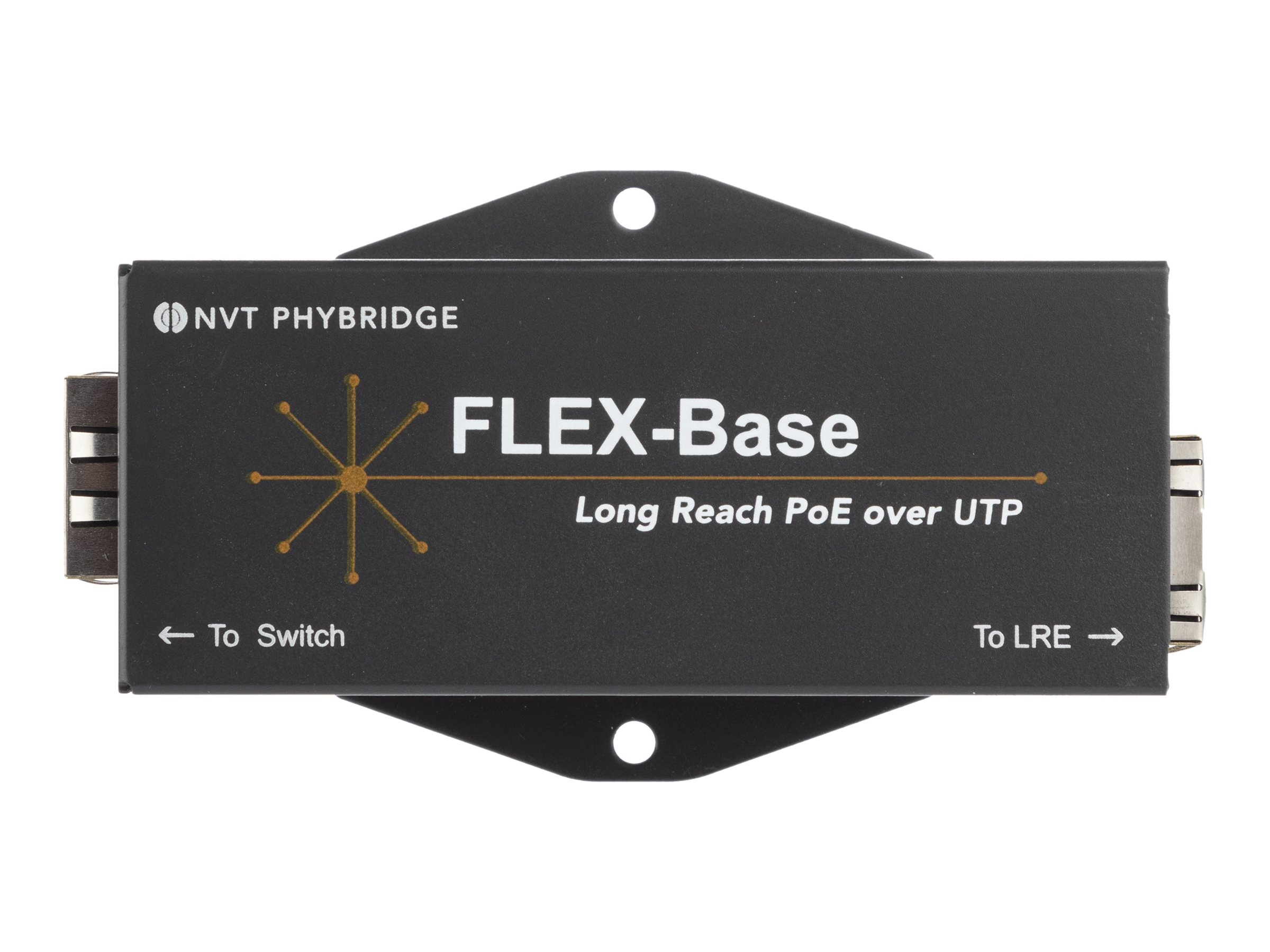

NVT Phybridge FLEX-Base
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
NVT Phybridge FLEX-Base
- Network extender
- 100Mb LAN
- 10Base-T, 100Base-TX
- 1 ports
- up to 610 m
- TAA Compliant
| Additional Details | |
|---|---|
| Mfr Part #: | NV-FLXLK-BSE |
| SHI Part #: | 38562140 |
| Category: | Serial port cards |
| UNSPSC: | 43201559 |
| Manufacturer: | NVT Phybridge |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Serial port cards |
| Description | NVT Phybridge FLEX-Base - Network extender - 100Mb LAN - 10Base-T, 100Base-TX - 1 ports - up to 610 m - TAA Compliant |
| Manufacturer | NVT Phybridge |
| UNSPSC | 43201559 |
| Main Specifications | |
| Dimensions & Weight / Depth | 5 cm |
| Dimensions & Weight / Height | 2.5 cm |
| Dimensions & Weight / Weight | 106 g |
| Dimensions & Weight / Width | 8.8 cm |
| Header / Brand | NVT Phybridge |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol |
|
| Networking / Data Transfer Rate | 100 Mbps |
| Networking / Form Factor | External |
| Networking / Type | Network extender |
| Packaged Quantity | 1 |
| Service & Support / Type | 1-year warranty |
| Dimensions & Weight | |
| Depth | 5 cm |
| Height | 2.5 cm |
| Weight | 106 g |
| Width | 8.8 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 95% (non-condensing) |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -40 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | Network extender |
| Form Factor | External |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Compliant Standards | EMC, FCC Part 15, ICES-003, EN 55032:2012, EN 50121-4:2015 Class B, UL 60950-1 2014-10-14 Second Edition, CSA C22.2 No. 60950-1-07 Second Edition 2014-010, IEC 62368-1: 2014, EN 62368-1:2014, AS/NZS 62368.1: 2018, RoHS 2011/65/EU, RoHS 2015/863/EU, NDAA, EN 50121-4 |
| MTBF | 20 years |
| TAA Compliant | Yes |
| Networking | |
| Cabling Type | 10Base-T, 100Base-TX |
| Compliant Standards | IEEE 802.3, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| Connectivity Technology | Wired |
| Data Link Protocol | 100Mb LAN, 10Mb LAN |
| Data Transfer Rate | 100 Mbps |
| Features | Full duplex mode, metal housing, auto-sensing per device, PoE extend-mode, 802.1x authentication |
| Max Transfer Distance | 610 m |
| Ports Qty | 1 |
| Power | |
| Power Consumption Operational | 1.5 Watt |
| Power Over Ethernet (PoE) | PoE++ |
