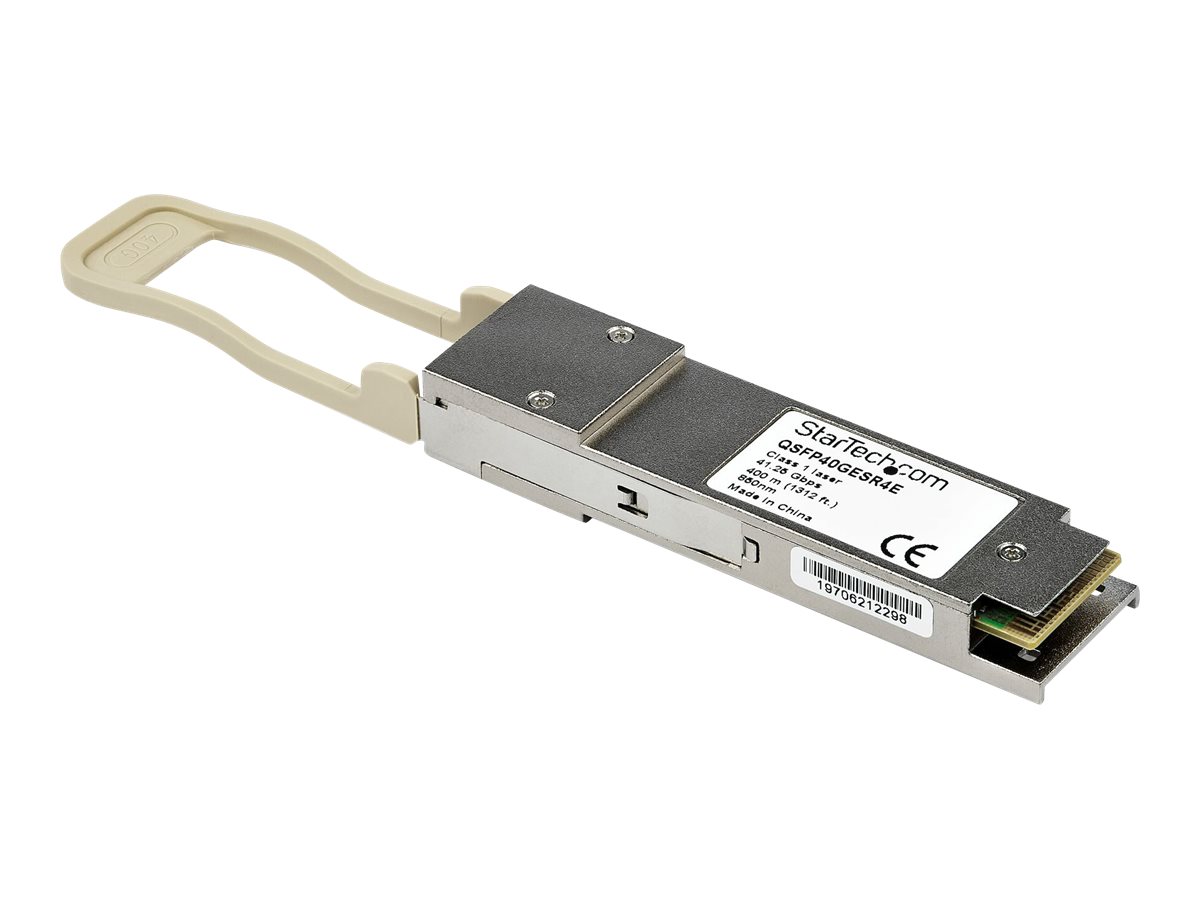

Startech Dell EMC QSFP-40G-SR4 Compatible QSFP+ Module, 40GBASE-SR4, 40GbE Multimode Fiber MMF Optic Transceiver, 40GE Gigabit Ethernet QSFP+, MPO Connector, 150m, 850nm, DDM, 40Gbps
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Startech Dell EMC QSFP-40G-SR4 Compatible QSFP+ Module, 40GBASE-SR4, 40GbE Multimode Fiber MMF Optic Transceiver, 40GE Gigabit Ethernet QSFP+, MPO Connector, 150m, 850nm, DDM, 40Gbps
- Lifetime Warranty (QSFP40GSR4ES)
- QSFP+ transceiver module (equivalent to: Dell EMC QSFP-40G-SR4)
- 40GbE
- 40GBASE-SR4
- MPO multi-mode
- up to 150 m
- 850 nm
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | QSFP40GSR4ES |
| SHI Part #: | 38554024 |
| Category: | Transceivers |
| UNSPSC: | 43201553 |
| Manufacturer: | StarTech.com |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Transceivers |
| Description | Startech Dell EMC QSFP-40G-SR4 Compatible QSFP+ Module, 40GBASE-SR4, 40GbE Multimode Fiber MMF Optic Transceiver, 40GE Gigabit Ethernet QSFP+, MPO Connector, 150m, 850nm, DDM, 40Gbps - Lifetime Warranty (QSFP40GSR4ES) - QSFP+ transceiver module (equivalent to: Dell EMC QSFP-40G-SR4) - 40GbE - 40GBASE-SR4 - MPO multi-mode - up to 150 m - 850 nm |
| Manufacturer | StarTech.com |
| MSRP | $69.99 |
| UNSPSC | 43201553 |
| Main Specifications | |
| Dimensions & Weight / Depth | 1.39 cm |
| Dimensions & Weight / Height | 1.26 cm |
| Dimensions & Weight / Weight | 40 g |
| Dimensions & Weight / Width | 5.84 cm |
| Header / Brand |
|
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol | 40 Gigabit Ethernet |
| Networking / Data Transfer Rate | 40 Gbps |
| Networking / Form Factor | Plug-in module |
| Networking / Type | QSFP+ transceiver module |
| Packaged Quantity | 1 |
| Service & Support / Type | Limited lifetime warranty |
| Dimensions & Weight | |
| Depth | 1.39 cm |
| Height | 1.26 cm |
| Weight | 40 g |
| Width | 5.84 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 35 cm |
| Shipping Height | 12 cm |
| Shipping Weight | 60 g |
| Shipping Width | 20.5 cm |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 40GBASE-SR4 - MPO multi-mode female |
| General | |
| Device Type | QSFP+ transceiver module |
| Form Factor | Plug-in module |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | UL, FCC, RoHS, REACH, MSA |
| MTBF | 45,017,120 hours |
| OEM Manufacturer Equivalent Part Number | Dell EMC QSFP-40G-SR4 |
| Networking | |
| Cabling Type | 40GBASE-SR4 |
| Connectivity Technology | Wired |
| Data Link Protocol | 40GbE |
| Data Transfer Rate | 40 Gbps |
| Features | Full duplex mode, Digital Diagnostics Monitoring (DDM) |
| Max Transfer Distance | 150 m |
| Optical Wave Length | 850 nm |
