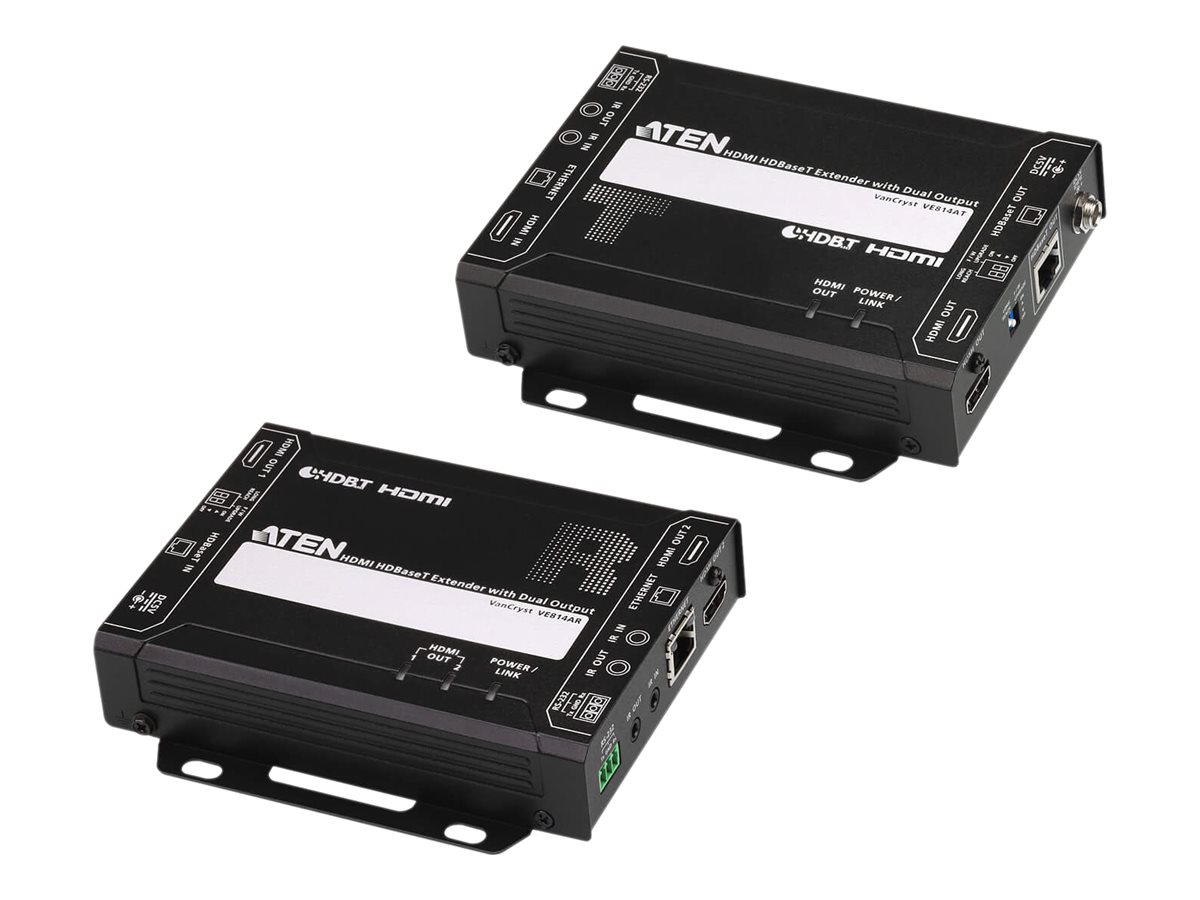

ATEN VanCryst VE814A HDMI HDBaseT Extender with Dual Output
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
ATEN VanCryst VE814A HDMI HDBaseT Extender with Dual Output
- Transmitter and receiver
- video/audio/infrared/serial/network extender
- HDBaseT
- up to 100 m
- for ATEN VM5404HA, VP2730; VanCryst VM1600A, VM3200, VM5404H, VM6809H
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | VE814A |
| SHI Part #: | 38388764 |
| Category: | Serial port cards |
| UNSPSC: | 43201559 |
| Manufacturer: | ATEN |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Serial port cards |
| Description | ATEN VanCryst VE814A HDMI HDBaseT Extender with Dual Output - Transmitter and receiver - video/audio/infrared/serial/network extender - HDBaseT - up to 100 m - for ATEN VM5404HA, VP2730; VanCryst VM1600A, VM3200, VM5404H, VM6809H |
| Manufacturer | ATEN |
| MSRP | $1,159.60 |
| UNSPSC | 43201559 |
| Main Specifications | |
| Header / Brand | ATEN |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol | HDBaseT |
| Networking / Data Transfer Rate | 10.2 Gbps |
| Networking / Form Factor | External |
| Networking / Type | Video/audio/infrared/serial/network extender |
| Packaged Quantity | 1 |
| Compatibility Information | |
| Designed For |
|
| Environmental Parameters | |
| Humidity Range Operating | 0 - 80% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | Video/audio/infrared/serial/network extender |
| Form Factor | External |
| Miscellaneous | |
| Compliant Standards | RoHS, WEEE, CEC, Plug and Play |
| Included Accessories | IR transmitter, IR receiver, 2 power adapters, 2 x RS-232 terminal blocks |
| Rack Mounting Kit | Optional |
| Networking | |
| Compliant Standards | HDCP 2.2 |
| Connectivity Technology | Wired |
| Data Link Protocol | HDBaseT |
| Data Transfer Rate | 10.2 Gbps |
| Features | 3D support, HDCP compliant, 4K resolution support, 2K resolution support, firmware upgradable, HDBaseT Long Reach Mode, metal housing, HDBaseT Class A technology, 8KV/15KV ESD Protector, EDID Management, Ethernet Passthrough port |
| Max Resolution | 4096 x 2160 / 3840 x 2160 @ 60 Hz |
| Max Transfer Distance | 100 m |
| Max Video Bandwidth | 340 MHz |
| Status Indicators | HDMI, link/activity, power |
| Power | |
| Installed Qty | 2 |
| Power Consumption Operational | 5.09 Watt |
| Power Device | External power adapter |
