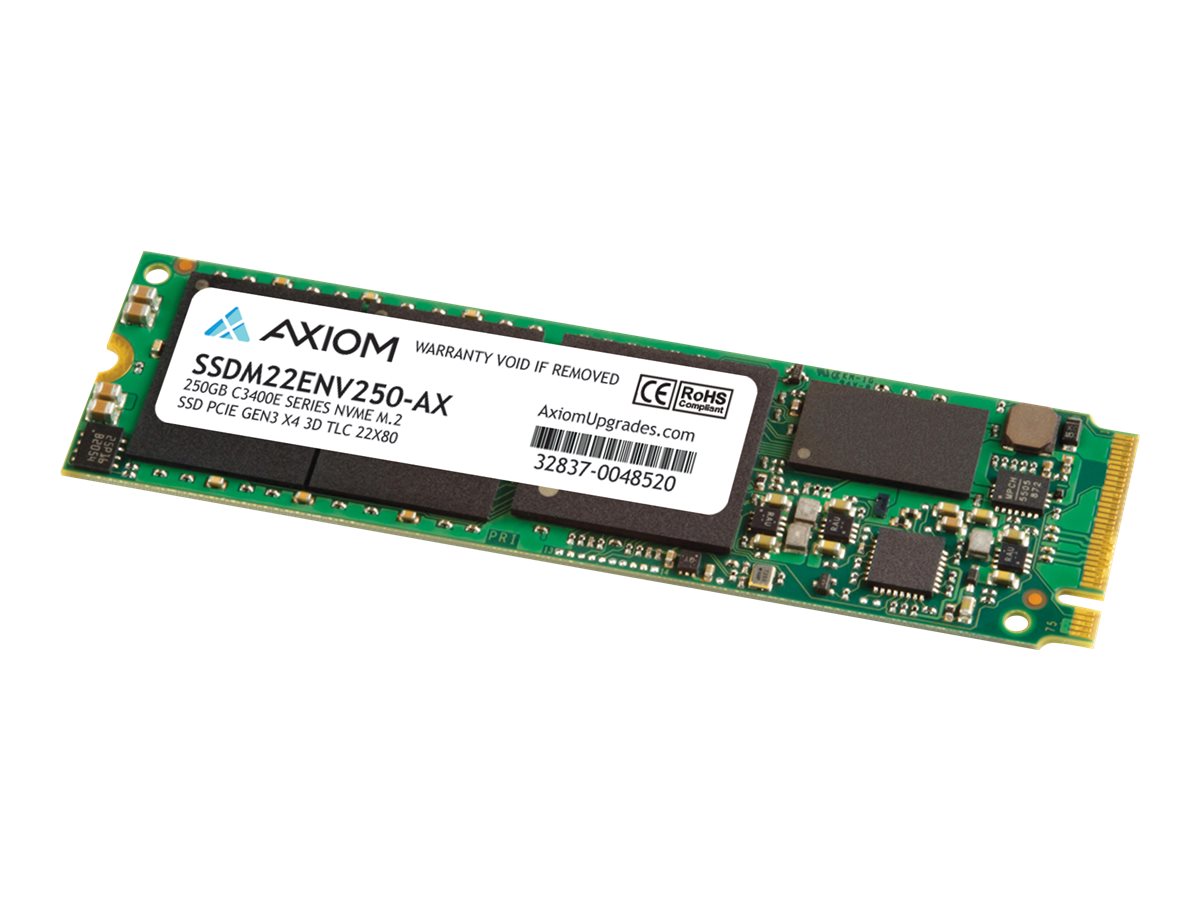

Axiom C3400e Series - SSD
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Axiom C3400e Series - SSD
- encrypted
- 250 GB
- internal
- M.2 2280
- PCIe 3.0 x4 (NVMe)
- AES
- Self-Encrypting Drive (SED), TCG Opal Encryption 2.0
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | SSDM22ENV250-AX |
| SHI Part #: | 38342885 |
| Category: | Solid state drive SSD |
| UNSPSC: | 43201830 |
| Manufacturer: | Axiom Memory |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Solid state drive SSD |
| Description | Axiom C3400e Series - SSD - encrypted - 250 GB - internal - M.2 2280 - PCIe 3.0 x4 (NVMe) - AES - Self-Encrypting Drive (SED), TCG Opal Encryption 2.0 - TAA Compliant |
| Manufacturer | Axiom Memory |
| MSRP | $69.60 |
| UNSPSC | 43201830 |
| Main Specifications | |
| Dimensions & Weight / Depth | 80 mm |
| Dimensions & Weight / Weight | 40 g |
| Dimensions & Weight / Width | 22 mm |
| Hard Drive / Capacity | 250 GB |
| Hard Drive / Form Factor | M.2 2280 |
| Hard Drive / Hard Drive Type | Internal hard drive |
| Hard Drive / Interface | PCI Express 3.0 x4 (NVMe) |
| Hard Drive / Interface | PCI Express 3.0 x4 (NVMe) |
| Header / Brand | Axiom |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Storage / Type | Solid state drive |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% |
| Max Operating Temperature | 70 °C |
| Max Storage Temperature | 85 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
| Shock Tolerance (operating) | 1500 g @ 0.5 ms |
| Vibration Tolerance (operating) | 3.1 g @ 2-500 Hz |
| Expansion & Connectivity | |
| Compatible Bay | M.2 2280 |
| Interfaces | 1 x PCI Express 3.0 x4 (NVMe) |
| General | |
| Capacity | 250 GB |
| Depth | 80 mm |
| Device Type | Solid state drive - internal |
| Encryption Algorithm | AES |
| Features | Temperature sensor, TRIM support, StaticDataRefresh Technology, Secure Erase function, Garbage Collection technology, End-to-end data path protection, LDPC error correction, 3D NAND Technology, Global Wear Leveling, NVM Express (NVMe), NVM Express (NVMe) 1.3, dynamic SLC caching, Silicon Motion SM2262 controller, S.M.A.R.T. |
| Form Factor | M.2 2280 |
| Hardware Encryption | Yes |
| Interface | PCIe 3.0 x4 (NVMe) |
| NAND Flash Memory Type | 3D triple-level cell (TLC) |
| Weight | 40 g |
| Width | 22 mm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | RoHS |
| TAA Compliant | Yes |
| Performance | |
| Drive Writes Per Day (DWPD) | 1.08 |
| Internal Data Rate | 2900 MBps (read) / 1050 MBps (write) |
| Maximum 4KB Random Read | 290000 IOPS |
| Maximum 4KB Random Write | 225000 IOPS |
| SSD Endurance | 344 TB |
| Power | |
| Power Consumption |
|
| Reliability | |
| MTBF | 1,500,000 hours |
| Non-Recoverable Errors | 10 per 10^15 |
