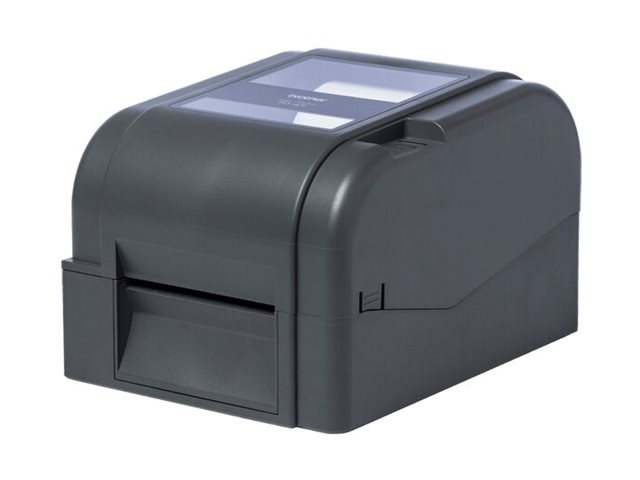

Brother TD-4520TN - Label printer
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Brother TD-4520TN - Label printer
- direct thermal / thermal transfer
- Roll (11.2 cm)
- 300 dpi
- up to 127 mm/sec
- USB 2.0, LAN, RS232C, USB 2.0 host
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | TD4520TN |
| SHI Part #: | 38279275 |
| Category: | Label printers |
| UNSPSC: | 43212113 |
| Manufacturer: | Brother |
| Product Type: | Other |
Ink/Toner
Office Machines
- for Brother TD-4750TNWB, TD-4750TNWBR; RuggedJet RJ4030-K, RJ-4030M, RJ4030M-K, RJ-4230BL
| General Information | |
|---|---|
| Category | Label printers |
| Description | Brother TD-4520TN - Label printer - direct thermal / thermal transfer - Roll (11.2 cm) - 300 dpi - up to 127 mm/sec - USB 2.0, LAN, RS232C, USB 2.0 host |
| Manufacturer | Brother |
| MSRP | $1,283.73 |
| UNSPSC | 43212113 |
| Main Specifications | |
| Height | 9.60 |
| Length | 16.10 |
| UPC | 0012502655312 |
| Width | 10.90 |
| Dimensions & Weight | |
| Depth | 28.2 cm |
| Height | 17.8 cm |
| Weight | 2 kg |
| Width | 20.6 cm |
| Environmental Parameters | |
| Humidity Range Operating | 20 - 85% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Environmental Standards | |
| ENERGY STAR | Yes |
| Expansion / Connectivity | |
| Connections |
|
| Flash Memory | |
| Flash Memory | 128 MB |
| General | |
| Printer Type | Label printer - direct thermal / thermal transfer - monochrome |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Media Handling | |
| Max Media Size | Roll (11.2 cm) |
| Max Media Size (Custom) | 112 mm |
| Max Printing Length | 11430 mm |
| Max Printing Width | 105.7 mm |
| Media Thickness Range | 0.06 mm - 0.19 mm |
| Media Type | Fanfold paper, continuous labels, die cut labels |
| Min Media Size (Custom) | 20 mm |
| Roll Core Diameter | 25.4 mm, 38.1 mm |
| Roll Maximum Outer Diameter | 127 mm |
| Miscellaneous | |
| Cables Included | 1 x USB cable |
| Networking | |
| Networking | Print server |
| Security Protocols & Features | ARP, MAC address filtering |
| Power | |
| Frequency Required | 50/60 Hz |
| Power Device | Power adapter - external |
| Printer | |
| Barcodes | Code 93, Code 39, Code 49, GS1 DataBar, QR code, MaxiCode, Aztec code, Telepen, LOGMARS, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, MicroPDF417, Codabar, Code 11, Interleaved 2 of 5, Postnet, PDF417, Data Matrix, PLANET, China Post, Plessey, Code 128B, Code 128C, German Post, Code 128A, ITF-14, EAN-128, MSI |
| Connectivity Technology | Wired |
| Features | Gap sensor, transmissive media sensor, Black Mark sensor (position adjustable) |
| Interface | USB 2.0, LAN, RS232C, USB 2.0 host |
| Language Simulation | ZPL, ZPL II, EPL2, DPL |
| Max Resolution (B&W) | 300 dpi |
| Print Speed | Up to 127 mm/sec - max speed |
| RAM | |
| RAM Installed (Max) | 64 MB |
| Software / System Requirements | |
| OS Required | Linux, Microsoft Windows 7, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2008, Windows 8, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Windows 8.1, Windows 10, Apple MacOS X 10.10.x, SuSE Linux Enterprise Server 12, Apple MacOS X 10.11.x, Microsoft Windows Server 2016, CentOS 7.2, Red Hat Enterprise Linux 7.3, Apple macOS 10.12.x, Linux Fedora 24, Apple macOS 10.14.x, Apple macOS 10.13.x, Ubuntu 11.04 - 16.04 |
| Software Included | Drivers & Utilities, Brother Solutions Center |
