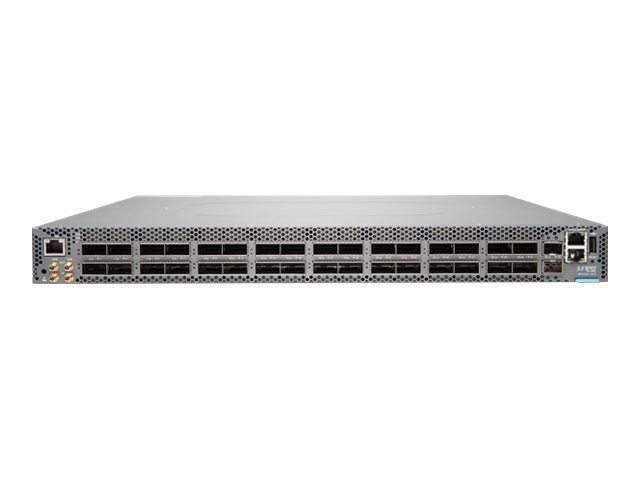

Juniper Networks QFX Series QFX5220-32CD

$50,262.00

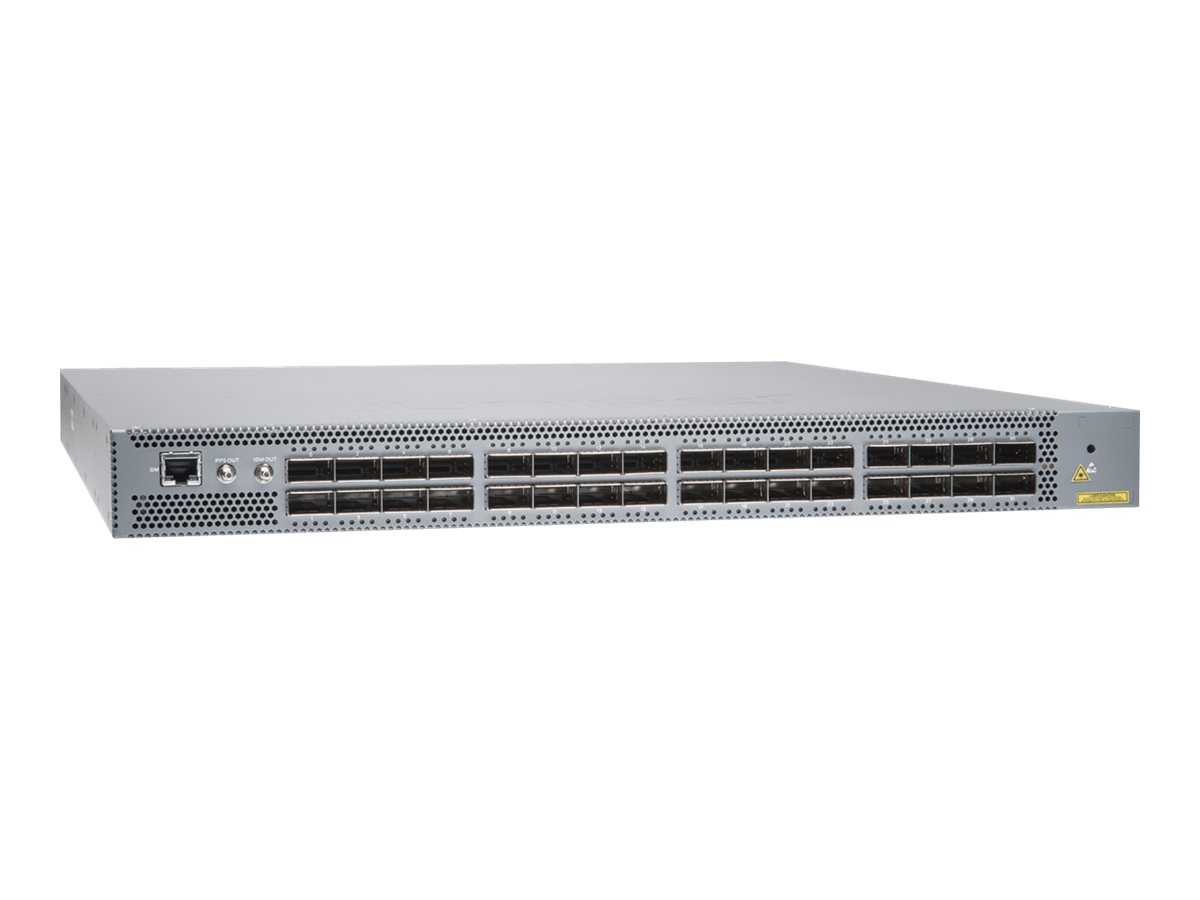

Juniper Networks QFX Series QFX5220-32CD
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Switch
  • L3
  • managed
  • 32 x 400 Gigabit QSFP56-DD + 2 x 10Gb Ethernet SFP+
  • back to front airflow
Juniper Networks QFX Series QFX5220-32CD
  • Switch
  • L3
  • managed
  • 32 x 400 Gigabit QSFP56-DD + 2 x 10Gb Ethernet SFP+
  • back to front airflow
  • rack-mountable
  Additional Details
Price: $50,262.00
Mfr Part #: QFX5220-32CD-AFO
SHI Part #: 37547999
Category: Network switches
UNSPSC: 43222612
Manufacturer: Juniper Networks
Product Type: Hardware

Control/Interface Boards

Juniper Networks - QSFP-DD transceiver module
Juniper Networks - QSFP-DD transceiver module
  • 400GbE
  • 400GBase-FR4
  • LC single-mode
  • up to 2 km
  • 1310 nm
  • for MX-series MX2010, MX2020, MX240, MX480; PTX Series PTX10001, PTX10008; QFX Series QFX5220
$5,664.00
Juniper Networks - QSFP-DD transceiver module
Juniper Networks - QSFP-DD transceiver module
  • 400GbE
  • 400GBase-FR4
  • MPO-12 single-mode
  • up to 2 km
  • 1304.5 (TX) / 1317.5 (RX) nm
  • for MX-series MX2010, MX2020; PTX Series PTX10001-36MR, PTX10008; QFX Series QFX5220-32CD
$9,493.00
Juniper Networks - QSFP-DD transceiver module
Juniper Networks - QSFP-DD transceiver module
  • 400GbE
  • 400GBase-DR4, 4x Ethernet 100GBase-DR
  • MPO-12 single-mode
  • up to 500 m
  • 1310 nm
  • for MX-series MX2010, MX2020, MX240, MX480; PTX Series PTX10001, PTX10008; QFX Series QFX5220
$8,152.00

Network Cables

Juniper Networks - 400GBase direct attach splitter
Juniper Networks - 400GBase direct attach splitter
  • QSFP-DD (M) to QSFP-DD (M)
  • 2.5 m
  • for QFX Series QFX5220-32CD
$852.00
Juniper Networks - Direct attach cable
Juniper Networks - Direct attach cable
  • QSFP28 to SFP28
  • 5 m
  • twinaxial
  • SFF-8432/SFF-8661
  • passive
  • for ACX Series Universal Metro Router ACX5448-M; QFX Series QFX5120-32C, QFX5220-32CD
$2,024.00
Juniper Networks - Direct attach cable
Juniper Networks - Direct attach cable
  • QSFP28 (M) to SFP28
  • 3 m
  • for ACX Series Universal Metro Router ACX5448; EX Series EX4650; QFX Series QFX5120, QFX5220
$971.00
General Information
CategoryNetwork switches
DescriptionJuniper Networks QFX Series QFX5220-32CD - Switch - L3 - managed - 32 x 400 Gigabit QSFP56-DD + 2 x 10Gb Ethernet SFP+ - back to front airflow - rack-mountable
ManufacturerJuniper Networks
MSRP$111,176.82
UNSPSC43222612
Main Specifications
Dimensions & Weight / Depth53.59 cm
Dimensions & Weight / Height4.3 cm
Dimensions & Weight / Weight11.11 kg
Dimensions & Weight / Width43.8 cm
Header / BrandJuniper Networks
Miscellaneous / Product ColorGray
Networking / Form FactorRack-mountable
Networking / Ports Qty32
Networking / TypeSwitch
Packaged Quantity1
Service & Support / Type1-year warranty
Dimensions & Weight
Depth53.59 cm
Height4.3 cm
Weight11.11 kg
Width43.8 cm
Environmental Parameters
Humidity Range Operating5 - 90% (non-condensing)
Humidity Range Storage5 - 95% (non-condensing)
Max Operating Temperature40 °C
Max Storage Temperature70 °C
Min Operating Temperature0 °C
Min Storage Temperature-40 °C
Expansion / Connectivity
Interfaces
  • 32 x 400Gbit LAN QSFP56-DD
  • 1 x Gigabit LAN RJ-45 management
  • 1 x console RJ-45
  • 1 x USB Type A
  • 2 x 10Gbit LAN SFP+
General
Authentication MethodSecure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Capacity
  • Packet buffer size: 128 MB
  • VLAN IDs: 3968
  • LAG groups: 128
  • Maximum member ports per LAG: 64
  • Firewall ingress filters(RACL, VACL, PACL rules): 768
  • Firewall egress filters (VACL, PACL rules): 512
  • Firewall egress filters RACL rules: 2558
  • IPv4 routes (Unicast): 3800000
  • IPv6 routes (Unicast): 130000
  • ARP entries: 32000
  • GRE tunnels: 2000
  • MPLS labels: 16000
Compliant StandardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1ab (LLDP), IEEE 802.1Qbb, IEEE 802.1Qaz
Device TypeSwitch - 32 ports - L3 - managed
Enclosure TypeBack to front airflow rack-mountable 1U
FeaturesFirewall protection, VPN support, ARP support, MPLS support, VLAN support, IGMP snooping, MAC address filtering, IPv6 support, High Availability, LLQ, WRED, STP support, RSTP support, VRRP support, MSTP support, DHCP snooping, ACL support, QoS, MPLS VPN, MLD snooping, RTG, BFD, DHCP relay, RSPAN, DCB, MIB, VSTP, loop prevention, redundant hot swappable fans, sFlow v5, IGMP proxy, MSDP, SDWRR, UFD, Storm Control, PFC, BPDU, IGMP querier, Root Guard, ZTP, DoS protection, SPAN, ERSPAN, RVI, port-based VLAN, BPDU Guard, Q-in-Q tunneling, FBF, VLAN trunking, MC-LAG, LFA
Jumbo Frame Support9216 bytes
MAC Address Table Size8192 entries
Performance
  • Switching throughput: up to 12.8 Tbps
  • Forwarding capacity: 80000000 packets per second
Ports32 x 400 Gigabit QSFP56-DD + 2 x 10Gb Ethernet SFP+
Processor1 x Intel Xeon D-1518
Remote Management ProtocolSNMP 1, SNMP 2, SNMP 3
Routing ProtocolOSPF, IGMPv2, IGMP, OSPFv2, OSPFv3, MLDv2, MLD
Subtype400 Gigabit Ethernet
Manufacturer Warranty
Service & SupportLimited warranty - 1 year
Miscellaneous
Compliant StandardsETSI, CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE, RoHS, REACH, EN 60825-1, ETS 300 753, FIPS, VCCI Class A, China RoHS, EN 55022 Class A, EN 300 386, KN32, KN35, AS/NZS CISPR 32 Class A, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, ETSI EN 300 019, ETSI EN 300 019-2-1, ETSI EN 300 019-2-2, ETSI EN 300 019-2-3, ETSI EN 300 019-2-4
Power
80 PLUS Certification80 PLUS Silver
Installed Qty2
Max Supported Qty2
Power Consumption Operational958 Watt
Power DeviceInternal power supply - hot-plug
Power Provided1600 Watt
Power RedundancyYes
Power Redundancy Scheme1+1
Voltage RequiredAC 120/230 V (50/60 Hz)
Software / System Requirements
Software IncludedJunos OS
