NETGEAR Plus GS305E - Switch
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
NETGEAR Plus GS305E - Switch
- managed
- 5 x 10/100/1000
- desktop, rack-mountable, wall-mountable
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | GS305E-100NAS |
| SHI Part #: | 37156641 |
| Category: | Network switches |
| UNSPSC: | 43222612 |
| Manufacturer: | NETGEAR |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Network switches |
| Description | NETGEAR Plus GS305E - Switch - managed - 5 x 10/100/1000 - desktop, rack-mountable, wall-mountable |
| Manufacturer | NETGEAR |
| UNSPSC | 43222612 |
| Main Specifications | |
| Dimensions & Weight / Depth | 10 cm |
| Dimensions & Weight / Height | 2.7 cm |
| Dimensions & Weight / Weight | 250 g |
| Dimensions & Weight / Width | 9.4 cm |
| Header / Brand | NETGEAR |
| Miscellaneous / Product Color | Black |
| Networking / Form Factor |
|
| Networking / Ports Qty | 5 |
| Networking / Type | Switch |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Dimensions & Weight | |
| Depth | 10 cm |
| Height | 2.7 cm |
| Weight | 250 g |
| Width | 9.4 cm |
| Environmental Parameters | |
| Humidity Range Operating | 90% (non-condensing) |
| Humidity Range Storage | 95% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -20 °C |
| Expansion / Connectivity | |
| Interfaces | 5 x 1000Base-T RJ-45 |
| General | |
| Capacity |
|
| Compliant Standards | IEEE 802.3az, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Device Type | Switch - 5 ports - managed |
| Enclosure Type | Desktop, rack-mountable, wall-mountable |
| Features | SOHO, QoS, IGMP snooping, VLAN support, DoS attack prevention, loopback detection, rate limit, port mirroring, Jumbo Frames support, store and forward, WRR, port-based VLAN, block unknown multicast, DHCP client, DSCP support, CoS, ToS, SP, cable test, 128KB packet buffer |
| Jumbo Frame Support | 9KB |
| MAC Address Table Size | 8000 entries |
| Performance | Bandwidth: 10 Gbps |
| Ports | 5 x 10/100/1000 |
| Remote Management Protocol | TFTP |
| Routing Protocol | IGMP, IGMPv2, IGMPv3 |

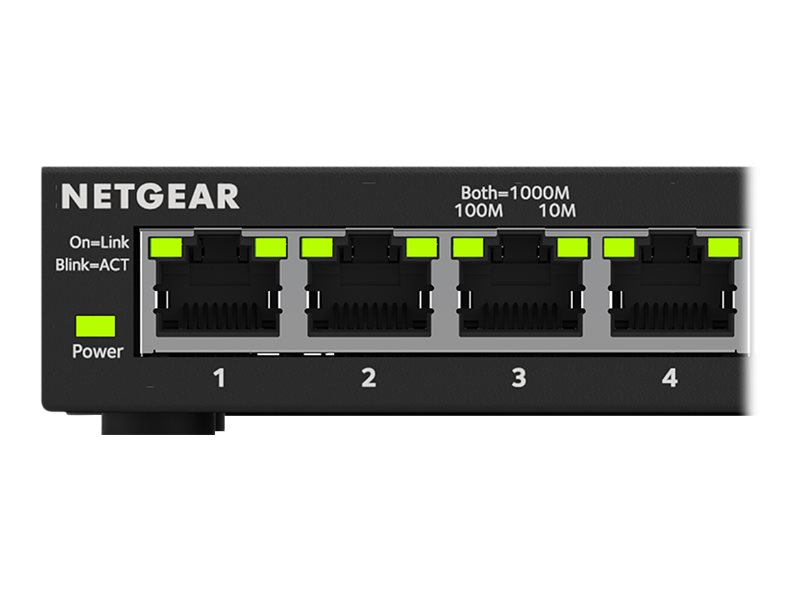

| Status Indicators | Speed, link/activity, power, system |
| Subtype | Gigabit Ethernet |
| Manufacturer Warranty | |
| Service & Support |
|
| Miscellaneous | |
| Compliant Standards | Plug and Play, FCC Part 15 Class B, EN 55032, VCCI, ACMA, EN55024 |
| MTBF | 2,531,294 hours |
