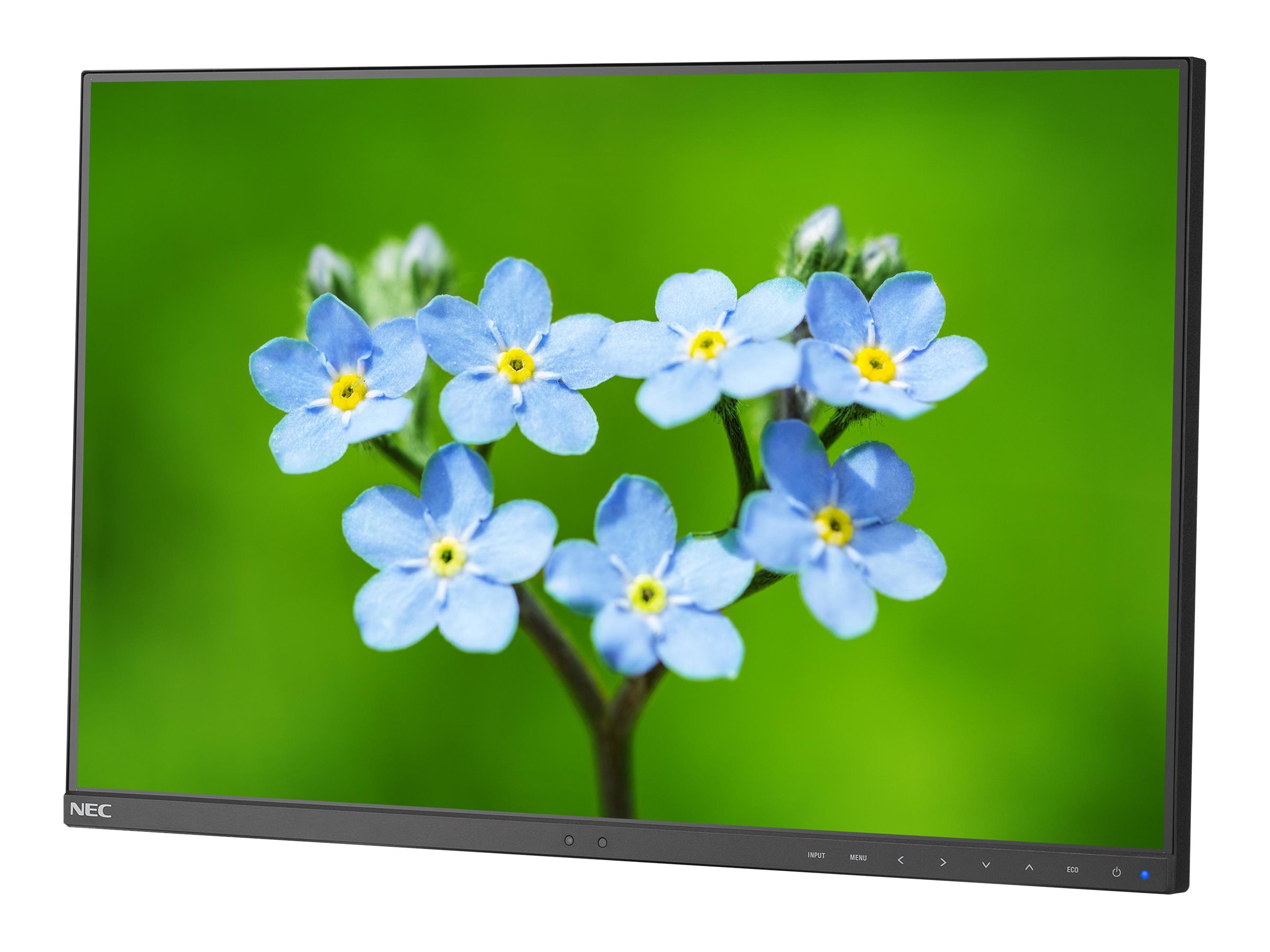

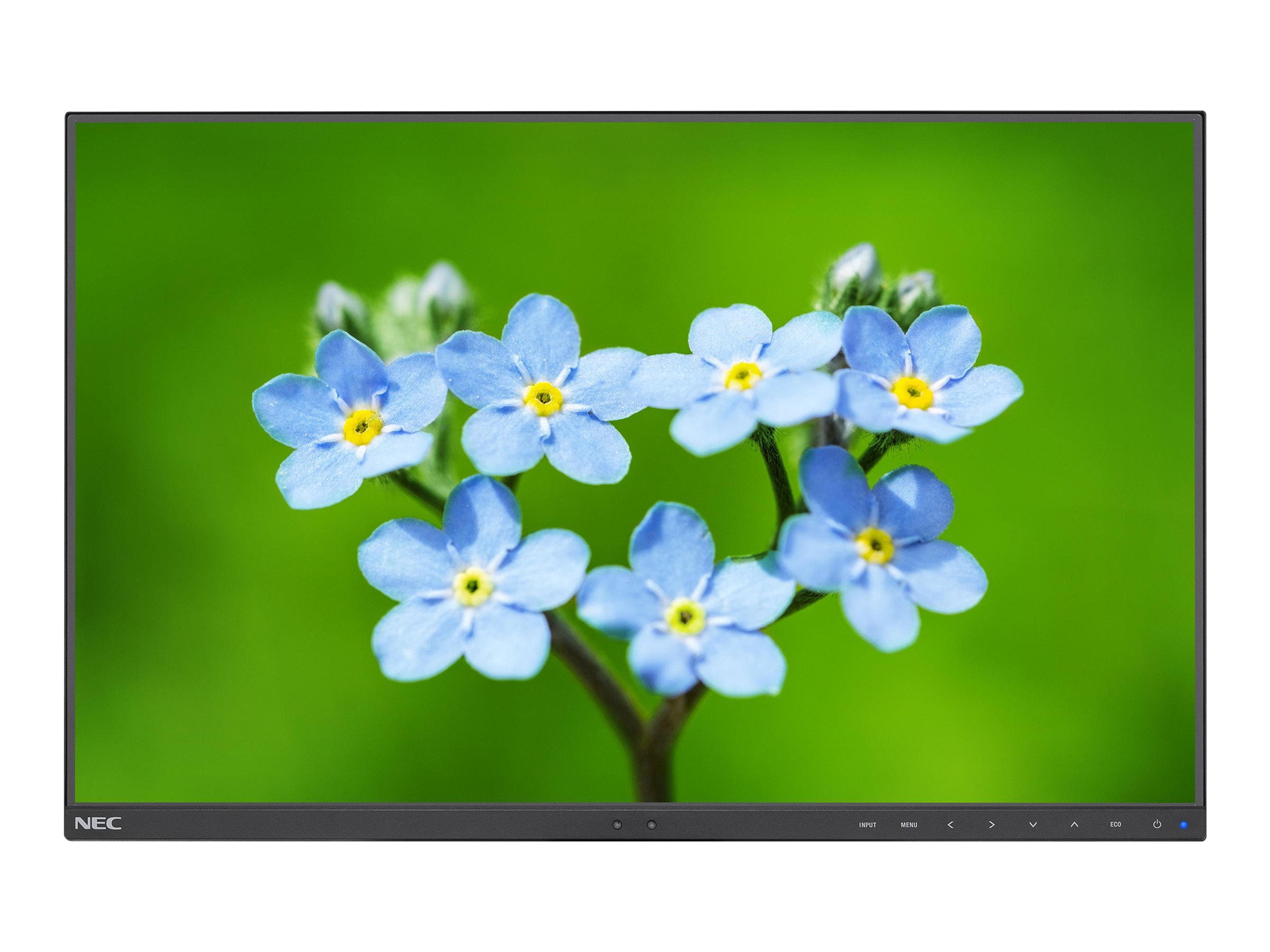

NEC MultiSync EA231WU-H-BK
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
NEC MultiSync EA231WU-H-BK
- Without stand
- LED monitor
- 23" (22.5" viewable)
- 1920 x 1200 WUXGA
- IPS
- 250 cd/m²
- 1000:1
- 5 ms

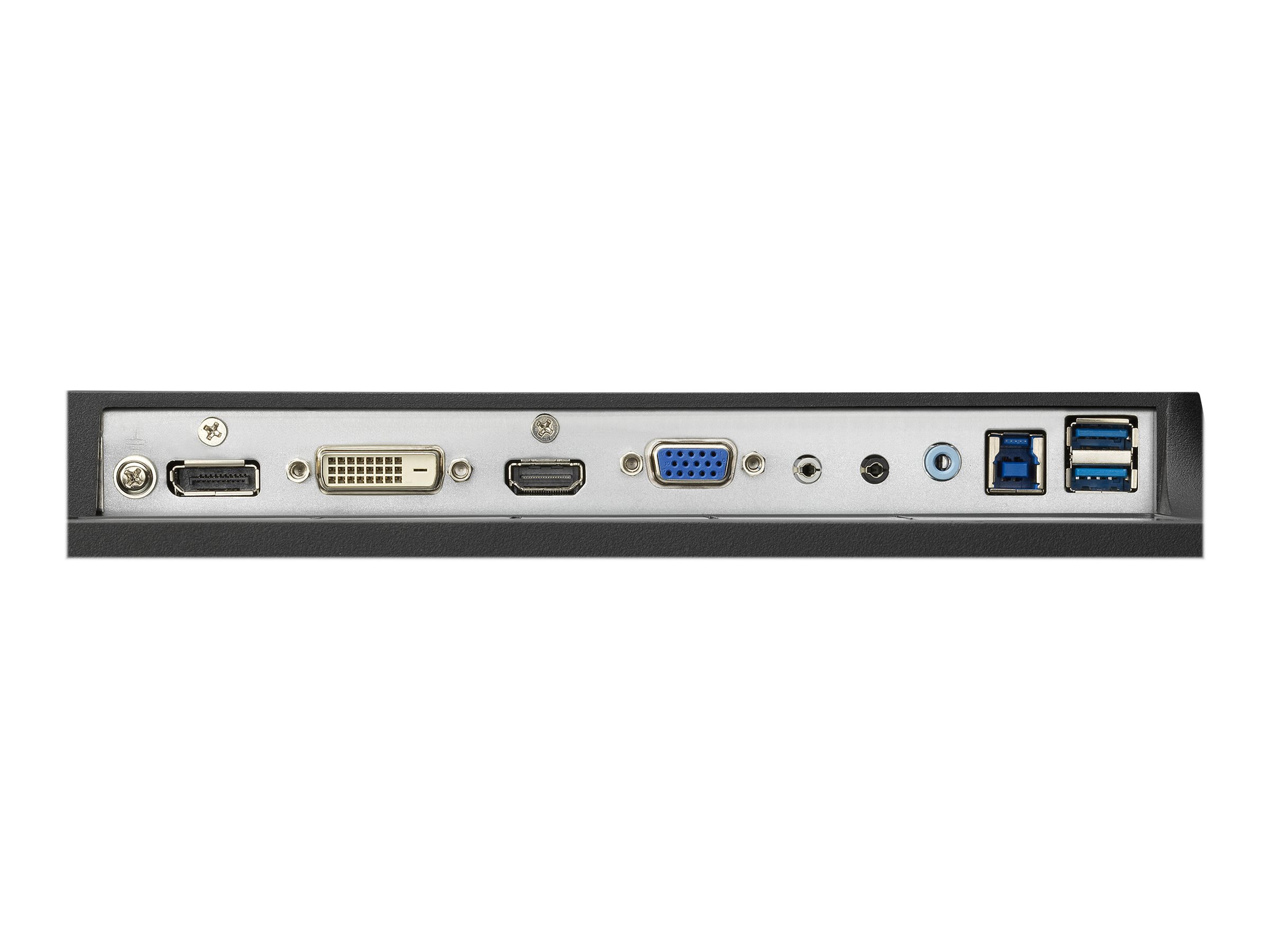

- HDMI, DVI-D, VGA, DisplayPort
- speakers
- black
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | EA231WU-H-BK |
| SHI Part #: | 37097022 |
| Category: | Flat panel displays |
| UNSPSC: | 43211902 |
| Manufacturer: | NEC |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Flat panel displays |
| Description | NEC MultiSync EA231WU-H-BK - Without stand - LED monitor - 23" (22.5" viewable) - 1920 x 1200 WUXGA - IPS - 250 cd/m² - 1000:1 - 5 ms - HDMI, DVI-D, VGA, DisplayPort - speakers - black |
| Manufacturer | NEC |
| MSRP | $463.00 |
| UNSPSC | 43211902 |
| Main Specifications | |
| Dimensions & Weight / Depth | 4.56 cm |
| Dimensions & Weight / Height | 31.97 cm |
| Dimensions & Weight / Weight | 3.4 kg |
| Dimensions & Weight / Width | 49.89 cm |
| Display / Diagonal Size | 23 in |
| Display / Diagonal Size (metric) | 58.4 cm |
| Display / Interface |
|
| Display / Native Resolution | 1920 x 1200 |
| Display / Pixel Pitch | 0.25 mm |
| Display / Type | LED-backlit LCD monitor |
| Header / Brand | NEC |
| Image Brightness | 250 cd/m² |
| Miscellaneous / Compliant Standards |
|
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Audio | |
| Output Power / Channel | 1 Watt |
| Type | Speakers - stereo |
| Connectivity | |
| Interfaces |
|
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 20 cm |
| Shipping Height | 42 cm |
| Shipping Weight | 5.7 kg |
| Shipping Width | 65.5 cm |
| Environmental Parameters | |
| Humidity Range Operating | 20 - 80% |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 5 °C |
| General | |
| Aspect Ratio | 16:10 |
| Backlight Technology | WLED |
| Brightness | 250 cd/m² |

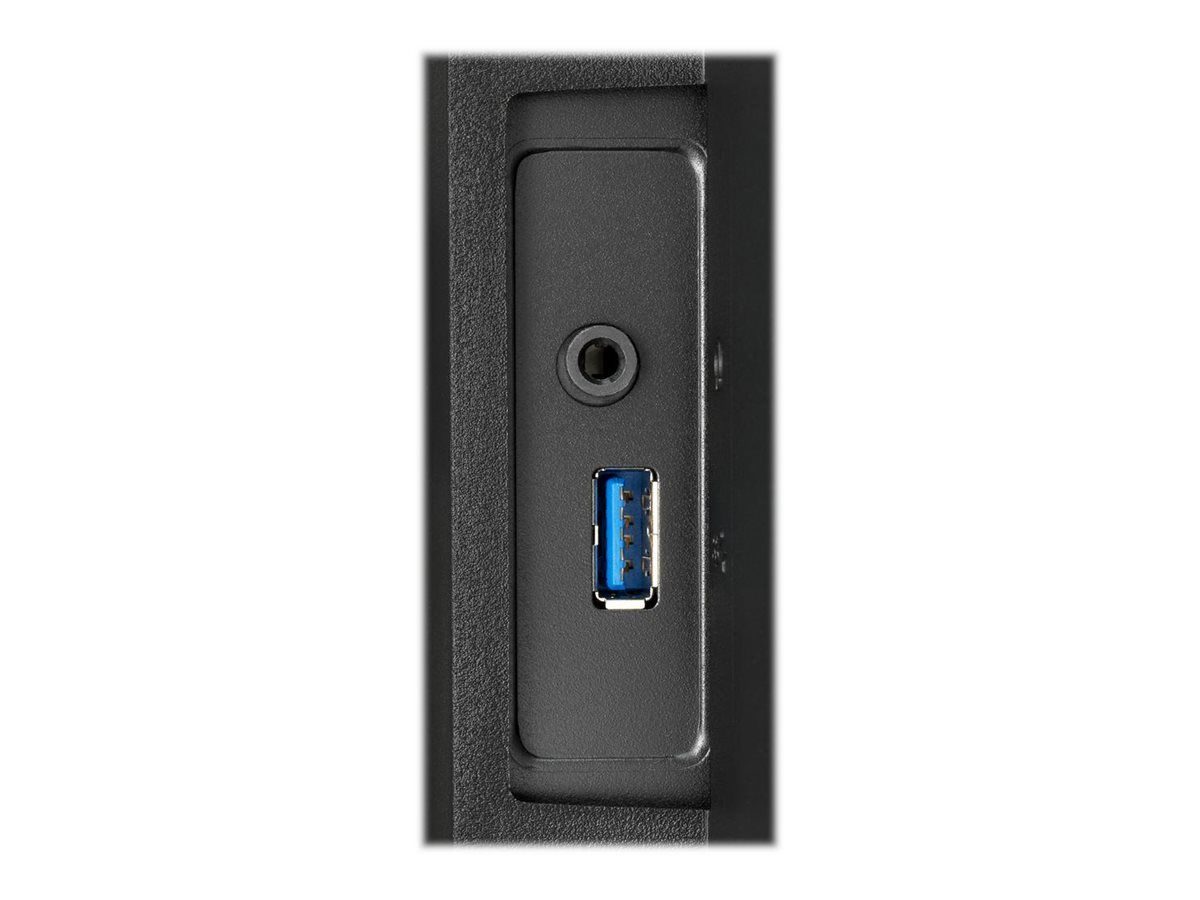

| Built-in Devices | USB 3.1 Gen 1 hub |
| Color | Black |
| Color Gamut | 72% NTSC |
| Color Support | 16.7 million colors |
| Contrast Ratio | 1000:1 / 5000:1 (dynamic) |
| Diagonal Size | 23" |
| Dimensions (WxDxH) | 49.89 cm x 4.56 cm x 31.97 cm - without stand |
| Display Type | LED-backlit LCD monitor / TFT active matrix |
| Energy Class | Class D |
| Energy Label QR Code URL | Https://eprel.ec.europa.eu/qr/391613 |

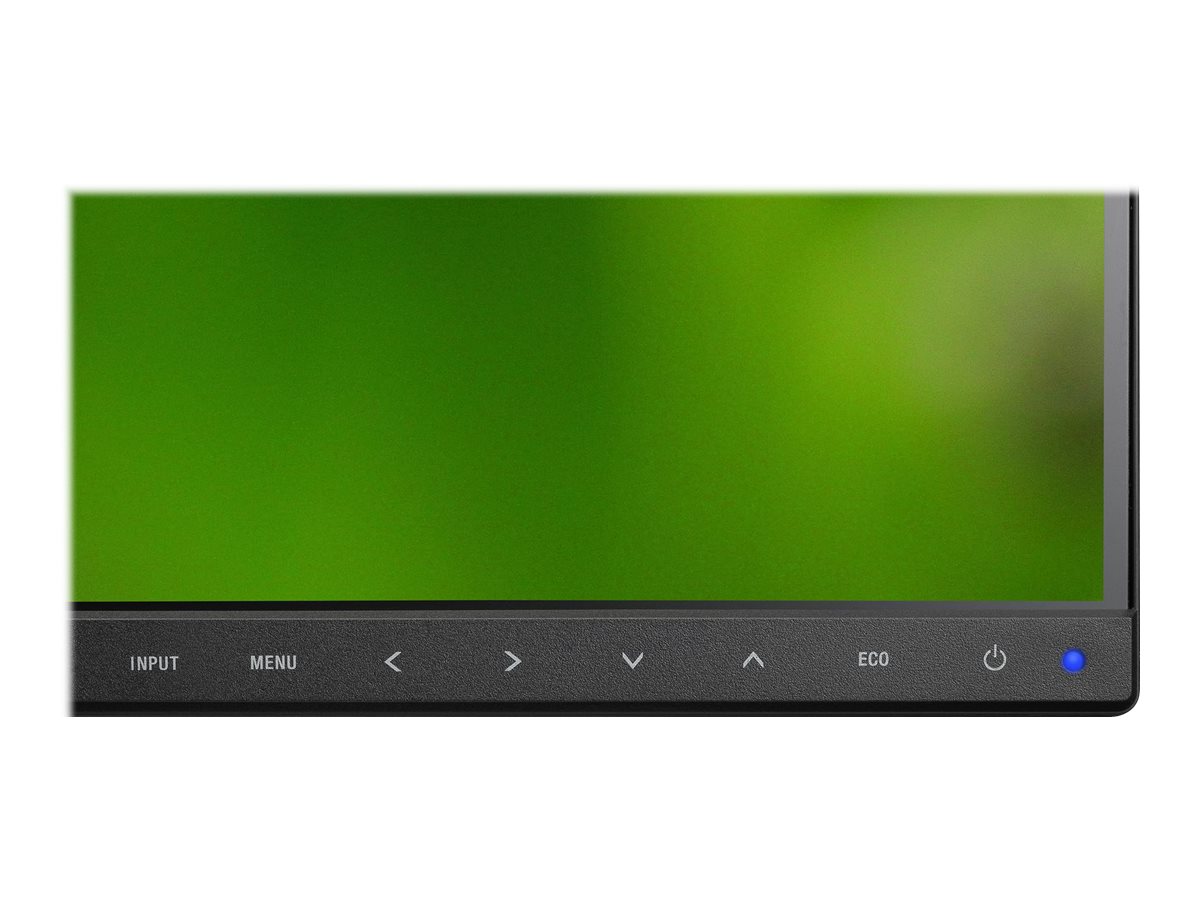

| Features | Ambient light sensor, XtraView, AccuColor Control Systems, Rapid Response, Ambix, Sync on Green, carrying handle, HDCP, Eco-Mode, Auto Brightness Control, Dynamic Visual Mode, ControlSync, On-screen Digital Controls, OSD lock, integrated cable management, Carbon Footprint Meter, Human Sensor, Flicker Free technology, DICOM Simulation, resettable cost meter, ultra-thin bezel design, Low Blue Light technology, 72% NTSC color gamut |
| Horizontal Refresh Rate | 31.5 - 75 kHz |
| Horizontal Viewing Angle | 178 |
| Native Resolution | WUXGA 1920 x 1200 |
| Panel Type | IPS |
| Pixel Per Inch | 100 |
| Pixel Pitch | 0.25 mm |
| Response Time | 5 ms (gray-to-gray) |
| Vertical Refresh Rate | 50 - 60 Hz |
| Vertical Viewing Angle | 178 |
| Viewable Size | 22.5" |
| Weight | 3.4 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years |
| Mechanical | |
| VESA Mounting Interface | 100 x 100 mm |
| Miscellaneous | |
| Cables Included |
|
| Compliant Standards | Plug and Play, DDC-2B, VESA DPMS, DDC/CI, RoHS, ISO 9241-307 Class 1, HDCP 1.4, VESA DDC 2 B |
| Features | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| Power | |
| Input Voltage | AC 120/230 V (50/60 Hz) |
| Power Consumption (On mode) | 11.7 W |
| Power Consumption (Typical) | 15 Watt |
| Power Consumption SDR (On mode) | 11.7 kWh/1000h |
| Power Consumption Stand by | 0.29 Watt |
| Software / System Requirements | |
| Included Software | NaViSet, SpectraViewII software |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
| ENERGY STAR Version | 7.0 |
