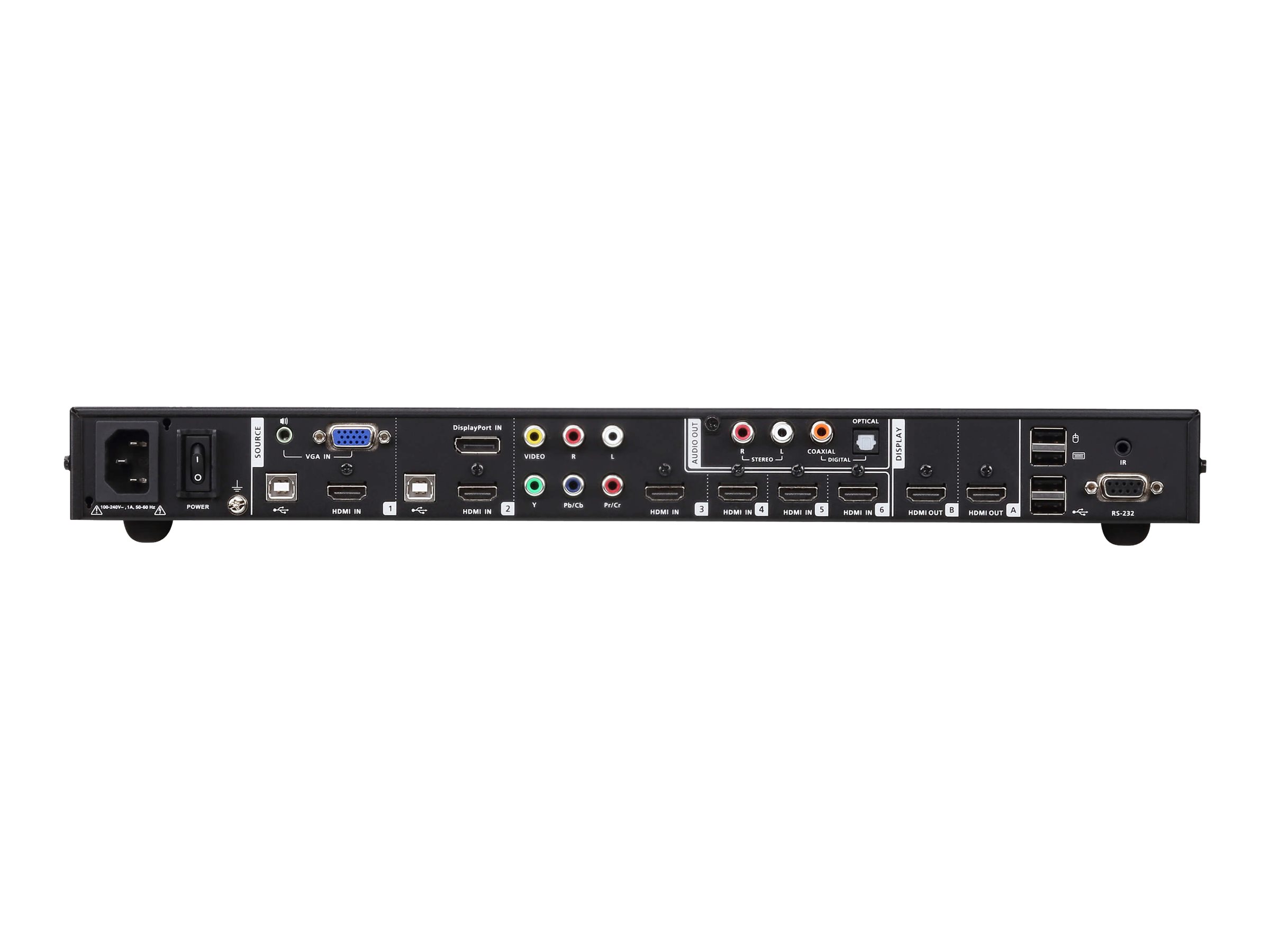

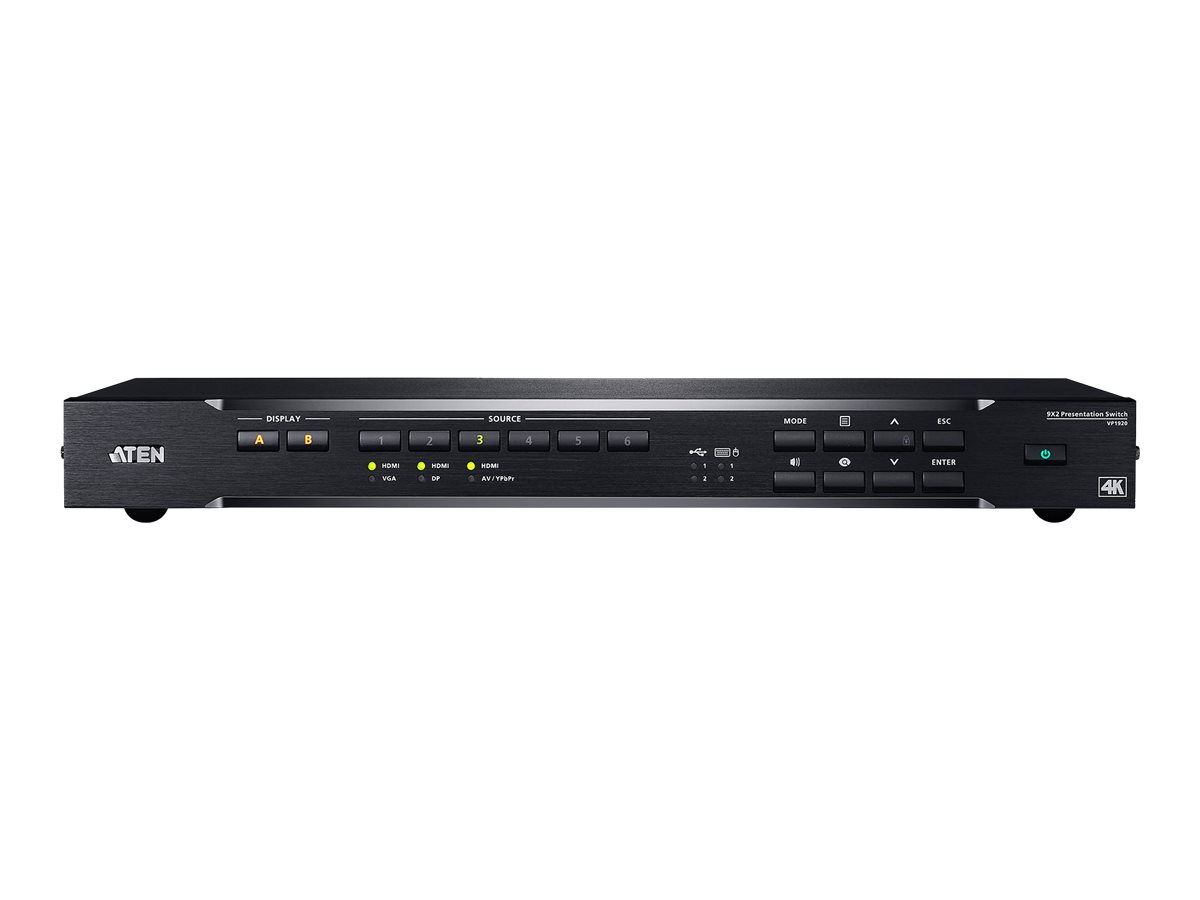

ATEN VP1920 9x2 4K Presentation Matrix Switch
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
ATEN VP1920 9x2 4K Presentation Matrix Switch
- Video/audio switch
- desktop
- AC 100
- 240 V
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | VP1920 |
| SHI Part #: | 37091818 |
| Category: | Peripheral switch boxes |
| UNSPSC: | 43211604 |
| Manufacturer: | ATEN |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Peripheral switch boxes |
| Description | ATEN VP1920 9x2 4K Presentation Matrix Switch - Video/audio switch - desktop - AC 100 - 240 V |
| Manufacturer | ATEN |
| MSRP | $1,103.87 |
| UNSPSC | 43211604 |
| Main Specifications | |
| Dimensions & Weight / Depth | 16.36 cm |
| Dimensions & Weight / Height | 4.4 cm |
| Dimensions & Weight / Weight | 2.36 kg |
| Dimensions & Weight / Width | 43.72 cm |
| Header / Brand | ATEN |
| Miscellaneous / Product Color | Black |
| Networking / Form Factor | Desktop |
| Networking / Type | Video/audio switch |
| Packaged Quantity | 1 |
| Dimensions & Weight | |
| Depth | 16.36 cm |
| Height | 4.4 cm |
| Weight | 2.36 kg |
| Width | 43.72 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 80% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Max Storage Temperature | 60 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -20 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Compliant Standards | HDCP 1.4 |
| Device Type | Video/audio switch |
| Enclosure Type | Desktop |
| Features | Firmware upgradable, input selection buttons, 3D support, 4K resolution support, metal housing, Dolby TrueHD support, DTS-HD Master Audio support, EDID Expert |
| Max Resolution | 4096 x 2160 / 3840 x 2160 @ 60 Hz |
| Subtype | HDMI / component video / composite video / VGA / DisplayPort / audio |
| Miscellaneous | |
| Compliant Standards | CEC |
| Included Accessories | Remote control, IR receiver |
| Power | |
| Electric Current Required | 1 A |
| Power Consumption Operational | 7.3 Watt |
| Power Device | Internal power supply |
| Voltage Required | AC 100 - 240 V (50 - 60 Hz) |
