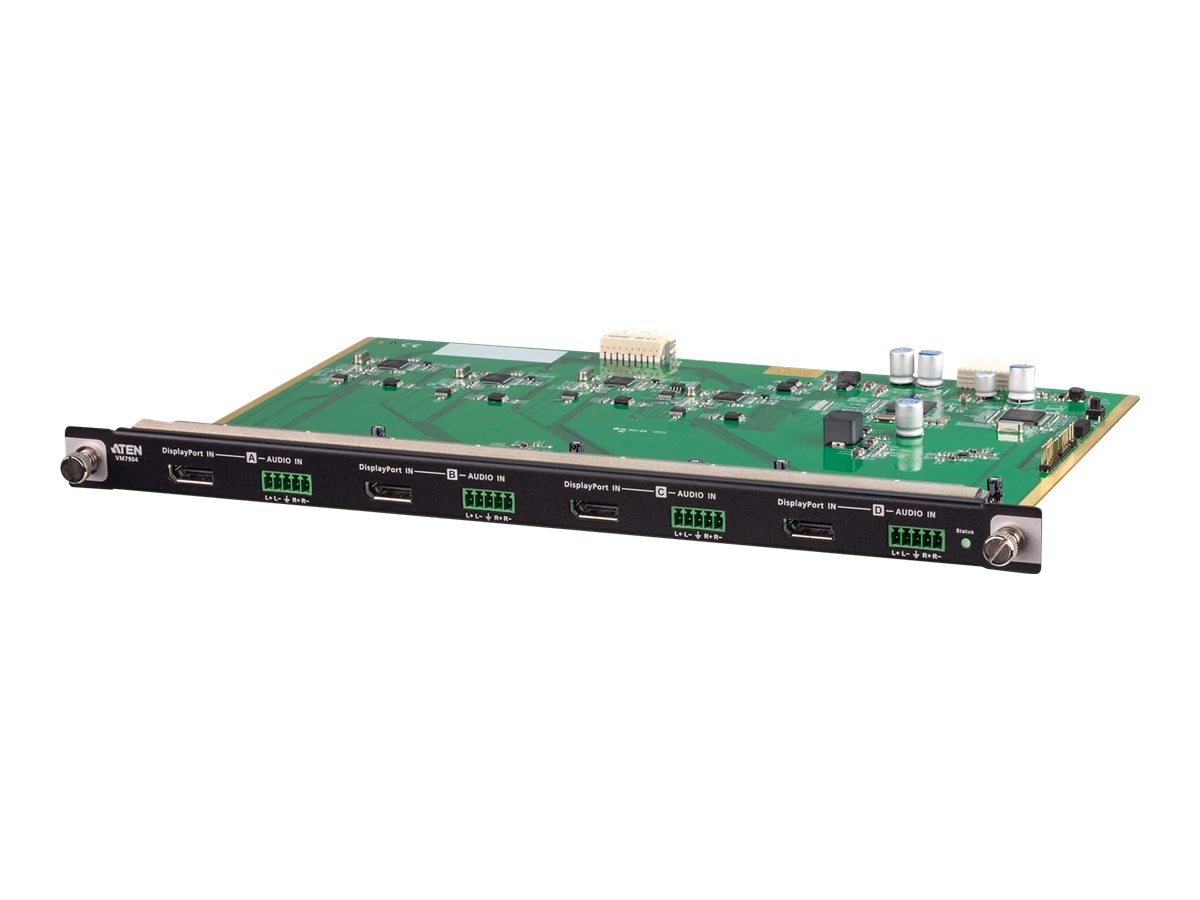

ATEN VM7904 4-Port 4K DisplayPort Input Board
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
ATEN VM7904 4-Port 4K DisplayPort Input Board
- Expansion module
- DisplayPort x 4
- for VanCryst VM1600A, VM3200, VM3250
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | VM7904 |
| SHI Part #: | 37091817 |
| Category: | Network interface cards |
| UNSPSC: | 43201404 |
| Manufacturer: | ATEN |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Network interface cards |
| Description | ATEN VM7904 4-Port 4K DisplayPort Input Board - Expansion module - DisplayPort x 4 - for VanCryst VM1600A, VM3200, VM3250 |
| Manufacturer | ATEN |
| MSRP | $2,855.05 |
| UNSPSC | 43201404 |
| Main Specifications | |
| Dimensions & Weight / Depth | 23.8 cm |
| Dimensions & Weight / Height | 2.33 cm |
| Dimensions & Weight / Weight | 550 g |
| Dimensions & Weight / Width | 35.2 cm |
| Header / Brand | ATEN |
| Miscellaneous / Product Color | Black |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol | DisplayPort |
| Networking / Type | Expansion module |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Compatibility Information | |
| Designed For | ATEN VanCryst VM1600A, VM3200, VM3250 |
| Dimensions & Weight | |
| Depth | 23.8 cm |
| Height | 2.33 cm |
| Weight | 550 g |
| Width | 35.2 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 80% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | Expansion module |
| Form Factor | Plug-in module |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | DisplayPort |
| Features | HDCP compliant, 4K resolution support |
| Performance | Maximum data rate: 2.7 Gbps |
| Ports | DisplayPort x 4 |
| Power | |
| Power Consumption Operational | 7.18 Watt |
