Hardware Power Management
Add to My Favorites
Power Management

CyberPower Smart App Online OL2200RTXL2UN

$2,978.00
CyberPower Smart App Online OL2200RTXL2UN
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • UPS (rack-mountable / external)
  • AC 120 V
  • 1800 Watt
  • 2200 VA 9 Ah
  • RS-232, USB
CyberPower Smart App Online OL2200RTXL2UN
  • UPS (rack-mountable / external)
  • AC 120 V
  • 1800 Watt
  • 2200 VA 9 Ah
  • RS-232, USB
  • output connectors: 7
  • 2U
  • black
  • with RMCARD205 network management card
  Additional Details
Price: $2,978.00
Mfr Part #: OL2200RTXL2UN
SHI Part #: 37070616
Category: Power conditioning equipment
UNSPSC: 39121000
Manufacturer: CyberPower
Product Type: Hardware
General Information
CategoryPower conditioning equipment
DescriptionCyberPower Smart App Online OL2200RTXL2UN - UPS (rack-mountable / external) - AC 120 V - 1800 Watt - 2200 VA 9 Ah - RS-232, USB - output connectors: 7 - 2U - black - with RMCARD205 network management card
ManufacturerCyberPower
UNSPSC39121000
Main Specifications
Dimensions & Weight / Depth60 cm
Dimensions & Weight / Height8.9 cm
Dimensions & Weight / Weight30.93 kg
Dimensions & Weight / Width43.2 cm
Header / BrandCyberpower
Miscellaneous / Product ColorBlack
Networking / Remote Management Interface
  • RS-232
  • USB
Packaged Quantity1
Power Device / Form FactorRack-mountable / external
Power Device / Output Connector Qty7
Power Device / Power Capacity (VA)2200 VA
Power Device / UPS TechnologyOn-line
Power Device / Voltage RequiredAC 120 V
Product TypeUPS
Service & Support / Type3-year warranty
Battery
Capacity9 Ah
FeaturesSealed
Quantity6
Recharge Time4 hours
Run Time (Up To)
  • 6.5 min at full load
  • 20 min at half load
TechnologyLead acid
Transfer Time0 ms
Voltage Provided12 V
Dimensions & Weight
Depth60 cm
Height8.9 cm
Weight30.93 kg
Width43.2 cm
Dimensions & Weight (Shipping)
Shipping Depth55.88 cm
Shipping Height88.265 cm
Shipping Weight39.5 kg
Shipping Width23.495 cm
Environmental Parameters
Humidity Range Operating0 - 90% (non-condensing)
Max Operating Temperature40 °C
Min Operating Temperature0 °C
Sound Emission55 dBA
Expansion / Connectivity
Expansion Slots1 (total) / 0 (free) x expansion slot

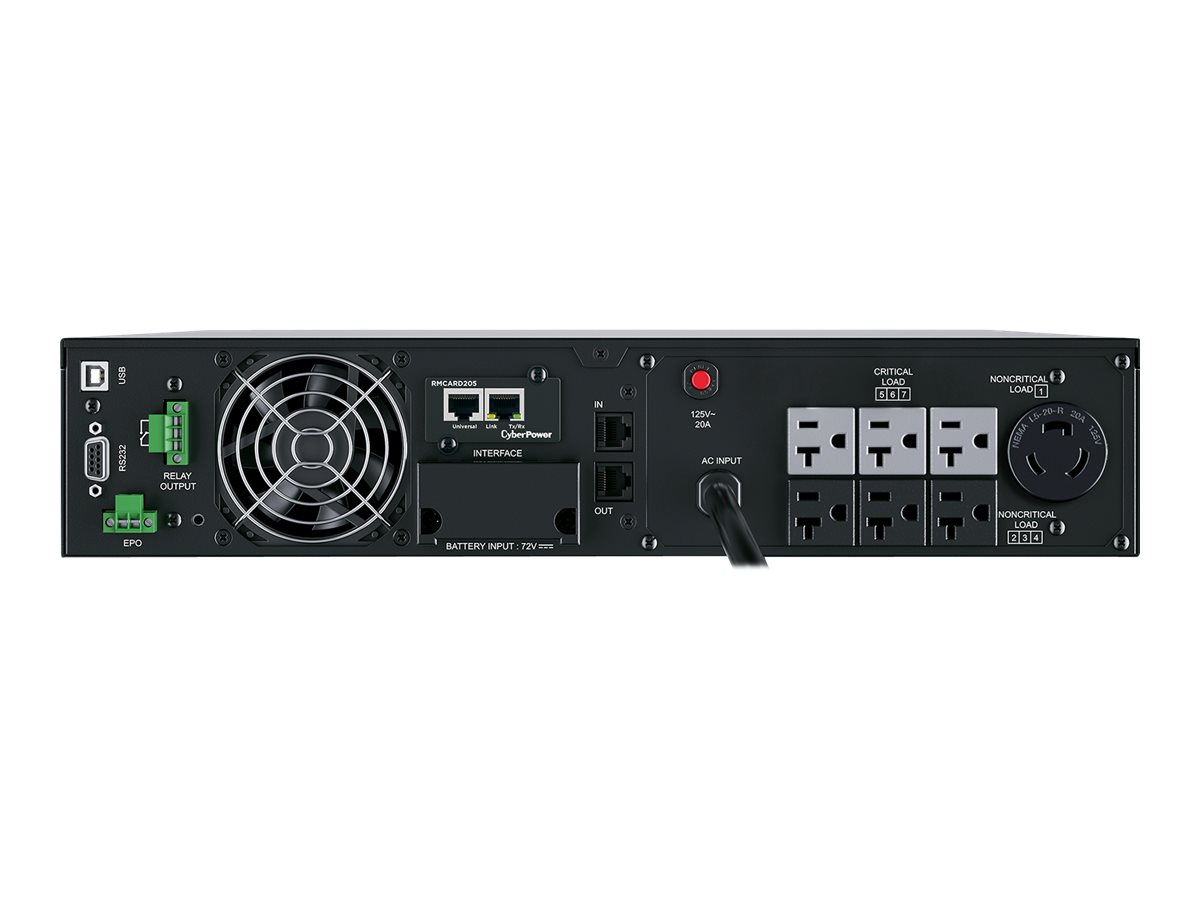

Interfaces
  • 1 x management (USB) - 4 pin USB Type B
  • 1 x management (RS-232) - 9 pin D-Sub (DB-9)
  • 1 x EPO (emergency power off)
  • 1 x relay output - terminal block
General
Bundled withRMCARD205 network management card
ColorBlack
Device TypeUPS - rack-mountable / external
Height (Rack Units)2U
Manufacturer Warranty
Service & SupportLimited warranty - 3 years
Miscellaneous
Cables Included
  • Power cable 3 m
  • USB cable - external
  • Serial cable - external
  • Phone cable - external
Compliant StandardsFCC Part 15 A, UL 1778 5th edition, CSA C22.2 No.107.3-05, IEC 61000-4-5 Level 3
Equipment Protection Value400000 US Dollars
FeaturesAudible alarm, LCD display, internal bypass, LED indicators, overload protection, cold-start function, firmware upgradable, Smart Battery Management (SMB), Eco-Mode, Auto-Sensing Technology, double conversion, Fast Charge technology
Rack Mounting KitIncluded
Networking
Remote Management InterfaceRS-232, USB
Power Device
Circuit ProtectionCircuit breaker
Dataline Surge ProtectionNetwork/phone line - RJ-45/RJ-11 - 1 input line / 1 output line
Efficiency95% Eco mode
Frequency Provided50/60 Hz
Frequency Required40 - 70 Hz
Input Connectors1 x power NEMA 5-20P
Input VoltageAC 120 V
Input Voltage RangeAC 60 - 150 V
Output VoltageAC 100/110/115/120/125 V ± 2% - 50/60 Hz
Output WaveformSinewave
Power Capacity1800 watt / 2200 VA
Power Factor (PF)0.99
Power Output Connectors Details
  • 6 x power NEMA 5-20R
  • 1 x power NEMA L5-20R
Surge Energy Rating1335 joules
Surge SuppressionYes
UPS TechnologyOn-line
Software / System Requirements
Software IncludedPowerPanel Business Edition
Sustainability Information
ENERGY STARYes
