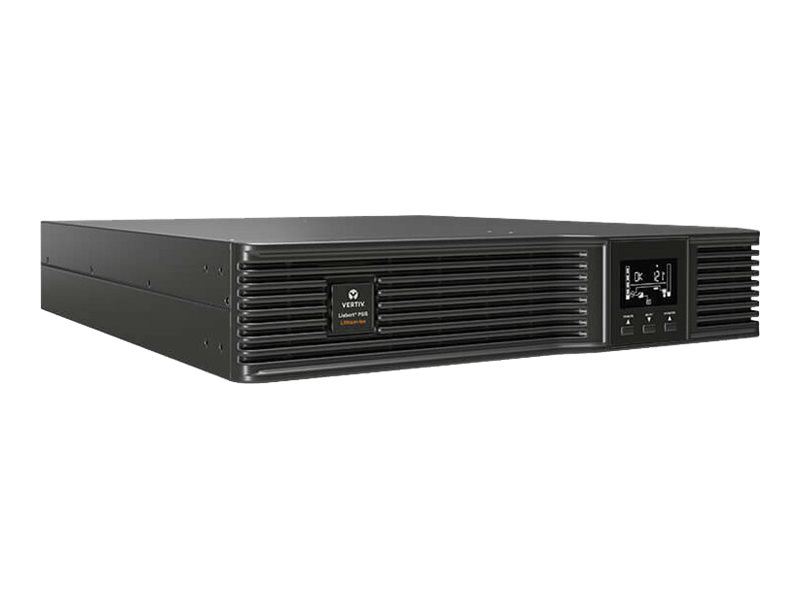

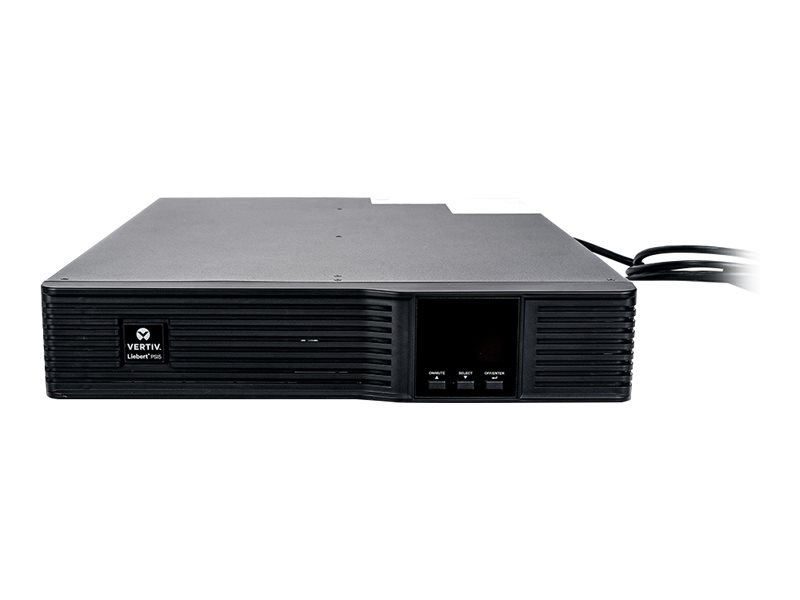

Liebert PSI5 PSI5-2200RT120
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Liebert PSI5 PSI5-2200RT120
- UPS (rack-mountable / external)
- AC 120 V
- 1920 Watt
- 2200 VA 7 Ah
- output connectors: 7
- 2U
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | PSI5-2200RT120 |
| SHI Part #: | 37069649 |
| Category: | Power conditioning equipment |
| UNSPSC: | 39121000 |
| Manufacturer: | Vertiv |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Power conditioning equipment |
| Description | Liebert PSI5 PSI5-2200RT120 - UPS (rack-mountable / external) - AC 120 V - 1920 Watt - 2200 VA 7 Ah - output connectors: 7 - 2U |
| Manufacturer | Vertiv |
| MSRP | $3,436.00 |
| UNSPSC | 39121000 |
| Main Specifications | |
| Dimensions & Weight / Depth | 63 cm |
| Dimensions & Weight / Height | 8.8 cm |
| Dimensions & Weight / Weight | 26.8 kg |
| Dimensions & Weight / Width | 43.8 cm |
| Header / Brand | Liebert |
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable / external |
| Power Device / Output Connector Qty | 7 |
| Power Device / Power Capacity (VA) | 2200 VA |
| Power Device / Voltage Required | AC 120 V |
| Product Type | UPS |
| Battery | |
| Capacity | 7 Ah |
| Features | Valve-regulated |
| Quantity | 6 |
| Recharge Time | 4 hours |
| Run Time (Up To) |
|
| Technology | Lead acid |
| Transfer Time | 6 ms |
| Type | Expandable |
| Voltage Provided | 12 V |
| Dimensions & Weight | |
| Depth | 63 cm |
| Height | 8.8 cm |
| Weight | 26.8 kg |
| Width | 43.8 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 78.2 cm |
| Shipping Height | 55 cm |
| Shipping Weight | 31.8 kg |
| Shipping Width | 25.8 cm |
| Environmental Parameters | |
| Humidity Range Operating | 20 - 90% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 55 dB |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x Liebert IntelliSlot |
| Interfaces |
|
| General | |
| Device Type | UPS - rack-mountable / external |
| Height (Rack Units) | 2U |
| Miscellaneous | |
| Cables Included |
|
| Compliant Standards | UL 1989, ANSI C62.41 Category A, Level 3, 1372J |
| Features | Audible alarm, LCD display, Automatic Voltage Regulation (AVR), overcurrent protection, overload protection, short-circuit protection, 3 programmable sockets |

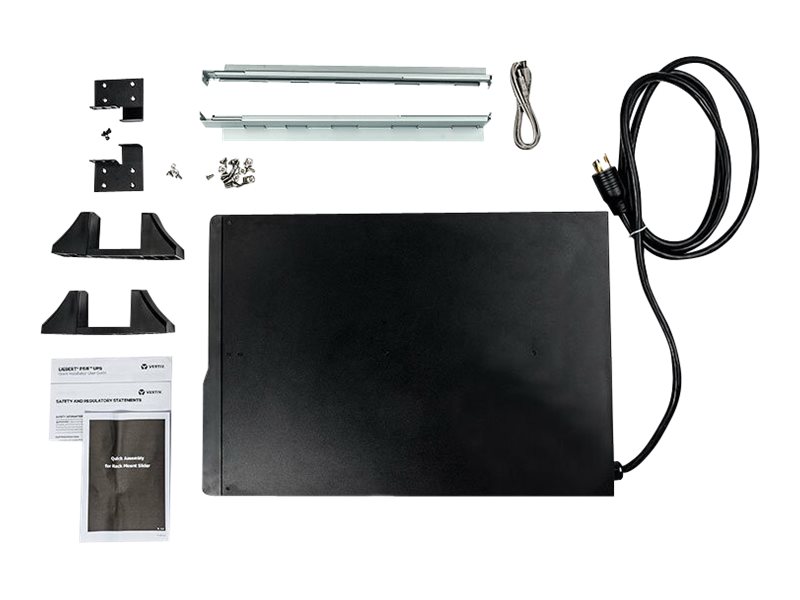

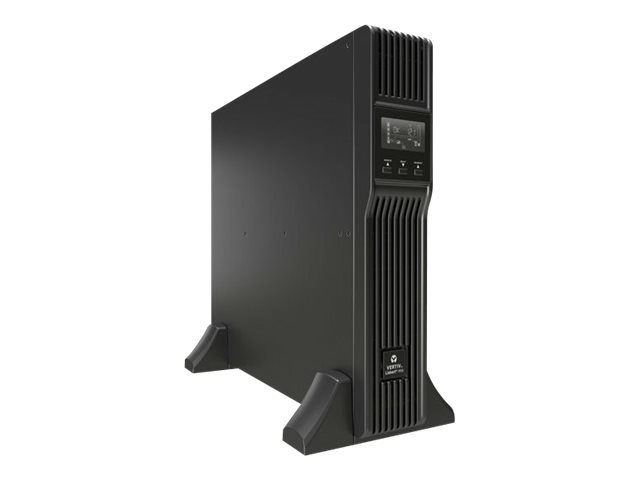

| Included Accessories | Floor stand |

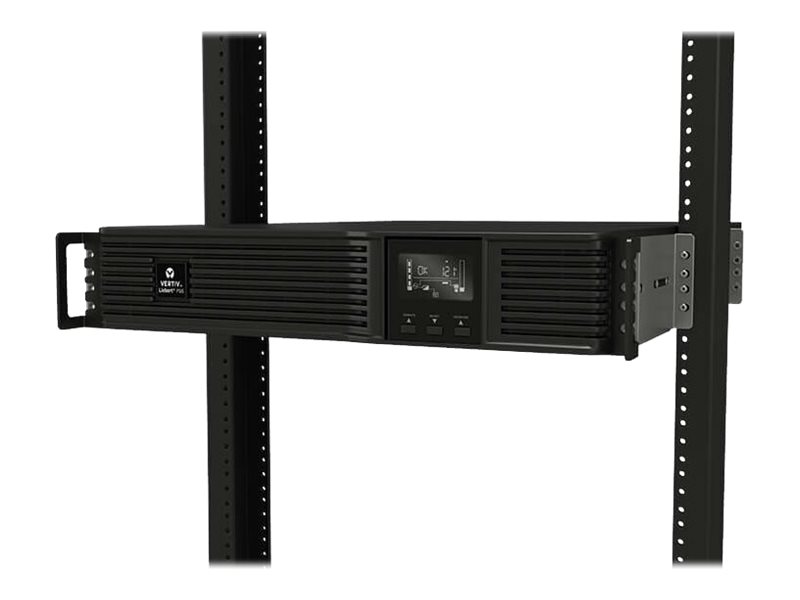

| Rack Mounting Kit | Included |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Dataline Surge Protection | Network/phone line - RJ-45 - 1 input line / 1 output line |
| Efficiency | 96% |
| Frequency Provided | 60 Hz ± 1% |
| Frequency Required | 55 - 65 Hz |

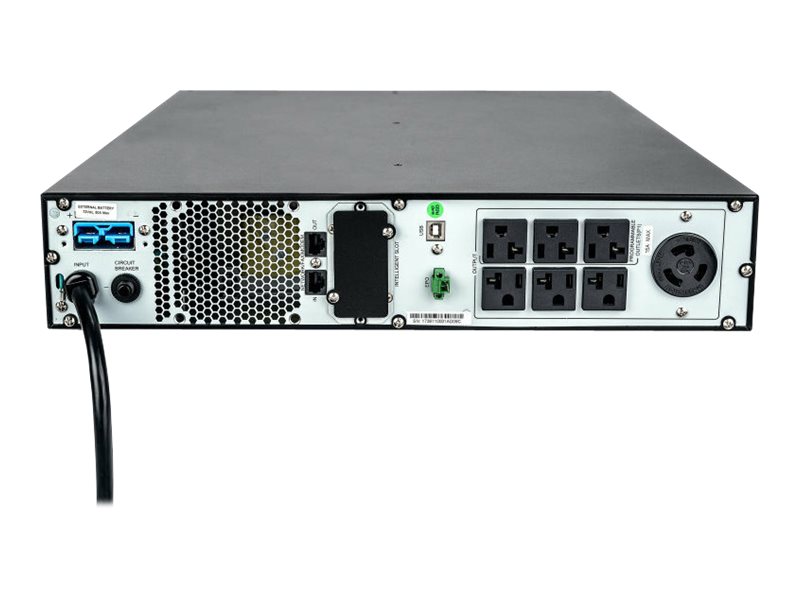

| Input Connectors | 1 x power NEMA L5-20 |
| Input Voltage | AC 120 V |
| Input Voltage Margin | ± 5% |
| Input Voltage Range | AC 75 - 146 V |
| Output Voltage | AC 100/110/115/120/125 V 60 Hz |
| Output Waveform | Sinewave |
| Power Capacity | 1920 Watt / 2200 VA |
| Power Output Connectors Details |
|
| Surge Suppression | Yes |
| Software / System Requirements | |
| Software Included | Liebert MultiLink Shutdown |
