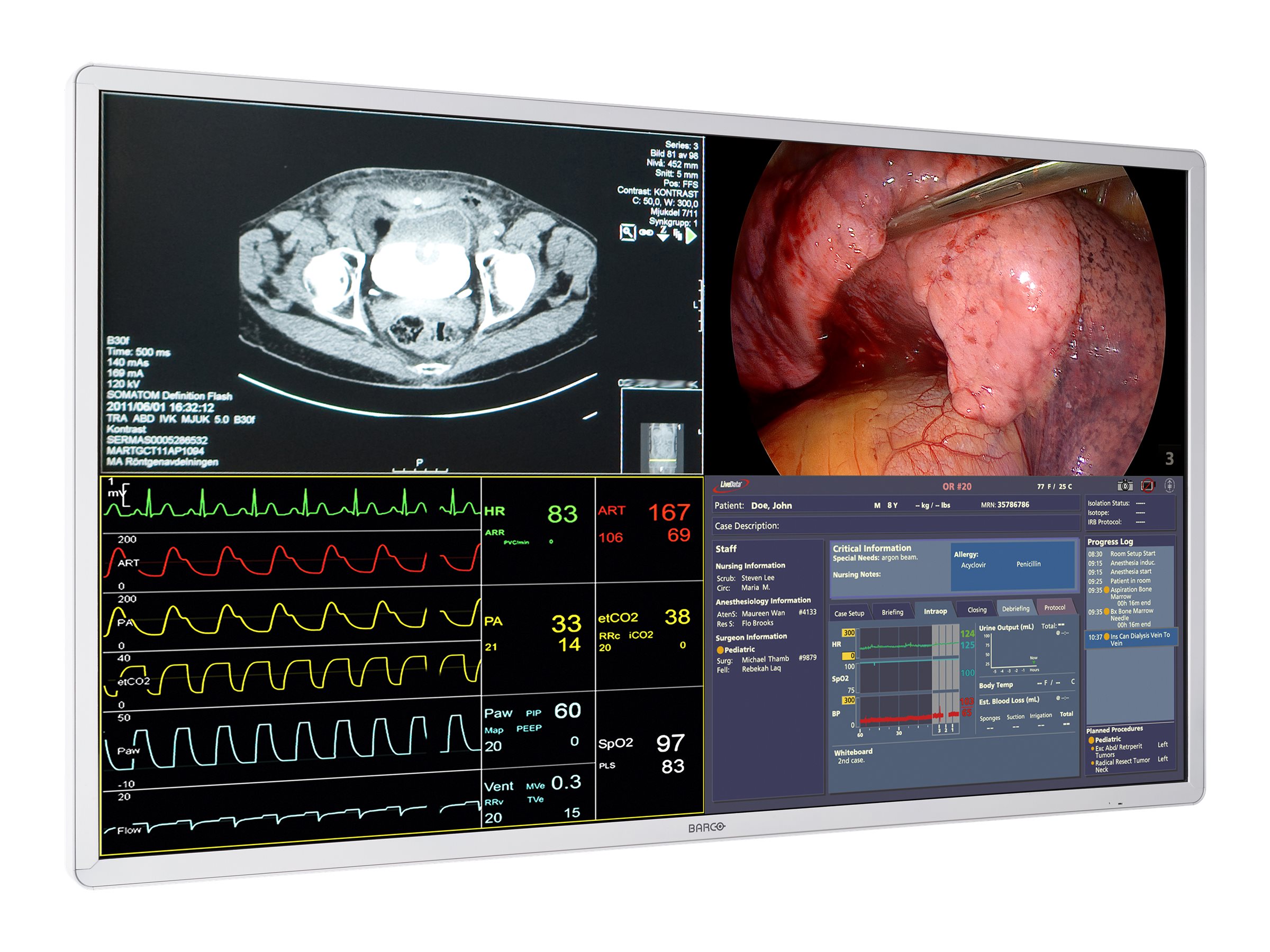

Barco MDSC-8255 - LED monitor
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Barco MDSC-8255 - LED monitor
- color
- 55" (54.6" viewable)
- stationary
- 3840 x 2160 4K UHD (2160p) @ 60 Hz
- IPS
- 500 cd/m²
- 1100:1
- 8 ms
- 4xDisplayPort, 2xDVI, 2x3G-SDI
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | K930793002 |
| SHI Part #: | 36987080 |
| Category: | Flat panel displays |
| UNSPSC: | 43211902 |
| Manufacturer: | Barco |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Flat panel displays |
| Description | Barco MDSC-8255 - LED monitor - color - 55" (54.6" viewable) - stationary - 3840 x 2160 4K UHD (2160p) @ 60 Hz - IPS - 500 cd/m² - 1100:1 - 8 ms - 4xDisplayPort, 2xDVI, 2x3G-SDI |
| Manufacturer | Barco |
| MSRP | $15,708.29 |
| UNSPSC | 43211902 |
| Main Specifications | |
| Dimensions & Weight / Depth | 8.7 cm |
| Dimensions & Weight / Height | 73.4 cm |
| Dimensions & Weight / Weight | 33 kg |
| Dimensions & Weight / Width | 126 cm |
| Display / Diagonal Size | 55 in |
| Display / Diagonal Size (metric) | 139.7 cm |
| Display / Interface |
|
| Display / Native Resolution | 3840 x 2160 |
| Display / Pixel Pitch | 0.315 mm |
| Display / Type | LED-backlit LCD monitor |
| Header / Brand | Barco |
| Image Brightness | 500 cd/m² |
| Miscellaneous / Compliant Standards |
|
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Connectivity | |
| Interfaces |
|
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 0 °C |
| General | |
| Aspect Ratio | 16:9 |
| Backlight Technology | LED backlight |
| Brightness | 500 cd/m² |
| Color Support | 1.074 billion colors (10-bit) |
| Color Temperature | 9300K, 6500K, 7600K, 5600K |
| Contrast Ratio | 1100:1 |
| Diagonal Size | 55" |
| Dimensions (WxDxH) | 126 cm x 8.7 cm x 73.4 cm |
| Display Type | LED-backlit LCD monitor / TFT active matrix - color |
| Features | Picture in picture, DICOM calibrated |
| Horizontal Viewing Angle | 178 |
| Native Resolution | 4K UHD (2160p) 3840 x 2160 at 60 Hz |
| Panel Type | IPS |
| Pixel Pitch | 0.315 mm |
| Response Time | 8 ms (gray-to-gray) |
| Vertical Viewing Angle | 178 |
| Viewable Size | 54.6" |
| Weight | 33 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Mechanical | |

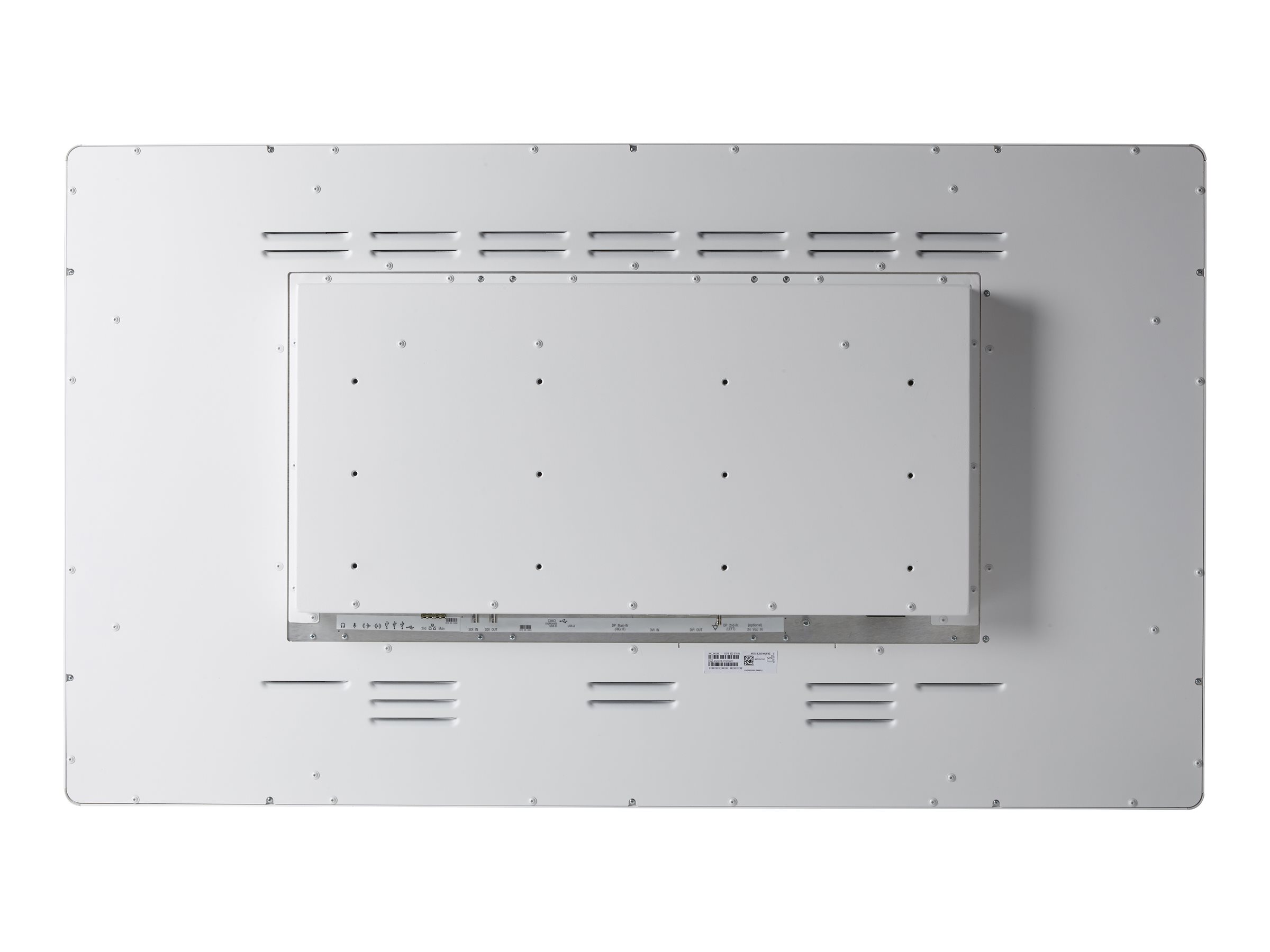

| VESA Mounting Interface | 200 x 200 mm, 600 x 200 mm |
| Miscellaneous | |
| Compliant Standards | DEMKO, IEC 60601-1-2, EMC, FCC CFR47 Part 15, WEEE, EN 55011, cULus, REACH, CISPR 11, IP20, RoHS2, IEC 60601-1, FCC CFR47 Part 18 B, CAN/CSA C22.2 No. 60601-1:14, IP45, ANSI/AAMI ES60601-1 (2005/(R)2012 |
| Features | Anti-scratch, surgical display |
| Power | |
| Input Voltage | AC 120/230 V (50/60 Hz) |
| Power Consumption (Off Mode) | 1 Watt |
| Power Consumption (Typical) | 120 Watt |
