ATEN CE 920 Local and Remote Units
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|

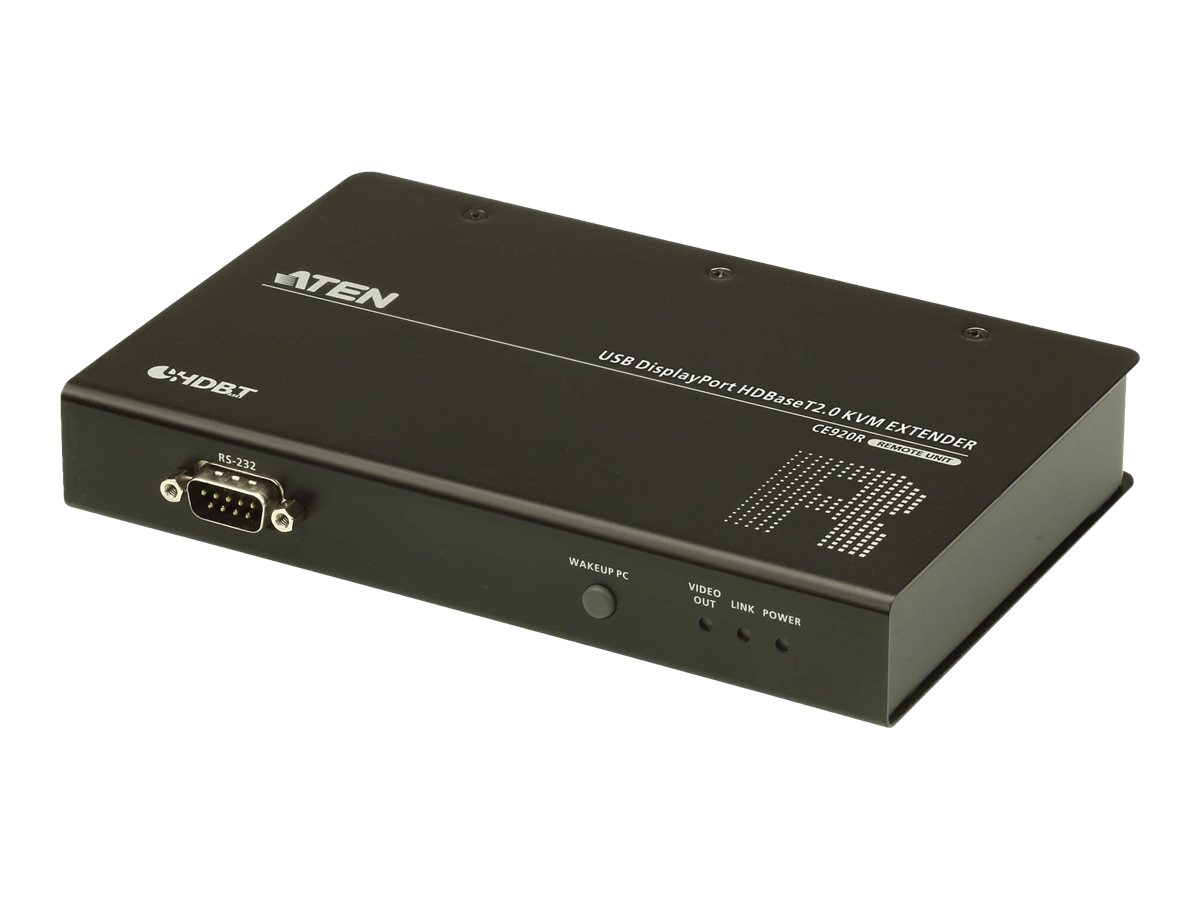

ATEN CE 920 Local and Remote Units
- KVM / audio / serial / USB / network extender
- HDBaseT 2.0
- USB
- up to 150 m
- for P/N: VS1818T-AT-E
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | CE920 |
| SHI Part #: | 36018971 |
| Category: | Serial port cards |
| UNSPSC: | 43201559 |
| Manufacturer: | ATEN |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Serial port cards |
| Description | ATEN CE 920 Local and Remote Units - KVM / audio / serial / USB / network extender - HDBaseT 2.0 - USB - up to 150 m - for P/N: VS1818T-AT-E |
| Manufacturer | ATEN |
| MSRP | $1,840.25 |
| UNSPSC | 43201559 |
| Main Specifications | |
| Dimensions & Weight / Depth | 18.2 cm |
| Dimensions & Weight / Height | 2.87 cm |
| Dimensions & Weight / Width | 12.19 cm |
| Header / Brand | ATEN |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol | HDBaseT 2.0 |
| Networking / Form Factor | External |
| Networking / Type | KVM / audio / serial / USB / network extender |
| Packaged Quantity | 1 |
| Compatibility Information | |
| Designed For | P/N: VS1818T-AT-E |
| Dimensions & Weight | |
| Depth | 18.2 cm |
| Height | 2.87 cm |
| Width | 12.19 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 80% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | KVM / audio / serial / USB / network extender |
| Form Factor | External |
| Miscellaneous | |
| Cables Included |
|
| Compliant Standards | RoHS |
| Mounting Kit | Included |
| Networking | |
| Compliant Standards | USB 2.0, HDCP 2.2 |
| Connectivity Technology | Wired |
| Data Link Protocol | HDBaseT 2.0 |
| Features | Firmware upgradable, HDCP compliant, 3D support, 8KV/15KV ESD Protector, metal housing, EDID Buffer |
| Keyboard / Mouse Interface | USB |
| Max Resolution | 4096 x 2160 / 3840 x 2160 @ 60 Hz |
| Max Transfer Distance | 150 m |
| Status Indicators | Power, link/activity, video |
| Power | |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Device | External power adapter |
