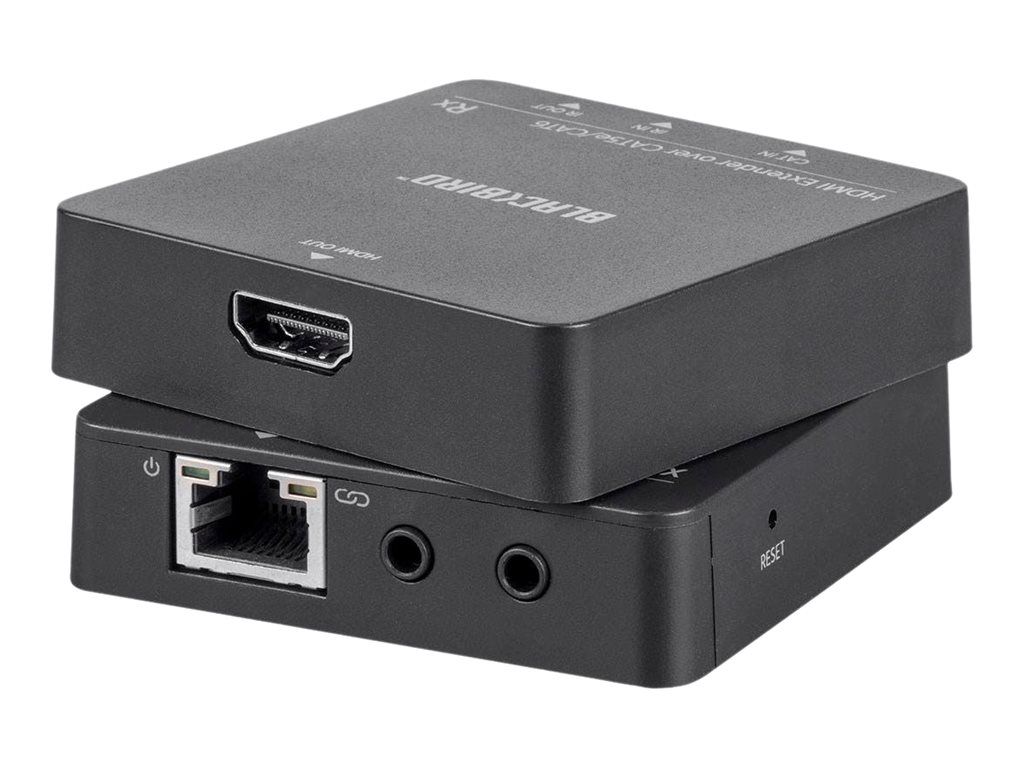

Monoprice Blackbird HDMI Extender
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Monoprice Blackbird HDMI Extender
- IR Kit, Loop Out
- video/audio/infrared extender
- HDBaseT
- up to 55 m
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | 24181 |
| SHI Part #: | 36015135 |
| Category: | Serial port cards |
| UNSPSC: | 43201559 |
| Manufacturer: | Monoprice |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Serial port cards |
| Description | Monoprice Blackbird HDMI Extender - IR Kit, Loop Out - video/audio/infrared extender - HDBaseT - up to 55 m |
| Manufacturer | Monoprice |
| UNSPSC | 43201559 |
| Main Specifications | |
| Dimensions & Weight / Depth | 6.6 cm |
| Dimensions & Weight / Height | 1.7 cm |
| Dimensions & Weight / Width | 6.6 cm |
| Header / Brand | Monoprice |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol | HDBaseT |
| Networking / Form Factor | External |
| Networking / Type | Video/audio/infrared extender |
| Packaged Quantity | 1 |
| Dimensions & Weight | |
| Depth | 6.6 cm |
| Dimensions (WxDxH) / Weight Details |
|
| Height | 1.7 cm |
| Width | 6.6 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | -10 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | Video/audio/infrared extender |
| Form Factor | External |
| Networking | |
| Compliant Standards | HDCP 1.4 |
| Connectivity Technology | Wired |
| Data Link Protocol | HDBaseT |
| Features | Power over cable (PoC), EDID Management, HDMI loop out |
| Max Resolution | 1920 x 1080 / 1080p @ 60 Hz |
| Max Transfer Distance | 55 m |
| Power | |
| Power Consumption Operational | 4 Watt |
| Power Over Ethernet (PoE) | PoC |
| Voltage Required | AC 120/230 V (50/60 Hz) |
- Video/audio/infrared/serial extender
- HDMI, HDBaseT 2.0
- up to 70 m
