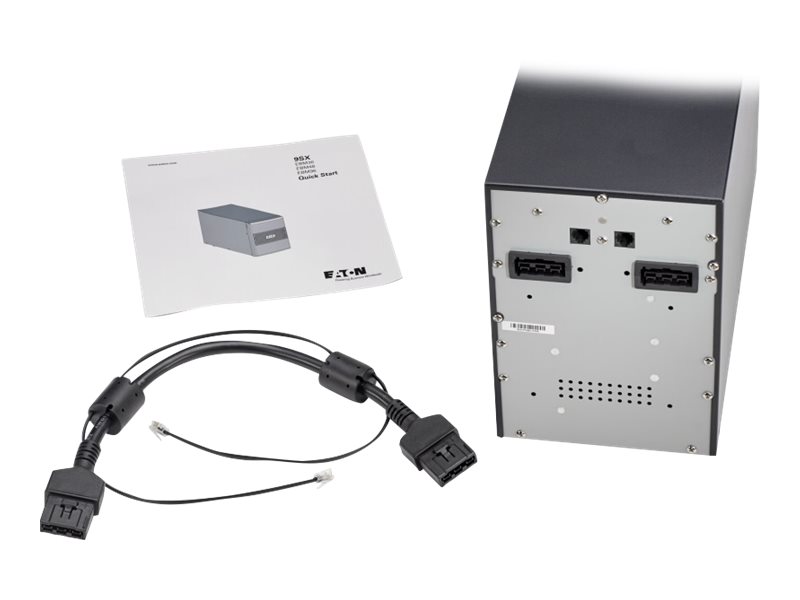

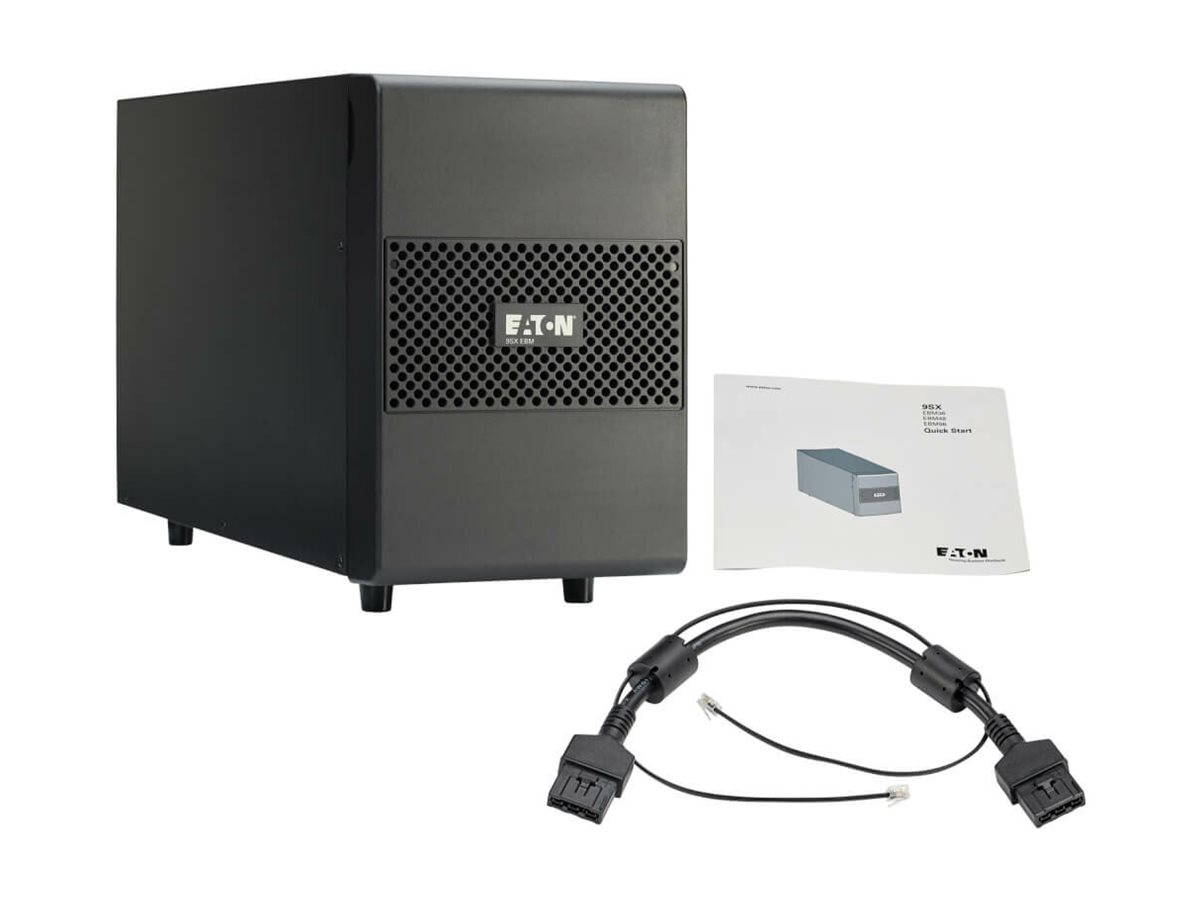

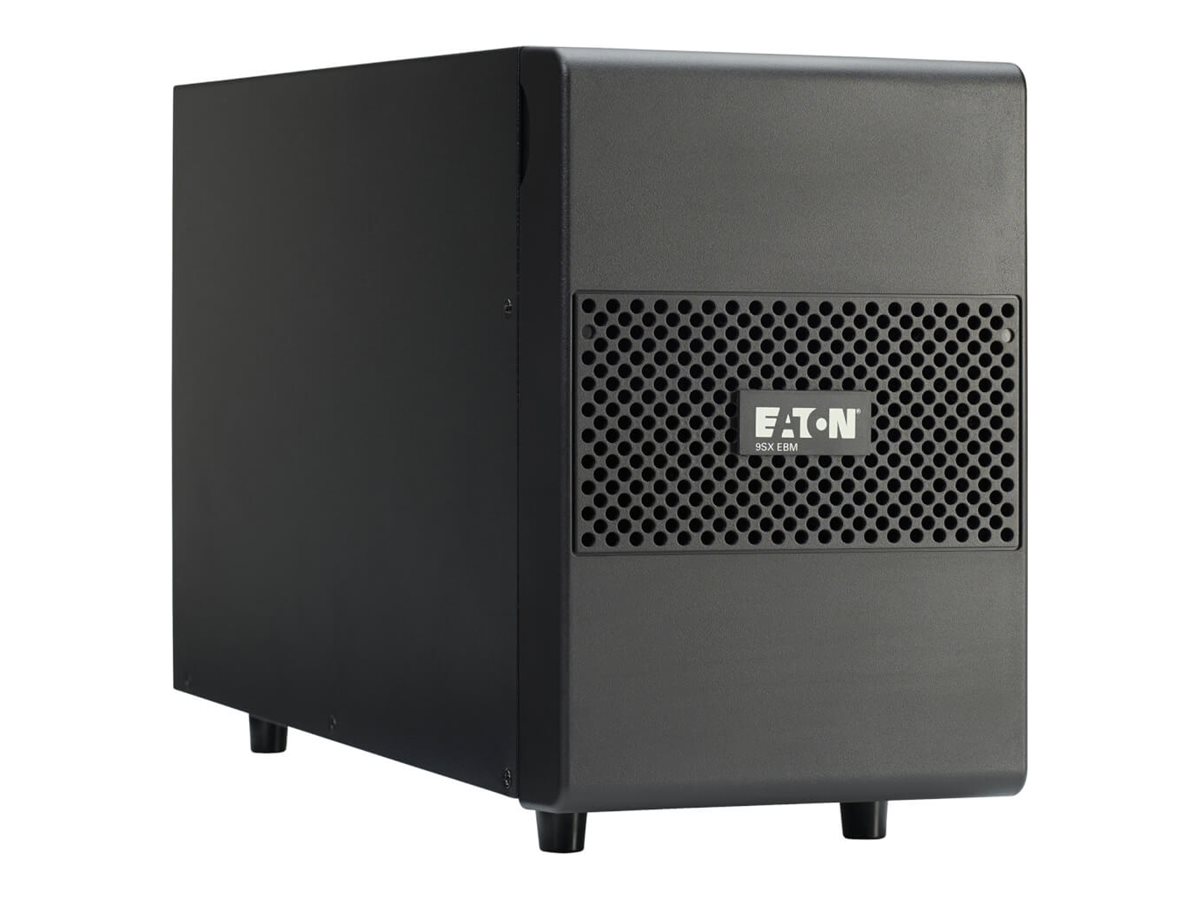

Eaton 9SX EBM 48V Extended Battery Module (EBM) for 9SX1500 and 9SX1500G UPS Systems, Tower
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Eaton 9SX EBM 48V Extended Battery Module (EBM) for 9SX1500 and 9SX1500G UPS Systems, Tower
- Battery enclosure
- black
- for P/N: 9SX1500, 9SX1500G
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | 9SXEBM48 |
| SHI Part #: | 36004346 |
| Category: | Uninterruptible power supplies |
| UNSPSC: | 39121011 |
| Manufacturer: | Eaton |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Uninterruptible power supplies |
| Description | Eaton 9SX EBM 48V Extended Battery Module (EBM) for 9SX1500 and 9SX1500G UPS Systems, Tower - Battery enclosure - black - for P/N: 9SX1500, 9SX1500G |
| Manufacturer | Eaton |
| MSRP | $1,809.60 |
| UNSPSC | 39121011 |
| Main Specifications | |
| Dimensions & Weight / Depth | 43.4 cm |
| Dimensions & Weight / Height | 25.1 cm |
| Dimensions & Weight / Weight | 24 kg |
| Dimensions & Weight / Width | 16 cm |
| General / Subcategory | Cabinets, enclosures and chassis |
| Header / Brand | Eaton |
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| Power Device / Form Factor | External |
| Product Type | Battery enclosure |
| Service & Support / Type | 2-year warranty |
| Battery | |
| Features | Sealed |
| Quantity | 8 |
| Technology | Lead acid |
| Compatibility Information | |
| Designed For | P/N: 9SX1500, 9SX1500G |
| Dimensions & Weight | |
| Depth | 43.4 cm |
| Height | 25.1 cm |
| Weight | 24 kg |
| Width | 16 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 96% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 50 dBA |
| General | |
| Color | Black |
| Device Type | Battery enclosure - external |
| Manufacturer Warranty | |
| Service & Support |
|
| Miscellaneous | |
| Cables Included | Battery cable |
| Compliant Standards | cULus, NOM |
| Features | Advance Battery Management (ABM), hot-swappable batteries |
| Software / System Requirements | |
| Software Included | Intelligent Power Manager (up to 10 nodes) |
