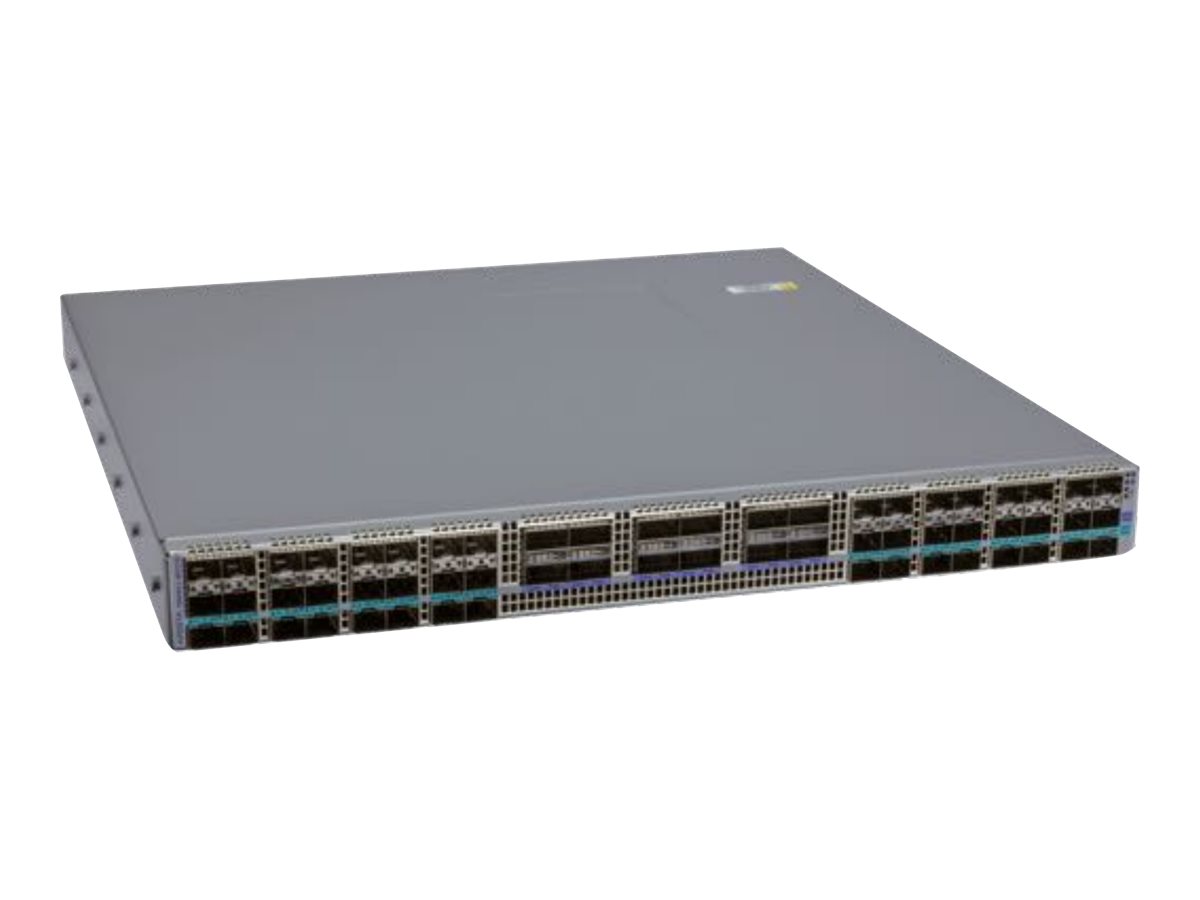

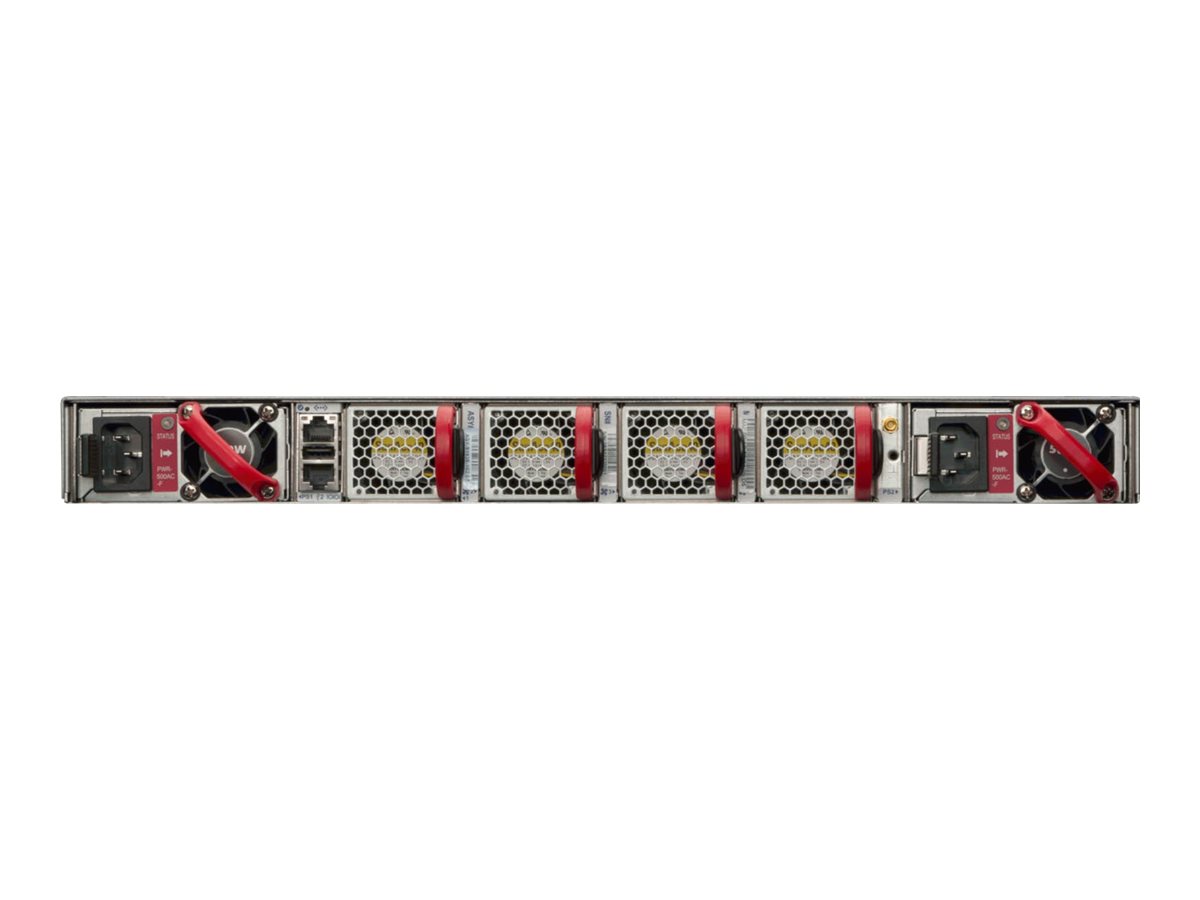

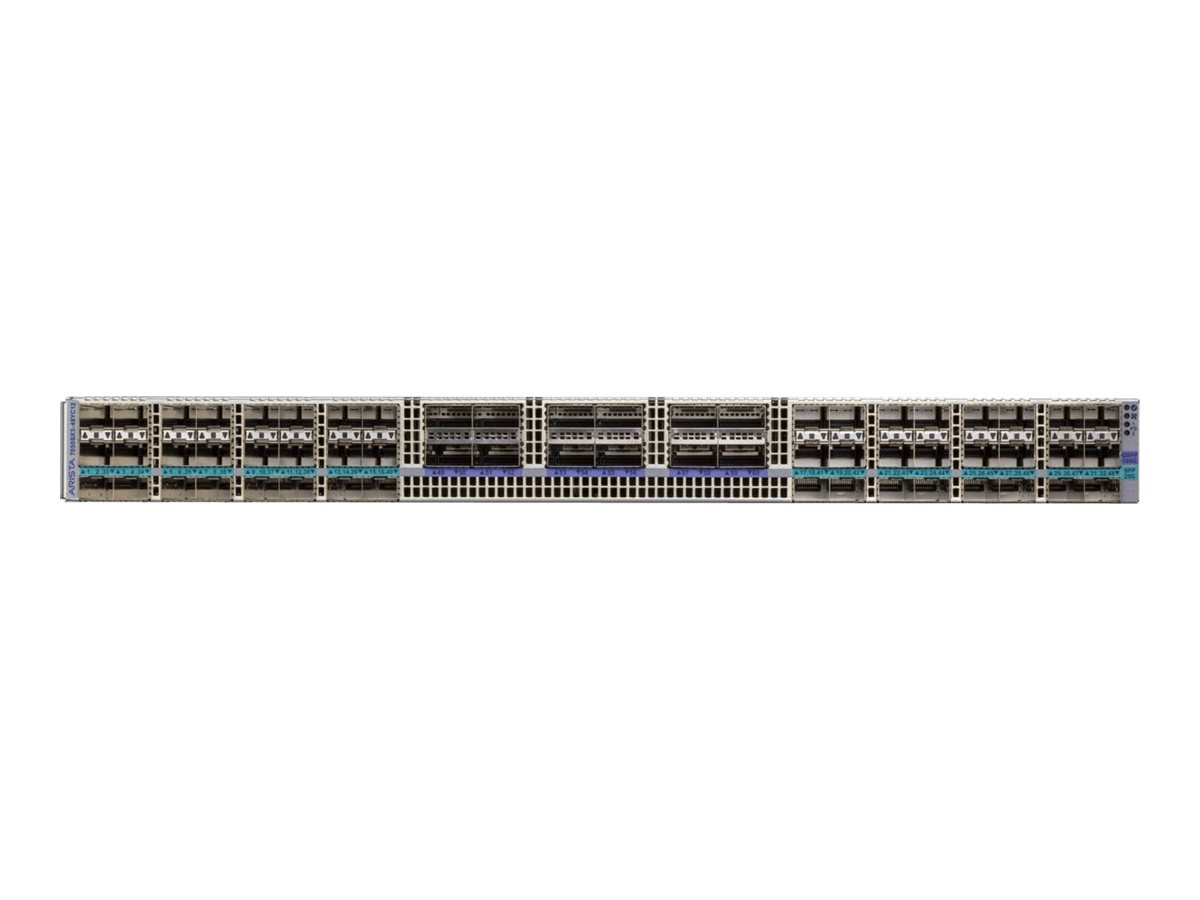

Arista 7050SX3-48YC12
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Arista 7050SX3-48YC12
- Switch
- L3
- managed
- 48 x 25 Gigabit SFP + 12 x 100 Gigabit QSFP
- front to back airflow
- rack-mountable
| Additional Details | |
|---|---|
| Mfr Part #: | DCS-7050SX3-48YC12-F |
| SHI Part #: | 35779964 |
| Category: | Switch matrixes |
| UNSPSC: | 43222612 |
| Manufacturer: | Arista Networks |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Switch matrixes |
| Description | Arista 7050SX3-48YC12 - Switch - L3 - managed - 48 x 25 Gigabit SFP + 12 x 100 Gigabit QSFP - front to back airflow - rack-mountable |
| Manufacturer | Arista Networks |
| UNSPSC | 43222612 |
| Main Specifications | |
| Dimensions & Weight / Depth | 44.6 cm |
| Dimensions & Weight / Height | 4.4 cm |
| Dimensions & Weight / Weight | 9.2 kg |
| Dimensions & Weight / Width | 48.3 cm |
| Header / Brand | Arista |
| Miscellaneous / Product Color | Gray |
| Networking / Form Factor | Rack-mountable |
| Networking / Ports Qty | 60 |
| Networking / Type | Switch |
| Packaged Quantity | 1 |
| Service & Support / Type | 1-year warranty |
| Dimensions & Weight | |
| Depth | 44.6 cm |
| Height | 4.4 cm |
| Weight | 9.2 kg |
| Width | 48.3 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% |
| Max Operating Temperature | 40 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Authentication Method | RADIUS, TACACS+ |
| Capacity |
|
| Compliant Standards | IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3ba, IEEE 802.1Qaz, IEEE 802.3by |
| Device Type | Switch - 60 ports - L3 - managed |
| Enclosure Type | Front to back airflow rack-mountable 1U |
| Features | Flow control, layer 3 switching, layer 2 switching, NAT support, load balancing, VLAN support, IGMP snooping, Syslog support, port mirroring, IPv6 support, High Availability, sFlow, STP support, RSTP support, MSTP support, DCBX support, DHCP snooping, ACL support, QoS, ECMP, BFD, Rapid PVST+, IPv4 support, DHCP relay, LACP, VRF, hot swappable 4 fans, CoS, DSCP support, OpenFlow support, Storm Control, ECN, PFC, VXLAN, AAA, CPP, MLAG, LANZ, DANZ, AEM suite, CloudVision, ZTP, 9 KB Jumbo Frame, 3+1 redundant fans, WRR, AVB, SFC, SFR |
| Flash Memory | 8 GB |
| Jumbo Frame Support | 9216 bytes |
| MAC Address Table Size | 288K entries |
| Performance |
|
| Ports | 48 x 25 Gigabit SFP + 12 x 100 Gigabit QSFP |
| RAM | 8 GB |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON 2, RMON, Telnet, SNMP 3, SSH-2, CLI |
| Routing Protocol | OSPF, IS-IS, RIP-2, BGP, IGMPv2, IGMP, VRRP, PIM-SM, IGMPv3, OSPFv3, PIM-SSM, Multiprotocol BGP, ECMP, policy-based routing (PBR), Bidirectional Forwarding Detection (BFD), URPF, Virtual ARP (VARP) |
| Subtype | 100 Gigabit Ethernet |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 1 year - response time: 10 business days |
| Miscellaneous | |
| Compliant Standards | VCCI, C-Tick, BSMI, EN 61000-3-2, EN55022, EN 61000-3-3, EN55024, CB, CCC, FCC, UL 60950-1, IEC 60950-1, EN 60950-1, NRTL, EAC, MSIP, RoHS 2011/65/EU, EMC 2004/108/EC, LVD 2006/95/EC, WEEE 2012/19/EU, EN 300 386, CSA 60950-1, EN61000-3-11, EN61000-3-12 |
| Power | |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Consumption Operational | 170 Watt |
| Power Device | Internal power supply - hot-plug |
| Power Provided | 500 Watt |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 120/230 V (50/60 Hz) |
