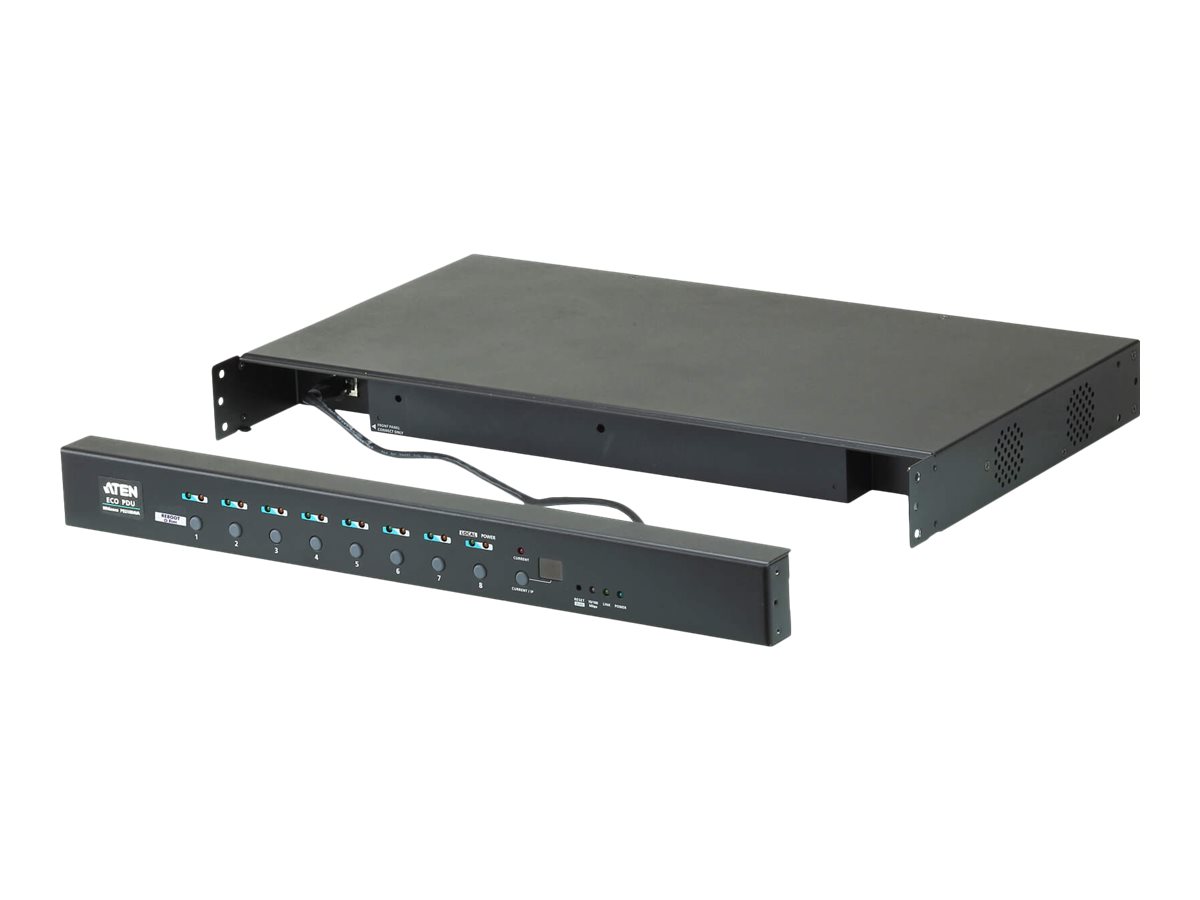

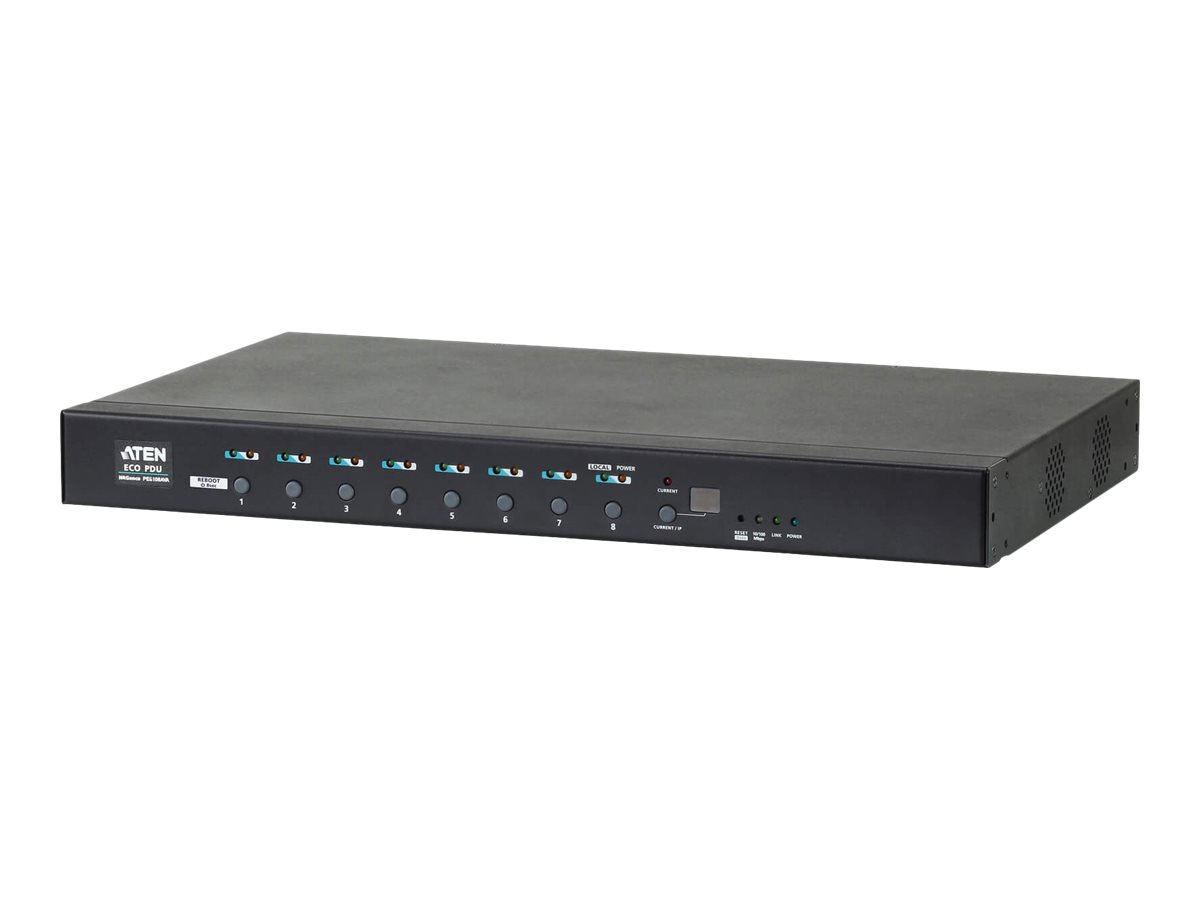

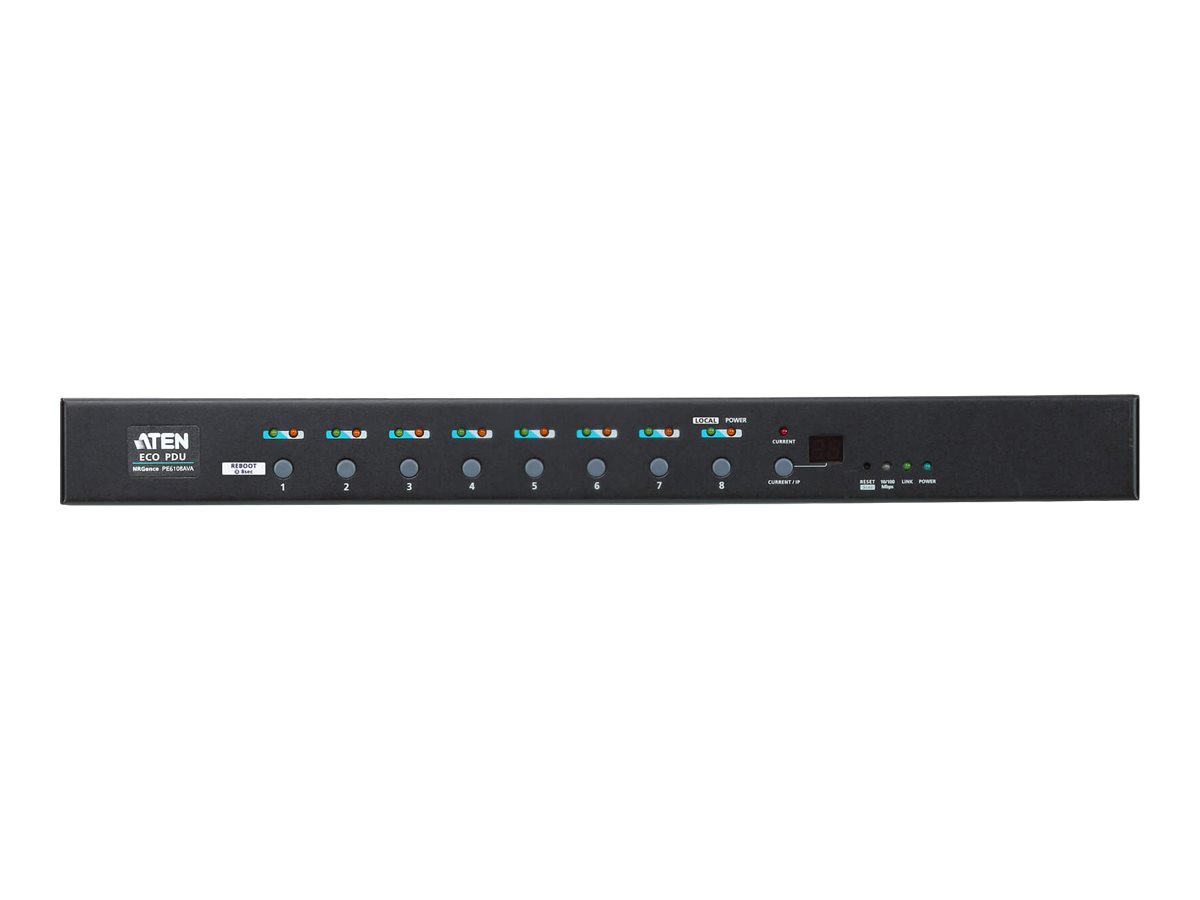

ATEN NRGence PE6108AV eco PDU
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
ATEN NRGence PE6108AV eco PDU
- Power distribution unit (rack-mountable)
- AC 100-120 V
- 1.8 kW
- RS-232, Ethernet 10/100
- input: NEMA 5-15P
- output connectors: 8 (power NEMA 5-15R)
- 1U
- 19"
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | PE6108AV |
| SHI Part #: | 35687287 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | ATEN |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | ATEN NRGence PE6108AV eco PDU - Power distribution unit (rack-mountable) - AC 100-120 V - 1.8 kW - RS-232, Ethernet 10/100 - input: NEMA 5-15P - output connectors: 8 (power NEMA 5-15R) - 1U - 19" |
| Manufacturer | ATEN |
| MSRP | $958.30 |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 26.73 cm |
| Dimensions & Weight / Height | 4.4 cm |
| Dimensions & Weight / Weight | 3.7 kg |
| Dimensions & Weight / Width | 43.24 cm |
| Header / Brand | ATEN |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 8 |
| Power Device / Voltage Required | AC 100-120 V |
| Product Type | Power distribution unit |
| Dimensions & Weight | |
| Depth | 26.73 cm |
| Height | 4.4 cm |
| Weight | 3.7 kg |
| Width | 43.24 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 80% (non-condensing) |
| Max Operating Temperature | 45 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 1U |
| Rack Size | 19" |
| Miscellaneous | |
| Cables Included |
|
| Compliant Standards | FCC, J55022, PSE Mark, 128-bit SSL |
| Features | RADIUS support, wake on LAN, password security, voltage meter, current meter, power factor meter, power measuring, Proactive Overload Protection (POP), detachable front panel |
| Included Accessories | Cable ties, footpad set |
| Rack Mounting Kit | Included |
| Networking | |
| Remote Management Interface | RS-232, Ethernet 10/100 |
| Remote Management Protocol | HTTP, HTTPS, NTP, SMTP, SNMP 1, SNMP 2, SNMP 3, Telnet |
| Power Device | |
| Frequency Required | 50 - 60 Hz |
| Input Connectors | 1 x power NEMA 5-15P |
| Input Voltage | AC 100-120 V |
| Max Electric Current | 15 A |
| Output Voltage | AC 100-120 V |
| Power Capacity | 1.8 kW |
| Power Output Connectors Details | 8 x power NEMA 5-15R |
| Software / System Requirements | |
| Software Included | ATEN eco Sensors Energy Management Software |
