Raritan PX intelligent PX3-1589V
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|

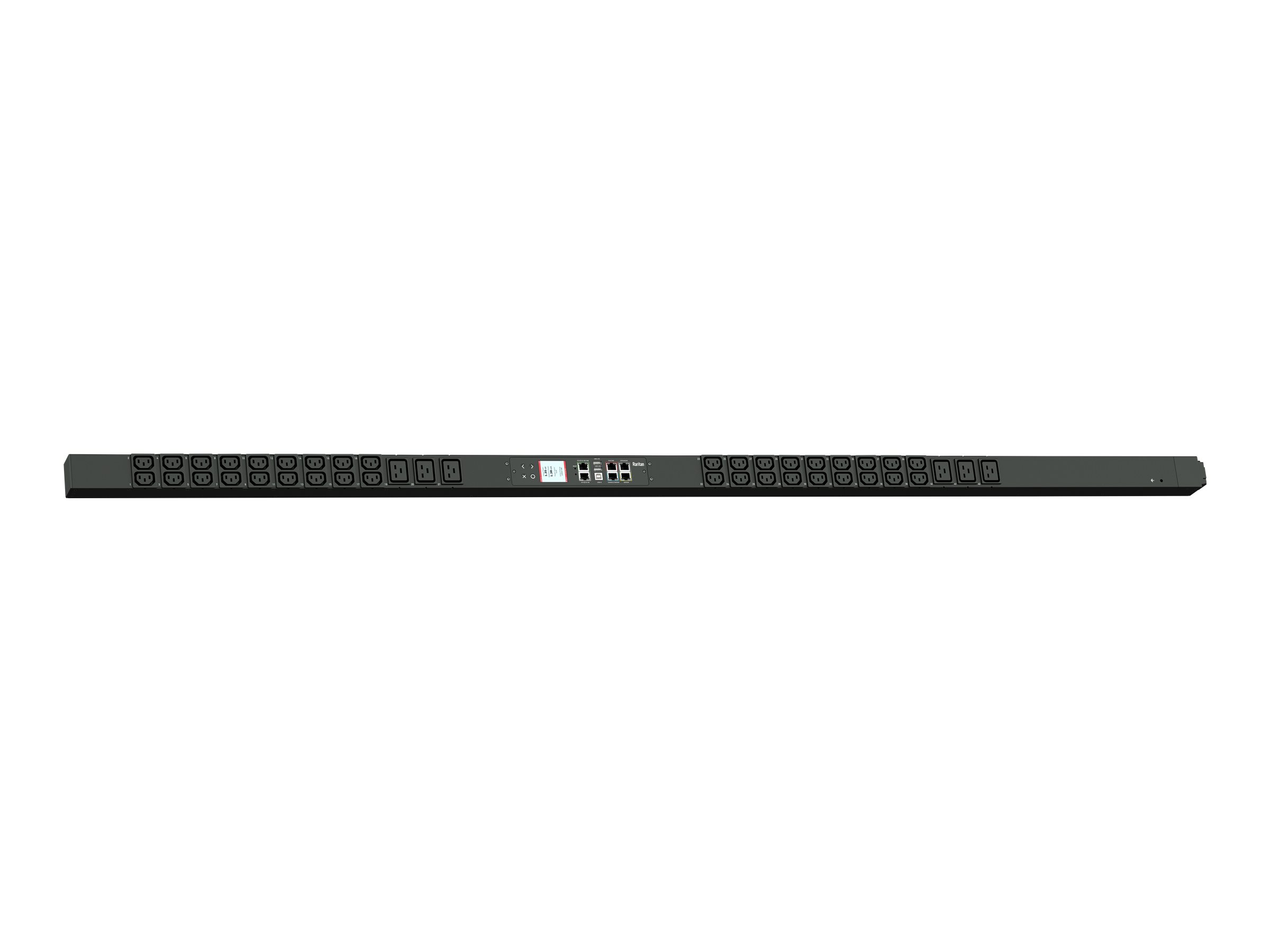

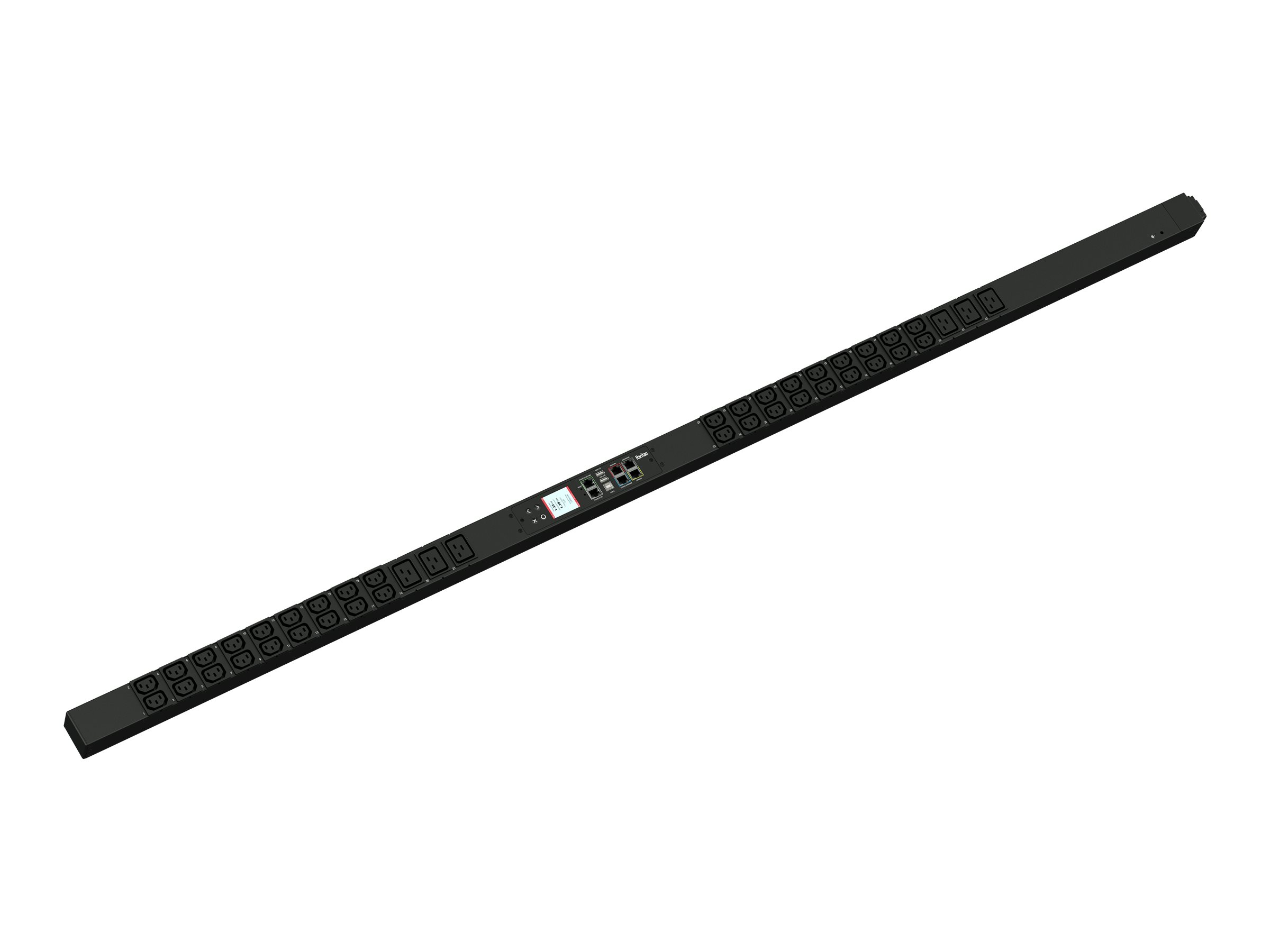

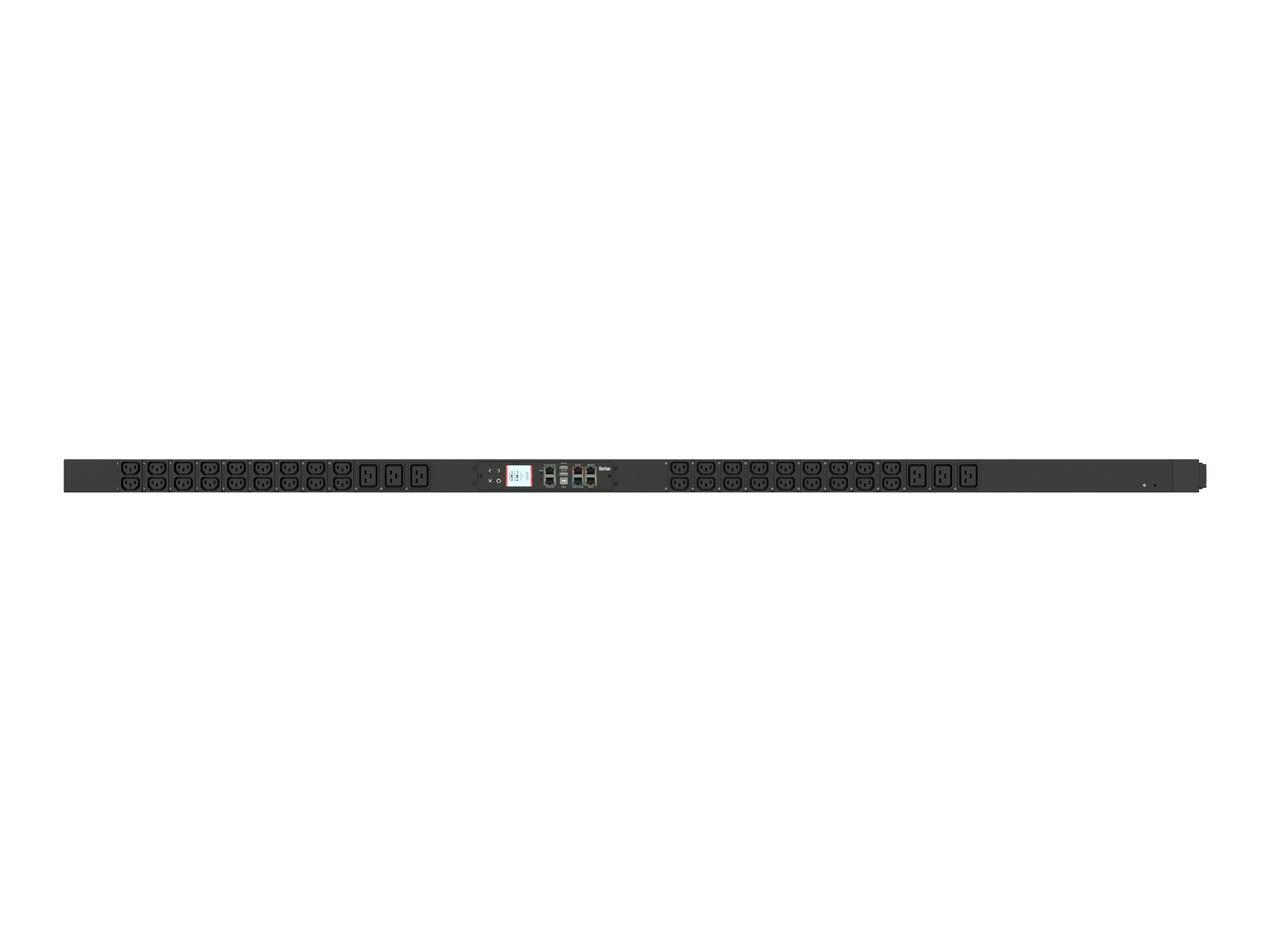

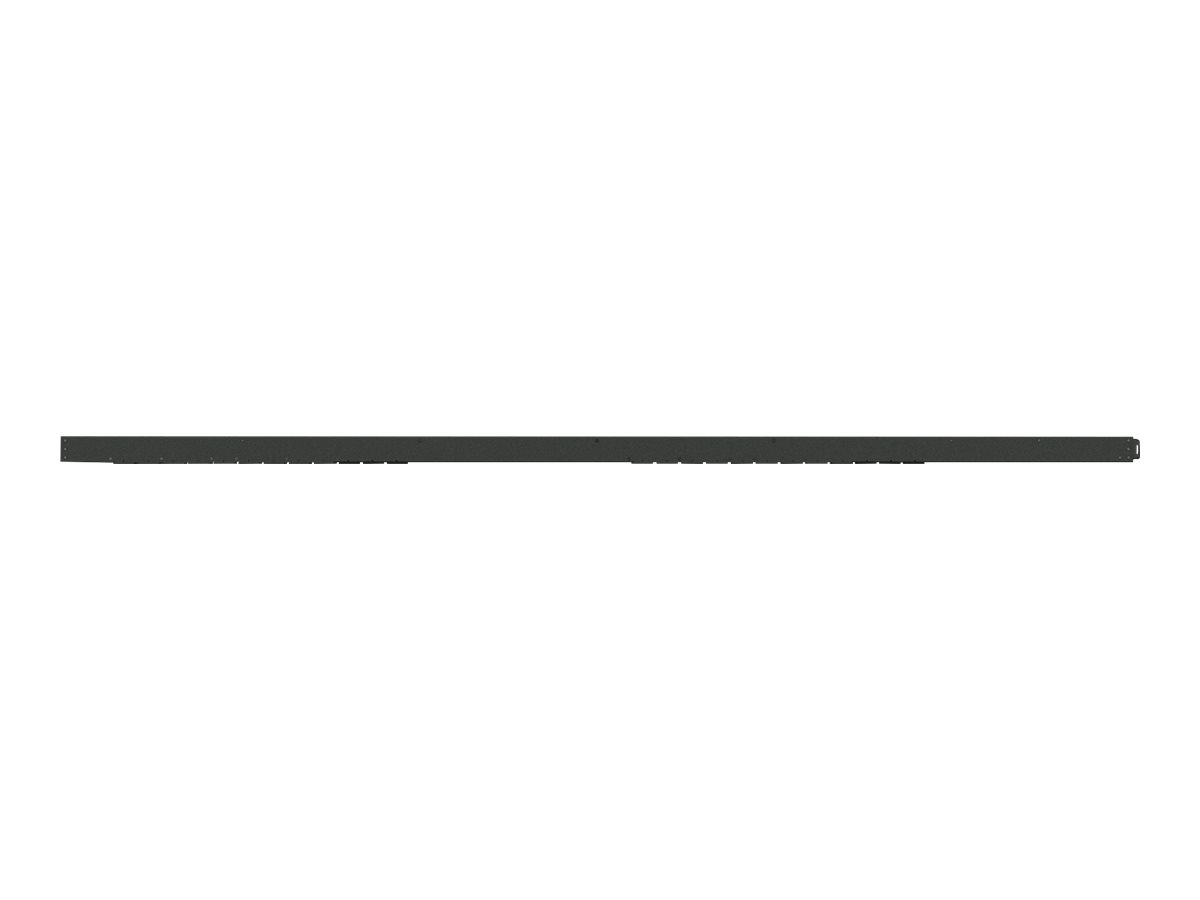

Raritan PX intelligent PX3-1589V
- Power distribution unit (rack-mountable)
- AC 208 V
- 3300 VA
- 1-phase
- Ethernet 10/100, RS-232, USB, Ethernet 10/100/1000
- input: IEC 60320 C20
- output connectors: 42 (6 x IEC 60320 C19, 36 x IEC 60320 C13)
- 0U
- 3 m cord
- black powder coat
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | PX3-1589V |
| SHI Part #: | 35644441 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | Legrand |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | Raritan PX intelligent PX3-1589V - Power distribution unit (rack-mountable) - AC 208 V - 3300 VA - 1-phase - Ethernet 10/100, RS-232, USB, Ethernet 10/100/1000 - input: IEC 60320 C20 - output connectors: 42 (6 x IEC 60320 C19, 36 x IEC 60320 C13) - 0U - 3 m cord - black powder coat |
| Manufacturer | Legrand |
| MSRP | $1,353.65 |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 4.3 cm |
| Dimensions & Weight / Height | 178 cm |
| Dimensions & Weight / Weight | 4.3 kg |
| Dimensions & Weight / Width | 5.2 cm |
| General / Subcategory | Power distribution devices |
| Header / Brand | Raritan |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 42 |
| Power Device / Power Capacity (VA) | 3300 VA |
| Power Device / Voltage Required | AC 208 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 2-year warranty |
| Dimensions & Weight | |
| Depth | 4.3 cm |
| Height | 178 cm |
| Weight | 4.3 kg |
| Width | 5.2 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 16.5 cm |
| Shipping Height | 209 cm |
| Shipping Weight | 6.9 kg |
| Shipping Width | 21.5 cm |
| Environmental Parameters | |
| Humidity Range Operating | 85% |
| Max Operating Temperature | 60 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Black powder coat |
| Cord Length | 3 m |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | Power cable (C19-NEMA L6-20P) - external - 3 m |
| Compliant Standards | UL, ICES-003, RoHS, FCC Part 15 A, cULus |
| Features | Vertical orientation, LCD display, voltage monitoring, current meter, cascadable, active power meter, real power meter, energy meter, power factor meter, Raritan SecureLock Ready, splash-proof plug, metering per input line, replaceable controller, cord retention outlet |
| Networking | |
| Remote Management Interface | Ethernet 10/100, RS-232, USB, Ethernet 10/100/1000 |
| Remote Management Protocol | SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP, Modbus |
| Power Device | |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power IEC 60320 C20 |
| Input Voltage | AC 208 V |
| Input Voltage Range | AC 200 - 240 V |
| Input Wiring | 1-phase |
| Max Electric Current | 16 A |
| Output Voltage | AC 208 V |
| Power Capacity | 3300 VA |
| Power Capacity Details | 3.2 kVA at 200 V, 3.8 kVA at 240 V |
| Power Output Connectors Details |
|
