APC Smart-UPS Li-Ion 1500VA Short Depth with SmartConnect
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|

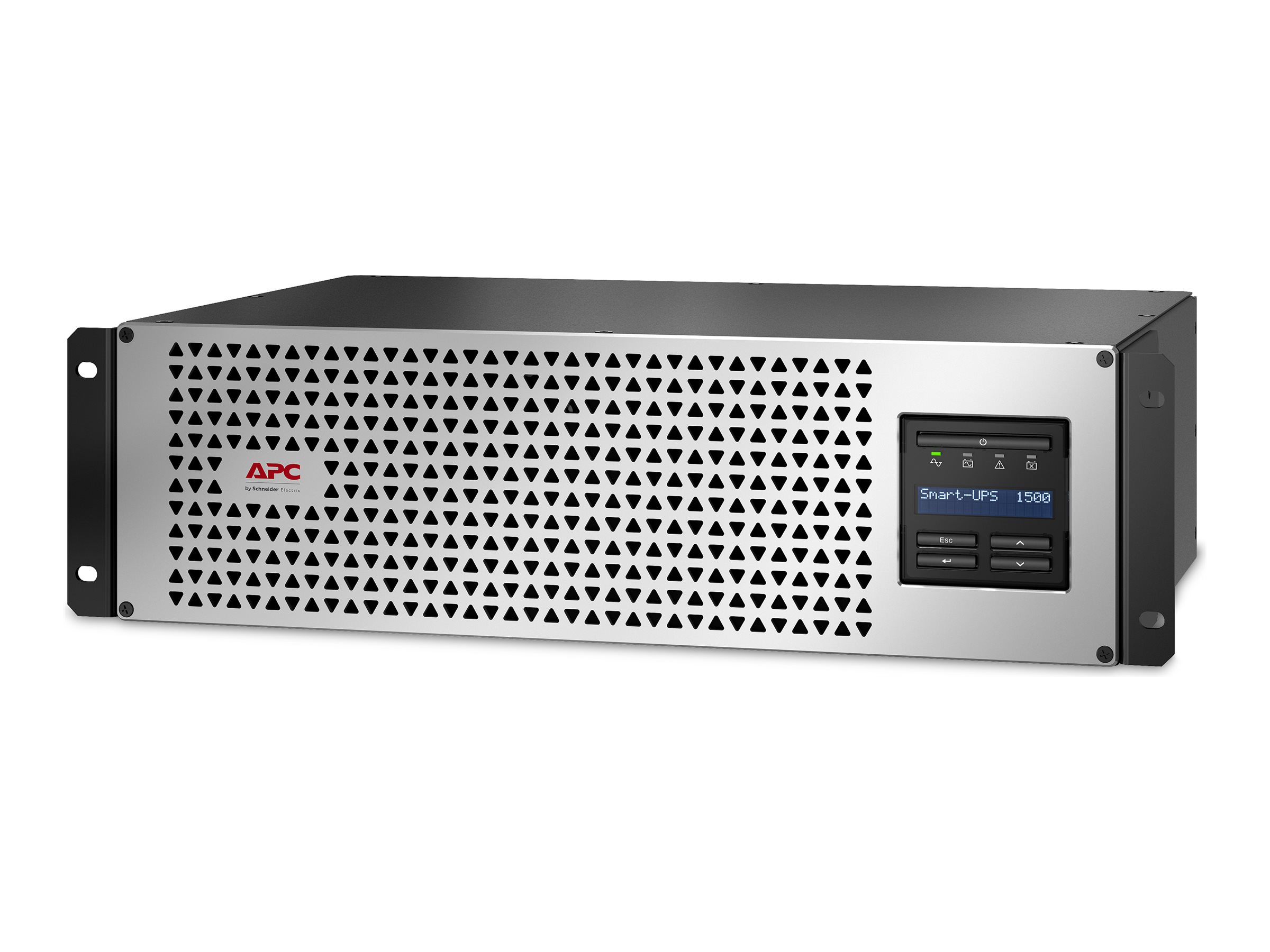

APC Smart-UPS Li-Ion 1500VA Short Depth with SmartConnect
- UPS (rack-mountable / external)
- AC 110/120/127 V
- 1.35 kW
- 1500 VA
- RS-232, USB
- output connectors: 6
- 3U
- black, silver
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | SMTL1500RM3UC |
| SHI Part #: | 35567063 |
| Category: | Power conditioning equipment |
| UNSPSC: | 39121000 |
| Manufacturer: | APC by Schneider Electric |
| Product Type: | Hardware |
Network Interface Cards
- Remote management adapter
- 1GbE
- 1000Base-T
- for P/N: SMT1000RM1U, SMT750RM1U, SRTL10KRM4UT, SRTL8KRM4UT, SRYL5K20XLT18, SRYL5K20XLT24
- Remote management adapter
- 1GbE
- 1000Base-T
- for P/N: SMT1000RM1U, SMT750RM1U, SRTL10KRM4UT, SRTL8KRM4UT, SRYL5K20XLT18, SRYL5K20XLT24
- Remote management adapter
- SmartSlot
- Gigabit Ethernet
- for P/N: SMT1000RM1U, SMT750RM1U, SRYL5K15XLT18, SRYL5K15XLT24, SRYL5K20XLT18, SRYL5K20XLT24
Power Cables
- AC 120 V
- 15 A
- 3 m
- black
- for P/N: SCL500RM1U, SMT1500X93, SMT750RM2UCNC, SMT750X93, SMX2KR2UX145, SMX3KR2UNCX145
- AC 120 V
- 2.44 m
- black
- for P/N: SCL500RM1U, SMT1500X93, SMT750RM2UCNC, SMT750X93, SMX2KR2UX145, SMX3KR2UNCX145
| General Information | |
|---|---|
| Category | Power conditioning equipment |
| Description | APC Smart-UPS Li-Ion 1500VA Short Depth with SmartConnect - UPS (rack-mountable / external) - AC 110/120/127 V - 1.35 kW - 1500 VA - RS-232, USB - output connectors: 6 - 3U - black, silver |
| Manufacturer | APC by Schneider Electric |
| UNSPSC | 39121000 |
| Main Specifications | |
| Dimensions & Weight / Depth | 30.2 cm |
| Dimensions & Weight / Height | 13.1 cm |
| Dimensions & Weight / Weight | 19.5 kg |
| Dimensions & Weight / Width | 43.8 cm |
| Header / Brand | APC |
| Miscellaneous / Product Color |
|
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable / external |
| Power Device / Output Connector Qty | 6 |
| Power Device / Power Capacity (VA) | 1500 VA |
| Power Device / UPS Technology | Line interactive |
| Power Device / Voltage Required |
|
| Product Type | UPS |
| Service & Support / Type | 5-year warranty |
| Battery | |
| Recharge Time | 6 hours |
| Technology | Lithium ion |
| Dimensions & Weight | |
| Depth | 30.2 cm |
| Height | 13.1 cm |
| Weight | 19.5 kg |
| Width | 43.8 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 44.8 cm |
| Shipping Height | 27.9 cm |
| Shipping Weight | 22.68 kg |
| Shipping Width | 58.4 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 45 dBA |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x SmartSlot |
| Interfaces |
|
| General | |
| Color | Black, silver |
| Device Type | UPS - rack-mountable / external |
| Height (Rack Units) | 3U |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Cables Included |
|
| Compliant Standards | UL 1449, IP20, CSA C22.2 No. 107.1, FCC Part 15 A, NOM, UL 1778, RoHS, REACH |
| Equipment Protection Value | 150000 US Dollars |
| Features | Audible alarm, LCD display |
| Networking | |
| Remote Management Interface | RS-232, USB |
| Power Device | |
| Frequency Provided | 50/60 Hz ± 3Hz |
| Frequency Required | 50/60 Hz ± 3Hz |
| Input Connectors | 1 x power NEMA 5-15P |
| Input Voltage | AC 120 V |
| Input Voltage Range | AC 82 - 144 V |
| Input Voltage Range (Adjustable) | AC 75 - 154 V |
| Input Wiring | 1-phase |
| Output Voltage | AC 120 V ± 5% - 50/60 Hz |
| Output Waveform | Sinewave |
| Power Capacity | 1.35 kW / 1500 VA |

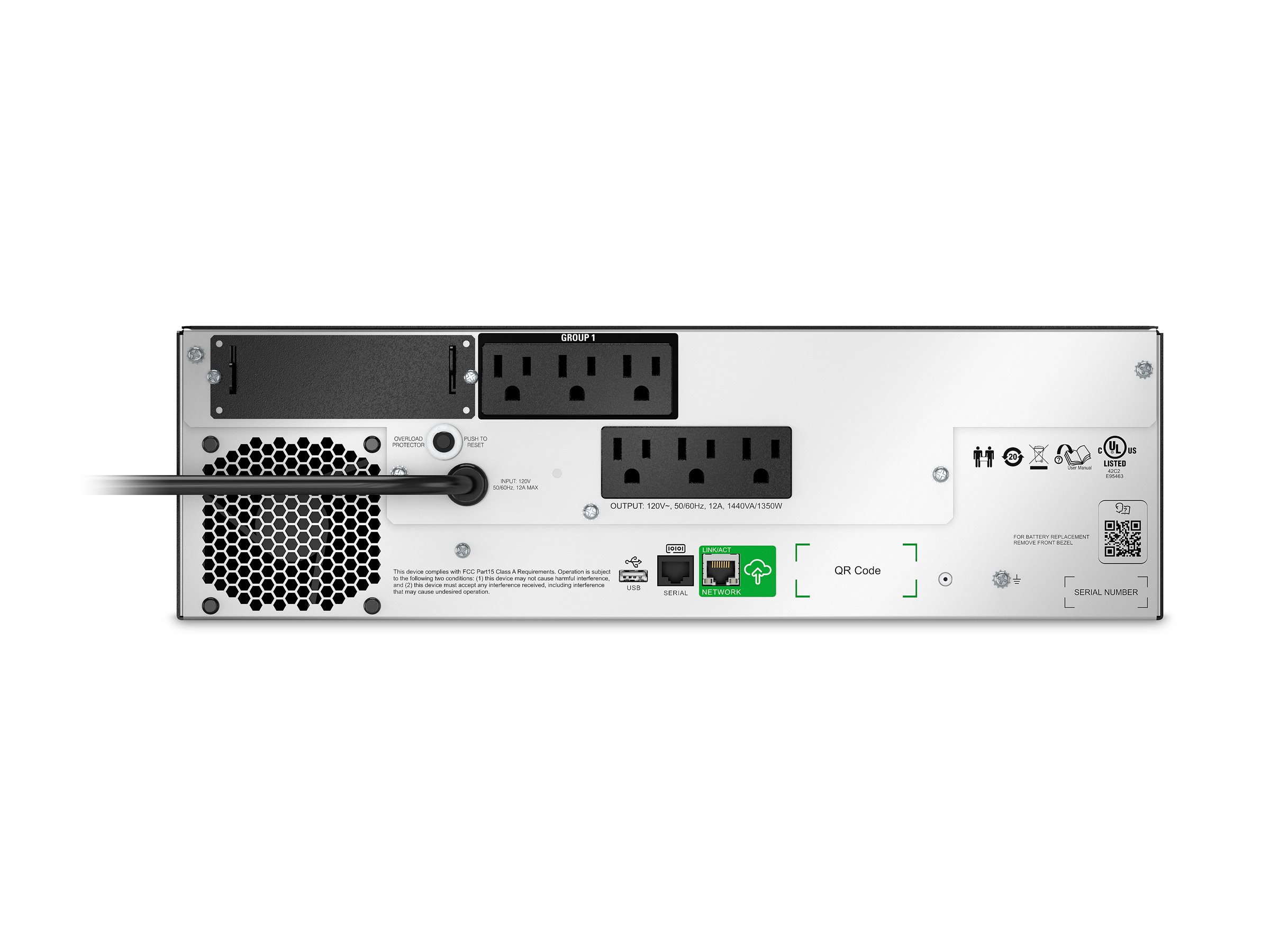

| Power Output Connectors Details | 6 x power NEMA 5-15R |
| Surge Energy Rating | 680 Joules |
| Surge Suppression | Yes |
| UPS Technology | Line interactive |
