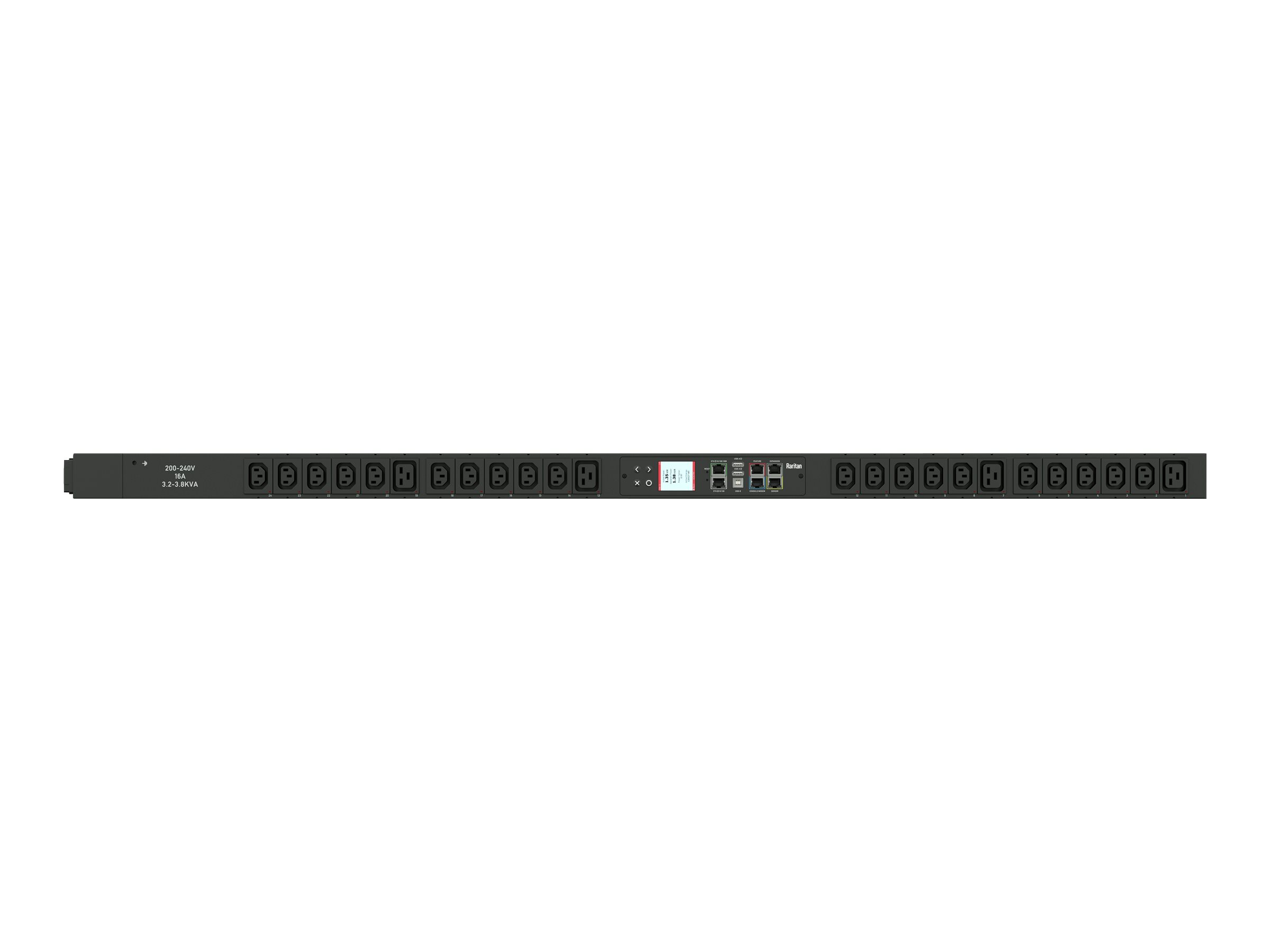

Raritan PX3-5485V - Power distribution unit (rack-mountable)
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Raritan PX3-5485V - Power distribution unit (rack-mountable)
- AC 208 V
- 3300 VA
- 1-phase
- RS-232, Ethernet 10/100/1000
- input: NEMA L6-20P
- output connectors: 24 (4 x IEC 60320 C19, 20 x IEC 60320 C13)
- 0U
- 3 m cord
- black powder coat
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | PX3-5485V |
| SHI Part #: | 35549440 |
| Category: | Power distribution units PDUs |
| UNSPSC: | 39121017 |
| Manufacturer: | Legrand |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Power distribution units PDUs |
| Description | Raritan PX3-5485V - Power distribution unit (rack-mountable) - AC 208 V - 3300 VA - 1-phase - RS-232, Ethernet 10/100/1000 - input: NEMA L6-20P - output connectors: 24 (4 x IEC 60320 C19, 20 x IEC 60320 C13) - 0U - 3 m cord - black powder coat |
| Manufacturer | Legrand |
| MSRP | $2,617.80 |
| UNSPSC | 39121017 |
| Main Specifications | |
| Dimensions & Weight / Depth | 6.5 cm |
| Dimensions & Weight / Height | 129.8 cm |
| Dimensions & Weight / Width | 5.2 cm |
| Header / Brand | Raritan |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 24 |
| Power Device / Power Capacity (VA) | 3300 VA |
| Power Device / Voltage Required | AC 208 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 2-year warranty |
| Dimensions & Weight | |
| Depth | 6.5 cm |
| Height | 129.8 cm |
| Width | 5.2 cm |
| Environmental Parameters | |
| Humidity Range Operating | 85% |
| Max Operating Temperature | 60 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Black powder coat |
| Cord Length | 3 m |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | Power cable 3 m |
| Compliant Standards | UL, ICES-003, RoHS, FCC Part 15 A, cULus |
| Features | Vertical orientation, LCD display, current meter, cascadable, active power meter, real power meter, energy meter, power factor meter, Raritan SecureLock Ready, remote outlet switching, metering per input line, ISO/IEC 62053-21 1% metering accuracy, bottom-bottom feed cord entry, power cable IP44 compliant, removable controller, voltage meter, environmental sensor ready, 16MB SPI Flash |
| Networking | |
| Remote Management Interface | RS-232, Ethernet 10/100/1000 |
| Remote Management Protocol | SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, CLI, JSON-RPC, Modbus |
| Power Device | |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA L6-20P |
| Input Voltage | AC 208 V |
| Input Voltage Range | AC 200 - 240 V |
| Input Wiring | 1-phase |
| Max Electric Current | 20 A |
| Output Voltage | AC 208 V |
| Power Capacity | 3300 VA |
| Power Capacity Details | 3.2 kVA at 200 V, 3.8 kVA at 240 V |
| Power Output Connectors Details |
|
