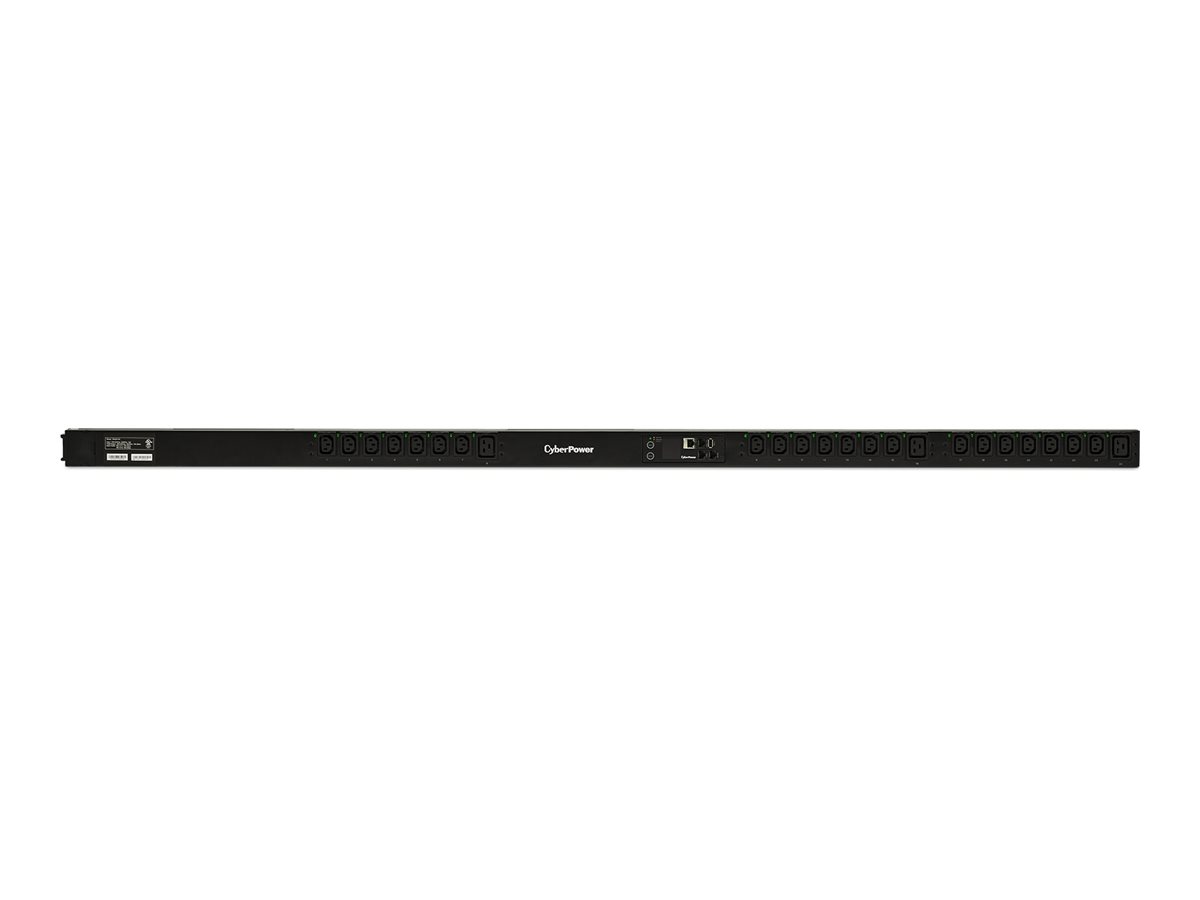

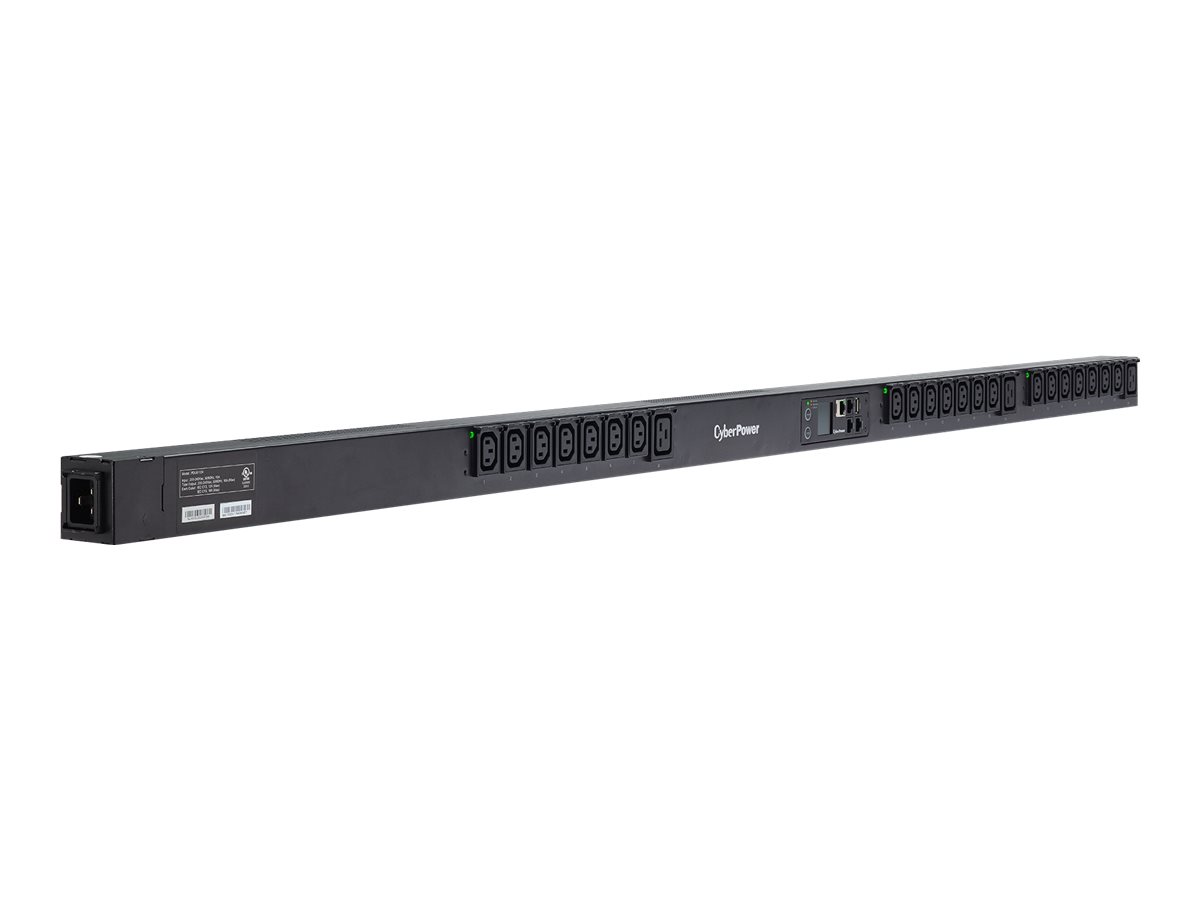

CyberPower Switched Metered-by-Outlet PDU81104
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
CyberPower Switched Metered-by-Outlet PDU81104
- Power distribution unit (rack-mountable)
- AC 200-240 V
- Ethernet, USB, serial
- input: NEMA L6-20P
- output connectors: 24 (3 x IEC 60320 C19, 21 x IEC 60320 C13)
- 0U
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | PDU81104 |
| SHI Part #: | 35510546 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | CyberPower |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | CyberPower Switched Metered-by-Outlet PDU81104 - Power distribution unit (rack-mountable) - AC 200-240 V - Ethernet, USB, serial - input: NEMA L6-20P - output connectors: 24 (3 x IEC 60320 C19, 21 x IEC 60320 C13) - 0U |
| Manufacturer | CyberPower |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 5.59 cm |
| Dimensions & Weight / Height | 4.83 cm |
| Dimensions & Weight / Weight | 7.8 kg |
| Dimensions & Weight / Width | 166 cm |
| Header / Brand | Cyberpower |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 24 |
| Power Device / Voltage Required | AC 200-240 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 3-year warranty |
| Dimensions & Weight | |
| Depth | 5.59 cm |
| Height | 4.83 cm |
| Weight | 7.8 kg |
| Width | 166 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | UL 60950-1 |
| Features | LCD display |
| Networking | |
| Remote Management Interface | Ethernet, USB, serial |
| Power Device | |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA L6-20P |
| Input Voltage | AC 200-240 V |
| Max Electric Current | 20 A |
| Output Voltage | AC 200-240 V |
| Power Output Connectors Details |
|
- Product Data Sheet / Brochure
- Product Data Sheet / Brochure
- Quick Start Guide
- User Manual
- User Manual
These links will open documents stored on other websites. SHI does not own this content.
