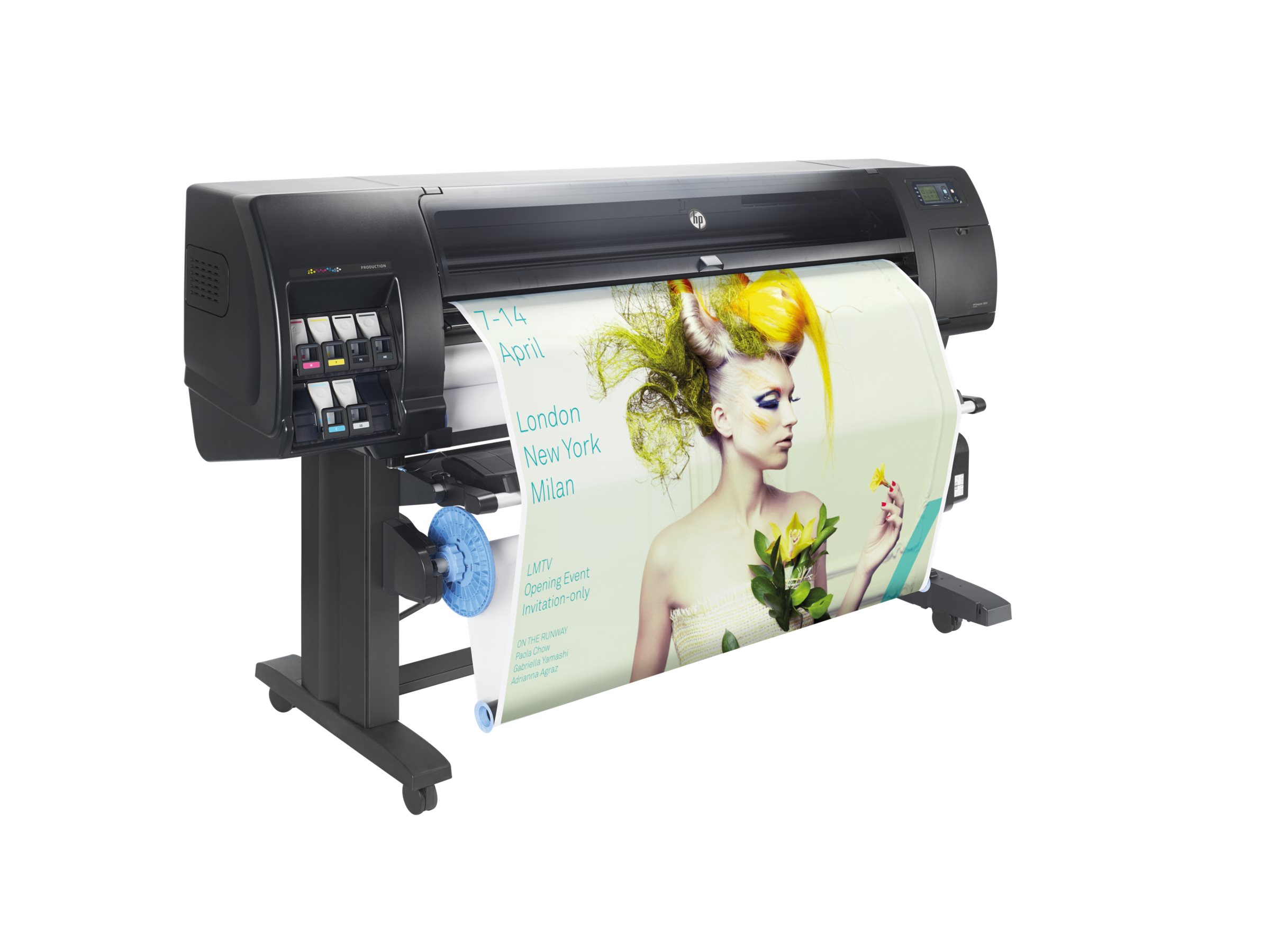

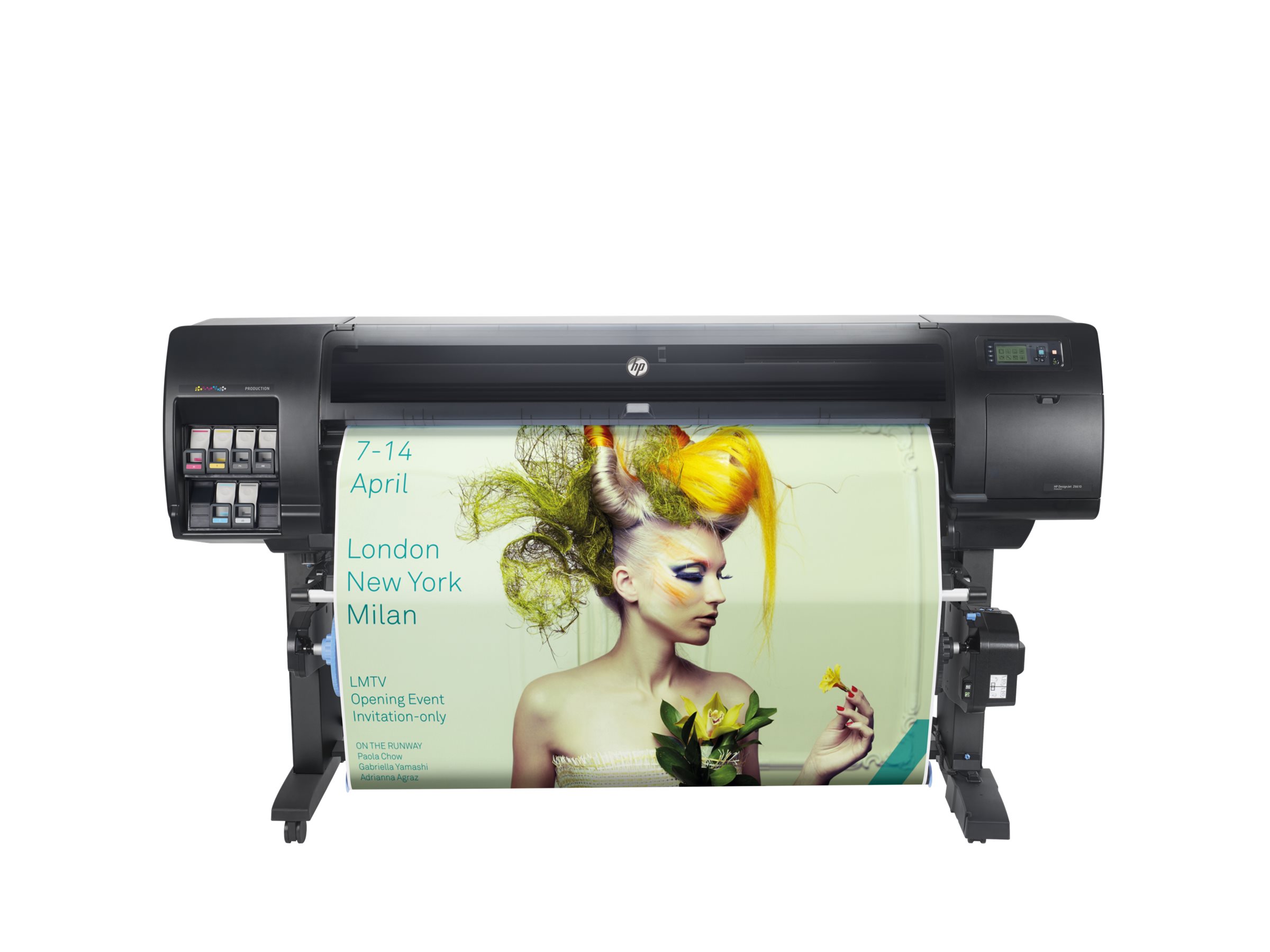

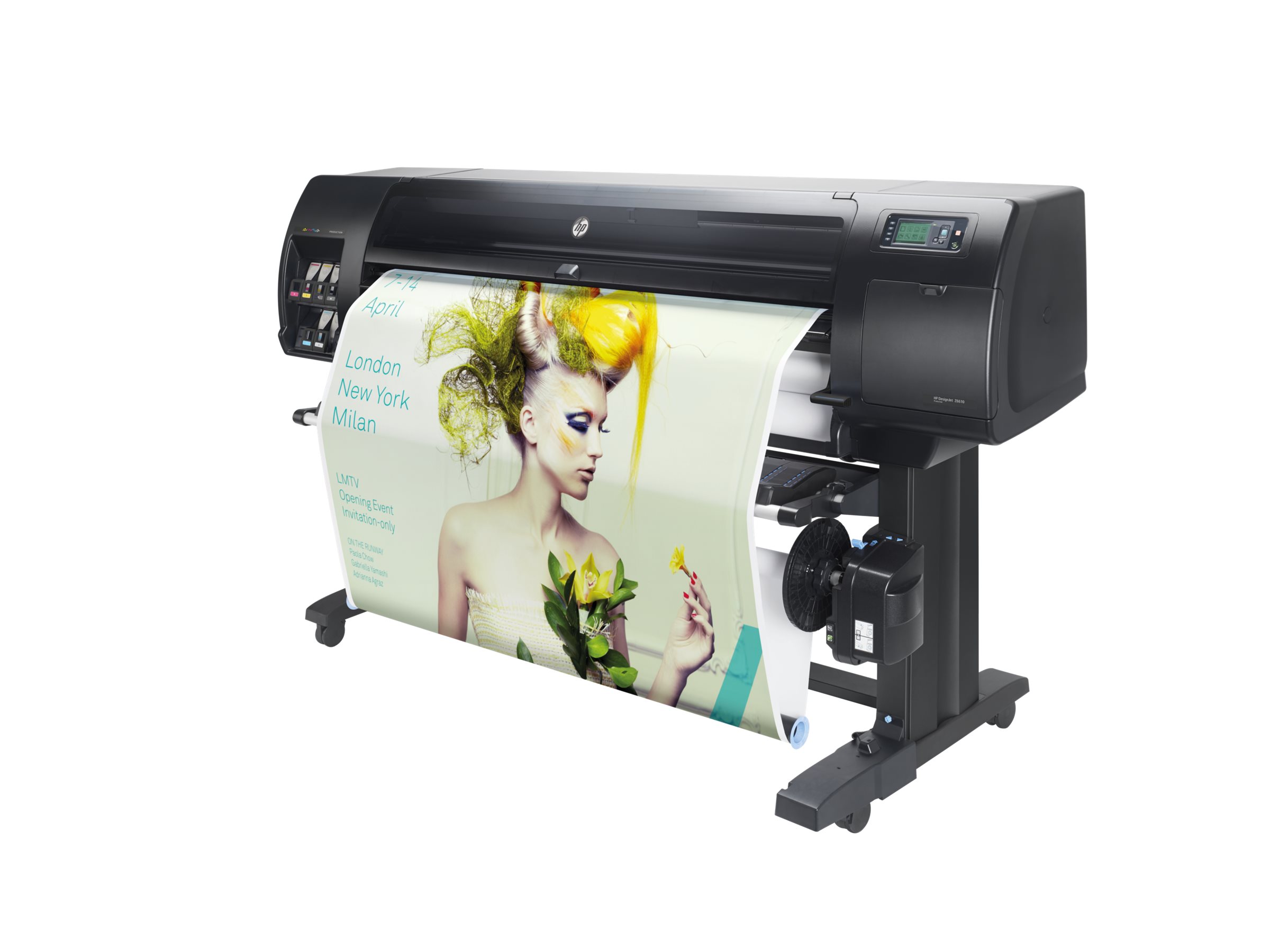

HP DesignJet Z6610 Production
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
HP DesignJet Z6610 Production
- 60" large-format printer
- color
- ink-jet
- Roll (152.4 cm)
- 2400 x 1200 dpi
- up to 140 sq.m/hour (mono) / up to 140 sq.m/hour (color)
- capacity: 1 roll
- Gigabit LAN
- cutter
| Additional Details | |
|---|---|
| Mfr Part #: | 2QU13A#B1K |
| SHI Part #: | 35450587 |
| Category: | Inkjet printers |
| UNSPSC: | 43212104 |
| Manufacturer: | HP, Inc. |
| Product Type: | Hardware |
Document Scanners
- Contact Image Sensor (CIS)
- max scan width: 44"
- 1200 dpi x 1200 dpi
- USB 3.1 Gen 1, Gigabit LAN, USB 2.0
Ink/Toner
| General Information | |
|---|---|
| Category | Inkjet printers |
| Description | HP DesignJet Z6610 Production - 60" large-format printer - color - ink-jet - Roll (152.4 cm) - 2400 x 1200 dpi - up to 140 sq.m/hour (mono) / up to 140 sq.m/hour (color) - capacity: 1 roll - Gigabit LAN - cutter |
| Manufacturer | HP, Inc. |
| UNSPSC | 43212104 |
| Main Specifications | |
| Dimensions & Weight / Depth | 69 cm |
| Dimensions & Weight / Height | 137 cm |
| Dimensions & Weight / Weight | 190 kg |
| Dimensions & Weight / Width | 243 cm |
| Document & Media Handling / Large Format Printer Size | 60" |
| Header / Brand | HP |
| Header / Country Kits |
|
| Header / Localization |
|
| Miscellaneous / Product Color | Black |
| Office Machine / Functions | Printer |
| Office Machine / Printing Output Type | Color |
| Office Machine / Printing Technology | Ink-jet |
| Office Machine / Type | Printer |
| Packaged Quantity | 1 |
| PC Connectivity / PC Connection | Gigabit LAN |
| Power Device / Type | Power supply |
| Printer / Connectivity Technology | Wired |
| Printer / PostScript Support | Standard |
| Printer / Total Media Capacity | 1 roll |
| Printer / Type | Large-format printer |
| Scanner / Type | None |
| Service & Support / Type | 1-year warranty |
| Dimensions & Weight | |
| Depth | 69 cm |
| Height | 137 cm |
| Weight | 190 kg |
| Width | 243 cm |
| Dimensions & Weight (Shipping) | |
| Depth (Shipping) | 75 cm |
| Height (Shipping) | 120 cm |
| Weight (Shipping) | 220 kg |
| Width (Shipping) | 268.4 cm |
| Environmental Parameters | |
| Humidity Range Operating | 20 - 80% |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 5 °C |
| Sound Emission (Idle) | 39 dBA |
| Sound Emission (Operating) | 53 dBA |
| Environmental Standards | |
| ENERGY STAR | Yes |
| EPEAT Compliant | EPEAT Bronze |
| Expansion / Connectivity | |
| Connections | 1 x Gigabit LAN - RJ-45 |
| Expansion Slots | 1 x EIO |
| General | |
| Localization | English, French, Portuguese, Spanish / Canada, Latin America, United States |
| Printer Type | 60" large-format printer - ink-jet - color |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts - 1 year |
| Media Handling | |
| Max Media Size | Roll (152.4 cm) |
| Max Media Size (Custom) | 1524 mm |
| Media Feeders | 1 x manual - 1 roll - Roll (152.4 cm) weight: 80 g/m² - 500 g/m² |
| Media Sizes | A1 (594 x 841 mm), Roll (152.4 cm), ANSI D (559 x 864 mm) |
| Media Thickness Range | Up to 0.6 mm |
| Media Type | Fabric, banners, fine art paper, bond paper, proofing paper, film, backlit paper, info sign cards, photographic paper |
| Media Weight | 80 g/m² - 500 g/m² |
| Min Media Size (Custom) | 240 mm |
| Total Media Capacity | 1 roll |
| Miscellaneous | |
| Compliant Standards | VCCI, GOST, CCC, EMC, PSB, FCC, IRAM, RoHS, EN 60950-1, WEEE, ICES, REACH, LVD, KC, MSIP, 1194/2012/EU, RSM |
| Included Accessories | Take-up reel |
| Networking | |
| Remote Management Protocol | SNMP 3 |
| Security Protocols & Features | SSL, IPsec |
| Power | |
| Frequency Required | 50/60 Hz |
| Power Consumption Operational | 270 Watt |
| Power Consumption Sleep | 5.3 Watt |
| Power Consumption Stand by | 48 Watt |
| Power Device | Power supply - internal |
| Printer | |
| Connectivity Technology | Wired |
| Cutter | Yes |
| Ink Cartridge Configuration | 6 cartridges (1 each: cyan, magenta, yellow, gray, photo black, matte black) |
| Ink Palette Supported (Colors) | 6-ink - cyan, magenta, yellow, matte black, photo black, chromatic red |
| Ink Type | HP Vivid Photo Inks |
| Inkjet Technology | HP Thermal Inkjet |
| Interface | Gigabit LAN |
| Language Simulation | PostScript 3, HP RTL, CALS G4, HP GL/2, TIFF, PDF 1.7, JPEG |
| Max Resolution (B&W) | 2400 x 1200 dpi |
| Max Resolution (Color) | 2400 x 1200 dpi |
| Nozzle Configuration | 2112 nozzles |
| PostScript Support | Standard |
| Print Speed |
|
| Printer Features | Hard Disk Drive Encryption |
| RAM | |
| RAM Installed (Max) | 1 GB |
| Software / System Requirements | |
| Software Included | Drivers & Utilities, HP Click, HP DesignJet Utility, HP Color Center, HP Applications Center |
| Storage | |
| Hard Drive | 500 GB |
