Eaton Tripp Lite Series 8U Wall-Mount Bracket for Small Switches and Patch Panels, Hinged

Wall-Mount Bracket Is the Ideal Alternative to a Full-Size Rack Cabinet

If you don't have enough equipment to justify the purchase of a full-size rack or you don't have enough space for one, this SmartRack bracket is the ideal alternative for your home office or small business. Made from heavy-duty laser-cut 14-gauge cold-rolled steel with a durable black powder-coated finish, this 8U wall-mount bracket easily attaches to the wall of your back office or closet with the included mounting screws.

Hinged Bracket Supports EIA-Standard 19 in. Rack Equipment

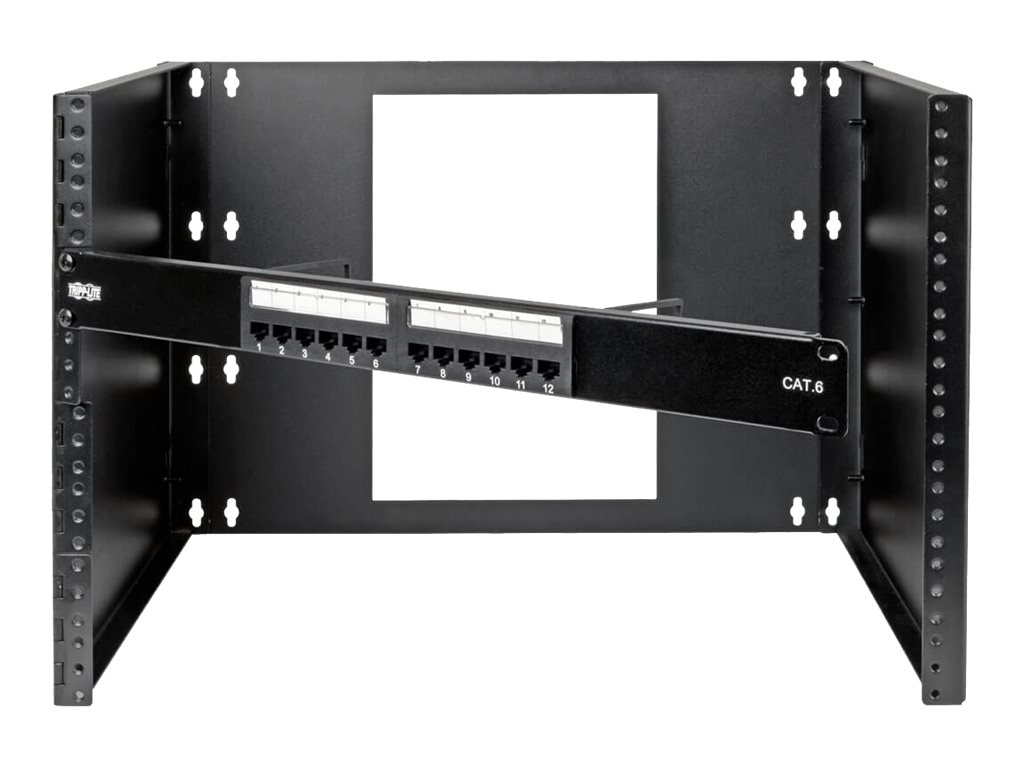

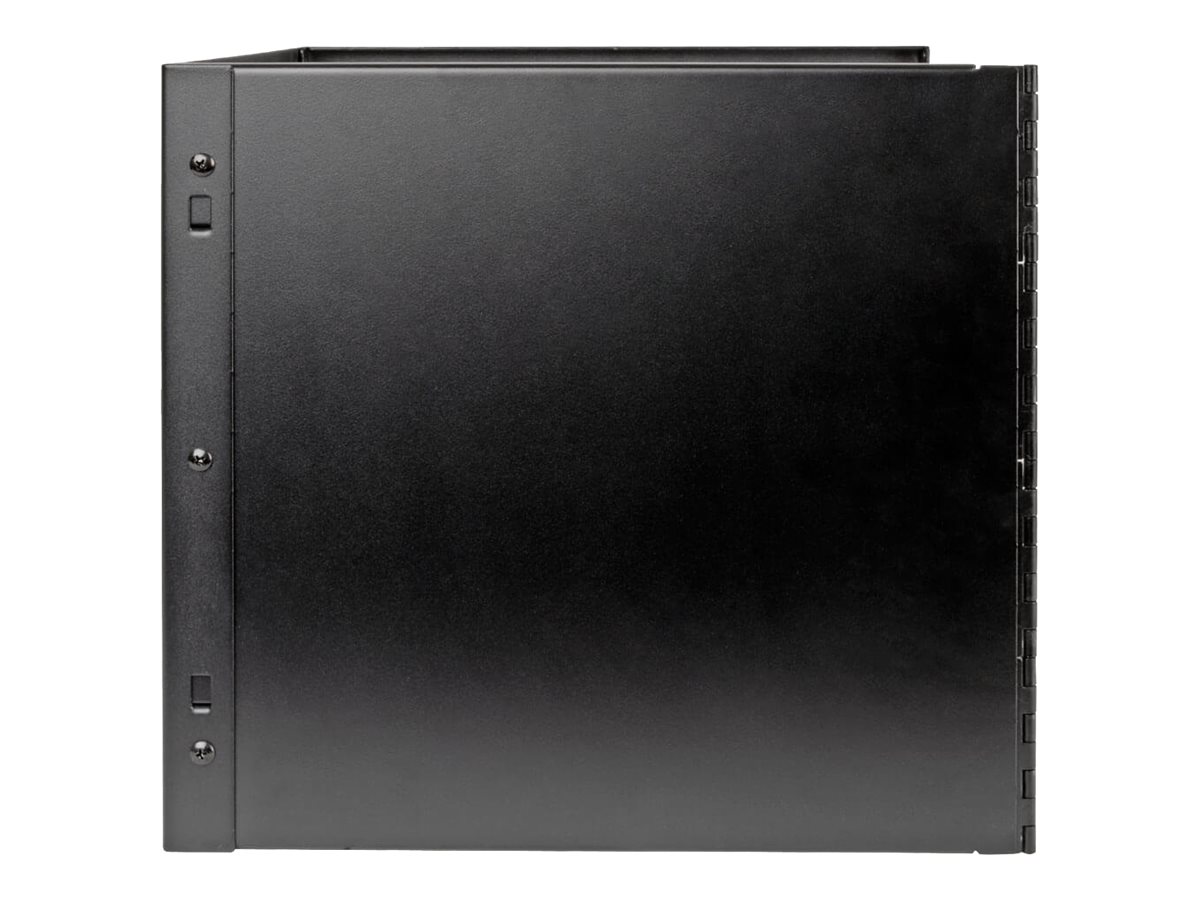

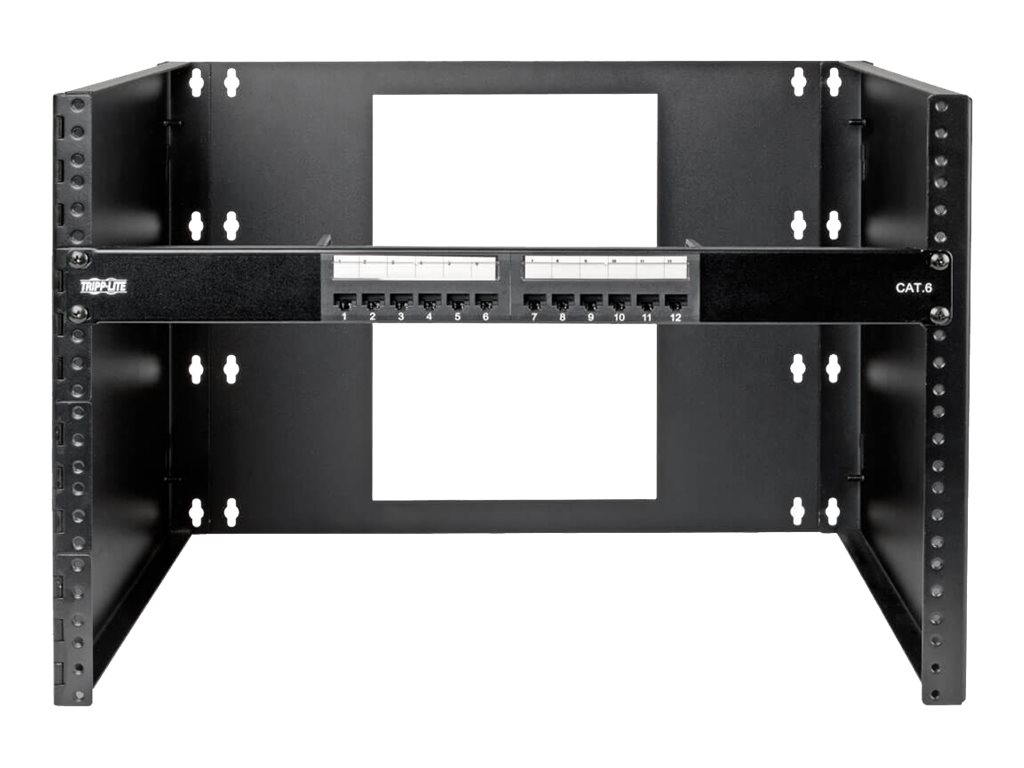

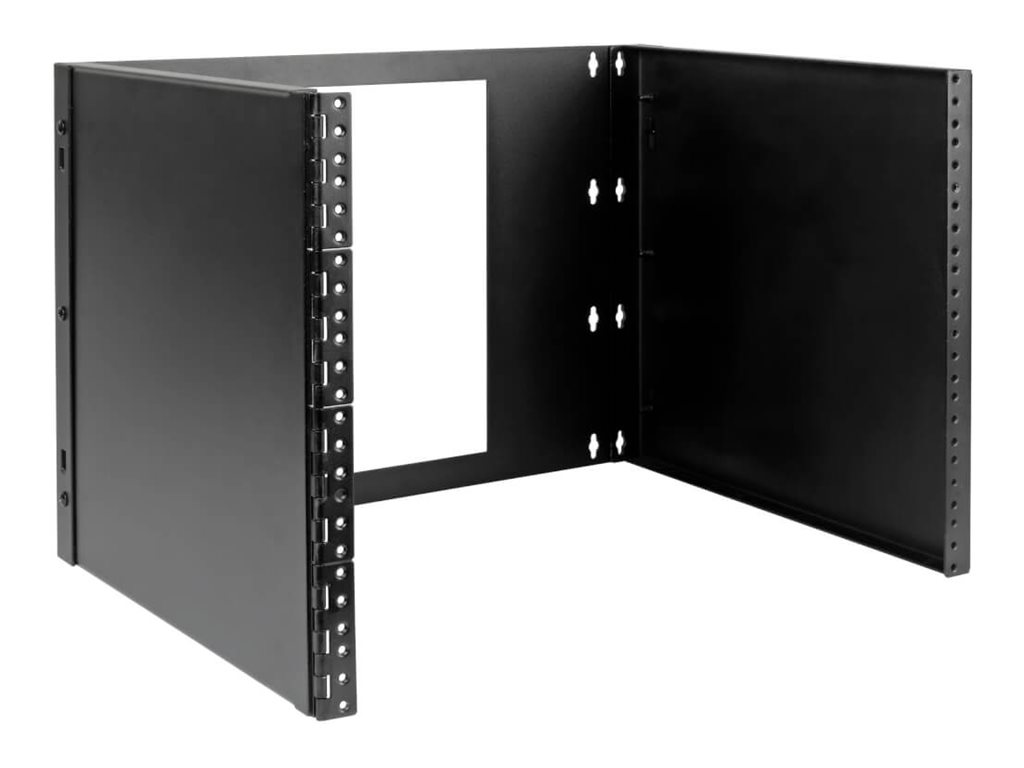

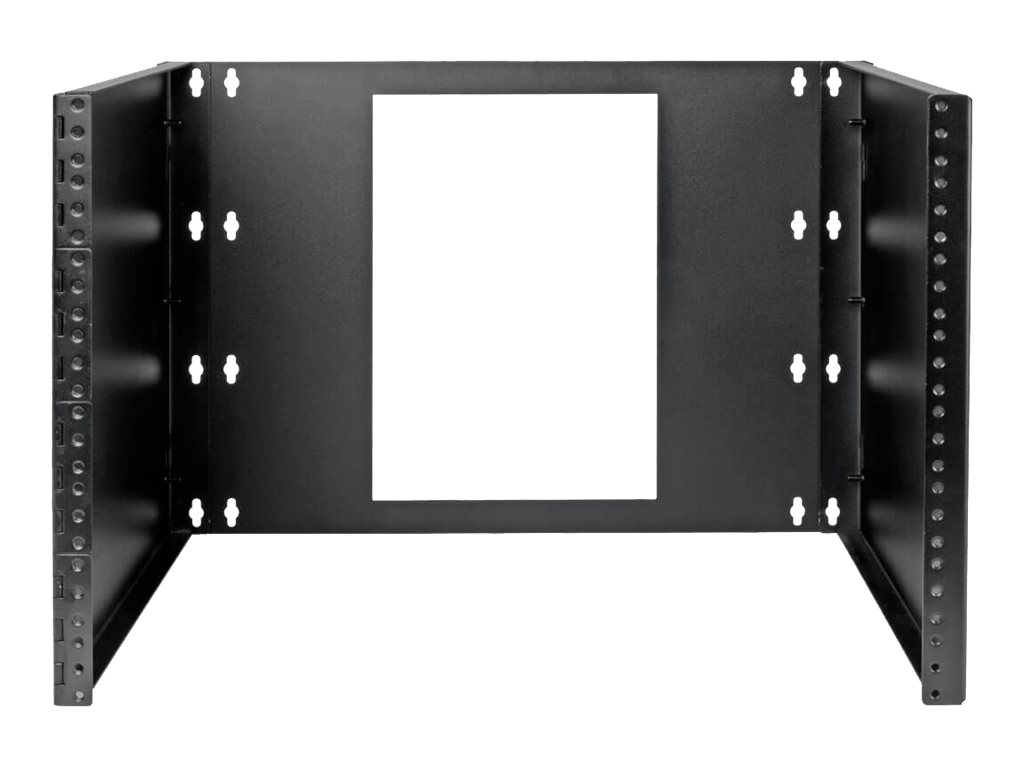

The SRWO8UBRKT houses 8U of compatible 19-inch rack components, including EIA-compliant switches and patch panels by any manufacturer, up to 14.75 inches deep. The 8U wall-mount bracket is hinged to allow open, unrestricted access to equipment and cabling from either the left or right side. Maximum load capacity is 35 pounds (15.9 kg)

Rear Cutout Eases Cable Installations

The wall-mount bracket features an open cutout in the rear that allows for cable feeds through the wall to streamline installations and reduce cable clutter. The laser-cut metal bracket's surfaces and edges are smooth to reduce wear on cable jackets and patch panel equipment.

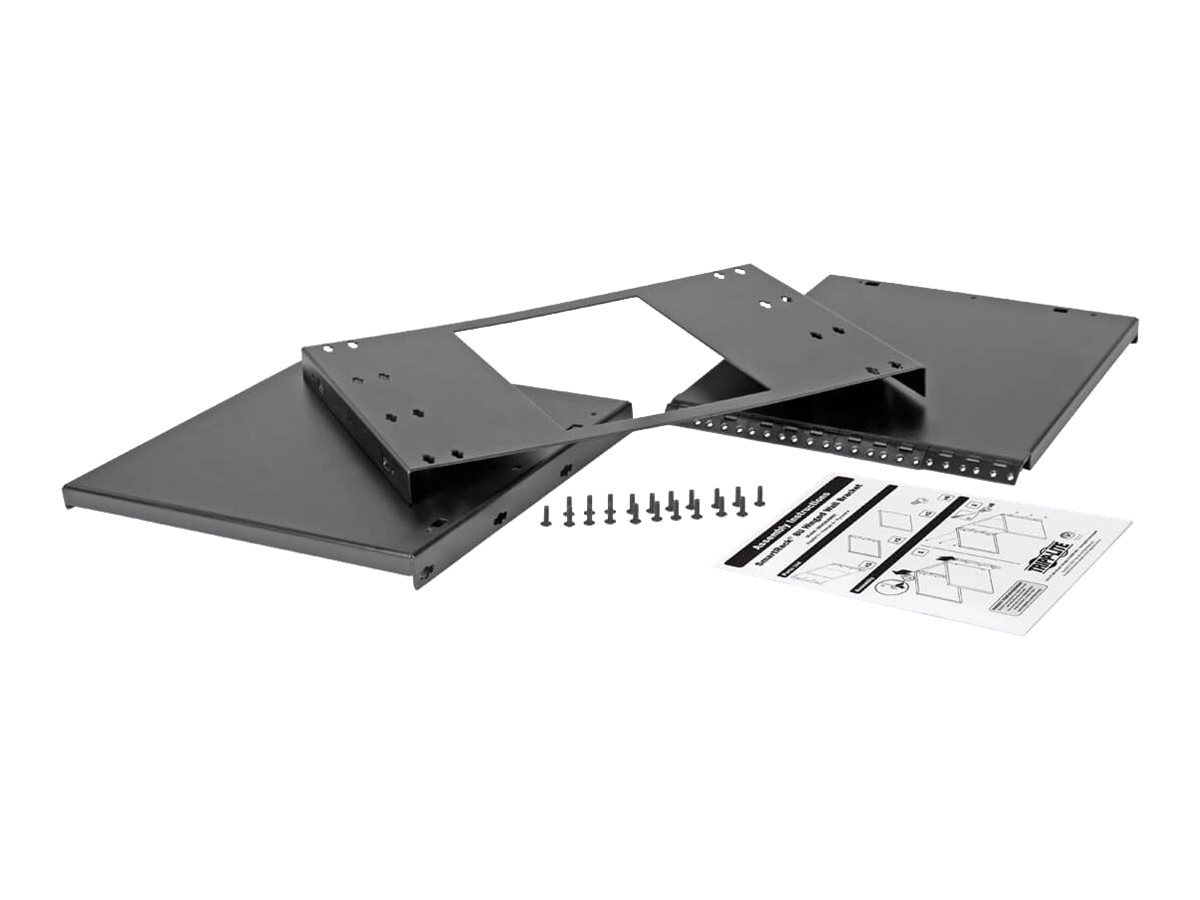

Easy Mounting with the Included Hardware

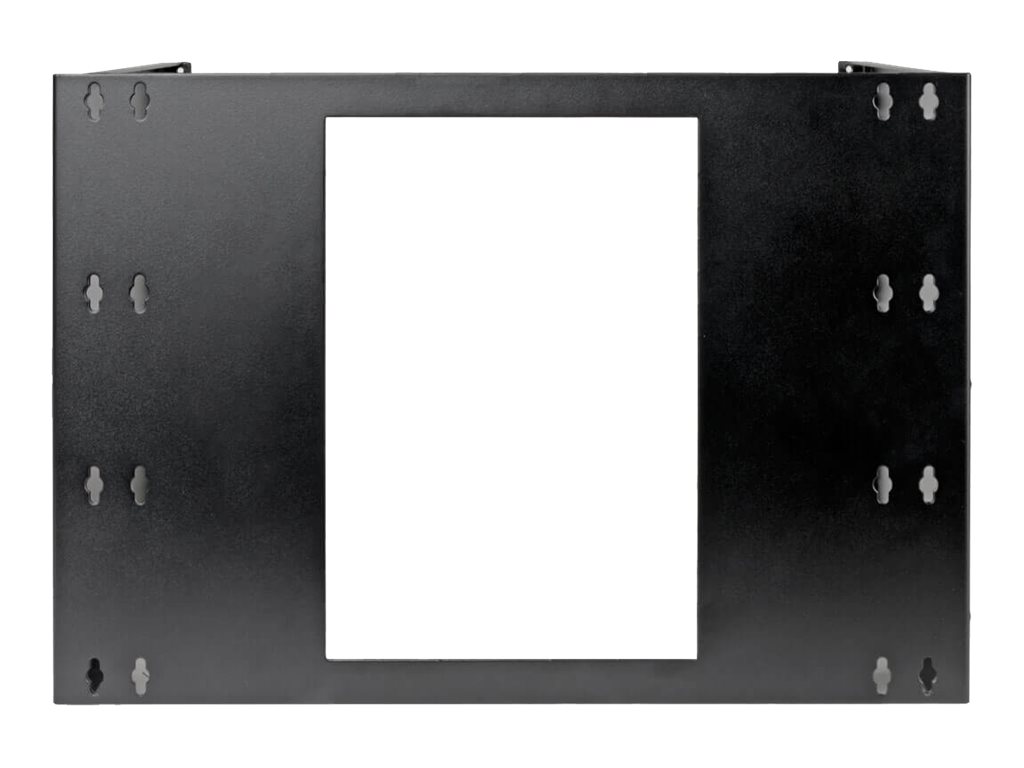

Rear keyhole mounting slots are 16 inches apart to align with standard wall-stud placement. Stamped horizontal reinforcement ribs on the back of the bracket provided extra stability. The 8U wall-mount bracket comes with mounting screws for installing the bracket and rack equipment.

5-Year Warranty and Environmentally Responsible Design

The SRWO8UBRKT comes with a 5-year warranty. It's manufactured in compliance with strict RoHS specifications.
