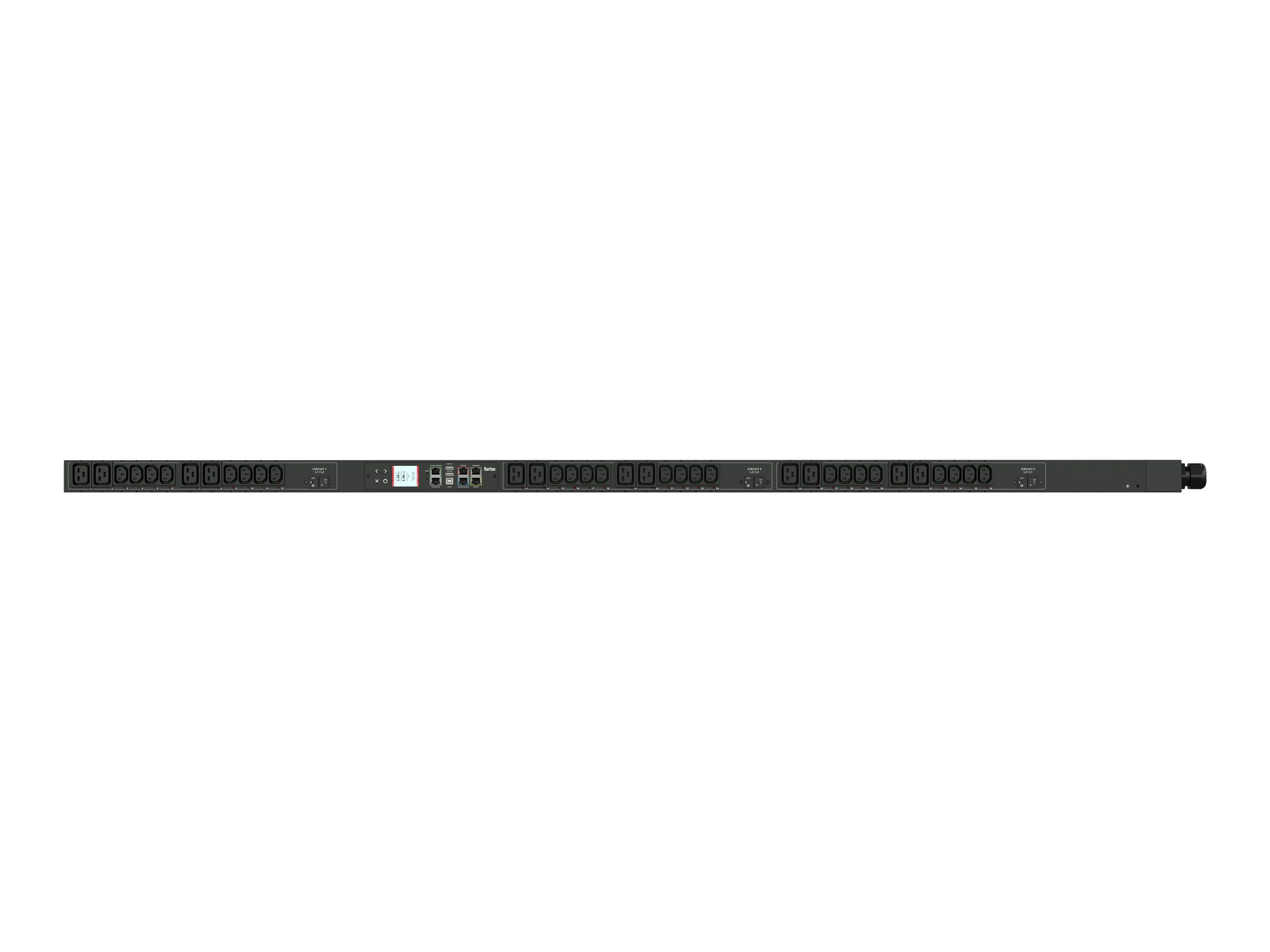

Raritan PX3-5725V - Power distribution unit (rack-mountable)

$3,840.00
Raritan PX3-5725V - Power distribution unit (rack-mountable)
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • AC 208 V
  • 8600 VA
  • 3-phase delta
  • Ethernet 10/100, RS-232, USB, Ethernet 10/100/1000
  • input: NEMA L21-30P
Raritan PX3-5725V - Power distribution unit (rack-mountable)
  • AC 208 V
  • 8600 VA
  • 3-phase delta
  • Ethernet 10/100, RS-232, USB, Ethernet 10/100/1000
  • input: NEMA L21-30P
  • output connectors: 36 (24 x IEC 60320 C13, 12 x IEC 60320 C19)
  • 0U
  • 3 m cord
  • black powder coat
  Additional Details
Price: $3,840.00
Mfr Part #: PX3-5725V
SHI Part #: 35042618
Category: Rack systems for rack mount electroni...
UNSPSC: 24102001
Manufacturer: Legrand
Product Type: Hardware
General Information
CategoryRack systems for rack mount electroni...
DescriptionRaritan PX3-5725V - Power distribution unit (rack-mountable) - AC 208 V - 8600 VA - 3-phase delta - Ethernet 10/100, RS-232, USB, Ethernet 10/100/1000 - input: NEMA L21-30P - output connectors: 36 (24 x IEC 60320 C13, 12 x IEC 60320 C19) - 0U - 3 m cord - black powder coat
ManufacturerLegrand
MSRP$3,789.66
UNSPSC24102001
Main Specifications
Dimensions & Weight / Depth6.5 cm
Dimensions & Weight / Height178 cm
Dimensions & Weight / Weight6.9 kg
Dimensions & Weight / Width5.2 cm
General / SubcategoryPower distribution devices
Header / BrandRaritan
Miscellaneous / Product ColorBlack
Networking / Remote Management Interface
  • Ethernet 10/100
  • Ethernet 10/100/1000
  • RS-232
  • USB
Packaged Quantity1
Power Device / Form FactorRack-mountable
Power Device / Output Connector Qty36
Power Device / Power Capacity (VA)8600 VA
Power Device / Voltage RequiredAC 208 V
Product TypePower distribution unit
Service & Support / Type2-year warranty
Dimensions & Weight
Depth6.5 cm
Height178 cm
Weight6.9 kg
Width5.2 cm
Dimensions & Weight (Shipping)
Shipping Depth11.5 cm
Shipping Height205.5 cm
Shipping Weight9.2 kg
Shipping Width28 cm
Environmental Parameters
Humidity Range Operating85%
Max Operating Temperature60 °C
Expansion / Connectivity
Interfaces
  • 1 x sensor - RJ-45
  • 1 x modem - RJ-45
  • 2 x monitoring - RJ-45
  • 1 x management (USB) - 4 pin USB Type B
  • 2 x USB - 4 pin USB Type A
  • 1 x management (Fast Ethernet) - RJ-45
  • 1 x management (Gigabit Ethernet) - RJ-45
General
ColorBlack powder coat
Cord Length3 m
Device TypePower distribution unit - rack-mountable
Height (Rack Units)0U
Manufacturer Warranty
Service & SupportLimited warranty - 2 years
Miscellaneous
Cables IncludedPower cable - integrated - 3 m
Compliant StandardsUL, ICES-003, RoHS, FCC Part 15 A, cULus, IP44, IEC 62053-21, ISO 62053-21
FeaturesVertical orientation, LCD display, voltage monitoring, current meter, cascadable, active power meter, real power meter, energy meter, power factor meter, Raritan SecureLock Ready, splash-proof plug, metering per input line, metering per branch circuit breaker, metering per output receptacle, replaceable controller, monitored, bottom-bottom feed cord entry, 3 x LEGBXA66-20 overload protection, cord retention
Rack Mounting KitIncluded
Networking
Remote Management InterfaceEthernet 10/100, RS-232, USB, Ethernet 10/100/1000
Remote Management ProtocolSNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP, Modbus
Power Device
Circuit ProtectionCircuit breaker
Frequency Required50/60 Hz
Input Connectors1 x power NEMA L21-30P
Input VoltageAC 208 V
Input Voltage RangeAC 190 - 208 V
Input Wiring3-phase delta
Max Electric Current30 A
Output VoltageAC 208 V
Power Capacity8600 VA
Power Capacity Details8.6 kVA at 208 V, 7.9 kVA at 190 V
Power Output Connectors Details
  • 24 x power IEC 60320 C13 - 208 V 12 A
  • 12 x power IEC 60320 C19 - 208 V 16 A
