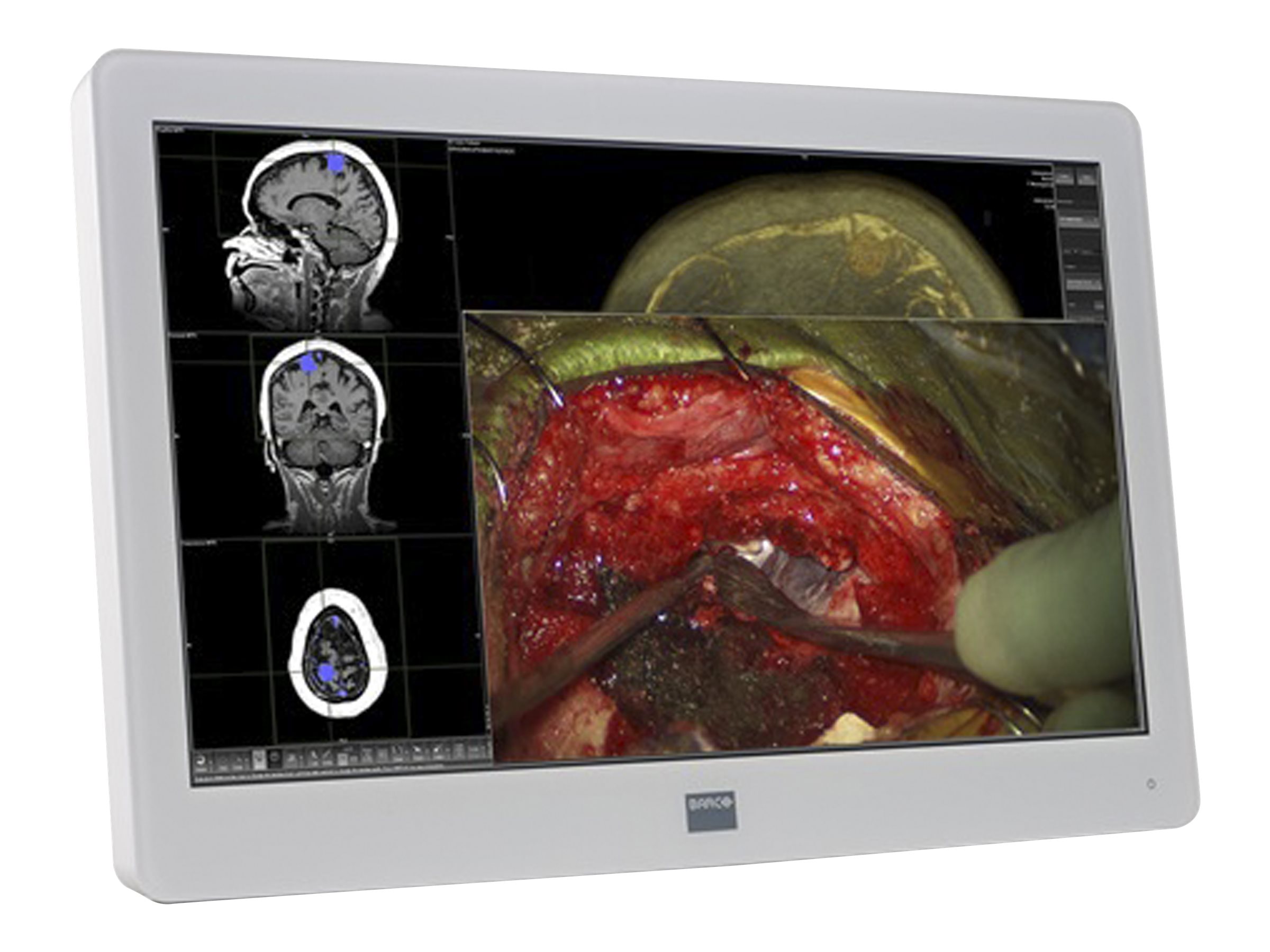

Barco MDSC-2324 LED - LED monitor
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Barco MDSC-2324 LED - LED monitor
- color
- 24" (24" viewable)
- stationary
- 1920 x 1200 WUXGA @ 60 Hz
- 400 cd/m²
- 1500:1
- DVI-I, BNC (composite), 4xBNC, S-Video, 3G-SDI, DisplayPort
- white, RAL 9003
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | K9307950 |
| SHI Part #: | 34718422 |
| Category: | Flat panel displays |
| UNSPSC: | 43211902 |
| Manufacturer: | Barco |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Flat panel displays |
| Description | Barco MDSC-2324 LED - LED monitor - color - 24" (24" viewable) - stationary - 1920 x 1200 WUXGA @ 60 Hz - 400 cd/m² - 1500:1 - DVI-I, BNC (composite), 4xBNC, S-Video, 3G-SDI, DisplayPort - white, RAL 9003 |
| Manufacturer | Barco |
| MSRP | $5,557.61 |
| UNSPSC | 43211902 |
| Main Specifications | |
| Dimensions & Weight / Depth | 8.4 cm |
| Dimensions & Weight / Height | 41.4 cm |
| Dimensions & Weight / Weight | 7.9 kg |
| Dimensions & Weight / Width | 59.5 cm |
| Display / Diagonal Size | 24 in |
| Display / Diagonal Size (metric) | 60.9 cm |
| Display / Interface |
|
| Display / Native Resolution | 1920 x 1200 |
| Display / Pixel Pitch | 0.27 mm |
| Display / Type | LED-backlit LCD monitor |
| Header / Brand | Barco |
| Image Brightness | 400 cd/m² |
| Miscellaneous / Compliant Standards |
|
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Connectivity | |
| Interfaces |
|
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 12 kg |
| Environmental Parameters | |
| Humidity Range Operating | 20 - 85% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| General | |
| Aspect Ratio | 16:10 |
| Backlight Technology | LED backlight |
| Brightness | 400 cd/m² |
| Color | White, RAL 9003 |
| Color Support | 1.074 billion colors (10-bit) |
| Contrast Ratio | 1500:1 |
| Diagonal Size | 24" |
| Dimensions (WxDxH) | 59.5 cm x 8.4 cm x 41.4 cm - without stand |
| Display Type | LED-backlit LCD monitor / TFT active matrix - color |
| Features | Wide Color Gamut, Color Imaging |
| Horizontal Refresh Rate | 90 kHz |
| Horizontal Viewing Angle | 178 |
| Native Resolution | WUXGA 1920 x 1200 at 60 Hz |
| OSD Languages | English, German, French, Italian, Spanish |
| Pixel Pitch | 0.27 mm |
| Vertical Refresh Rate | 75 Hz |
| Vertical Viewing Angle | 178 |
| Weight | 7.9 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Mechanical | |
| VESA Mounting Interface | 100 x 100 mm |
| Miscellaneous | |
| Cables Included | DVI cable - 3 m |
| Compliant Standards | RoHS, IP21, ITU-R BT.601-5, DisplayPort 1.1a, ITU-R BT.656 |
| Power | |
| Power Consumption (Typical) | 55 Watt |
