Eaton Tripp Lite Series SmartRack 12U IP54 Switch-Depth Wall-Mount Rack Enclosure Cabinet for Harsh Environments, Hinged Back, 230V

Saves Valuable Workspace

? Perfect for harsh, dirty work environments where you need equipment to be secure, organized, out of the way and protected from environmental contaminants

? Houses standard 19 in. (48.3 cm) rack equipment in 12U of space

? Maximum load capacity of 200 lbs (90.7 kgs)

Superior Protection

? Built-in air filter, louvered vents and sealing door gaskets keep out dirt, dust, lint, oil, drips and splashes

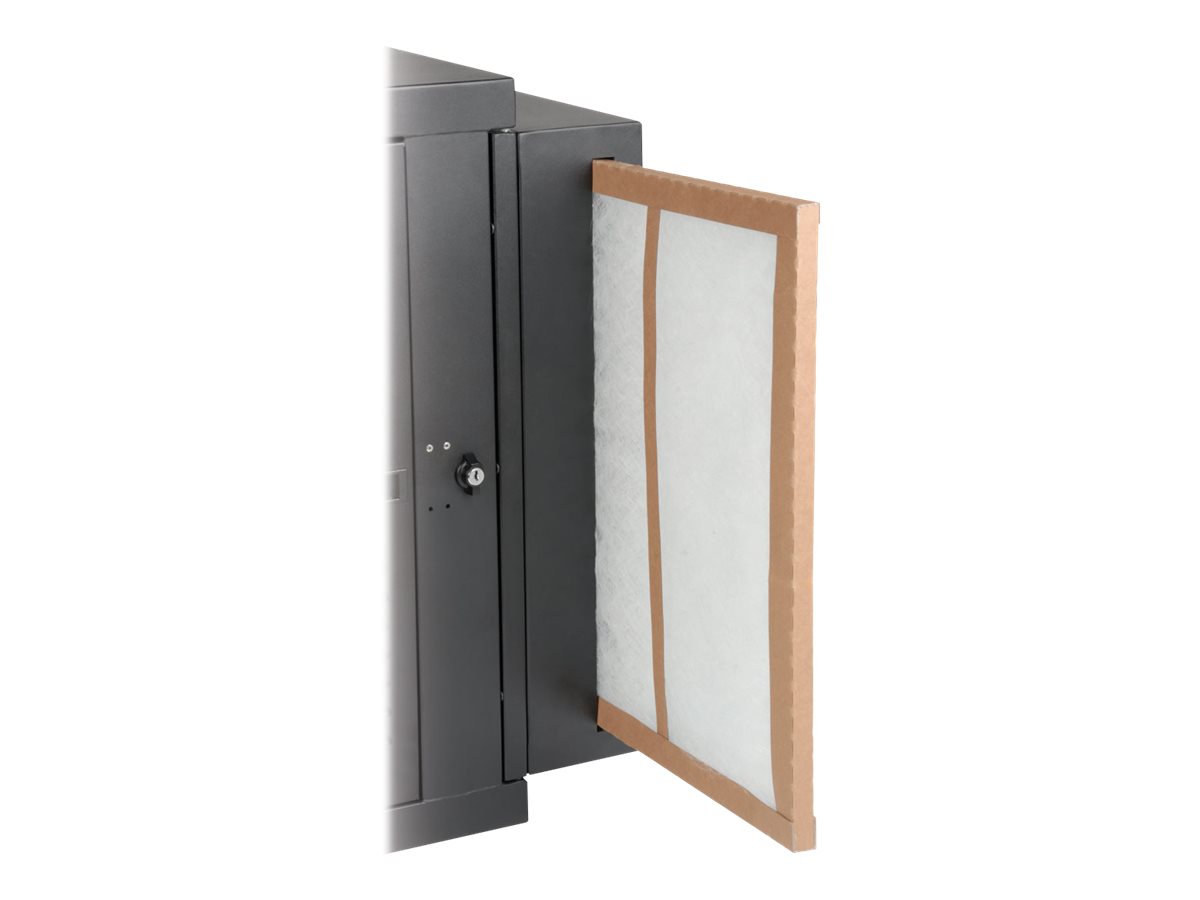

? Removable air filter can be replaced with standard, off-the-shelf furnace filters

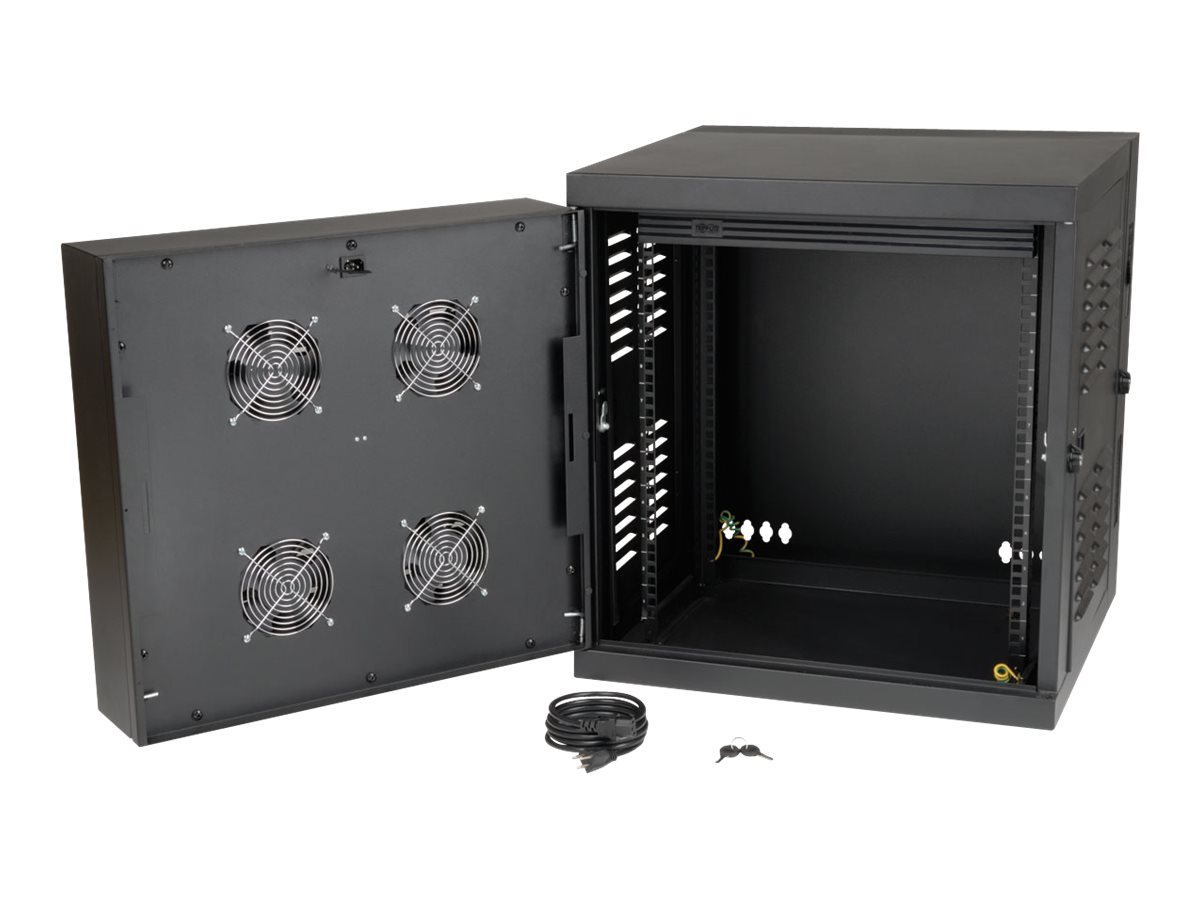

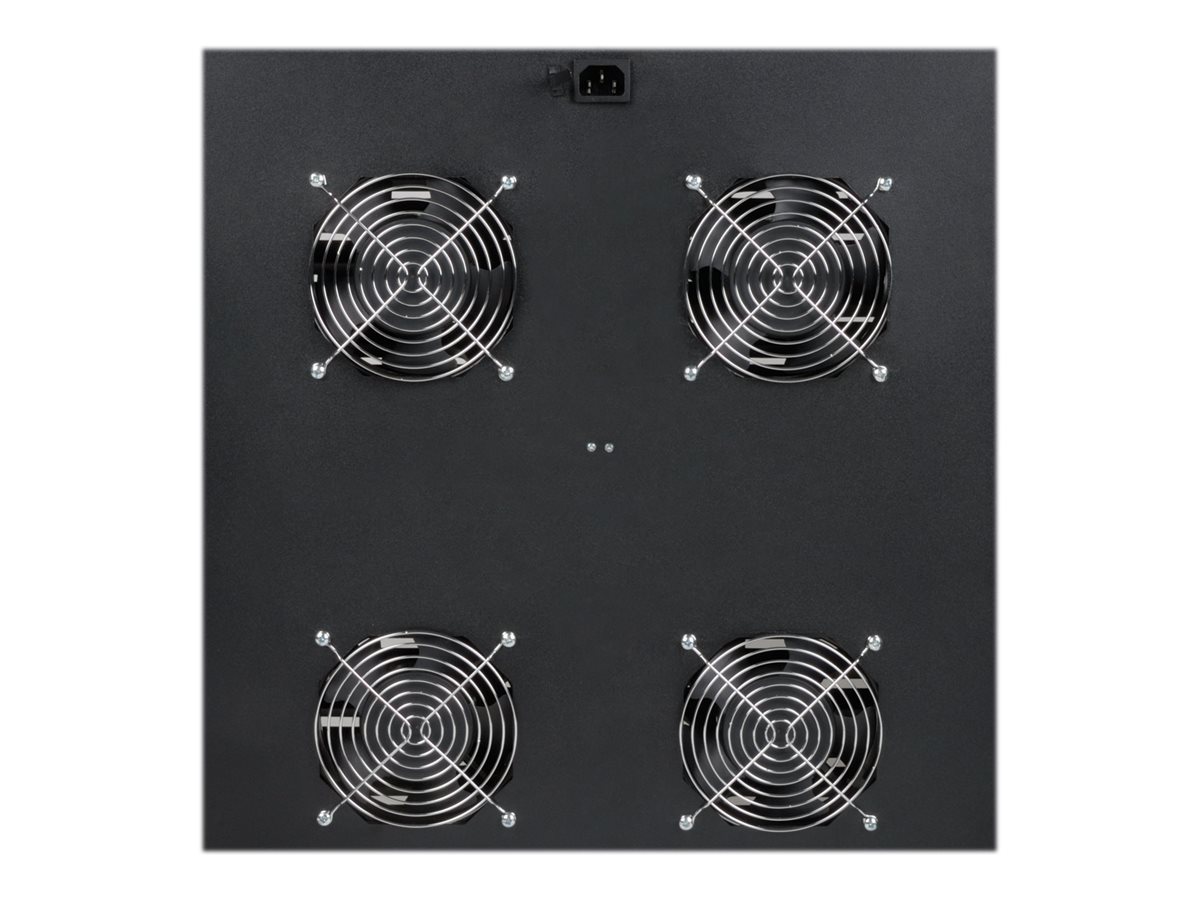

? Built-in high-performance door fans have C13 outlet that accepts various input cords (Schuko, BS 1363 and C14 cords included)

? Sealed cable ports maintain dust and moisture resistance

Hinged Cabinet for Convenient Access

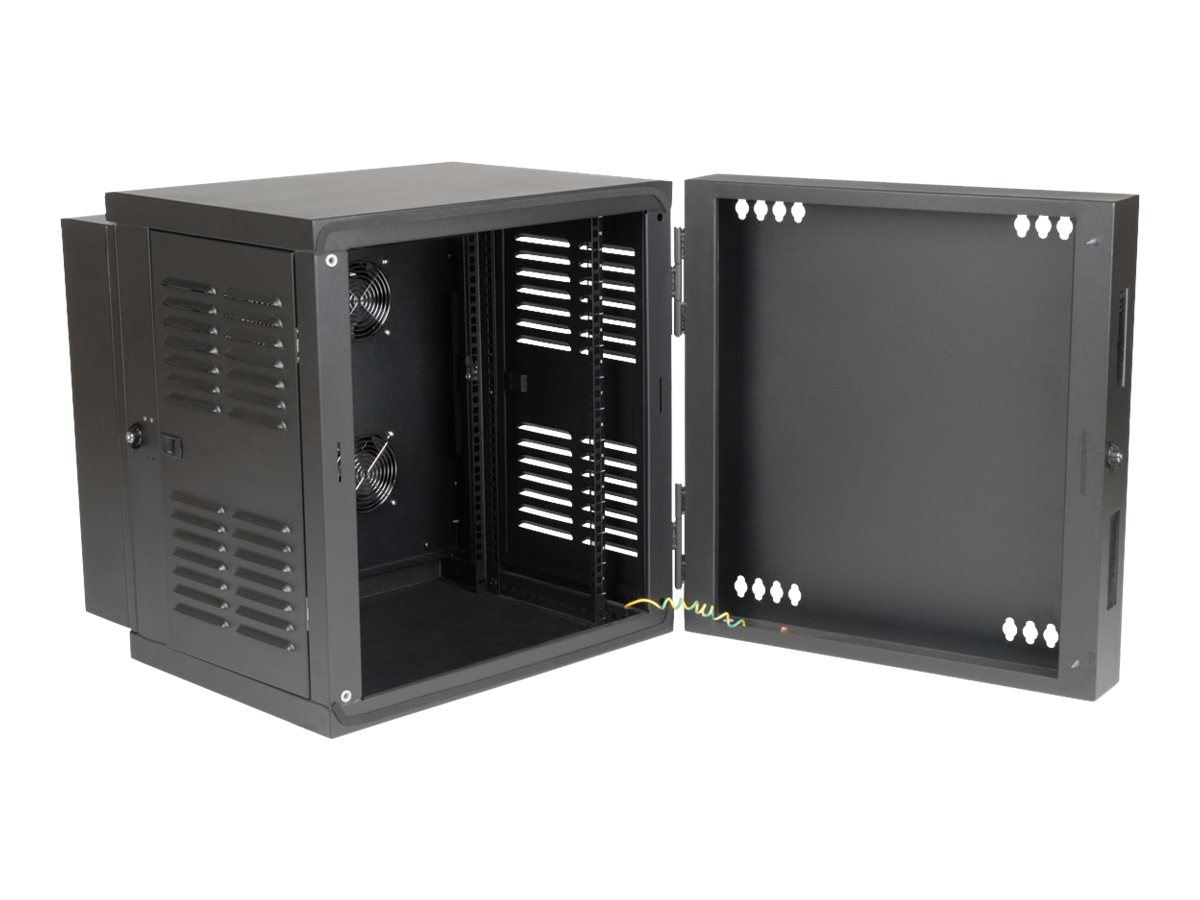

? Swings away from the wall to allow easy back-door access to equipment and cabling during installation and maintenance

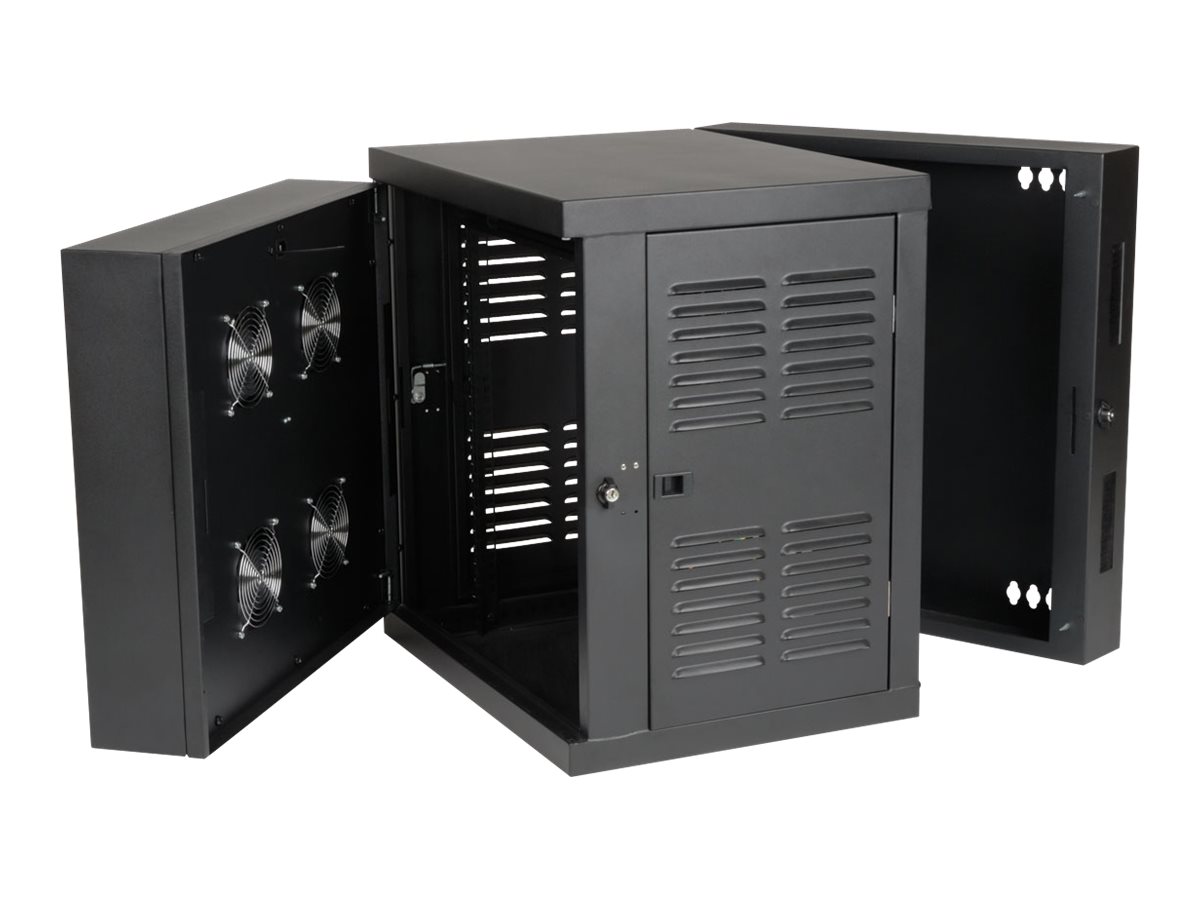

? Reversible doors can open left or right to accommodate various rack configurations

Keeps Important Equipment Secure

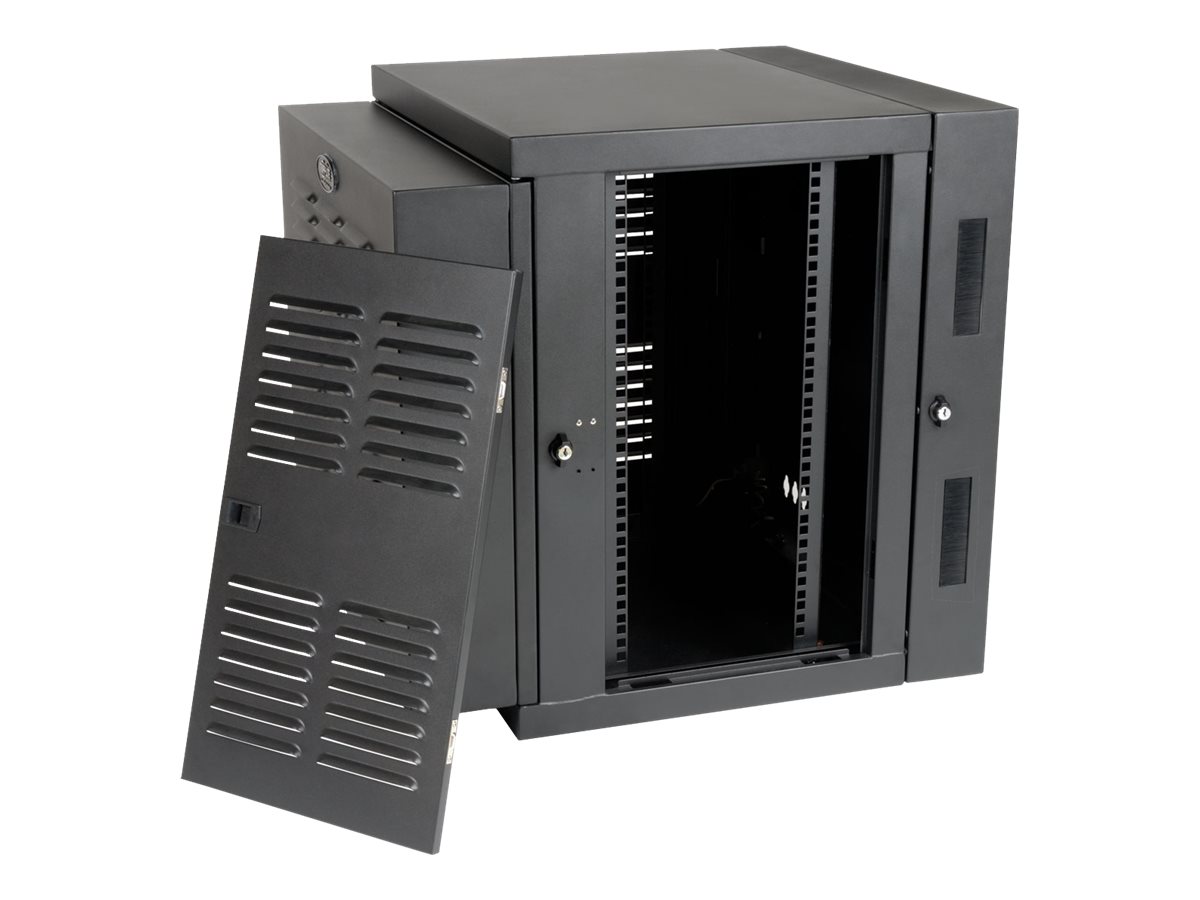

? Side panels and doors lock securely to help prevent damage, tampering or theft

? Vented panels and built-in fans provide generous airflow to keep equipment cool

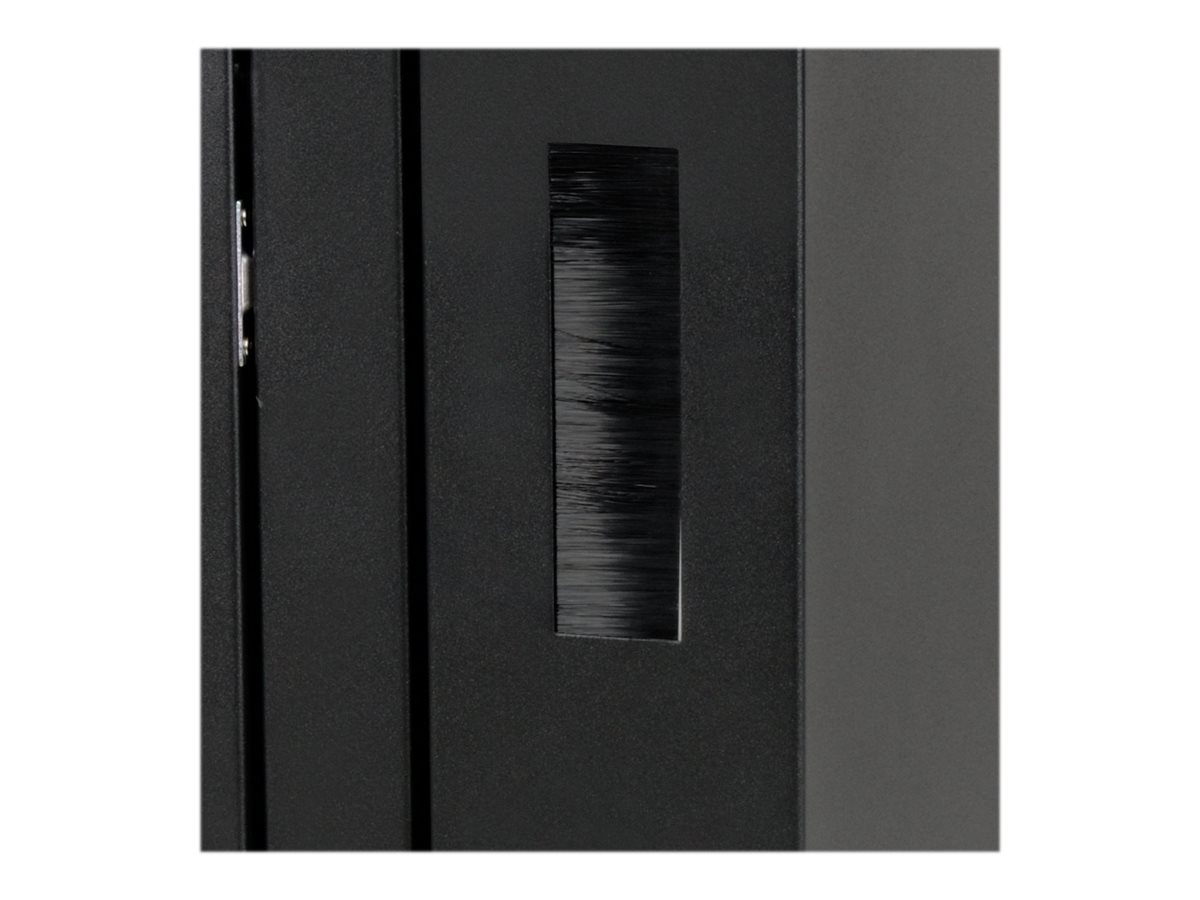

? Convenient ports with removable covers and protective brush strips allow cable routing through rear door

Easy Enclosure and Equipment Installation

? Ships fully assembled for quick wall-mounting

? Wall-mounting holes spaced 16 in. (40.6 cm) apart for standard wall stud placement

? Adjustable vertical mounting rails accommodate equipment up to 20.5 in. (52.1 cm) deep, such as network switches and patch panels

? Rails support square-hole mounting

? Rack spaces numbered for easy reference

Meets Payment Card Industry Standards

? Provides physical equipment and media security required for PCI DSS (Payment Card Industry Data Security Standard) compliance.
