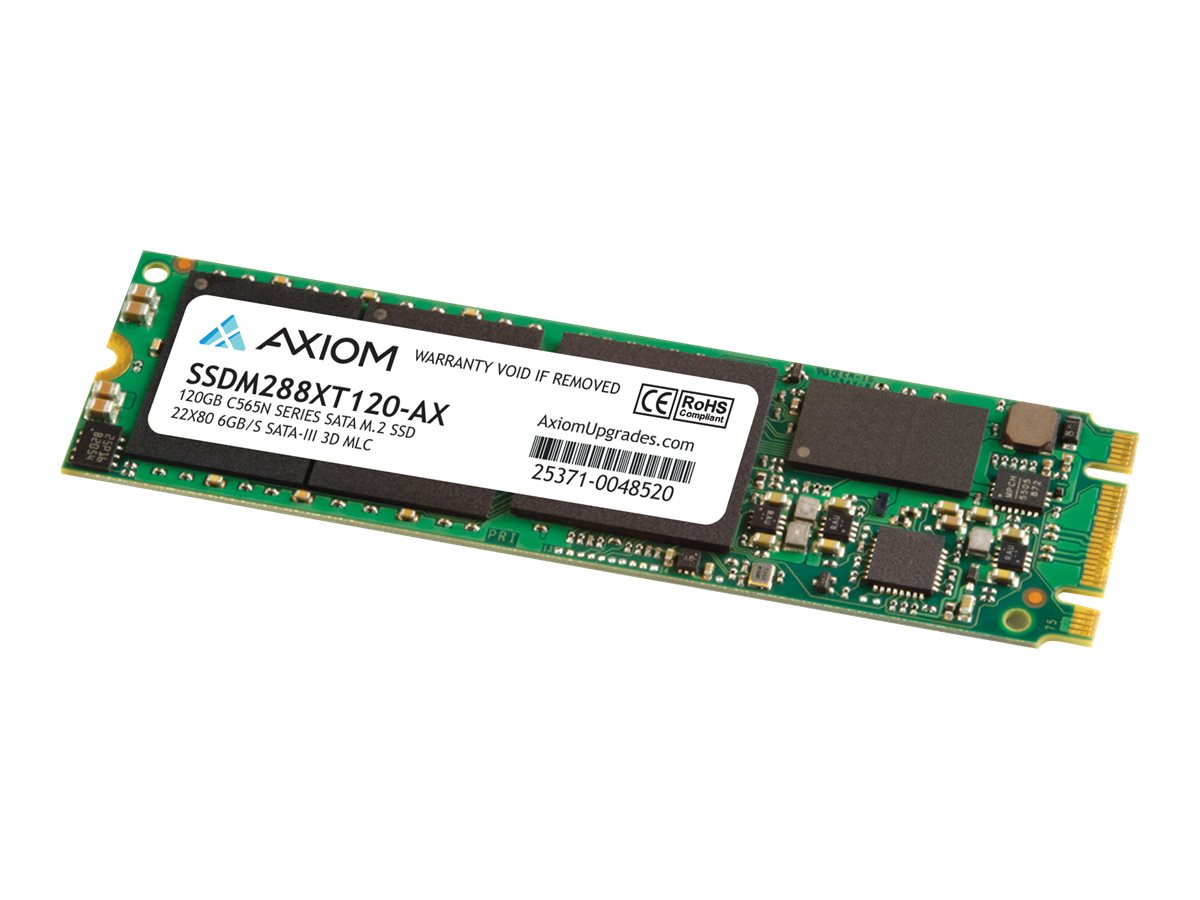

Axiom C565N Series - SSD
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Axiom C565N Series - SSD
- 120 GB
- internal
- M.2 2280
- SATA 6Gb/s
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | SSDM288XT120-AX |
| SHI Part #: | 34363937 |
| Category: | Hard drives |
| UNSPSC: | 43201803 |
| Manufacturer: | Axiom Memory |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Hard drives |
| Description | Axiom C565N Series - SSD - 120 GB - internal - M.2 2280 - SATA 6Gb/s - TAA Compliant |
| Manufacturer | Axiom Memory |
| MSRP | $35.37 |
| UNSPSC | 43201803 |
| Main Specifications | |
| Dimensions & Weight / Depth | 80 mm |
| Dimensions & Weight / Weight | 4 g |
| Dimensions & Weight / Width | 22 mm |
| Hard Drive / Capacity | 120 GB |
| Hard Drive / Form Factor | M.2 2280 |
| Hard Drive / Hard Drive Type | Internal hard drive |
| Hard Drive / Interface | Serial ATA-600 |
| Hard Drive / Interface | Serial ATA-600 |
| Header / Brand | Axiom |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Storage / Type | Solid state drive |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% |
| Max Operating Temperature | 70 °C |
| Max Storage Temperature | 85 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
| Shock Tolerance (operating) | 1500 g @ 0.5 ms |
| Vibration Tolerance (operating) | 3.1 g @ 2-500 Hz |
| Expansion & Connectivity | |
| Compatible Bay | M.2 2280 |
| Interfaces | 1 x SATA 6 Gb/s |
| General | |
| Capacity | 120 GB |
| Depth | 80 mm |
| Device Type | Solid state drive - internal |
| Features | Temperature sensor, Native Command Queuing (NCQ), TRIM support, StaticDataRefresh Technology, Secure Erase function, Garbage Collection technology, Error Correction Code (ECC), DEVSLP SATA low power mode, LDPC error correction, 3D NAND Technology, Global Wear Leveling, SLC cache, Silicon Motion SM2258XT controller, S.M.A.R.T. |
| Form Factor | M.2 2280 |
| Interface | SATA 6Gb/s |
| NAND Flash Memory Type | 3D multi-level cell (MLC) |
| Weight | 4 g |
| Width | 22 mm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | RoHS, ATA-8 ACS3 |
| TAA Compliant | Yes |
| Performance | |
| Drive Transfer Rate | 600 MBps (external) |
| Drive Writes Per Day (DWPD) | 0.27 |
| Internal Data Rate | 295 MBps (read) / 315 MBps (write) |
| Maximum 4KB Random Read | 56000 IOPS |
| Maximum 4KB Random Write | 76000 IOPS |
| SSD Endurance | 37 TB |
| Reliability | |
| MTBF | 1,500,000 hours |
| Non-Recoverable Errors | 1 per 10^16 |
