Lenovo ThinkPad P51 20HH
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|

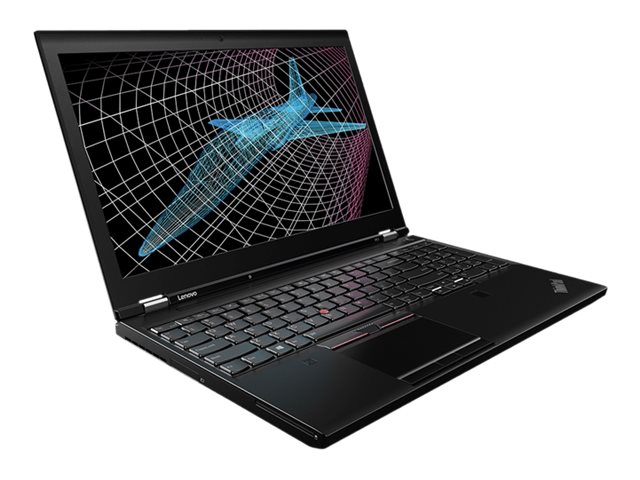

Lenovo ThinkPad P51 20HH
- Core i7 7700HQ / 2.8 GHz
- Win 10 Pro 64-bit
- 16 GB RAM
- 512 GB SSD TCG Opal Encryption 2, NVMe
- 15.6" IPS 1920 x 1080 (Full HD)
- Quadro M1200 / HD Graphics 630
- Wi-Fi, Bluetooth
- WWAN upgradable
- black
- kbd: US
| Additional Details | |
|---|---|
| Mfr Part #: | 20HH000TUS |
| SHI Part #: | 33776218 |
| Category: | Notebook computers |
| UNSPSC: | 43211503 |
| Manufacturer: | Lenovo |
| Product Type: | Hardware |
Mice and Trackballs
- blue optical
- 6 buttons
- wireless
- 2.4 GHz
- USB wireless receiver
- storm gray with natural cork
- Mouse
- right and left-handed
- 3 buttons
- wireless
- 2.4 GHz
- USB wireless receiver
Keyboards and Keypads
- Keypad
- wireless
- 2.4 GHz
- key switch: Scissor-Key
- storm gray
- retail
- Keyboard and mouse set
- wireless
- 2.4 GHz
- US
- for IdeaCentre AIO 330-20; V130-20IGM AIO; V330-20ICB AIO; V530-22ICB AIO; V530-24ICB AIO
| General Information | |
|---|---|
| Category | Notebook computers |
| Description | Lenovo ThinkPad P51 20HH - Core i7 7700HQ / 2.8 GHz - Win 10 Pro 64-bit - 16 GB RAM - 512 GB SSD TCG Opal Encryption 2, NVMe - 15.6" IPS 1920 x 1080 (Full HD) - Quadro M1200 / HD Graphics 630 - Wi-Fi, Bluetooth - WWAN upgradable - black - kbd: US |
| Manufacturer | Lenovo |
| UNSPSC | 43211503 |
| Main Specifications | |
| Audio Input / Type | Dual array microphone |
| Dimensions & Weight / Depth | 25.23 cm |
| Dimensions & Weight / Height | 2.94 cm |
| Dimensions & Weight / Weight | 2.67 kg |
| Dimensions & Weight / Width | 37.74 cm |
| Display / Diagonal Size | 15.6 in |
| Display / Diagonal Size (metric) | 39.6 cm |
| Display / Native Resolution | 1920 x 1080 |
| Display / Type | LED |
| Display / Widescreen Display | Yes |
| Hard Drive / Capacity | 512 GB |
| Header / Brand | Lenovo |
| Header / Localization | English |
| Input Device / Type |
|
| Mainboard / Chipset Type | Mobile Intel CM238 |
| Miscellaneous / Product Color | Black |
| Networking / Data Link Protocol |
|
| Networking / Wireless Protocol |
|
| Optical Storage / Drive Type | No optical drive |
| Optical Storage / Type | None |
| OS Provided / Type | Windows 10 Pro 64-bit Edition |
| Packaged Quantity | 1 |
| Processor / Generation | 7 |
| Processor / Manufacturer | Intel |
| Processor / Number of Cores | Quad-Core |
| Processor / Processor Number | I7-7700HQ |
| Processor / Type | Core i7 |
| RAM / Form Factor | SO-DIMM 260-pin |
| RAM / Memory Speed | 2400 MHz |
| RAM / Technology | DDR4 SDRAM |
| Service & Support / Type | 3-year warranty |
| System / Hard Drive Capacity | 512 GB |
| System / Notebook Type | Mobile workstation |
| System / Security Devices | Fingerprint reader |
| Video Output / Graphics Processor | NVIDIA Quadro M1200 / Intel HD Graphics 630 |
| AC Adapter | |
| Input | AC 120/230 V (50/60 Hz) |
| Output | 170 Watt |
| Audio & Video | |
| Camera | Yes - 720p |
| Codec | Realtek ALC3268 |
| Compliant Standards | High Definition Audio |
| Graphics Processor | NVIDIA Quadro M1200 / Intel HD Graphics 630 |
| Multi-GPU Configuration | 1 single GPU card / integrated GPU |
| Sound | Stereo speakers, dual array microphone |
| Video Memory | 4 GB |
| Battery | |
| Capacity | 90 Wh |
| Run Time | Up to 8.9 hours |
| Technology | 6-cell lithium ion |
| Communications | |
| Ethernet Controller | Intel I219-V |
| Network Interface | Gigabit Ethernet |
| Wireless | 802.11a/b/g/n/ac, Bluetooth 4.1 |
| Wireless Controller | Intel Dual Band Wireless-AC 8265 - M.2 Card |
| Connections & Expansion | |
| Interfaces Details |
|
| Memory Card Reader | 4 in 1 (SD Card, MultiMediaCard, SDHC Card, SDXC Card, SDXC UHS-II Card) |
| Slots | 1 x ExpressCard/34 (1 free) |
| Dimensions & Weight | |
| Dimensions (WxDxH) | 37.74 cm x 25.23 cm x 2.94 cm |
| Weight | 2.67 kg |
| Display | |
| Features | Anti-glare |
| Image Aspect Ratio | 16:9 |
| Image Brightness | 250 cd/m² |
| LCD Backlight Technology | LED backlight |
| Resolution | 1920 x 1080 (Full HD) |
| Type | 15.6" - IPS |
| Widescreen | Yes |
| General | |
| Operating System | Windows 10 Pro 64-bit Edition |
| Product Type | Mobile workstation |
| Input | |
| Features | Spill-resistant, multi-touch touchpad |
| Keyboard Backlight | Yes |
| Keyboard Layout | US |
| Numeric Keypad | Yes |
| Type | Keyboard, TrackPoint, UltraNav |
| Manufacturer Warranty | |
| Service & Support |
|
| Memory | |
| Empty Slots | 2 |
| Form Factor | SO-DIMM 260-pin |
| Max RAM Supported | 64 GB |
| RAM | 16 GB (2 x 8 GB) |
| Slots Qty | 4 |
| Speed | 2400 MT/s |
| Technology | DDR4 SDRAM - non-ECC |
| Miscellaneous | |
| Case Material | Glass-fiber reinforced plastic, magnesium-aluminum alloy |
| Color | Black |
| Compliant Standards | RoHS |
| Dockable | Yes |
| Features | Administrator password, hard drive password, power-on password, MIL-STD-810G tested |
| Included Accessories | Power adapter |
| Localization | Language: English |
| Manufacturer Selling Program | TopSeller |
| Security | Trusted Platform Module (TPM 2.0) Security Chip, fingerprint reader |
| Security Slot Type | Kensington security slot |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Processor / Chipset | |
| 64-bit Computing | Yes |
| Cache | 6 MB |
| Chipset | Mobile Intel CM238 |
| CPU | Intel Core i7 (7th Gen) 7700HQ / 2.8 GHz |
| Features | Integrated memory controller |
| Max Turbo Speed | 3.8 GHz |
| Number of Cores | Quad-Core |
| Software | |
| Software Included | Lenovo Companion, Lenovo Settings |
| Storage | |
| Main Storage | 512 GB SSD M.2 PCIe - TCG Opal Encryption 2, NVM Express (NVMe) |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
| Wireless Broadband (WWAN) | |
| Generation | WWAN upgradable |
