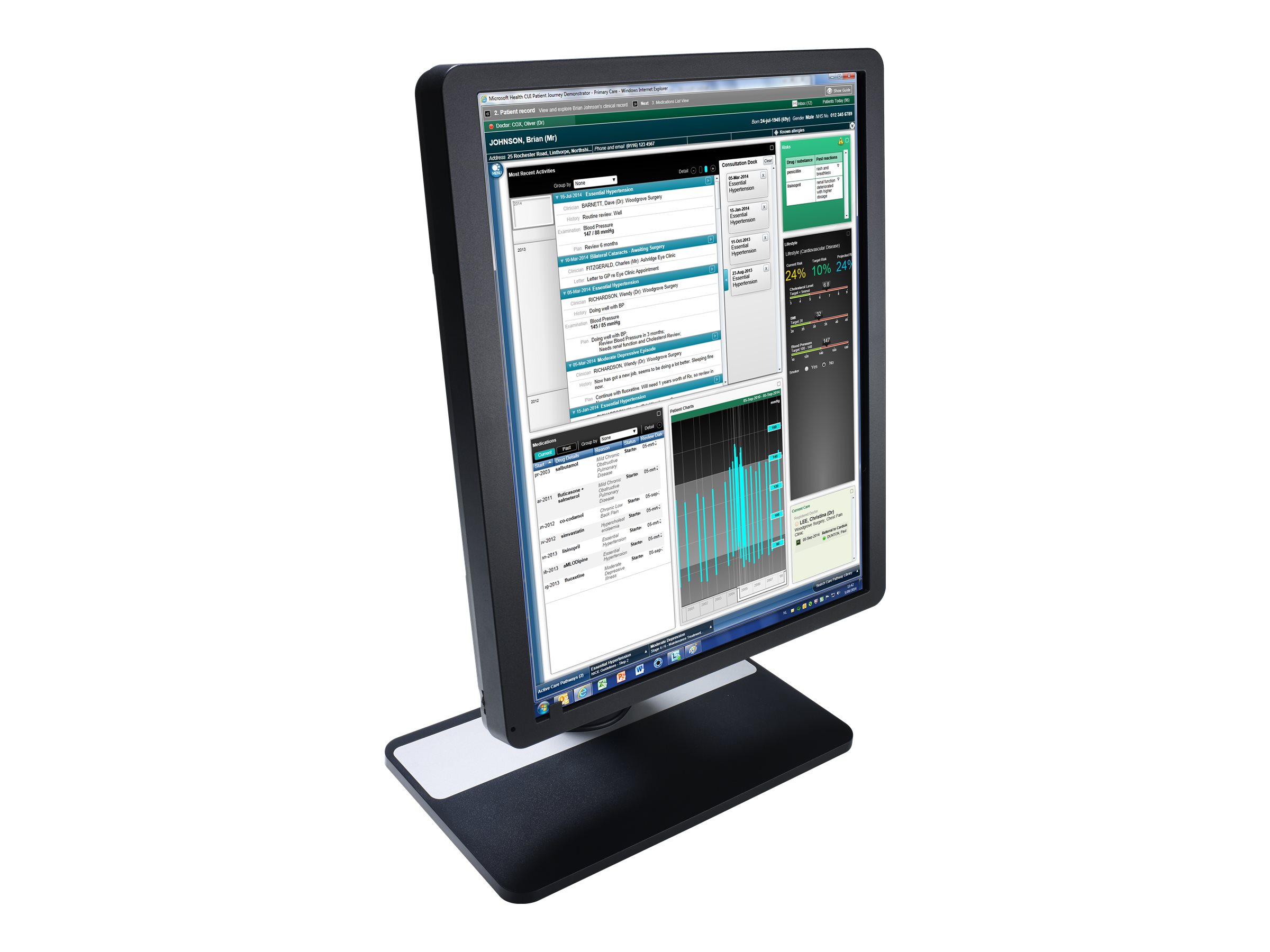

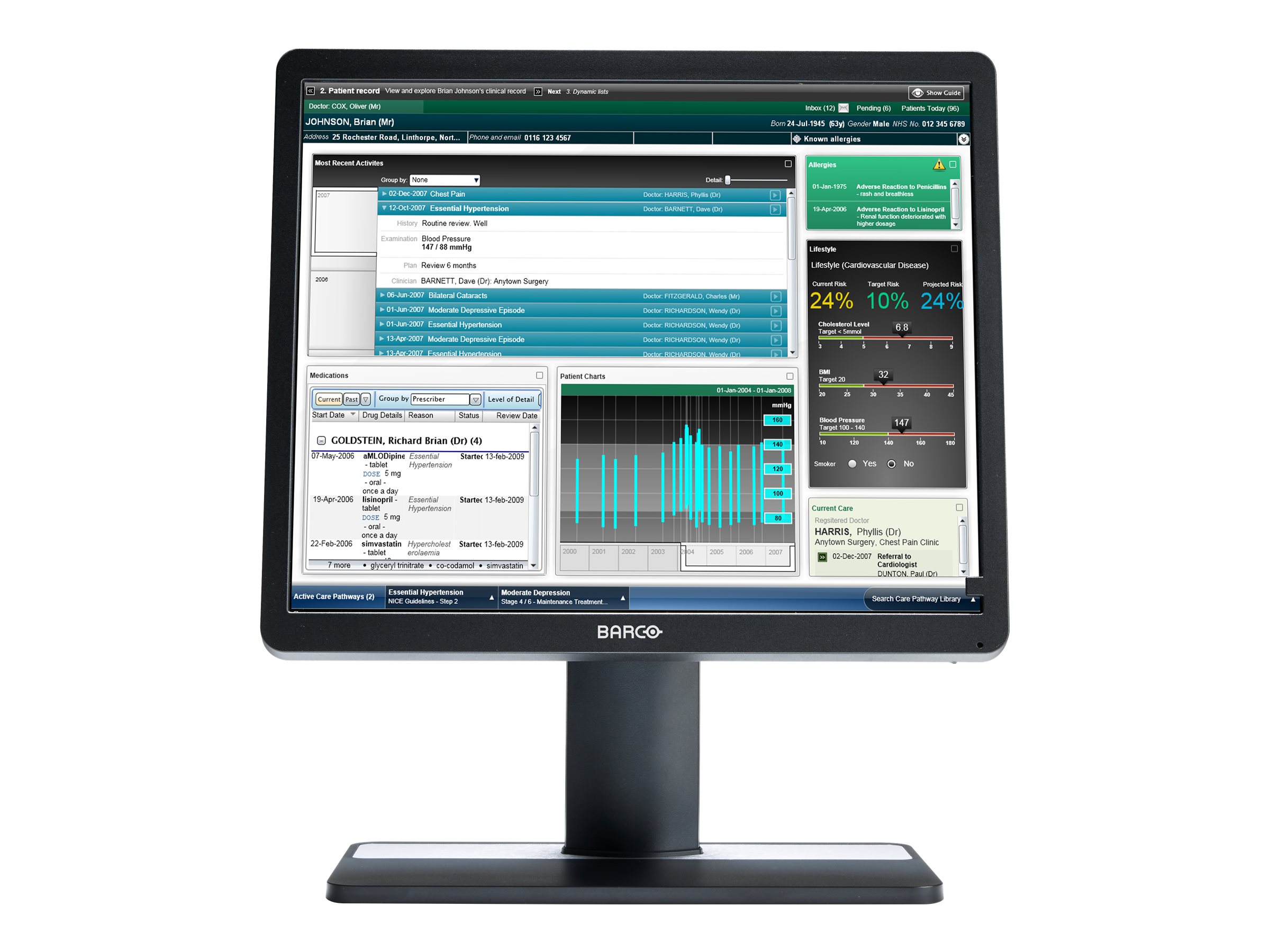

Barco MDRC-1219 TS - LED monitor
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Barco MDRC-1219 TS - LED monitor
- 1MP
- color
- 19" (19" viewable)
- touchscreen
- 1280 x 1024
- IPS
- 330 cd/m²
- 1000:1
- 30 ms
- DVI, DisplayPort
- black
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | K9301821A |
| SHI Part #: | 33746280 |
| Category: | Touch screen monitors |
| UNSPSC: | 43211903 |
| Manufacturer: | Barco |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Touch screen monitors |
| Description | Barco MDRC-1219 TS - LED monitor - 1MP - color - 19" (19" viewable) - touchscreen - 1280 x 1024 - IPS - 330 cd/m² - 1000:1 - 30 ms - DVI, DisplayPort - black |
| Manufacturer | Barco |
| MSRP | $1,764.14 |
| UNSPSC | 43211903 |
| Main Specifications | |
| Dimensions & Weight / Depth | 20.1 cm |
| Dimensions & Weight / Height | 51.8 cm |
| Dimensions & Weight / Weight | 6.1 kg |
| Dimensions & Weight / Width | 41.1 cm |
| Display / Diagonal Size | 19 in |
| Display / Diagonal Size (metric) | 48.3 cm |
| Display / Interface |
|
| Display / Native Resolution | 1280 x 1024 |
| Display / Pixel Pitch | 0.294 mm |
| Display / Type | LED-backlit LCD monitor |
| Header / Brand | Barco |
| Image Brightness | 330 cd/m² |
| Input Device / Type | Touchscreen |
| Miscellaneous / Compliant Standards |
|
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Connectivity | |
| Interfaces |
|
| Dimensions & Weight | |
| Dimensions & Weight Details |
|
| Environmental Parameters | |
| Humidity Range Operating | 20 - 80% (non-condensing) |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 0 °C |
| General | |
| Aspect Ratio | 5:4 |
| Backlight Technology | LED backlight |
| Brightness | 330 cd/m² |
| Built-in Devices | USB 2.0 hub |
| Color | Black |
| Contrast Ratio | 1000:1 |
| Diagonal Size | 19" |
| Dimensions (WxDxH) | 41.1 cm x 20.1 cm x 51.8 cm - with stand |
| Display Type | LED-backlit LCD monitor / TFT active matrix - 1MP - color |
| Features | Ambient light sensor, DICOM calibrated, consistency sensor |
| Horizontal Viewing Angle | 178 |
| Native Resolution | 1280 x 1024 |
| OSD Languages | Chinese (simplified), Brazilian Portuguese, English, German, French, Italian, Spanish, Dutch, Arabic, Japanese, Korean |
| Panel Type | IPS |
| Pixel Pitch | 0.294 mm |
| Response Time | 30 ms (tr - tf) |
| Vertical Viewing Angle | 178 |
| Weight | 6.1 kg |
| Input | |
| Type | Touchscreen - touchscreen |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Mechanical | |
| Display Position Adjustments | Height, pivot (rotation), tilt |
| Height Adjustment | 110 mm |
| Rotation Angle | 90 |
| Tilt Angle | -5/+22 |
| VESA Mounting Interface | 100 x 100 mm |
| Miscellaneous | |
| Cables Included |
|
| Compliant Standards | FCC Class B certified, VCCI, KC, ICES-001 level B, CAN/CSA C22.2 No. 60601-1:14, GB 4943.1-2011, IEC 60601-1 Third Edition, EN 60601-1:2006 + A11:2011 + A1:2013 + A12:2014, ANSI/AAMI ES60601-1 (2005/(R)2012 |
| Included Accessories | Stand |
| Power | |
| Input Voltage | AC 120/230 V (50 - 60 Hz) |
| Power Consumption (Typical) | 25 watt |
| Power Consumption Stand by | 0.5 watt |
| Software / System Requirements | |
| Included Software | Barco MediCal QAWeb |
