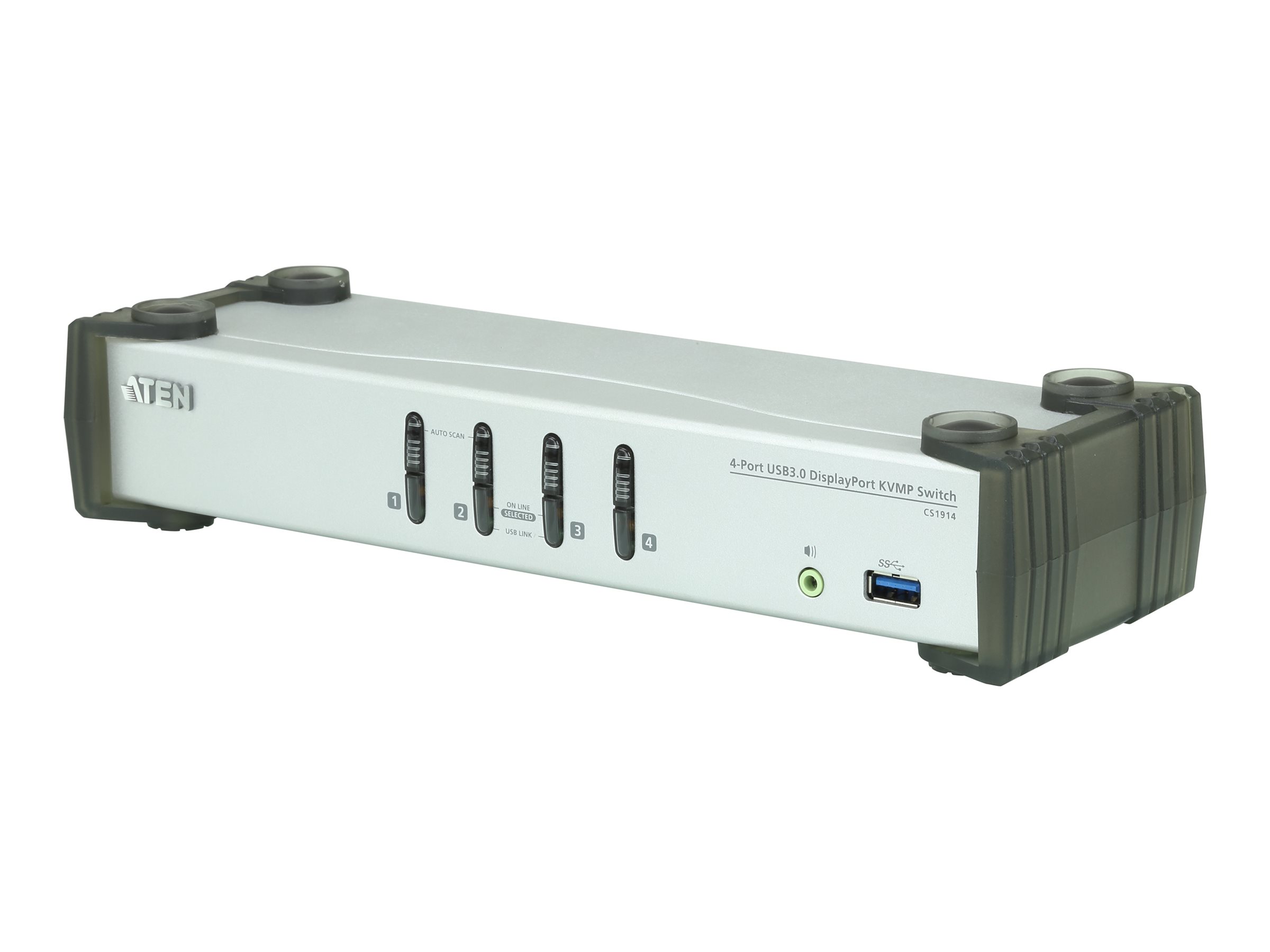

ATEN CS1914 KVMP Switch


$415.00
ATEN CS1914 KVMP Switch

Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • KVM / audio / USB switch
  • 4 x KVM / audio / USB
  • 1 local user
  • desktop
ATEN CS1914 KVMP Switch
  • KVM / audio / USB switch
  • 4 x KVM / audio / USB
  • 1 local user
  • desktop
  Additional Details
Price: $415.00
Mfr Part #: CS1914
SHI Part #: 33265475
Category: Peripheral switch boxes
UNSPSC: 43211604
Manufacturer: ATEN
Product Type: Hardware
General Information
CategoryPeripheral switch boxes
DescriptionATEN CS1914 KVMP Switch - KVM / audio / USB switch - 4 x KVM / audio / USB - 1 local user - desktop
ManufacturerATEN
MSRP$567.04
UNSPSC43211604
Main Specifications
Dimensions & Weight / Depth8.8 cm
Dimensions & Weight / Height5.55 cm
Dimensions & Weight / Weight910 g
Dimensions & Weight / Width27 cm
Header / BrandATEN
Miscellaneous / Product Color
  • Black
  • Silver
Networking / Form FactorDesktop
Networking / Ports Qty4
Networking / TypeKVM / audio / USB switch
Packaged Quantity1
Service & Support / Type3-year warranty
System Requirements / OS Required
  • Apple MacOS
  • Linux
  • Microsoft Windows
Dimensions & Weight
Depth8.8 cm
Height5.55 cm
Weight910 g
Width27 cm
Environmental Parameters
Humidity Range Operating0 - 80% (non-condensing)
Max Operating Temperature50 °C
Max Storage Temperature60 °C
Min Operating Temperature0 °C
Min Storage Temperature-20 °C
Expansion / Connectivity
Interfaces
  • 1 x keyboard (USB) Type A
  • 1 x mouse (USB) Type A
  • 4 x DisplayPort
  • 1 x DisplayPort output
  • 2 x audio output mini-jack
  • 4 x audio input mini-jack
  • 4 x USB 3.1 Gen 1 Type B
  • 2 x USB 3.1 Gen 1 Type A
General
Compliant StandardsUSB 3.0
Device TypeKVM / audio / USB switch - 4 ports
Enclosure TypeDesktop
FeaturesFirmware upgradable, HDCP compliant, metal housing
Keyboard / Mouse InterfaceUSB
KVM Local Users Qty1 local user
Max Resolution3840 x 2160 @ 30 Hz
Ports4 x KVM / audio / USB
SubtypeDisplayPort
Manufacturer Warranty
Service & SupportLimited warranty - 3 years
Miscellaneous
Cables Included
  • 4 x DisplayPort cable
  • 4 x SuperSpeed USB cable
  • 4 x audio cable
Compliant StandardsRoHS
Power
Power DeviceExternal power adapter
Software / System Requirements
OS RequiredApple MacOS, Linux, Microsoft Windows
