Hardware Computer Components Control/Interface Boards
Add to My Favorites
Control/Interface Boards

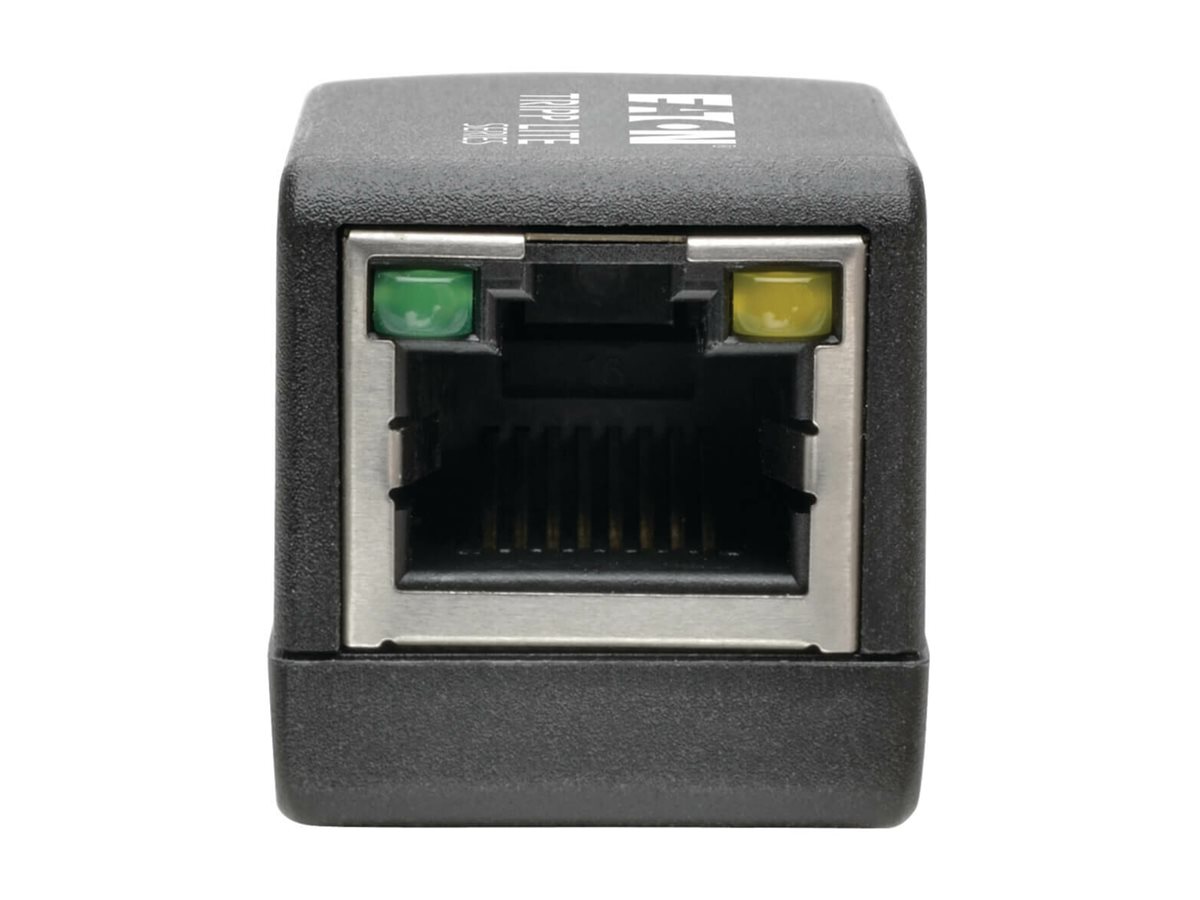

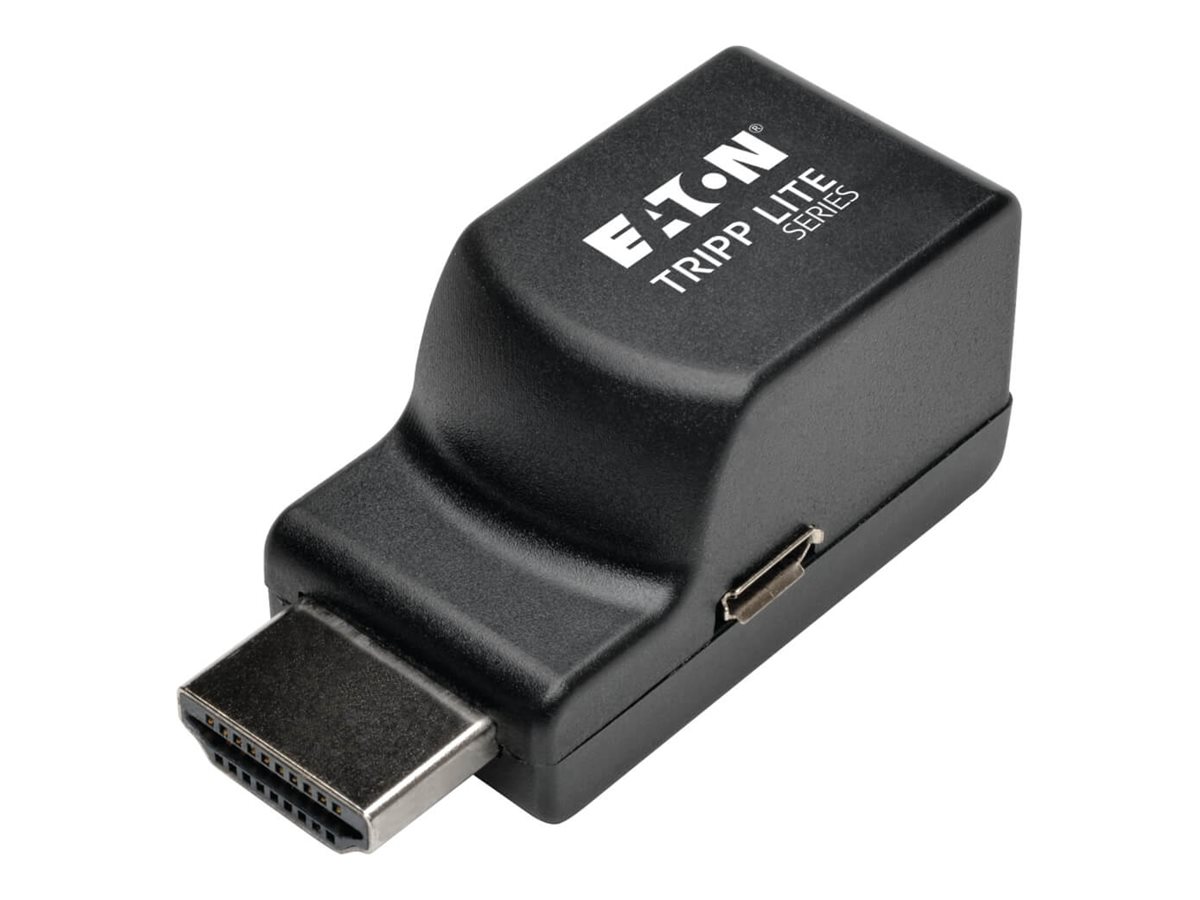

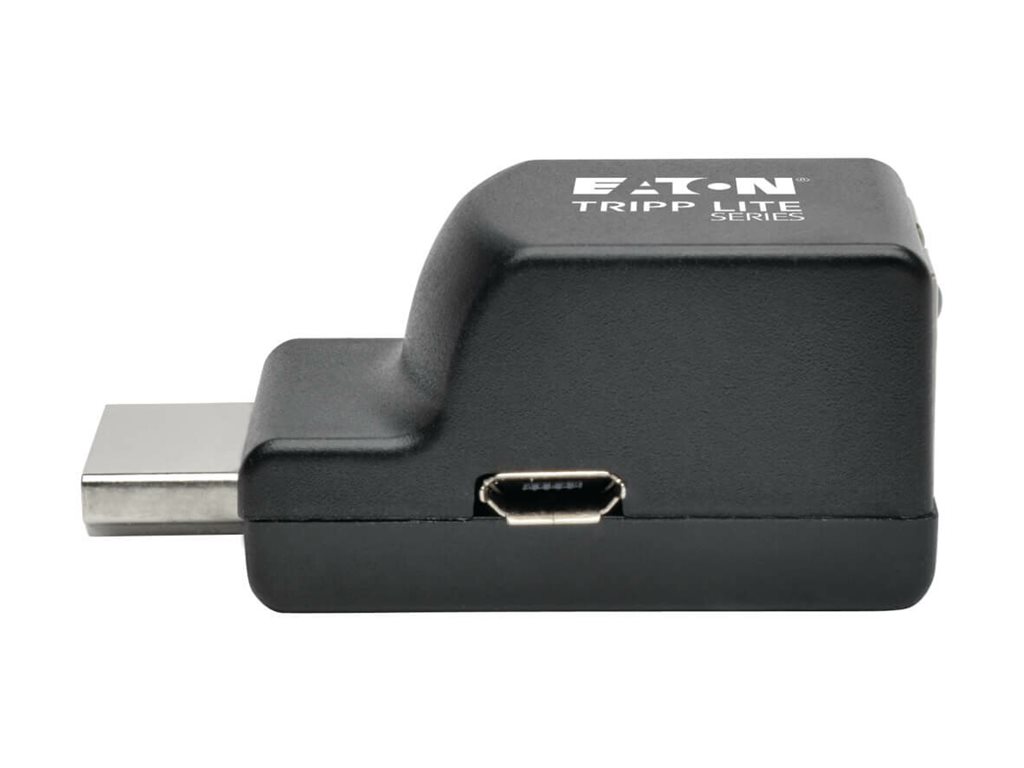

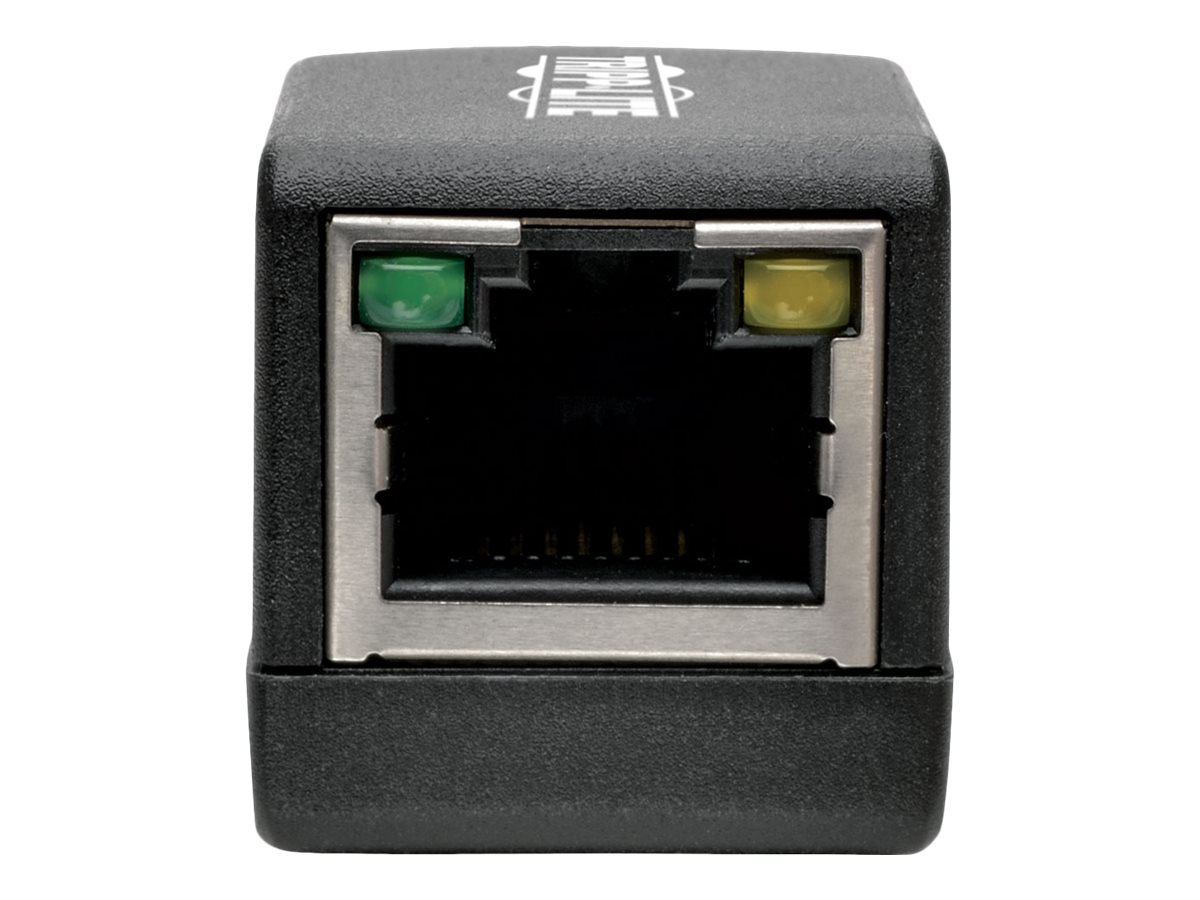

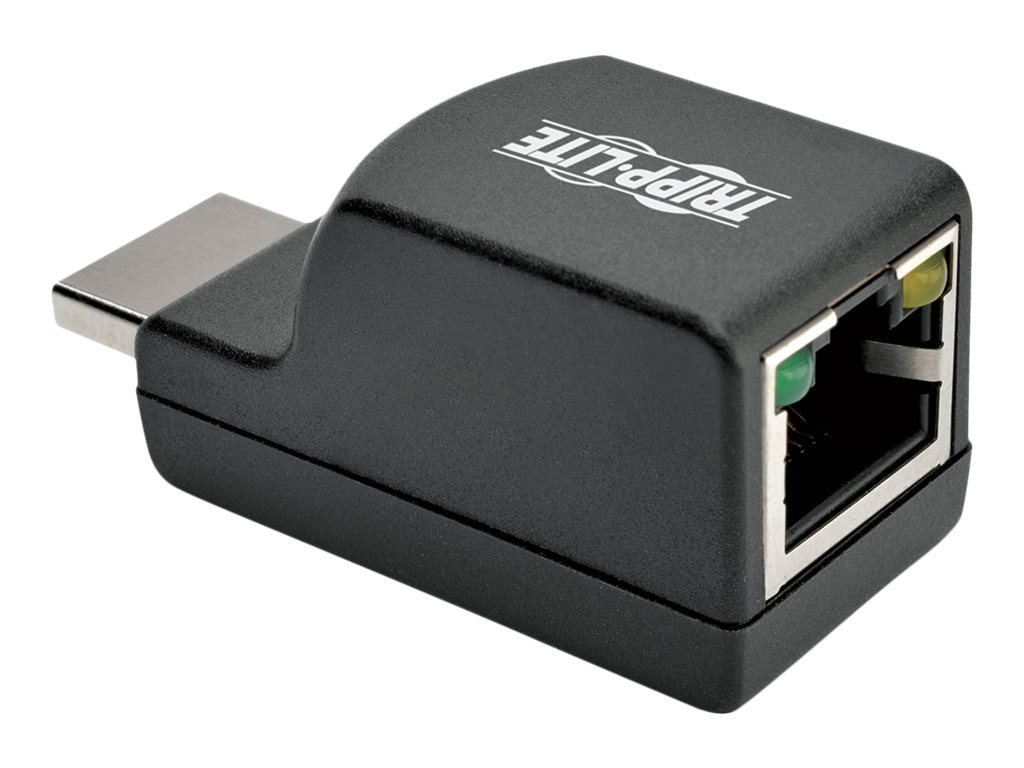

Tripp Lite HDMI over Cat5e/Cat6 Passive Extender, Low-Profile Remote Receiver for Video and Audio, 1080p @ 60 Hz, Up to 100 ft. (30.5 m)

$60.00
Tripp Lite HDMI over Cat5e/Cat6 Passive Extender, Low-Profile Remote Receiver for Video and Audio, 1080p @ 60 Hz, Up to 100 ft. (30.5 m)
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Video/audio extender
  • up to 30.5 m
  • TAA Compliant
Tripp Lite HDMI over Cat5e/Cat6 Passive Extender, Low-Profile Remote Receiver for Video and Audio, 1080p @ 60 Hz, Up to 100 ft. (30.5 m)
  • Video/audio extender
  • up to 30.5 m
  • TAA Compliant
  Additional Details
Price: $60.00
Mfr Part #: B126-1P0-MINI
SHI Part #: 33018010
Category: Serial port cards
UNSPSC: 43201559
Manufacturer: Eaton
Product Type: Hardware

Audio/Video Cables

Tripp Lite 50ft Cat6 Gigabit Solid Conductor Snagless Patch Cable RJ45 M/M Blue 50'
Tripp Lite 50ft Cat6 Gigabit Solid Conductor Snagless Patch Cable RJ45 M/M Blue 50'
  • Patch cable
  • RJ-45 (M) to RJ-45 (M)
  • 15.3 m
  • CAT 6
  • booted, snagless, solid
  • blue
$30.00
Tripp Lite 3ft USB Charging Cable Reversible Left/Right A to Right Angle 5Pin Micro B 3'
Tripp Lite 3ft USB Charging Cable Reversible Left/Right A to Right Angle 5Pin Micro B 3'
  • Charge-only cable
  • Micro-USB Type B (M) to USB (M)
  • 91 cm
  • black
  • right-angled connector
$4.00
Tripp Lite 3ft USB Charging Cable Reversible A to Right Angle 5Pin Micro B 3'
Tripp Lite 3ft USB Charging Cable Reversible A to Right Angle 5Pin Micro B 3'
  • Charge-only cable
  • Micro-USB Type B (M) to USB (M)
  • 91 cm
  • black
  • right-angled connector
$4.00
General Information
CategorySerial port cards
DescriptionTripp Lite HDMI over Cat5e/Cat6 Passive Extender, Low-Profile Remote Receiver for Video and Audio, 1080p @ 60 Hz, Up to 100 ft. (30.5 m) - Video/audio extender - up to 30.5 m - TAA Compliant
ManufacturerEaton
MSRP$91.55
UNSPSC43201559
Main Specifications
Header / BrandTripp Lite
Networking / Connectivity TechnologyWired
Networking / Form FactorExternal
Networking / TypeVideo/audio extender
Packaged Quantity1
Service & Support / Type1-year warranty
Compatibility Information
Designed ForP/N: B126-002, B126-004, B126-110, B126-2X2, B126-4X4, UR05C-003-RARB, UR05C-003-RB
Environmental Parameters
Humidity Range Operating10 - 90% (non-condensing)
Max Operating Temperature40 °C
Min Operating Temperature0 °C
Expansion / Connectivity
Interfaces

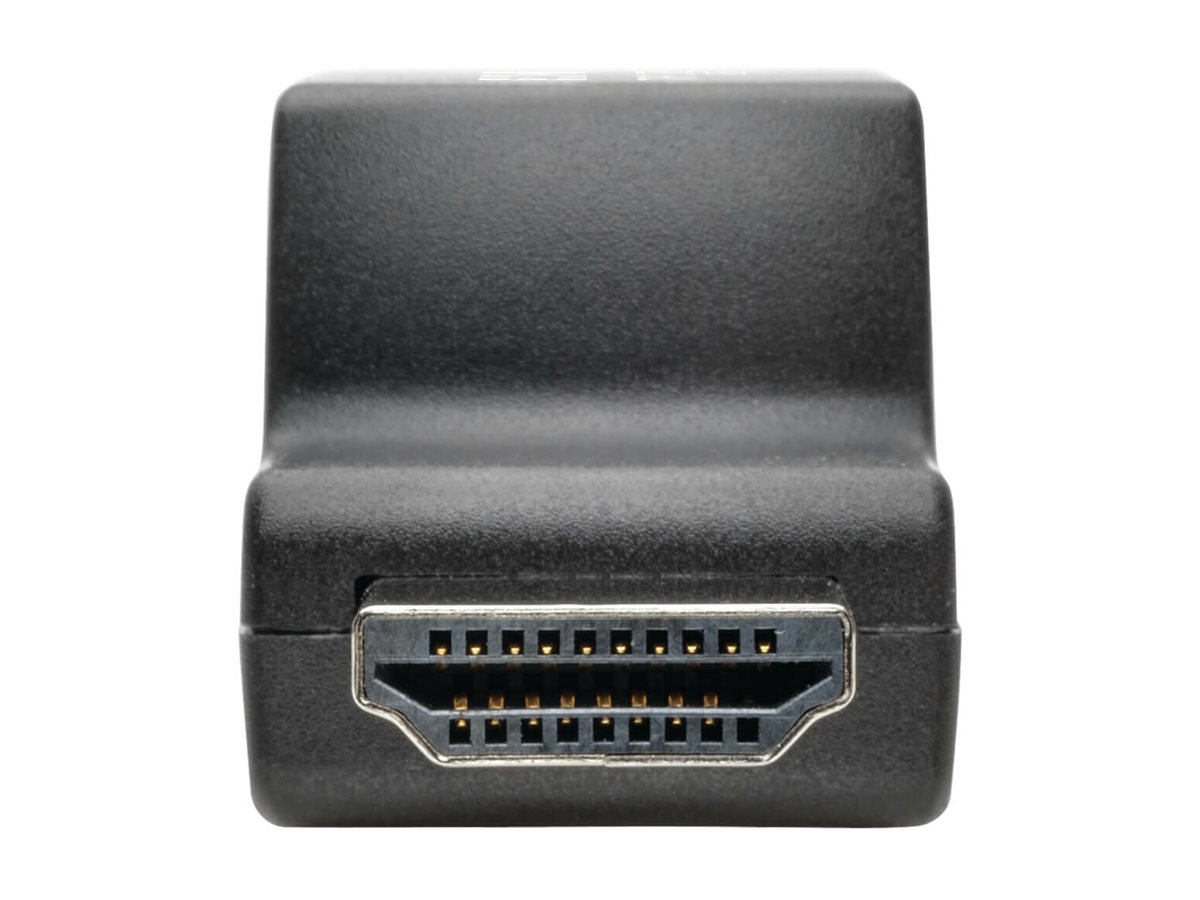

  • 1 x HDMI - 19 pin HDMI Type A male
  • 1 x network - RJ-45 female
  • 1 x micro-USB (power) - Type B female
General
ColorBlack
Device TypeVideo/audio extender (receiver)
Form FactorExternal
Manufacturer Warranty
Service & SupportLimited warranty - 1 year
Miscellaneous

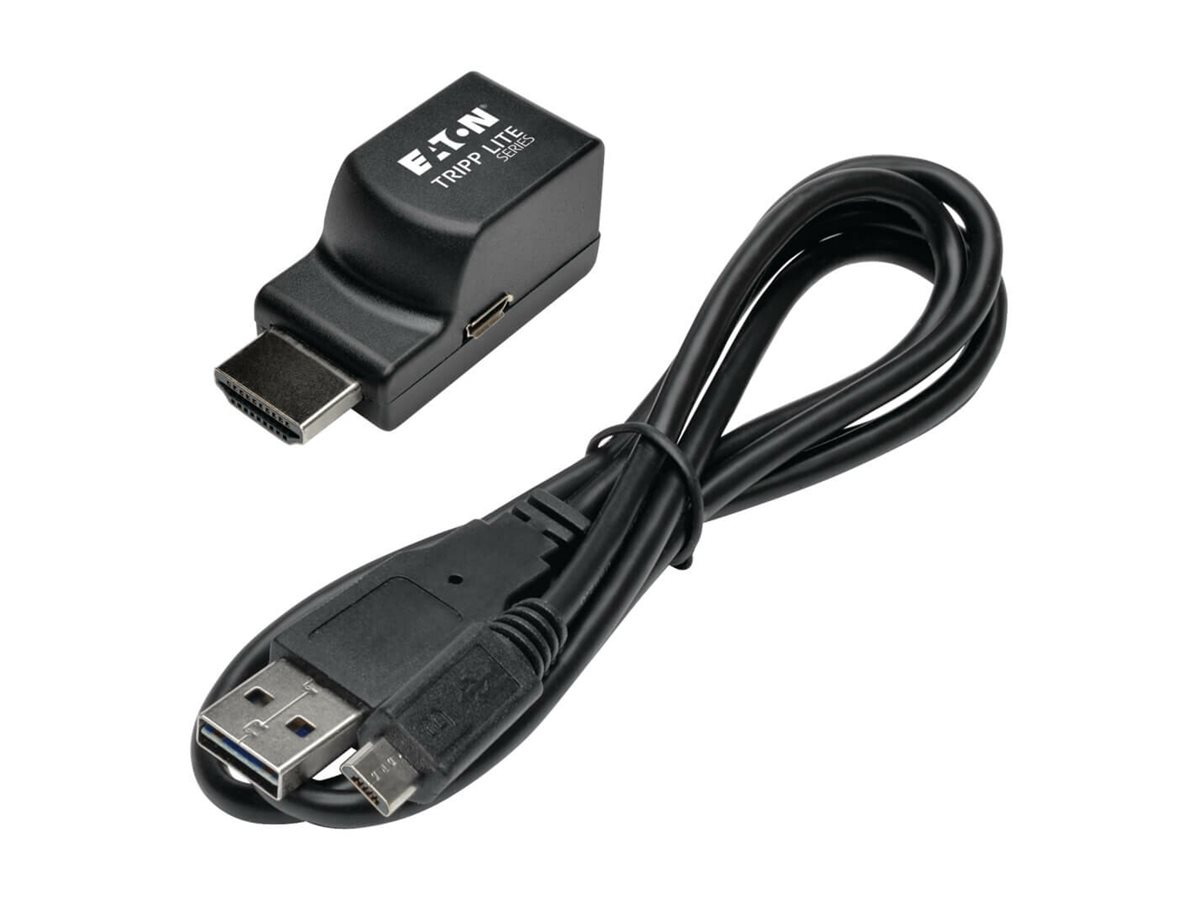

Cables Included1 x micro-USB cable
Compliant StandardsPlug and Play, RoHS
TAA CompliantYes
Networking
Connectivity TechnologyWired
FeaturesUSB powered, HDCP compliant, 7.1 channel audio support, 24-bit True Color support
Max Resolution1080p @ 60 Hz
Max Transfer Distance30.5 m
Status IndicatorsStatus
