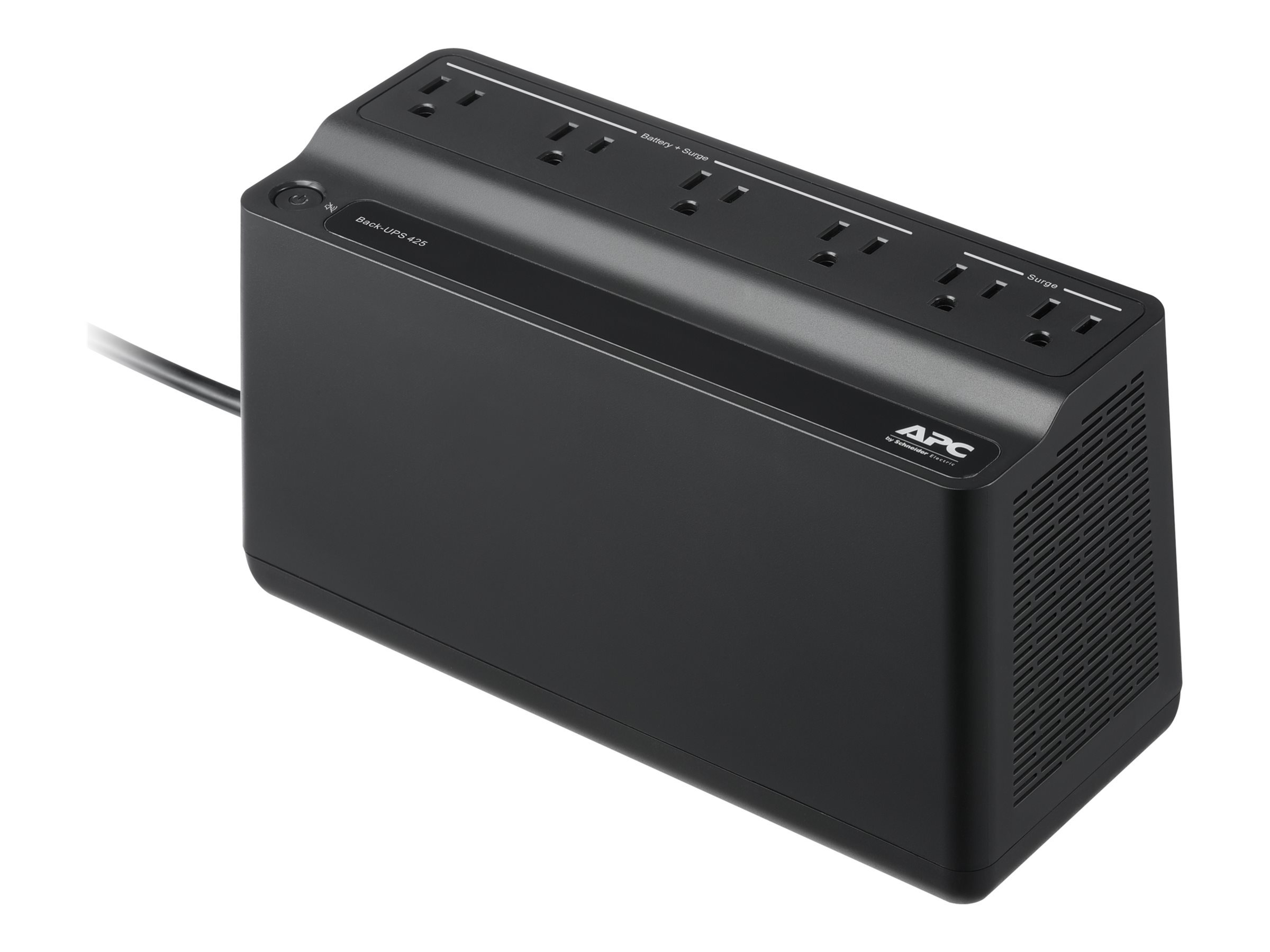

APC Back-UPS BE425M - UPS
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
APC Back-UPS BE425M - UPS
- AC 120 V
- 255 Watt
- 425 VA
- 1-phase
- 1 x battery
- output connectors: 6
- black
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | BE425M |
| SHI Part #: | 32699183 |
| Category: | Rechargeable batteries |
| UNSPSC: | 26111701 |
| Manufacturer: | APC by Schneider Electric |
| Product Type: | Hardware |
Warranties
- Technical support
- phone consulting (for UPS and power devices)
- 1 year
- 24x7
- for P/N: BGM1500, BGM1500B, BV1000, BV800, BVN650M1, BVN650M1-CA, BVN900M1, BVN900M1-CA
- Technical support
- phone consulting (for UPS and power devices)
- 3 years
- 24x7
- for P/N: BE670M1, BE850G2, BR1200SI, BR1600MI, BR1600SI, BR900MI, BV1000, BV650, BV800
Power Management
| General Information | |
|---|---|
| Category | Rechargeable batteries |
| Description | APC Back-UPS BE425M - UPS - AC 120 V - 255 Watt - 425 VA - 1-phase - 1 x battery - output connectors: 6 - black |
| Manufacturer | APC by Schneider Electric |
| UNSPSC | 26111701 |
| Main Specifications | |
| Dimensions & Weight / Depth | 10.5 cm |
| Dimensions & Weight / Height | 14.02 cm |
| Dimensions & Weight / Weight | 2.6 kg |
| Dimensions & Weight / Width | 25.35 cm |
| Header / Brand | APC |
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| Power Device / Form Factor | External |
| Power Device / Output Connector Qty | 6 |
| Power Device / Power Capacity (VA) | 425 VA |
| Power Device / UPS Technology | Off-line |
| Power Device / Voltage Required | AC 120 V |
| Product Type | UPS |
| Service & Support / Type | 3-year warranty |
| Battery | |
| Features | Maintenance free, leak-proof, sealed |
| Quantity | 1 1 |
| Recharge Time | 8 hours |
| Run Time (Up To) |
|
| Technology | Lead acid |
| Transfer Time | 6 ms |
| Voltage Provided | 12 V |
| Dimensions & Weight | |
| Depth | 10.5 cm |
| Height | 14.02 cm |
| Weight | 2.6 kg |
| Width | 25.35 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 14 cm |
| Shipping Height | 22 cm |
| Shipping Weight | 3 kg |
| Shipping Width | 31.5 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 40 dBA |
| General | |
| Color | Black |
| Device Type | UPS - external |
| Manufacturer Warranty | |
| Service & Support |
|
| Miscellaneous | |
| Cables Included | Power cable 1.52 m |
| Compliant Standards | RoHS, CEC, cTUVus, FCC Part 15 Class B, REACH |
| Equipment Protection Value | 75000 US Dollars |
| Features | Audible alarm, LED indicators, automatic self-test, Intelligent Battery Management |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Efficiency | 95.6% at 25% Load, 97.6% at 50% Load, 98.2% at 75% Load, 98.5% at 100% Load |
| Frequency Provided | 50/60 Hz ± 3Hz |
| Frequency Required | 50/60 Hz ± 3Hz |
| Input Connectors | 1 x power NEMA 5-15P |
| Input Voltage | AC 120 V |
| Input Voltage Range | AC 92 - 139 V |
| Input Voltage Range (Adjustable) | AC 88 - 142 V |
| Input Wiring | 1-phase |
| Output Voltage | AC 120 V ± 8% - 50/60 Hz |
| Output Waveform | Squarewave |
| Power Capacity | 255 watt / 425 VA |
| Power Output Connectors Details |
|
| Surge Energy Rating | 180 joules |
| Surge Suppression | Yes |
| UPS Technology | Off-line |
| Software / System Requirements | |
| Software Included | APC PowerChute Personal Edition |
| Sustainability Information | |
| ENERGY STAR | Yes |
