Black Box VX1000 Series Extender
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|

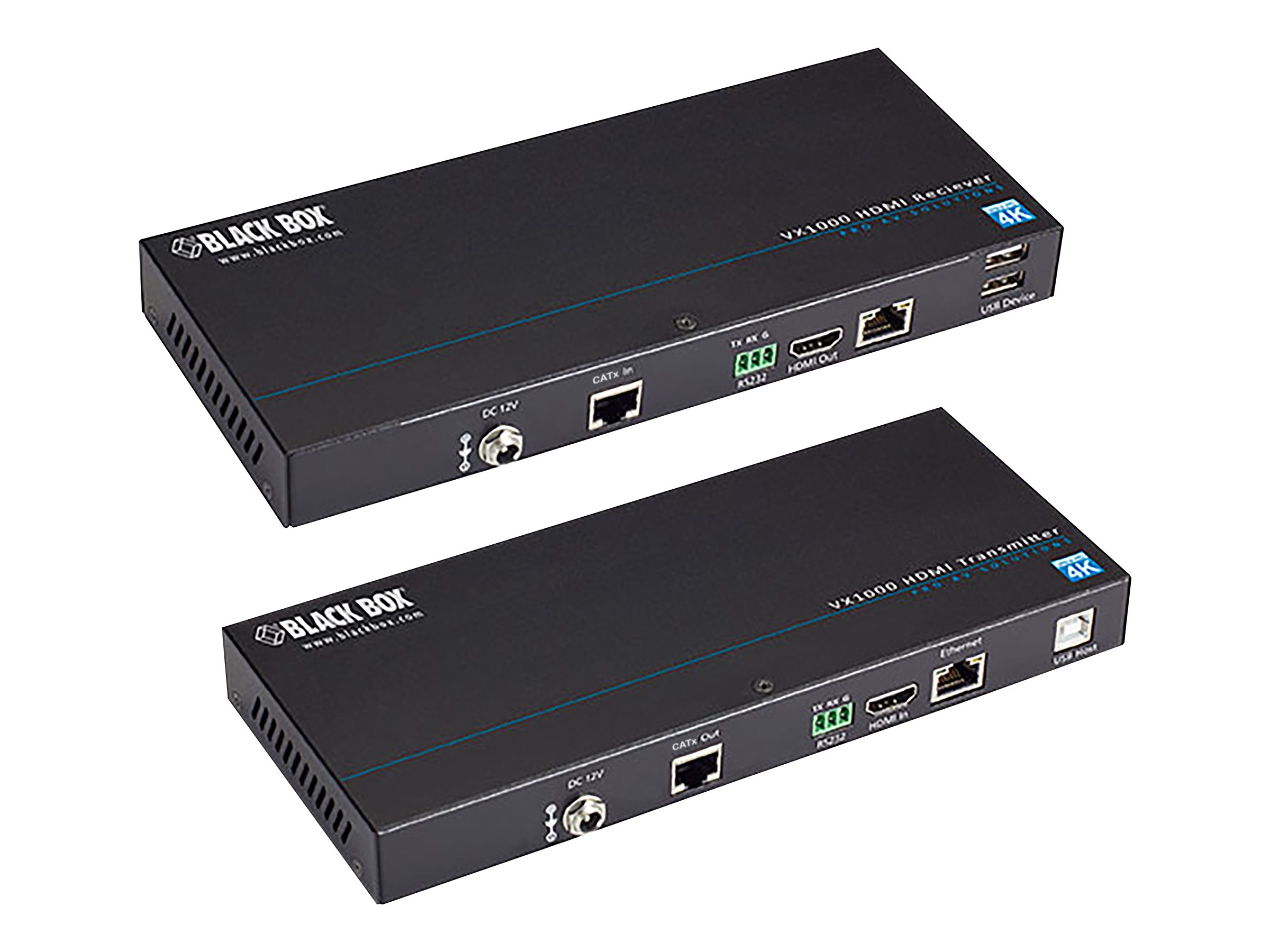

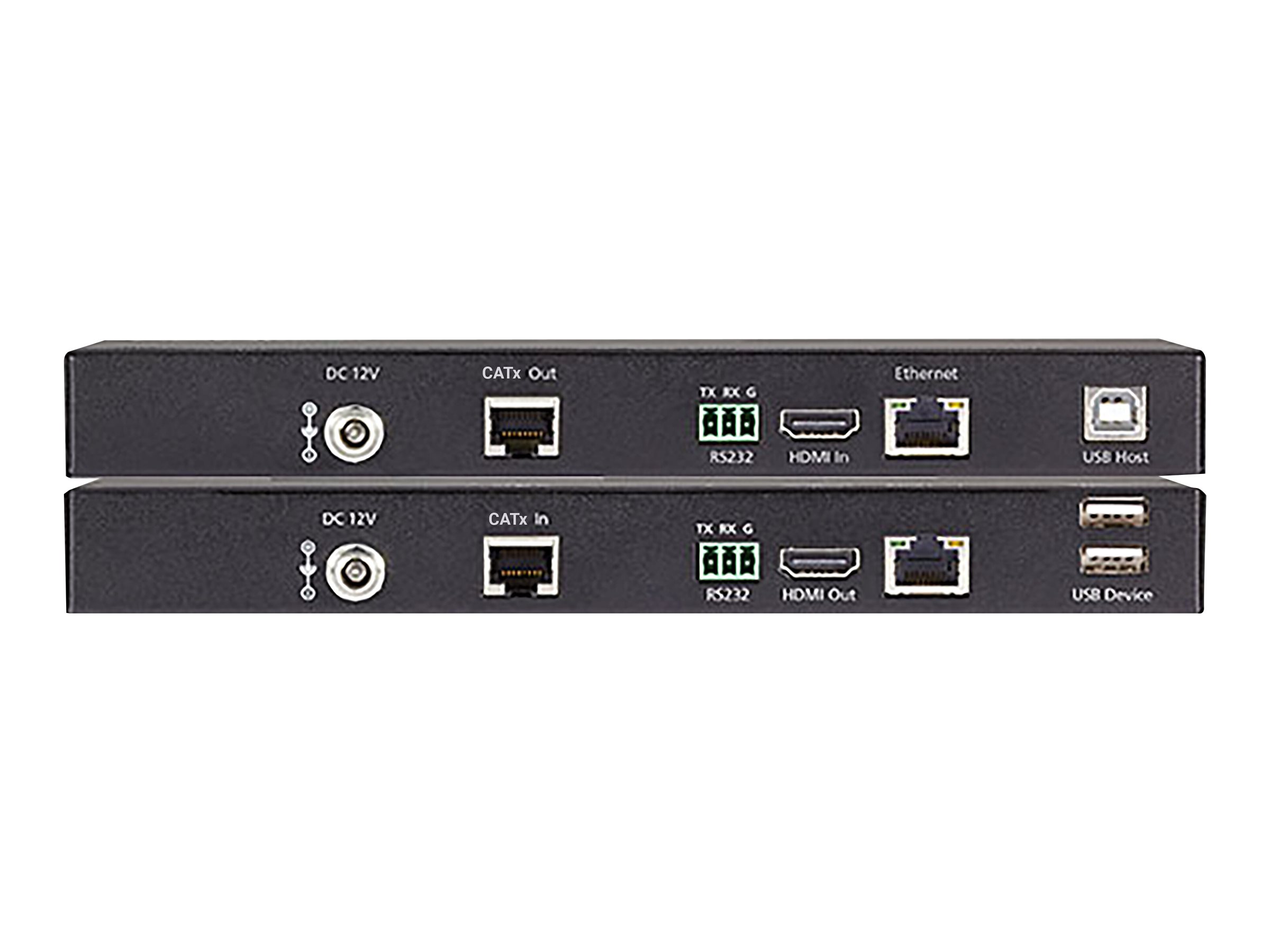

Black Box VX1000 Series Extender
- Kit
- video/audio/USB/serial/network extender
- CATx
- USB
- up to 100 m
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | VX-1001-KIT |
| SHI Part #: | 32652460 |
| Category: | Serial port cards |
| UNSPSC: | 43201559 |
| Manufacturer: | Black Box |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Serial port cards |
| Description | Black Box VX1000 Series Extender - Kit - video/audio/USB/serial/network extender - CATx - USB - up to 100 m |
| Manufacturer | Black Box |
| MSRP | $907.62 |
| UNSPSC | 43201559 |
| Main Specifications | |
| Dimensions & Weight / Depth | 9.32 cm |
| Dimensions & Weight / Height | 2.5 cm |
| Dimensions & Weight / Weight | 500 g |
| Dimensions & Weight / Width | 22 cm |
| Header / Brand | Black Box |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol | CATx |
| Networking / Type | Video/audio/USB/serial/network extender |
| Packaged Quantity | 1 |
| Service & Support / Type | 1-year warranty |
| Dimensions & Weight | |
| Depth | 9.32 cm |
| Height | 2.5 cm |
| Weight | 500 g |
| Width | 22 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Max Operating Temperature | 45 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | Video/audio/USB/serial/network extender |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Compliant Standards | FCC, RoHS |
| Networking | |
| Compliant Standards | HDCP 2.2 |
| Connectivity Technology | Wired |
| Data Link Protocol | CATx |
| Features | 4KV ESD Protector, 8KV ESD Protector, surge protection, EDID Management |
| Keyboard / Mouse Interface | USB |
| Max Resolution | 4096 x 2160 |
| Max Transfer Distance | 100 m |
| Max Video Bandwidth | 297 MHz |
| Power | |
| Power Consumption Operational | 13.2 watt |
| Power Over Ethernet (PoE) | PoH |
