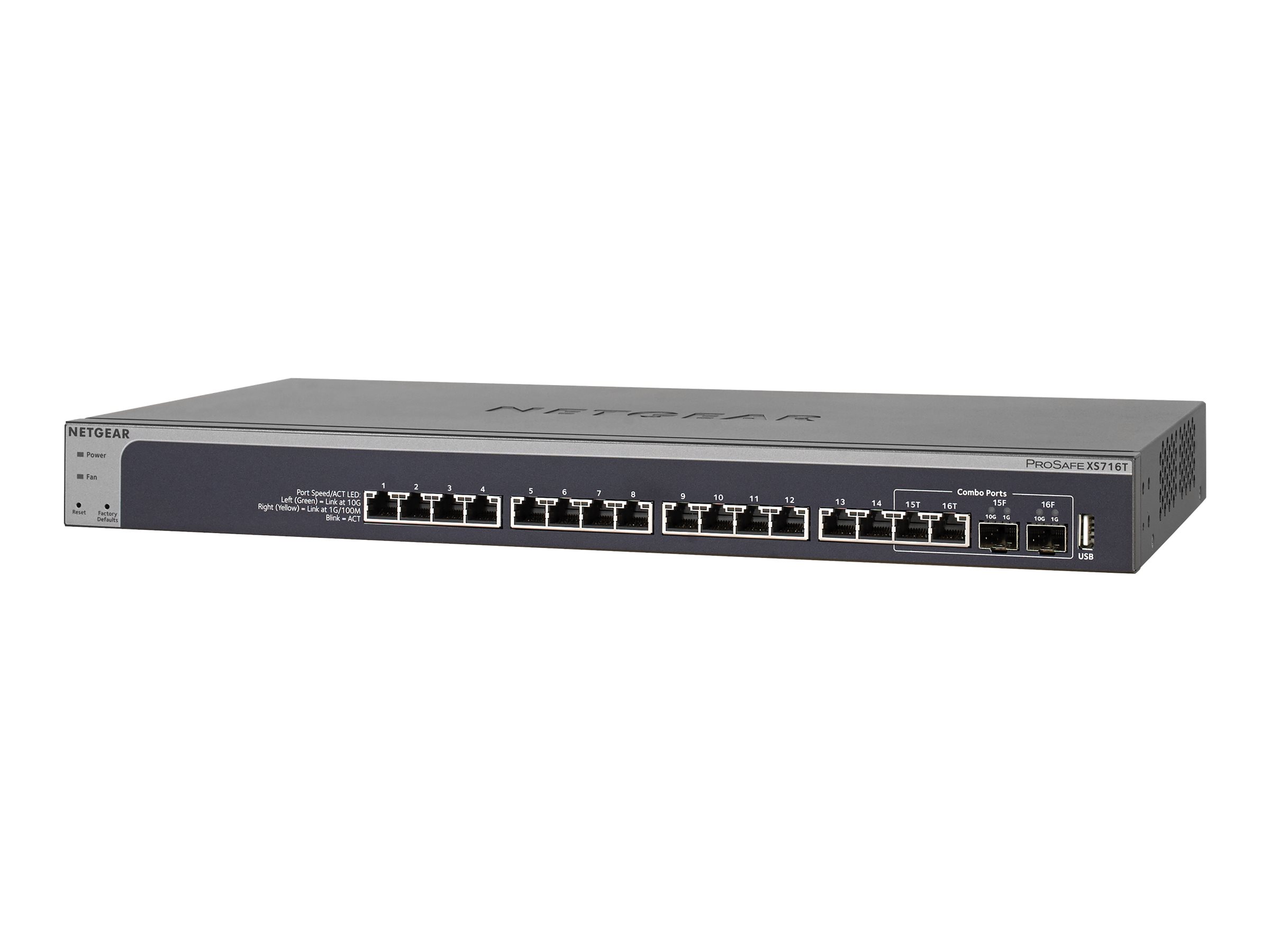

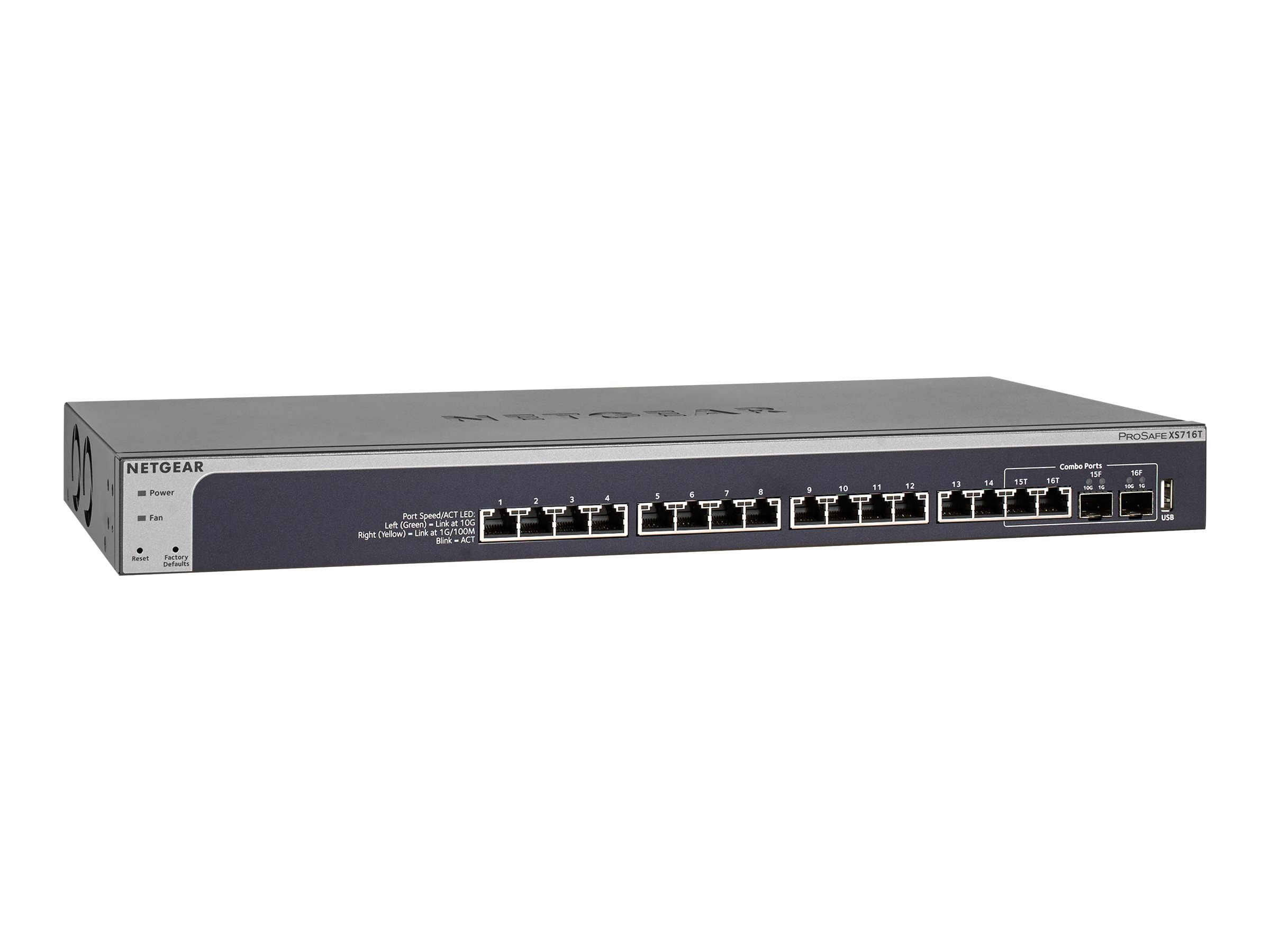

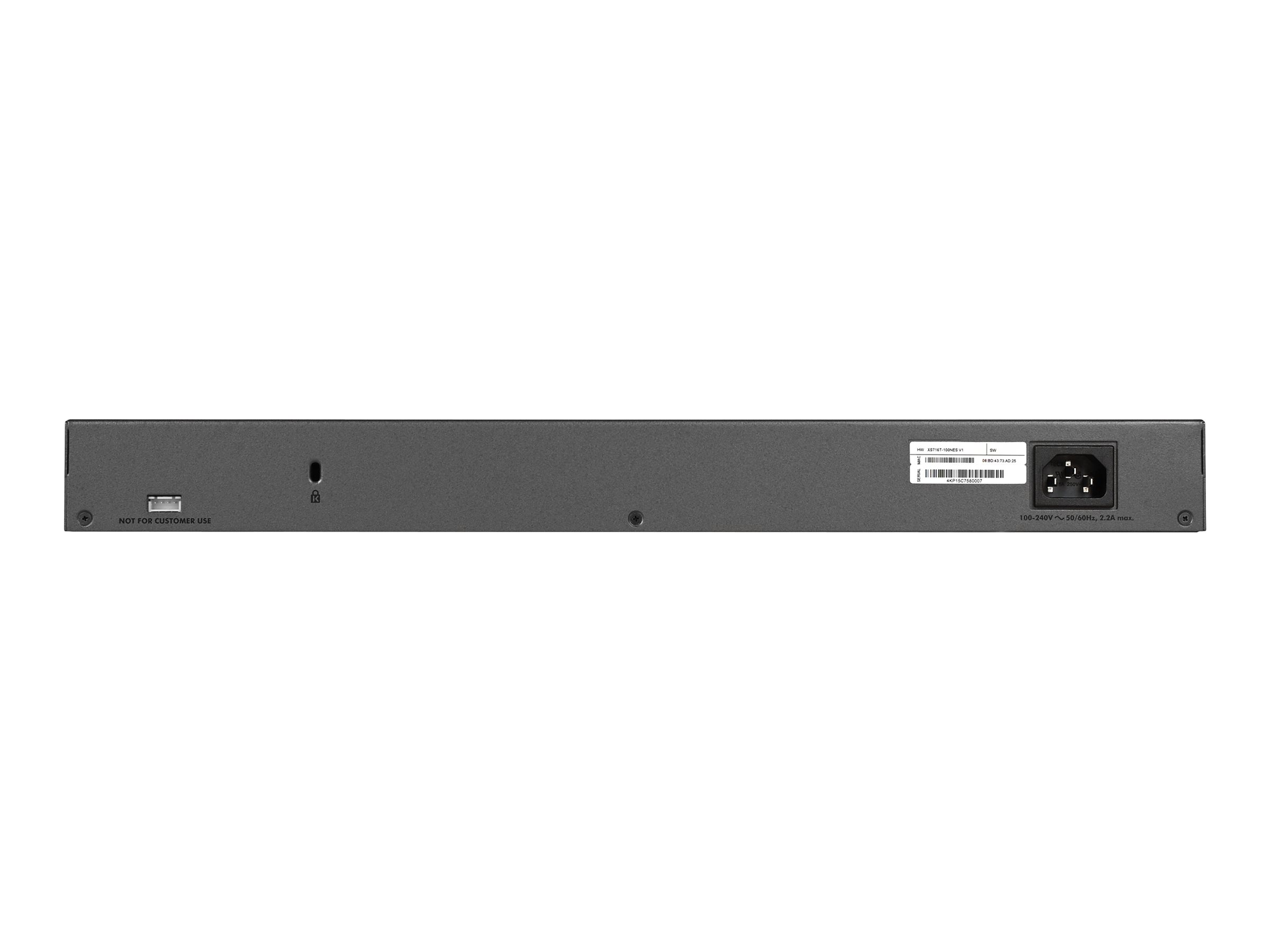

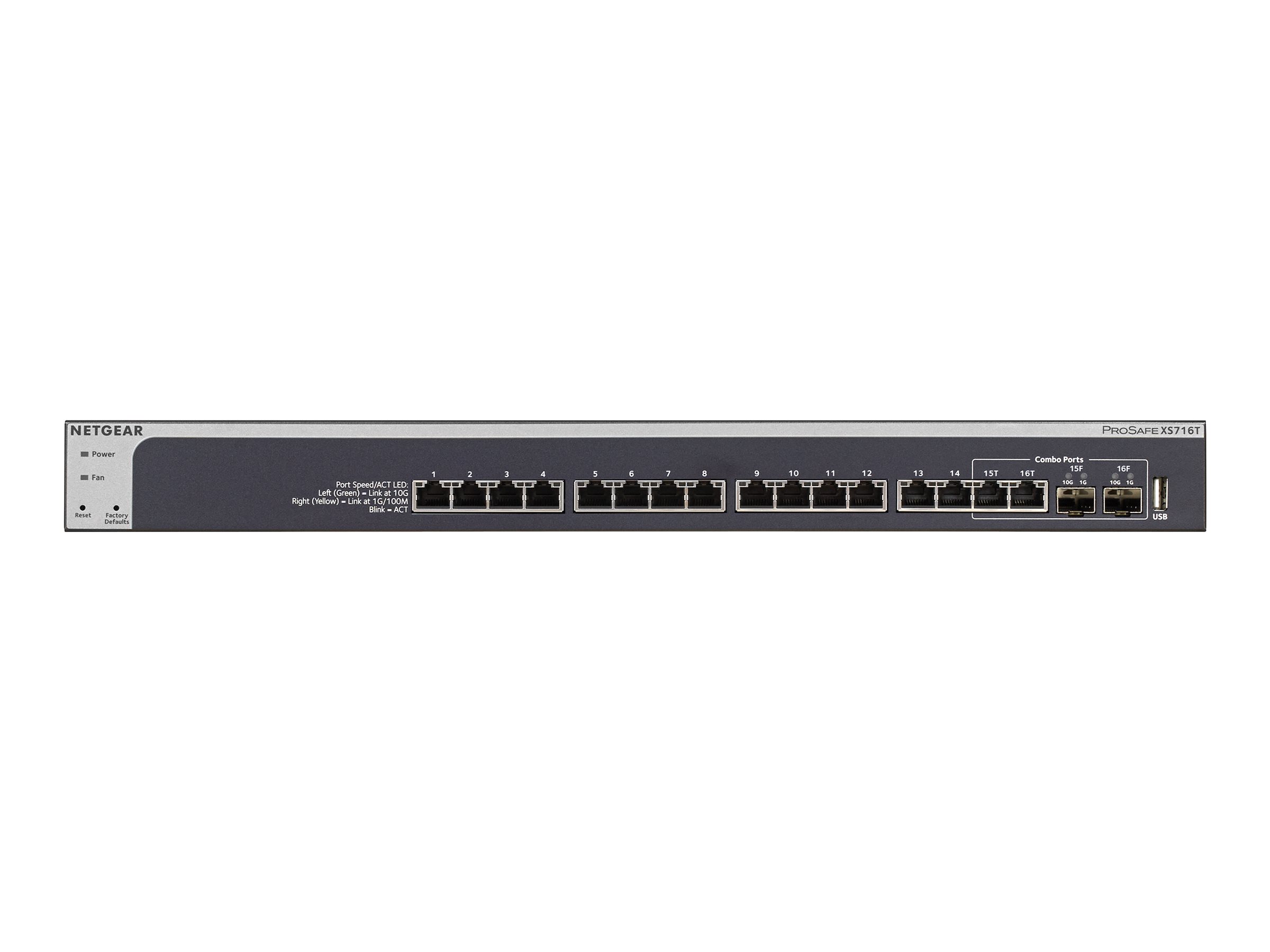

NETGEAR Smart XS716T
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
NETGEAR Smart XS716T
- Switch
- L3 Lite
- smart
- 16 x 10GBase-T + 2 x shared 10 Gigabit SFP+
- desktop, rack-mountable
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | XS716T-100NES |
| SHI Part #: | 32161645 |
| Category: | Network switches |
| UNSPSC: | 43222612 |
| Manufacturer: | NETGEAR |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Network switches |
| Description | NETGEAR Smart XS716T - Switch - L3 Lite - smart - 16 x 10GBase-T + 2 x shared 10 Gigabit SFP+ - desktop, rack-mountable |
| Manufacturer | NETGEAR |
| MSRP | $1,712.13 |
| UNSPSC | 43222612 |
| Main Specifications | |
| Dimensions & Weight / Depth | 20.4 cm |
| Dimensions & Weight / Height | 4.3 cm |
| Dimensions & Weight / Weight | 2.98 kg |
| Dimensions & Weight / Width | 44 cm |
| Header / Brand | NETGEAR |
| Header / Country Kits |
|
| Miscellaneous / Product Color |
|
| Networking / Form Factor |
|
| Networking / Ports Qty | 16 |
| Networking / Type | Switch |
| Packaged Quantity | 1 |
| Service & Support / Type | NETGEAR lifetime warranty |
| Dimensions & Weight | |
| Depth | 20.4 cm |
| Height | 4.3 cm |
| Weight | 2.98 kg |
| Width | 44 cm |
| Environmental Parameters | |
| Humidity Range Operating | 90% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -10 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Authentication Method | RADIUS, TACACS+ |
| Capacity |
|
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3az |
| Device Type | Switch - 16 ports - L3 Lite - smart |
| Enclosure Type | Desktop, rack-mountable 1U |
| Encryption Algorithm | TLS 1.0, SSL 3.0 |
| Features | Flow control, ARP support, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, WRR queuing, store and forward, MAC address filtering, Broadcast Storm Control, IP address filtering, Unicast Storm Control, STP support, RSTP support, MSTP support, DHCP snooping, ACL support, QoS, RADIUS support, MLD snooping, DAI, reset button, LACP support, LLDP support, Port Security, DHCP client, Energy Efficient Ethernet, MVR, SPQ, 2MB packet buffer, CoS, 802.1x authentication, ToS, DSCP support, 2 fans, cable test, layer 2+ switching |
| Flash Memory | 256 MB |
| Jumbo Frame Support | 9KB |
| MAC Address Table Size | 16K entries |
| Performance |
|
| Ports | 16 x 10GBase-T + 2 x shared 10 Gigabit SFP+ |
| Processor | Cortex-A9: 600 MHz |
| RAM | 512 MB |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTP, HTTPS |
| Routing Protocol | Static IPv4 routing, static IPv6 routing |
| Status Indicators | Port transmission speed, power, link/activity, fan |
| Subtype | 10 Gigabit Ethernet |
| Manufacturer Warranty | |
| Service & Support | NETGEAR lifetime warranty |
| Miscellaneous | |
| Compliant Standards | cUL, EN 60950, IEC950, UL 1950, EN55024, CSA 22.2 No. 950, EN55022 Class A, CISPR 22, CCC, FCC Part 15 A, C-Tick Class A, SCC, VCCI Class A, TLS v1.2, TLS v1.0 |
| Included Accessories | Rubber feet |
| Localization | Latin America, North America, Europe |
| MTBF | 276,832 hours |
| Rack Mounting Kit | Included |
| Power | |
| Power Consumption Operational | 96 watt |
| Power Device | Internal power supply |
| Software / System Requirements | |
| Software Included | Drivers & Utilities |
