Tripp Lite PDU Monitored Horizontal 3.3/3.8KW 208/240V ATS L6-20R 2 L6-20P 1U

Primary and Secondary Inputs for Power Redundancy

? Provides remote power monitoring and enables redundant power for network devices with non-redundant power supply configurations

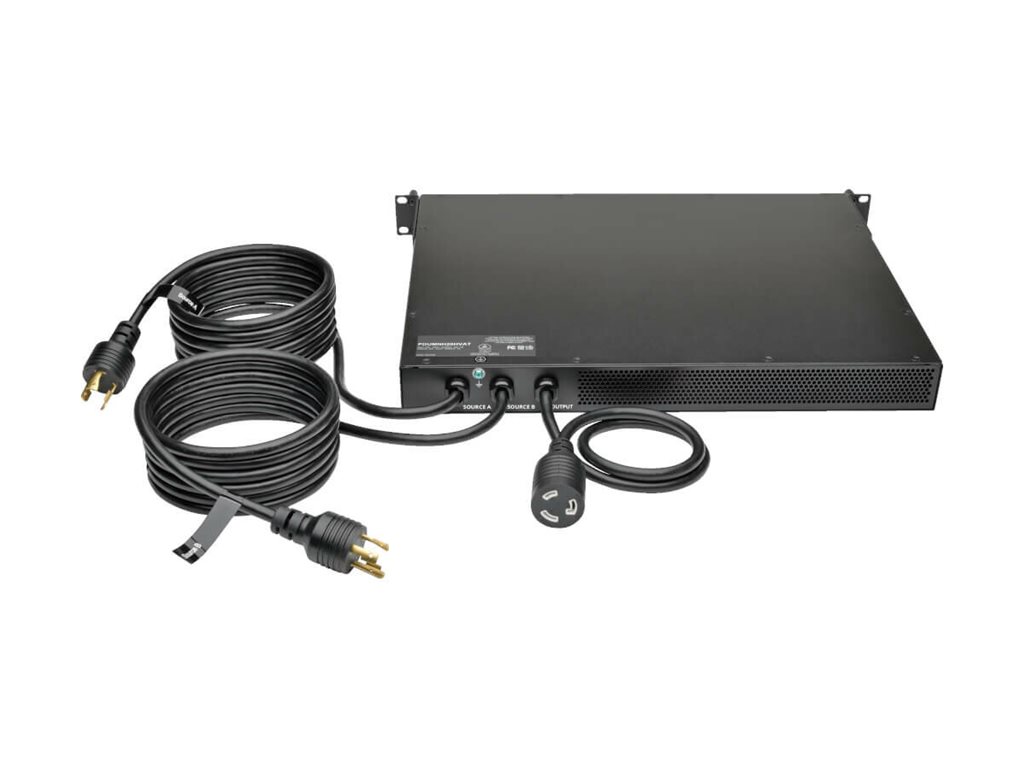

? Dual 10-ft. (3.05 m) input cords with L6-20P plugs connect to separate primary and secondary single-phase power sources

? Fault-tolerant, hot-swappable UPS protection when used with single UPS; fully redundant UPS protection when each cord is connected to separate UPS systems

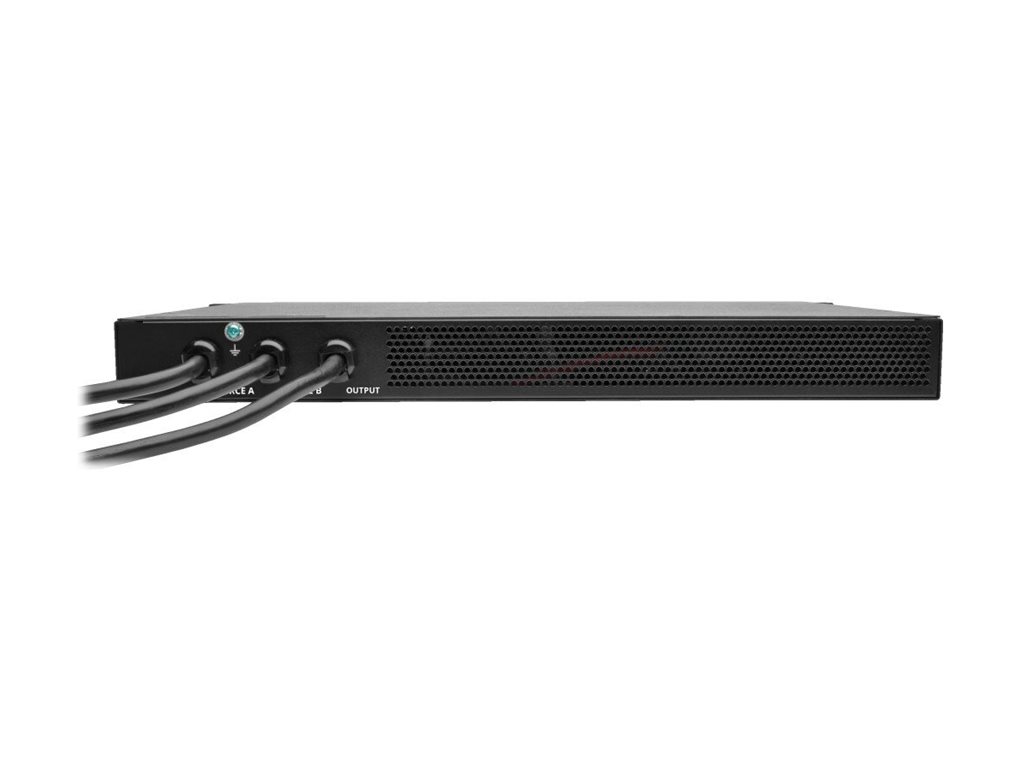

Built-In L6-20R Outlet

? Connects a single device or indirectly powers equipment through a 0U 200-240V rack PDU (rPDU) with L6-20P input (sold separately)

Automatic Transfer Switching (ATS)

? Dynamic solid-state (TRIAC) automatic transfer switching

? Switches to secondary power source if primary source fails or becomes unstable

? 1-5 ms transfer time ensures uninterrupted operation of connected equipment

? Built-in processor prevents switching if secondary source is unavailable or of lower quality than primary source

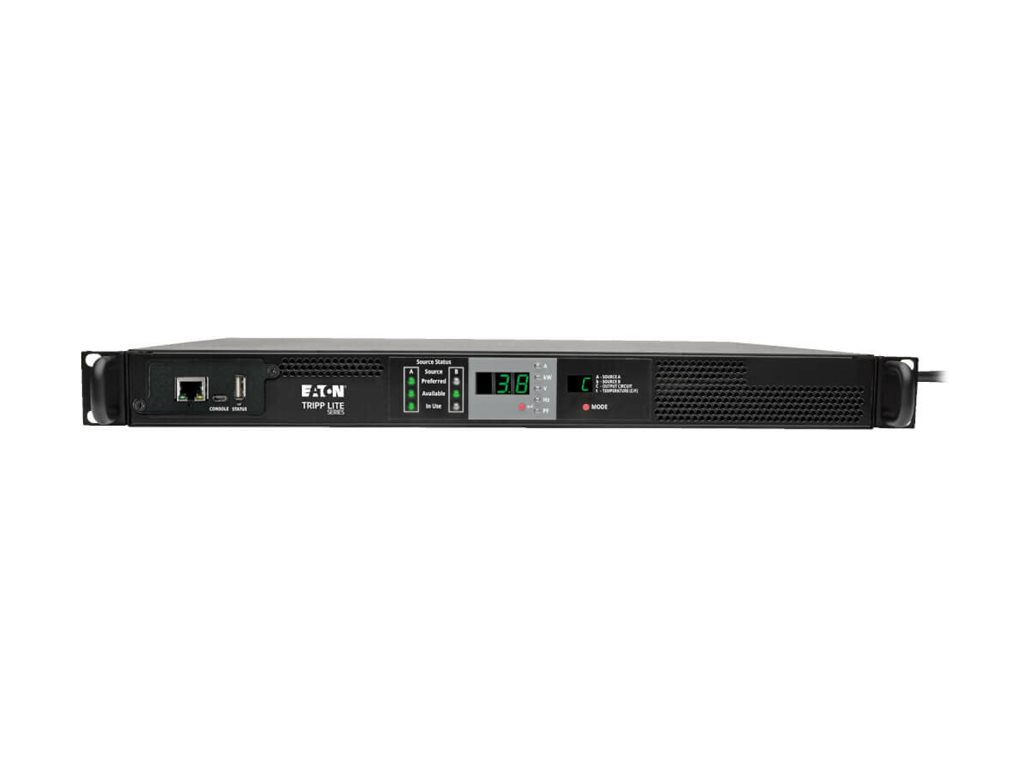

Multifunction Digital Display

? Reports source A and source B input power status and other information, including power availability, line voltage, frequency, amps, kilowatts and power factor

Advanced Network Monitoring

? LX Platform interface allows full remote access for power monitoring with email notifications via secure web browser, SNMP, telnet or SSH

? Real-time load/current data with billing-grade accuracy (+/- 1 percent)

? Automated alerts help prevent overloads, power loss and downtime

? Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities

Broad Communications Compatibility

? 10/100 Mbps auto-sensing allows optimal communication with 10/100 Base-T networks

Mounts Horizontally in 1U of Rack Space

? Compatible with EIA-standard 19 in. 4-post racks and rack enclosures

? Optional PDU4PKIT rail kit (sold separately) adds rear mounting support.
