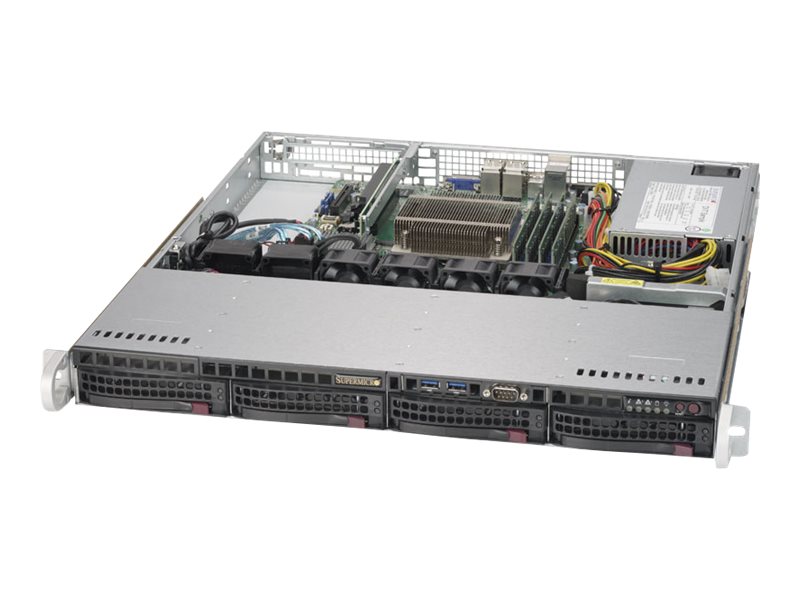

Supermicro SuperServer 5019S-M
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Supermicro SuperServer 5019S-M
- Server
- rack-mountable
- 1U
- 1-way
- no CPU
- RAM 0 GB
- SATA
- hot-swap 3.5" bay(s)
- no HDD
- AST2400
- GigE
- monitor: none
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | SYS-5019S-M |
| SHI Part #: | 31653779 |
| Category: | Servers |
| UNSPSC: | 43211501 |
| Manufacturer: | Super Micro Computer |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Servers |
| Description | Supermicro SuperServer 5019S-M - Server - rack-mountable - 1U - 1-way - no CPU - RAM 0 GB - SATA - hot-swap 3.5" bay(s) - no HDD - AST2400 - GigE - monitor: none |
| Manufacturer | Super Micro Computer |
| UNSPSC | 43211501 |
| Main Specifications | |
| Chassis / Form Factor | Rack-mountable |
| Chassis / Server Storage Bays | Hot-swap |
| Chassis / Server Swappable Drive Interface | SATA |
| Dimensions & Weight / Depth | 50.3 cm |
| Dimensions & Weight / Height | 4.3 cm |
| Dimensions & Weight / Weight | 8 kg |
| Dimensions & Weight / Width | 43.7 cm |
| Display / Type | None. |
| Header / Brand | Supermicro |
| Mainboard / Chipset Type | Intel C236 |
| Mainboard / Processor Socket | LGA1151 Socket |
| Miscellaneous / Product Color | Black |
| Networking / Data Link Protocol |
|
| Optical Storage / Drive Type | No optical drive |
| Optical Storage / Type | None |
| Packaged Quantity | 1 |
| Processor / Type | No CPU |
| RAM / Data Integrity Check | ECC |
| RAM / Form Factor | DIMM 288-pin |
| RAM / Technology | DDR4 SDRAM |
| Service & Support / Type | 3-year warranty |
| System / Hard Drive Capacity | 0 GB |
| System / Type | Server |
| Video Output / Graphics Processor | ASPEED AST2400 |
| Dimensions & Weight | |
| Depth | 50.3 cm |
| Height | 4.3 cm |
| Weight | 8 kg |
| Width | 43.7 cm |
| Environmental Parameters | |
| Humidity Range Operating | 8 - 90% (non-condensing) |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 10 °C |
| Expansion / Connectivity | |
| Bays | 4 (total) / 4 (free) x hot-swap 3.5" |
| Interfaces |
|
| Slots |
|
| General | |
| Color | Black |
| Hot-Swap Bays Qty | 4 |
| Product Form Factor | Rack-mountable - 1U |
| Server Scalability | 1-way |
| Type | Server |
| Graphics Controller | |
| Graphics Processor | ASPEED AST2400 |
| Video Interfaces | VGA |
| Hard Drive | |
| Type | No HDD |
| Manufacturer Warranty | |
| Service & Support |
|
| Miscellaneous | |
| Cables Included | Serial ATA cable (4 pcs.) |
| Compliant Standards | RoHS |
| Included Accessories | CPU Heatsink, air shroud |
| Theft/Intrusion Protection | Chassis intrusion switch |
| Monitor | |
| Monitor Type | None. |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Ethernet Controller | 2 x Intel I210-AT |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Features | ACPI support, KVM over IP support |
| Remote Management Protocol | IPMI 2.0 |
| Optical Storage | |
| Type | No optical drive |
| Power | |
| 80 PLUS Certification | 80 PLUS Platinum |
| Device Type | Power supply |
| Installed Qty | 1 |
| Power Factor Correction | Yes |
| Power Provided | 350 watt |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Processor / Chipset | |
| Chipset Type | Intel C236 |
| CPU | No CPU |
| CPU Socket | LGA1151 Socket |
| CPU Upgradability | Upgradable |
| Max CPU Qty | 1 |
| RAM | |
| Features | Unbuffered |
| Form Factor | DIMM 288-pin |
| Installed Size | 0 GB (installed) / 64 GB (max) |
| Slots | 4 (total) / 4 (empty) |
| Technology | DDR4 SDRAM - ECC |
| Storage Controller | |
| Channel Qty | 4 |
| Controller Interface Type | SATA 6Gb/s |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 10 |
| Type | 1 x SATA |
