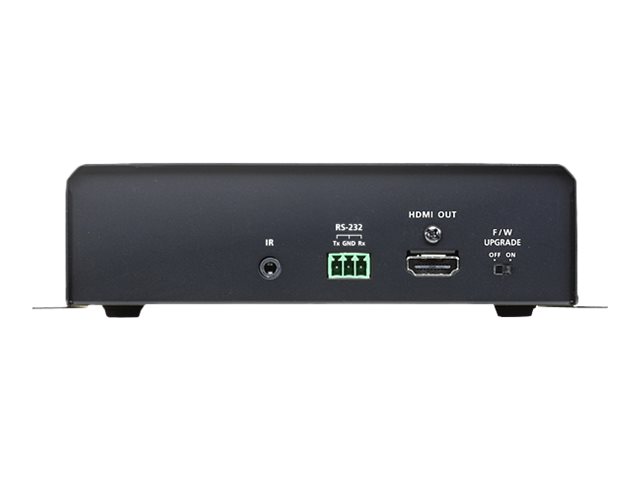

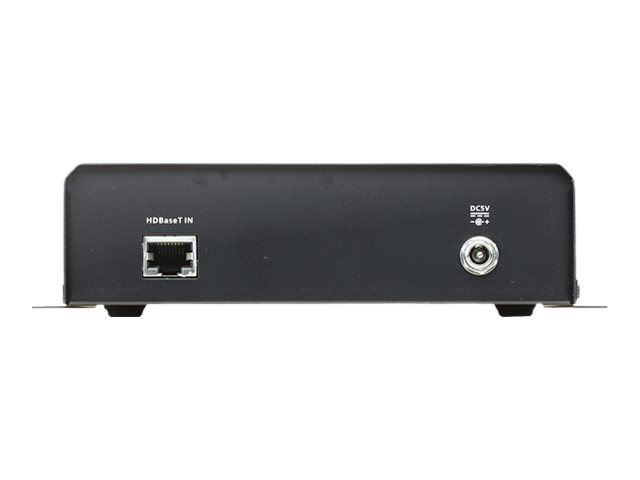

ATEN VE805R HDMI HDBaseT-Lite Receiver with Scaler
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
ATEN VE805R HDMI HDBaseT-Lite Receiver with Scaler
- Video/audio/infrared/serial extender
- receiver
- HDMI, HDBaseT
- up to 60 m
- for VanCryst VM1600A, VM3200
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | VE805R |
| SHI Part #: | 30696317 |
| Category: | Serial port cards |
| UNSPSC: | 43201559 |
| Manufacturer: | ATEN |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Serial port cards |
| Description | ATEN VE805R HDMI HDBaseT-Lite Receiver with Scaler - Video/audio/infrared/serial extender - receiver - HDMI, HDBaseT - up to 60 m - for VanCryst VM1600A, VM3200 |
| Manufacturer | ATEN |
| MSRP | $905.85 |
| UNSPSC | 43201559 |
| Main Specifications | |
| Dimensions & Weight / Depth | 18.18 cm |
| Dimensions & Weight / Height | 4.2 cm |
| Dimensions & Weight / Weight | 830 g |
| Dimensions & Weight / Width | 16.92 cm |
| Header / Brand | ATEN |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol |
|
| Networking / Form Factor | Rack-mountable |
| Networking / Type | Video/audio/infrared/serial extender |
| Packaged Quantity | 1 |
| Compatibility Information | |
| Designed For | ATEN VanCryst VM1600A, VM3200 |
| Dimensions & Weight | |
| Depth | 18.18 cm |
| Height | 4.2 cm |
| Weight | 830 g |
| Width | 16.92 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 80% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | Video/audio/infrared/serial extender (receiver) |
| Form Factor | Rack-mountable |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | HDMI, HDBaseT |
| Features | HDCP compliant, 3D support, metal housing |
| Max Transfer Distance | 60 m |
| Max Video Bandwidth | 225 MHz |
| Power | |
| Power Consumption Operational | 9.5 Watt |
