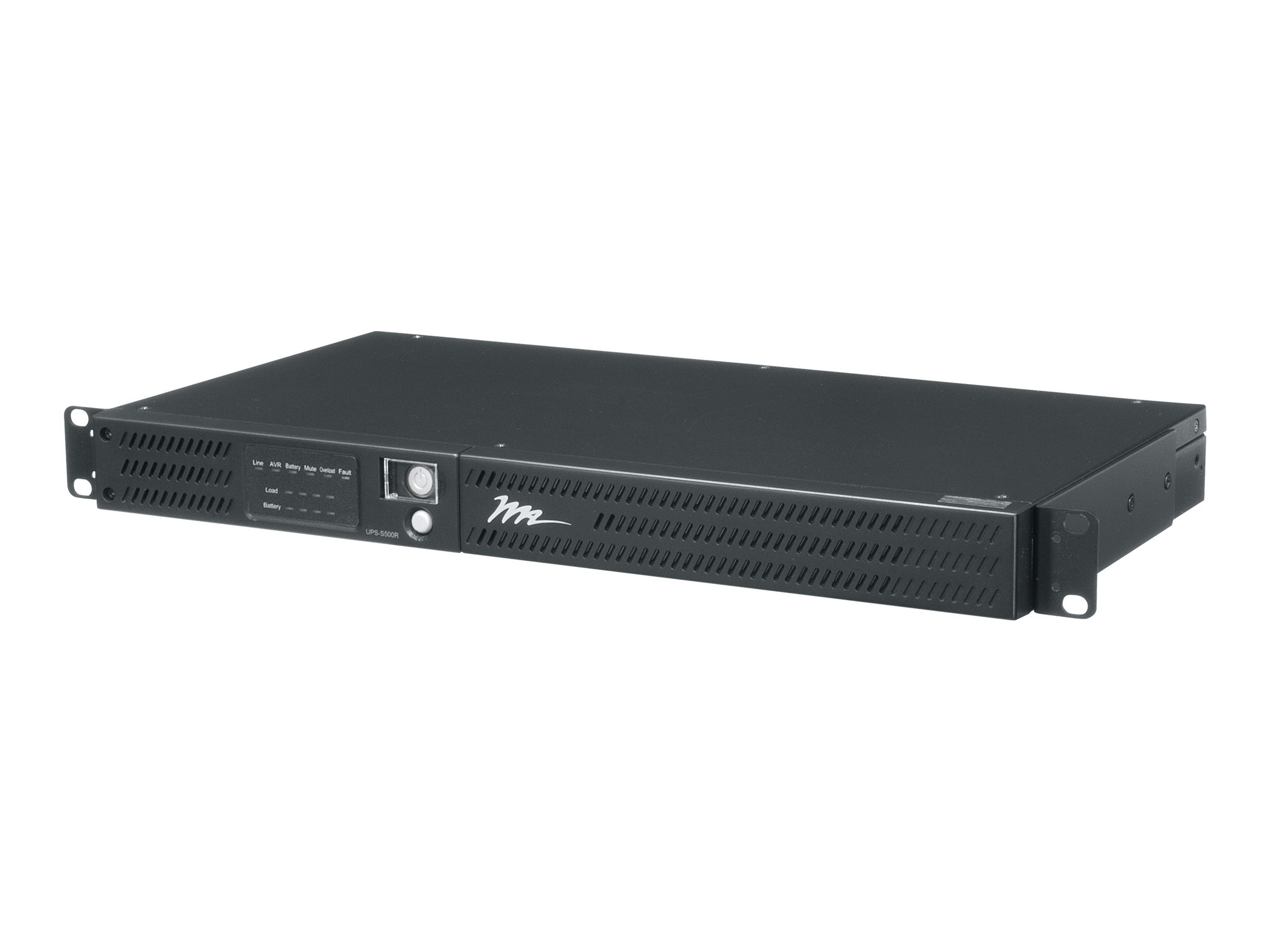

Middle Atlantic Select Series UPS-S500R


$874.00
Middle Atlantic Select Series UPS-S500R

Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • UPS (rack-mountable)
  • AC 120 V
  • 300 Watt
  • 500 VA 7 Ah
  • USB
Middle Atlantic Select Series UPS-S500R
  • UPS (rack-mountable)
  • AC 120 V
  • 300 Watt
  • 500 VA 7 Ah
  • USB
  • output connectors: 6
  • 1U
  • 19"
  • black
  Additional Details
Price: $874.00
Mfr Part #: UPS-S500R
SHI Part #: 30615878
Category: Uninterruptible power supplies
UNSPSC: 39121011
Manufacturer: Middle Atlantic
Product Type: Hardware
General Information
CategoryUninterruptible power supplies
DescriptionMiddle Atlantic Select Series UPS-S500R - UPS (rack-mountable) - AC 120 V - 300 Watt - 500 VA 7 Ah - USB - output connectors: 6 - 1U - 19" - black
ManufacturerMiddle Atlantic
MSRP$1,140.11
UNSPSC39121011
Main Specifications
Dimensions & Weight / Depth23 cm
Dimensions & Weight / Height4.4 cm
Dimensions & Weight / Width48.3 cm
General / SubcategoryUPS
Header / BrandMiddle Atlantic
Miscellaneous / Product ColorBlack
Networking / Remote Management InterfaceUSB
Packaged Quantity1
Power Device / Form FactorRack-mountable
Power Device / Output Connector Qty6
Power Device / Power Capacity (VA)500 VA
Power Device / Voltage RequiredAC 120 V
Product TypeUPS
Service & Support / Type3-year warranty
Battery
Capacity7 Ah
FeaturesMaintenance free, sealed
Quantity2
Run Time (Up To)
  • 3 min at full load
  • 12 min at half load
Voltage Provided6 V
Dimensions & Weight
Depth23 cm
Height4.4 cm
Width48.3 cm
Environmental Parameters
Humidity Range Operating0 - 95% (non-condensing)
Max Operating Temperature40 °C
Min Operating Temperature0 °C
Expansion / Connectivity
Expansion Slots1 (free) x expansion slot
Interfaces
  • 1 x management (USB)
  • 1 x EPO (emergency power off)
General
ColorBlack
Device TypeUPS - rack-mountable
Height (Rack Units)1U
Rack Size19"
Manufacturer Warranty
Service & Support
  • Limited warranty - 3 years
  • Limited warranty - batteries - 2 years
Miscellaneous
Cables IncludedPower cable 3.05 m
FeaturesHot-swappable battery, audible alarm, emergency power off, Automatic Voltage Regulation (AVR), overload protection
Networking
Remote Management InterfaceUSB
Power Device
Circuit ProtectionCircuit breaker
Frequency Provided60 Hz
Frequency Required60 Hz
Input Connectors1 x power NEMA 5-15
Input VoltageAC 120 V
Input Voltage RangeAC 90 - 140 V
Output VoltageAC 120 V ± 10% - 60 Hz
Output WaveformSinewave
Power Capacity300 Watt / 500 VA
Power Output Connectors Details6 x power NEMA 5-15
Surge Energy Rating1030 Joules
Surge SuppressionYes
