CyberPower PFC Sinewave Series OR1500PFCLCD

$602.00
CyberPower PFC Sinewave Series OR1500PFCLCD
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • UPS
  • AC 120 V
  • 1050 Watt
  • 1500 VA 9 Ah
  • RS-232, USB
CyberPower PFC Sinewave Series OR1500PFCLCD
  • UPS
  • AC 120 V
  • 1050 Watt
  • 1500 VA 9 Ah
  • RS-232, USB
  • output connectors: 8
  • 1.83 m
  Additional Details
Price: $602.00
Mfr Part #: OR1500PFCLCD
SHI Part #: 30485947
Category: Power conditioning equipment
UNSPSC: 39121000
Manufacturer: CyberPower
Product Type: Hardware
General Information
CategoryPower conditioning equipment
DescriptionCyberPower PFC Sinewave Series OR1500PFCLCD - UPS - AC 120 V - 1050 Watt - 1500 VA 9 Ah - RS-232, USB - output connectors: 8 - 1.83 m
ManufacturerCyberPower
MSRP$700.25
UNSPSC39121000
Main Specifications
Dimensions & Weight / Depth35.1 cm
Dimensions & Weight / Height16.3 cm
Dimensions & Weight / Weight11.2 kg
Dimensions & Weight / Width13.7 cm
Header / BrandCyberpower
Miscellaneous / Product ColorBlack
Networking / Remote Management Interface
  • RS-232
  • USB
Packaged Quantity1
Power Device / Form FactorExternal
Power Device / Output Connector Qty8
Power Device / Power Capacity (VA)1500 VA
Power Device / UPS TechnologyLine interactive
Power Device / Voltage RequiredAC 120 V
Product TypeUPS
Service & Support / Type3-year warranty
Battery
Capacity9 Ah
FeaturesMaintenance free, sealed
Quantity2
Recharge Time8 hours
Run Time (Up To)
  • 4 min at full load
  • 12 min at half load
TechnologyLead acid
Transfer Time4 ms
Voltage Provided12 V
Dimensions & Weight
Depth35.1 cm
Height16.3 cm
Weight11.2 kg
Width13.7 cm
Dimensions & Weight (Shipping)
Shipping Depth47.8 cm
Shipping Height28.4 cm
Shipping Weight12.3 kg
Shipping Width26.4 cm
Environmental Parameters
Humidity Range Operating0 - 90% (non-condensing)
Max Operating Temperature40 °C
Min Operating Temperature0 °C
Expansion / Connectivity
Interfaces
  • 1 x USB
  • 1 x serial - 9 pin D-Sub (DB-9)
General
Cord Length1.83 m
Device TypeUPS - external
Manufacturer Warranty
Service & SupportLimited warranty - 3 years
Miscellaneous
Cables Included
  • Power cable 1.83 m
  • USB cable
Compliant StandardscUL, DOC-B, UL 1778, FCC, RoHS
Equipment Protection Value200000 US Dollars
FeaturesAudible alarm, LCD display, Automatic Voltage Regulation (AVR), GreenPower UPS Technology, hot-swappable batteries
Networking
Remote Management InterfaceRS-232, USB
Power Device
Circuit ProtectionCircuit breaker
Frequency Provided50/60 Hz
Frequency Required50/60 Hz
Input Connectors1 x power NEMA 5-15P
Input VoltageAC 120 V
Input Voltage RangeAC 78 - 142 V
Output VoltageAC 120 V ± 5% - 50/60 Hz
Output WaveformSinewave
Power Capacity1050 Watt / 1500 VA

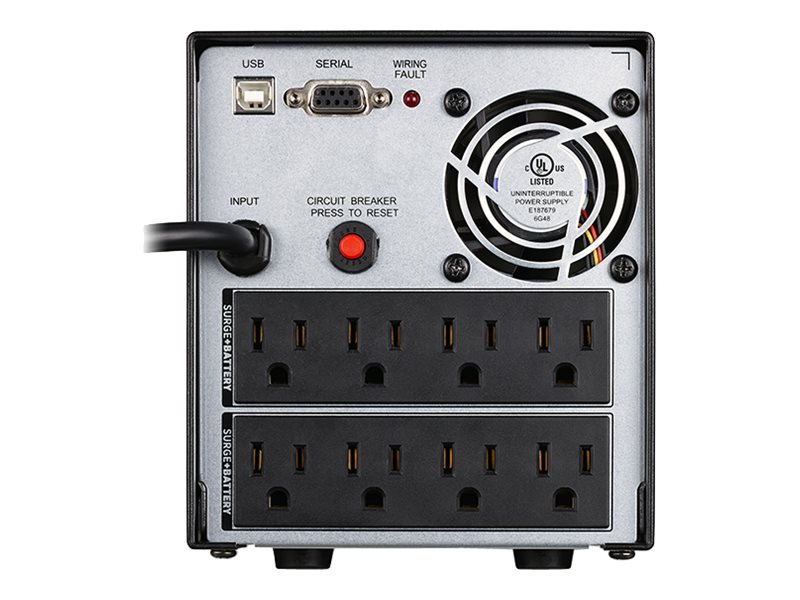

Power Output Connectors Details8 x power NEMA 5-15 (UPS and surge)
Surge Energy Rating1030 Joules
Surge SuppressionYes
UPS TechnologyLine interactive
Software / System Requirements
Software IncludedPowerPanel Business Edition
