Hardware Monitors and Projectors Monitors and Displays
Add to My Favorites
Monitors and Displays

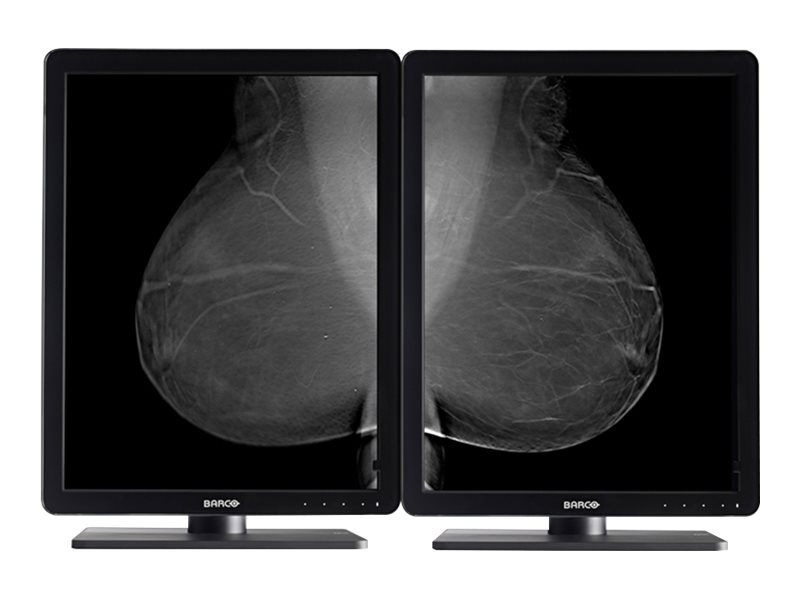

Barco Nio 5MP MDNG-5221

$25,080.00
Barco Nio 5MP MDNG-5221
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • LED monitor
  • 2 x 5MP
  • grayscale
  • 21.3"
  • 2560 x 2048
Barco Nio 5MP MDNG-5221
  • LED monitor
  • 2 x 5MP
  • grayscale
  • 21.3"
  • 2560 x 2048
  • DD-IPS
  • 1020 cd/m²
  • 1200:1
  • 25 ms
  • DVI-D
  • black, white
  • with Barco MXRT-5500 graphics adapter
  Additional Details
Price: $25,080.00
Mfr Part #: K9602734
SHI Part #: 29946539
Category: Flat panel displays
UNSPSC: 43211902
Manufacturer: Barco
Product Type: Hardware
General Information
CategoryFlat panel displays
DescriptionBarco Nio 5MP MDNG-5221 - LED monitor - 2 x 5MP - grayscale - 21.3" - 2560 x 2048 - DD-IPS - 1020 cd/m² - 1200:1 - 25 ms - DVI-D - black, white - with Barco MXRT-5500 graphics adapter
ManufacturerBarco
MSRP$26,148.68
UNSPSC43211902
Main Specifications
Dimensions & Weight / Depth23.5 cm
Dimensions & Weight / Height52.3 cm
Dimensions & Weight / Weight13.25 kg
Dimensions & Weight / Width40.7 cm
Display / Diagonal Size21.3 in
Display / Diagonal Size (metric)54 cm
Display / InterfaceDVI
Display / Native Resolution2560 x 2048
Display / Pixel Pitch0.165 mm
Display / TypeLED-backlit LCD monitor
Header / BrandBarco
Image Brightness1020 cd/m²
Miscellaneous / Compliant Standards
  • ANSI/AAMI ES60601-1:2005 + C1:2009 + A1:2012
  • CAN/CSA-C22.2 No. 60601-1:2008
  • DEMKO - EN 60601-1:2006
  • EN 60601-1-2:2007
  • FCC Class B certified
  • FDA 510k
  • ICES-001 level B
  • IEC 60950-1:2005 + A1:2009
  • IEC60601-1:2005 + A1:2012
  • KC
  • RoHS
  • VCCI
Miscellaneous / Product ColorBlack
Packaged Quantity1
Service & Support / Type5-year warranty
Connectivity
Interfaces
  • DVI-D (dual link)
  • USB 2.0 upstream
  • 2 x USB 2.0 downstream
Dimensions & Weight
Dimensions & Weight Details
  • With stand - width: 40.7 cm - depth: 23.5 cm - height: 52.3 cm - weight: 13.25 kg
  • Without stand - width: 40.7 cm - depth: 8.4 cm - height: 49.35 cm - weight: 8.23 kg
Environmental Parameters
Humidity Range Operating8 - 80% (non-condensing)
Max Operating Temperature40 °C
Min Operating Temperature0 °C
General
Aspect Ratio5:4
Backlight TechnologyLED backlight
Brightness1020 cd/m²
Built-in DevicesUSB 2.0 hub
Bundled withBarco MXRT-5500 graphics adapter
ColorBlack, white
Color Support1024 gray levels (10-bit)
Contrast Ratio1200:1
Diagonal Size21.3"
Dimensions (WxDxH)40.7 cm x 23.5 cm x 52.3 cm - with stand
Display TypeLED-backlit LCD monitor / TFT active matrix - 2 x 5MP - grayscale
FeaturesUniform Luminance Technology (ULT), Ambient Light Compensation (ALC), Protective Glass Panel, Backlight Output Stabilization (BLOS), 10-bit lookup table
Horizontal Refresh Rate15 - 129 kHz
Horizontal Viewing Angle170
Native Resolution2560 x 2048
Number Of Screens2
OSD LanguagesChinese (simplified), English, German, French, Italian, Portuguese, Polish, Swedish, Russian, Spanish, Dutch, Arabic, Japanese, Korean
Panel TypeDD-IPS
Pixel Pitch0.165 mm
Response Time25 ms
Screen CoatingAnti-reflective
Vertical Refresh Rate24 - 100 Hz
Vertical Viewing Angle170
Weight13.25 kg
Manufacturer Warranty
Service & SupportLimited warranty - 5 years
Mechanical
Display Position AdjustmentsHeight, pivot (rotation), swivel, tilt
Height Adjustment100 mm
Rotation Angle90
Swivel Angle60
Tilt Angle-5/+25
VESA Mounting Interface100 x 100 mm
Miscellaneous
Cables Included
  • 1 x DVI cable
  • 1 x USB cable
  • 1 x DisplayPort cable
Compliant StandardsFCC Class B certified, VCCI, RoHS, FDA 510k, KC, IEC60601-1:2005 + A1:2012, ANSI/AAMI ES60601-1:2005 + C1:2009 + A1:2012, EN 60601-1-2:2007, CAN/CSA-C22.2 No. 60601-1:2008, DEMKO - EN 60601-1:2006, ICES-001 level B, IEC 60950-1:2005 + A1:2009
Included AccessoriesStand
Power
Input VoltageAC 120/230 V
Power Consumption (Typical)43 Watt
Software / System Requirements
Included SoftwareBarco MediCal QAWeb
