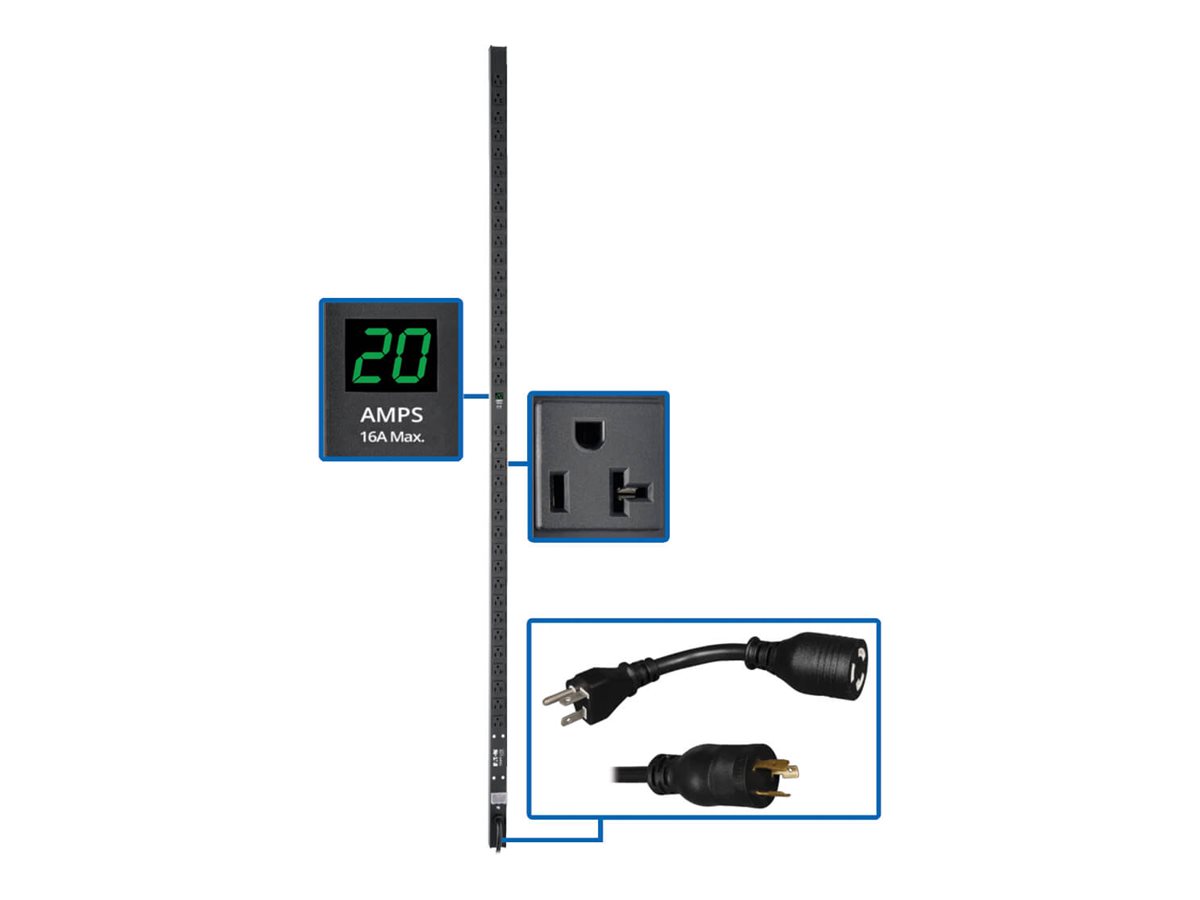

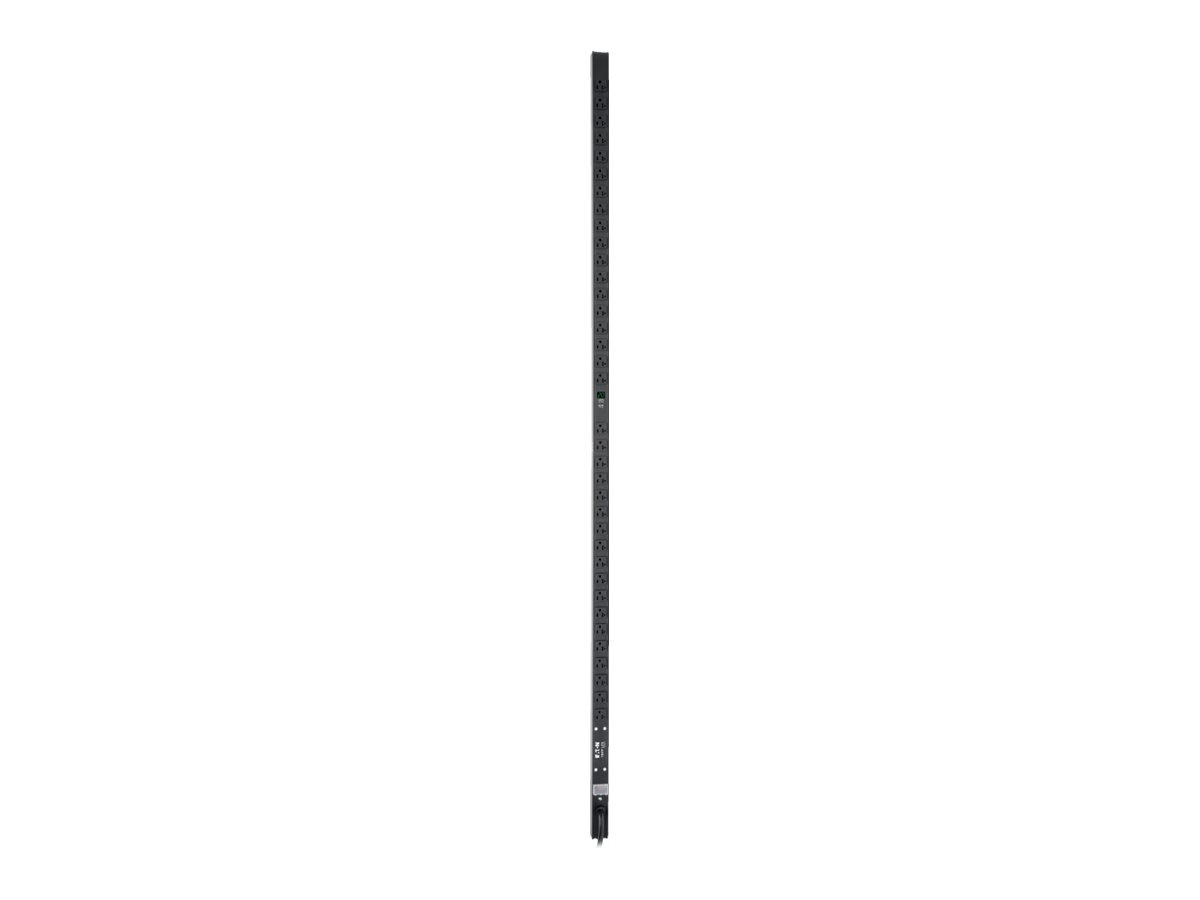

Eaton Tripp Lite Series PDU Metered 120V 20A 5-15/20R 36 Outlet L5-20P 72" Height 0URM
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Eaton Tripp Lite Series PDU Metered 120V 20A 5-15/20R 36 Outlet L5-20P 72" Height 0URM
- Power distribution unit (rack-mountable)
- 20 A
- AC 120 V
- 1.9 kW
- input: NEMA L5-20
- output connectors: 36
- 0U
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | PDUMV20-72 |
| SHI Part #: | 29898320 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | Eaton |
| Product Type: | Hardware |

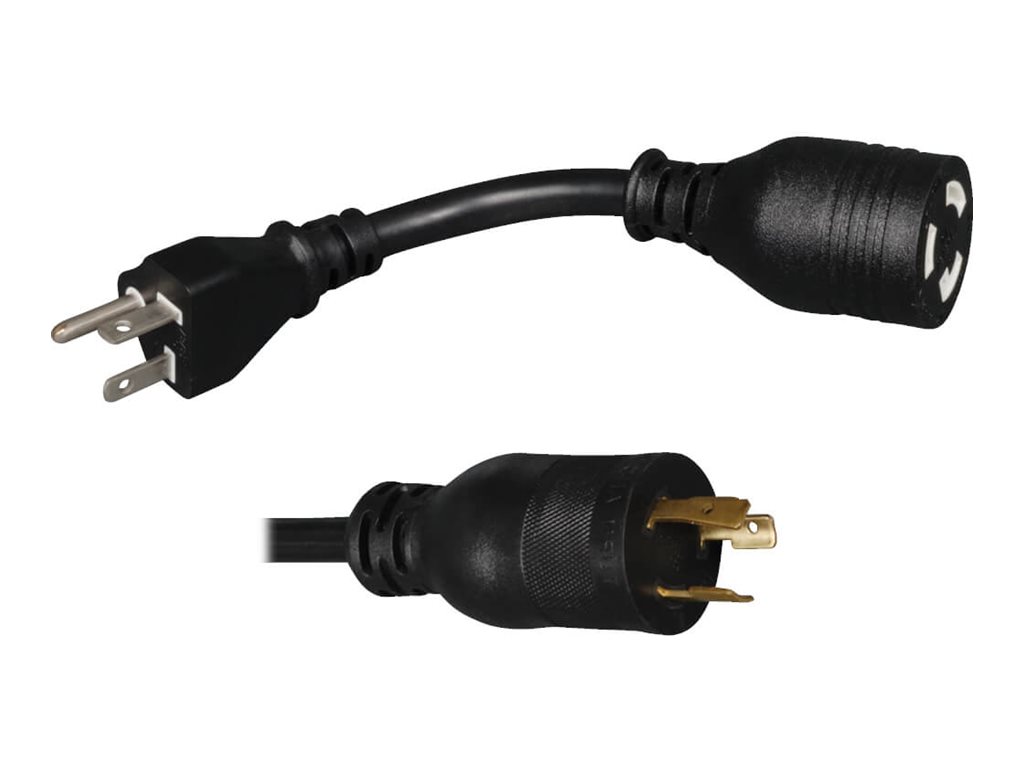

Power Cables
- Power cable
- NEMA 5-20 (M) to NEMA L5-20 (F)
- 15 cm
- 10A, 125V, 18 AWG, 10 ft. (3.05 m), Black
- Power cable
- power IEC 60320 C13 to NEMA 5-15 (M)
- AC 110 V
- 3 m
- black
- Power cable
- IEC 60320 C13 to NEMA 5-15 (M)
- AC 110 V
- 1.8 m
- black
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | Eaton Tripp Lite Series PDU Metered 120V 20A 5-15/20R 36 Outlet L5-20P 72" Height 0URM - Power distribution unit (rack-mountable) - 20 A - AC 120 V - 1.9 kW - input: NEMA L5-20 - output connectors: 36 - 0U |
| Manufacturer | Eaton |
| MSRP | $672.94 |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 3.18 cm |
| Dimensions & Weight / Height | 182.9 cm |
| Dimensions & Weight / Weight | 2.5 kg |
| Dimensions & Weight / Width | 4.45 cm |
| General / Subcategory | Power distribution devices |
| Header / Brand | Tripp Lite |
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 36 |
| Power Device / Voltage Required | AC 120 V |
| Product Type | Power distribution unit |
| Dimensions & Weight | |
| Depth | 3.18 cm |
| Height | 182.9 cm |
| Weight | 2.5 kg |
| Width | 4.45 cm |
| General | |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Miscellaneous | |
| Cables Included | Power cable 4.6 m |
| Compliant Standards | FCC Class A certified, NOM, RoHS, UL 60950-1, CSA 22.2 No. 60950-1 |

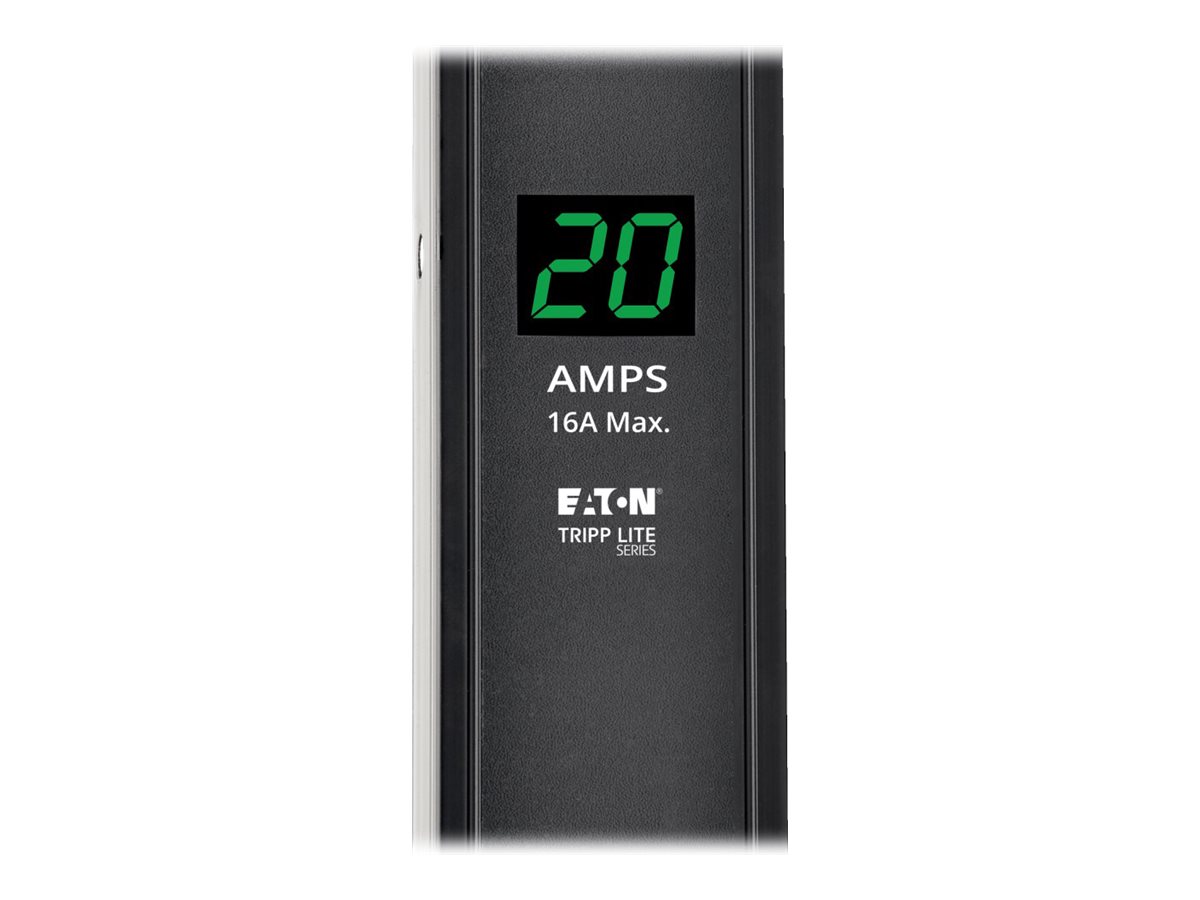

| Features | Current meter |
| Power Device | |
| Frequency Provided | 50/60 Hz |
| Input Connectors | 1 x power NEMA L5-20 |
| Input Voltage | AC 120 V |
| Max Electric Current | 20 A |
| Output Voltage | AC 120 V 50/60 Hz |
| Power Capacity | 1.9 kW |

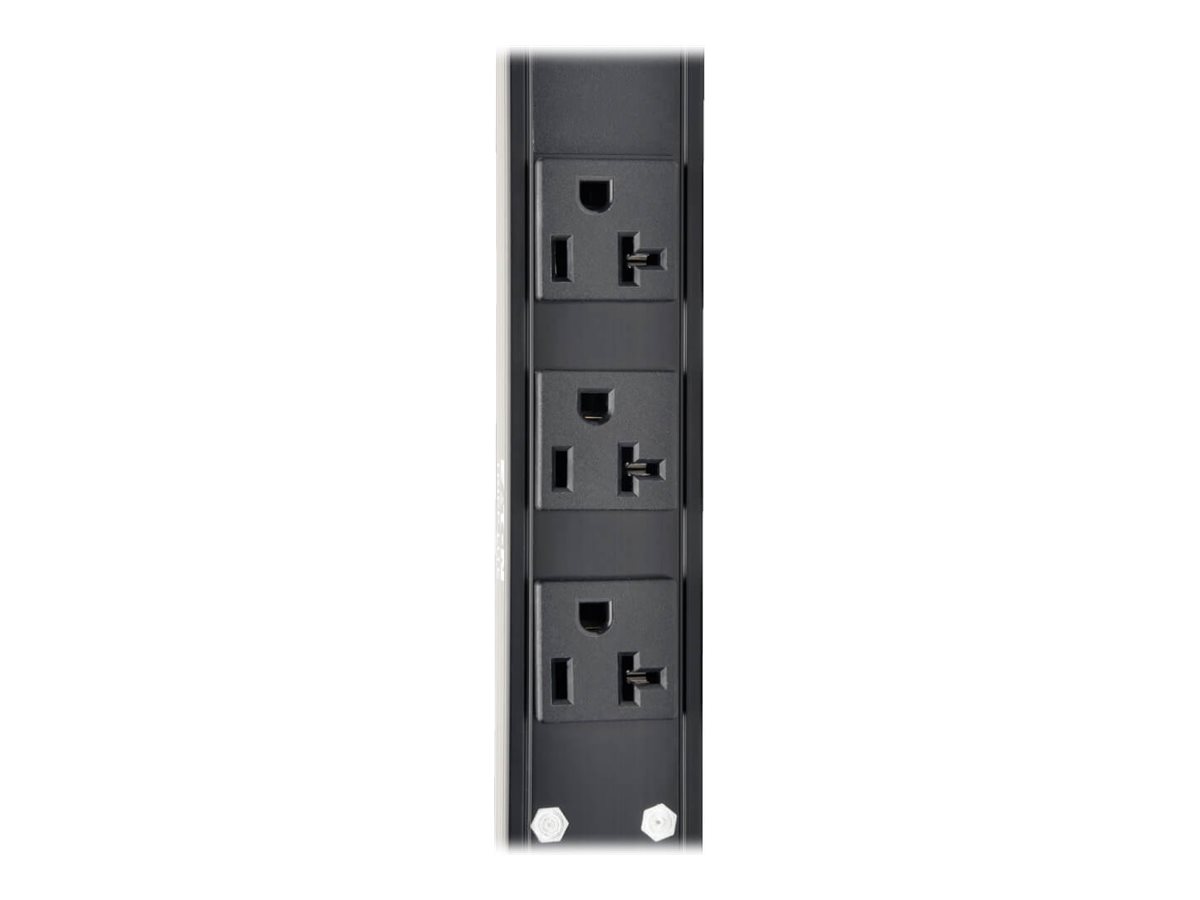

| Power Output Connectors Details | 36 x power NEMA 5-15/20 |
