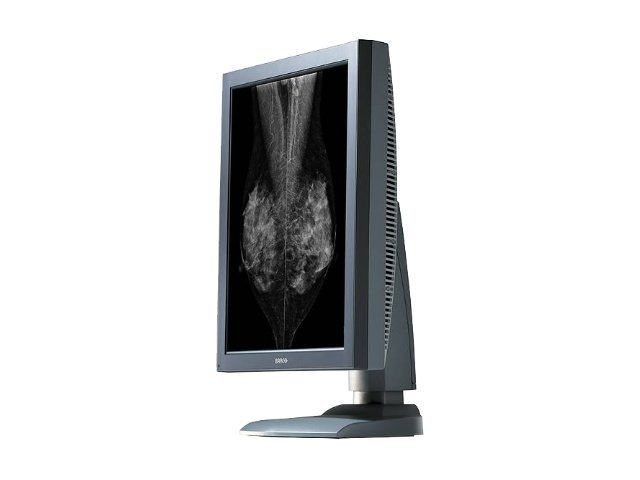

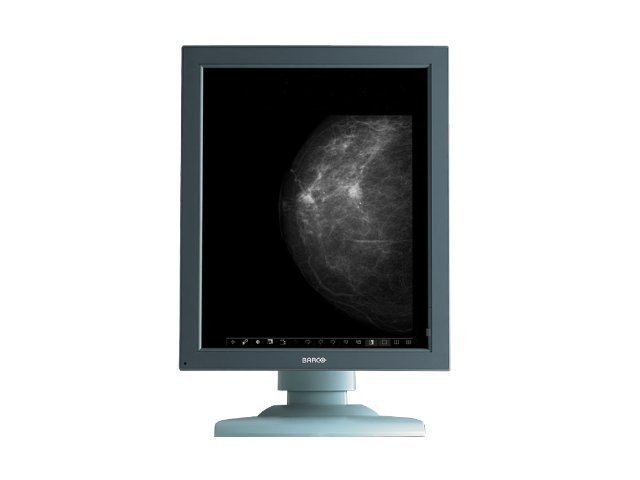

Barco Coronis 5MP Mammo MDMG-5121

$63,922.00
Barco Coronis 5MP Mammo MDMG-5121
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • LCD monitor
  • 4 x 5MP
  • grayscale
  • 21.3" (21.3" viewable)
  • 2560 x 2048
Barco Coronis 5MP Mammo MDMG-5121
  • LCD monitor
  • 4 x 5MP
  • grayscale
  • 21.3" (21.3" viewable)
  • 2560 x 2048
  • DD-IPS
  • 1600 cd/m²
  • 900:1
  • 50 ms
  • DVI-D
  • with Barco MXRT-5500 graphics adapter
  Additional Details
Price: $63,922.00
Mfr Part #: K9602716
SHI Part #: 29838169
Category: Flat panel displays
UNSPSC: 43211902
Manufacturer: Barco
Product Type: Hardware
General Information
CategoryFlat panel displays
DescriptionBarco Coronis 5MP Mammo MDMG-5121 - LCD monitor - 4 x 5MP - grayscale - 21.3" (21.3" viewable) - 2560 x 2048 - DD-IPS - 1600 cd/m² - 900:1 - 50 ms - DVI-D - with Barco MXRT-5500 graphics adapter
ManufacturerBarco
MSRP$66,672.92
UNSPSC43211902
Main Specifications
Dimensions & Weight / Depth25 cm
Dimensions & Weight / Height58.2 cm
Dimensions & Weight / Weight13.3 kg
Dimensions & Weight / Width40.8 cm
Display / Diagonal Size21.3 in
Display / Diagonal Size (metric)54.1 cm
Display / InterfaceDVI
Display / Native Resolution2560 x 2048
Display / Pixel Pitch0.165 mm
Display / TypeLCD monitor
Header / BrandBarco
Image Brightness1600 cd/m²
Miscellaneous / Compliant Standards
  • BSMI CNS 13438
  • BSMI CNS 14336
  • CAN/CSA C22.2 No. 601.1-M90
  • CCC
  • DEMKO
  • EN 60601-1
  • FCC Class B certified
  • FDA 510k
  • GB 17625.1
  • GB 4943
  • GB 9254-2008
  • IEC 60601-1
  • IEC 60950-1
  • KCC
  • RoHS
  • UL 60601-1
  • VCCI
Miscellaneous / Product ColorGray
Packaged Quantity1
Service & Support / Type5-year warranty
Connectivity
Interfaces
  • DVI-D (dual link)
  • USB 2.0 upstream
  • 2 x USB 2.0 downstream
Dimensions & Weight
Dimensions & Weight Details
  • With stand - width: 40.8 cm - depth: 25 cm - height: 58.2 cm - weight: 13.3 kg
  • Without stand - width: 40.8 cm - depth: 11.4 cm - height: 49.3 cm - weight: 9.2 kg
General
Aspect Ratio5:4
Backlight TechnologyCCFL
Brightness1600 cd/m²
Built-in DevicesUSB 2.0 hub
Bundled withBarco MXRT-5500 graphics adapter
Contrast Ratio900:1
Diagonal Size21.3"
Dimensions (WxDxH)40.8 cm x 25 cm x 58.2 cm - with stand
Display TypeLCD monitor / TFT active matrix - 4 x 5MP - grayscale
FeaturesI-Guard, Backlight Output Stabilization (BLOS), Per Pixel Uniformity (PPU)
Horizontal Refresh Rate30 - 150 kHz
Horizontal Viewing Angle176
Native Resolution2560 x 2048
Number Of Screens4
OSD LanguagesEnglish, German, French, Italian, Spanish
Panel TypeDD-IPS
Pixel Pitch0.165 mm
Response Time50 ms (tr - tf)
Screen CoatingAnti-reflective
Vertical Refresh Rate15 - 80 Hz
Vertical Viewing Angle176
Video Bandwidth280 MHz
Weight13.3 kg
Manufacturer Warranty
Service & SupportLimited warranty - 5 years
Mechanical
Display Position AdjustmentsHeight, pivot (rotation), swivel, tilt
Height Adjustment60 mm
Rotation Angle90
Swivel Angle90
Tilt Angle-5/+30
VESA Mounting Interface100 x 100 mm
Miscellaneous
Cables Included
  • 1 x DVI cable
  • 1 x USB cable
Compliant StandardsFCC Class B certified, VCCI, DEMKO, CCC, UL 60601-1, RoHS, IEC 60950-1, KCC, BSMI CNS 13438, FDA 510k, BSMI CNS 14336, EN 60601-1, GB 4943, GB 17625.1, CAN/CSA C22.2 No. 601.1-M90, GB 9254-2008, IEC 60601-1
Power
Input VoltageAC 120/230 V (50/60 Hz)
Power Consumption (Typical)65 Watt
Power SupplyExternal
Software / System Requirements
Included SoftwareMediCal QAWeb
