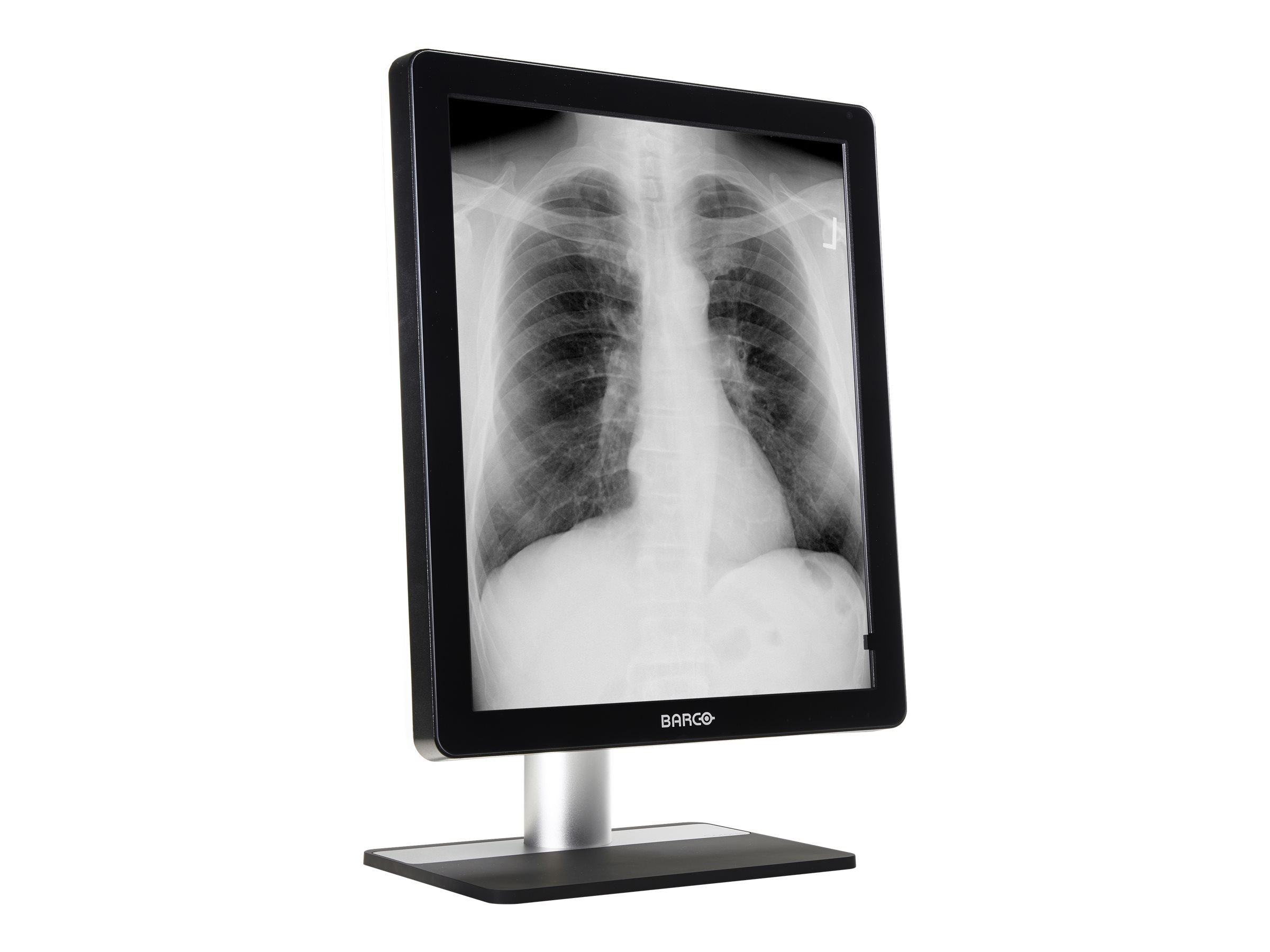

Barco Coronis 5MP LED MDCG-5221
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Barco Coronis 5MP LED MDCG-5221
- LED monitor
- 2 x 5MP
- grayscale
- 21.3"
- 2560 x 2048
- DD-IPS
- 1200 cd/m²
- 1200:1
- 25 ms
- DVI-D, DisplayPort
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | K9602712 |
| SHI Part #: | 29838166 |
| Category: | Flat panel displays |
| UNSPSC: | 43211902 |
| Manufacturer: | Barco |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Flat panel displays |
| Description | Barco Coronis 5MP LED MDCG-5221 - LED monitor - 2 x 5MP - grayscale - 21.3" - 2560 x 2048 - DD-IPS - 1200 cd/m² - 1200:1 - 25 ms - DVI-D, DisplayPort |
| Manufacturer | Barco |
| MSRP | $31,982.01 |
| UNSPSC | 43211902 |
| Main Specifications | |
| Dimensions & Weight / Depth | 23.5 cm |
| Dimensions & Weight / Height | 52.3 cm |
| Dimensions & Weight / Weight | 13.6 kg |
| Dimensions & Weight / Width | 40.7 cm |
| Display / Diagonal Size | 21.3 in |
| Display / Diagonal Size (metric) | 54 cm |
| Display / Interface |
|
| Display / Native Resolution | 2560 x 2048 |
| Display / Pixel Pitch | 0.165 mm |
| Display / Type | LED-backlit LCD monitor |
| Header / Brand | Barco |
| Image Brightness | 1200 cd/m² |
| Miscellaneous / Compliant Standards |
|
| Miscellaneous / Product Color |
|
| Packaged Quantity | 1 |
| Service & Support / Type | 5-year warranty |
| Connectivity | |
| Interfaces |
|
| Dimensions & Weight | |
| Dimensions & Weight Details |
|
| General | |
| Aspect Ratio | 5:4 |
| Backlight Technology | LED backlight |
| Brightness | 1200 cd/m² |
| Built-in Devices | USB 2.0 hub |
| Color Support | 1024 gray levels (10-bit) |
| Contrast Ratio | 1200:1 |
| Diagonal Size | 21.3" |
| Dimensions (WxDxH) | 40.7 cm x 23.5 cm x 52.3 cm - with stand |
| Display Type | LED-backlit LCD monitor / TFT active matrix - 2 x 5MP - grayscale |
| Features | I-Guard, Ambient Light Compensation (ALC), DICOM calibrated, Blue Base (DICOM-BL) mode, Backlight Output Stabilization (BLOS), Per Pixel Uniformity (PPU), integrated cable management, I-Luminate, Intelligent Multi Sensor technology |
| Horizontal Viewing Angle | 170 |
| Native Resolution | 2560 x 2048 |
| Number Of Screens | 2 |
| Panel Type | DD-IPS |
| Pixel Pitch | 0.165 mm |
| Response Time | 25 ms (tr - tf) |
| Screen Coating | Anti-reflective |
| Vertical Viewing Angle | 170 |
| Weight | 13.6 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Mechanical | |
| Display Position Adjustments | Height, pivot (rotation) |
| Height Adjustment | 100 mm |
| VESA Mounting Interface | 100 x 100 mm |
| Miscellaneous | |
| Cables Included |
|
| Compliant Standards | FCC Class B certified, CSA, UL, VCCI, CCC, CEBEC, KEMA, RoHS, FDA 510k, Directive 2004/108/EC, KC, GB 9254-2008, Directive 93/42/EEC, Directive 2007/47/EC, MDD 93/42/EEC, ANSI/AAMI ES60601-1:2005 + C1:2009 + A1:2010, CAN/CSA-C22.2 No. 60601-1:2008, DEMKO - EN 60601-1:2006, GB 4943-2011, ICES-001 level B, IEC 60601-1:2005, IEC 60950-1:2005 + A1:2009 |
| Features | Portrait / landscape mode |
| Included Accessories | Stand |
| Power | |
| Power Consumption (Typical) | 46 Watt |
| Software / System Requirements | |
| Included Software | Barco MediCal QAWeb |
