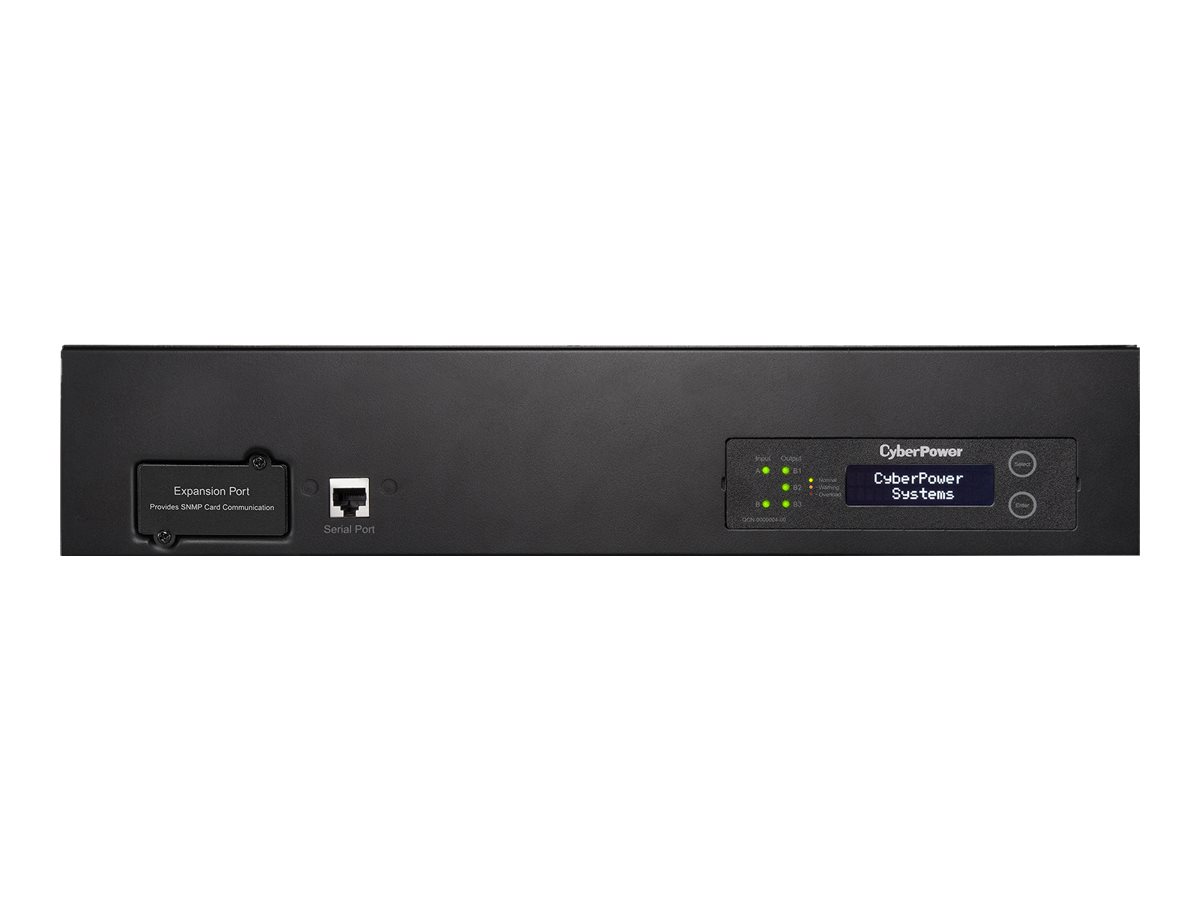

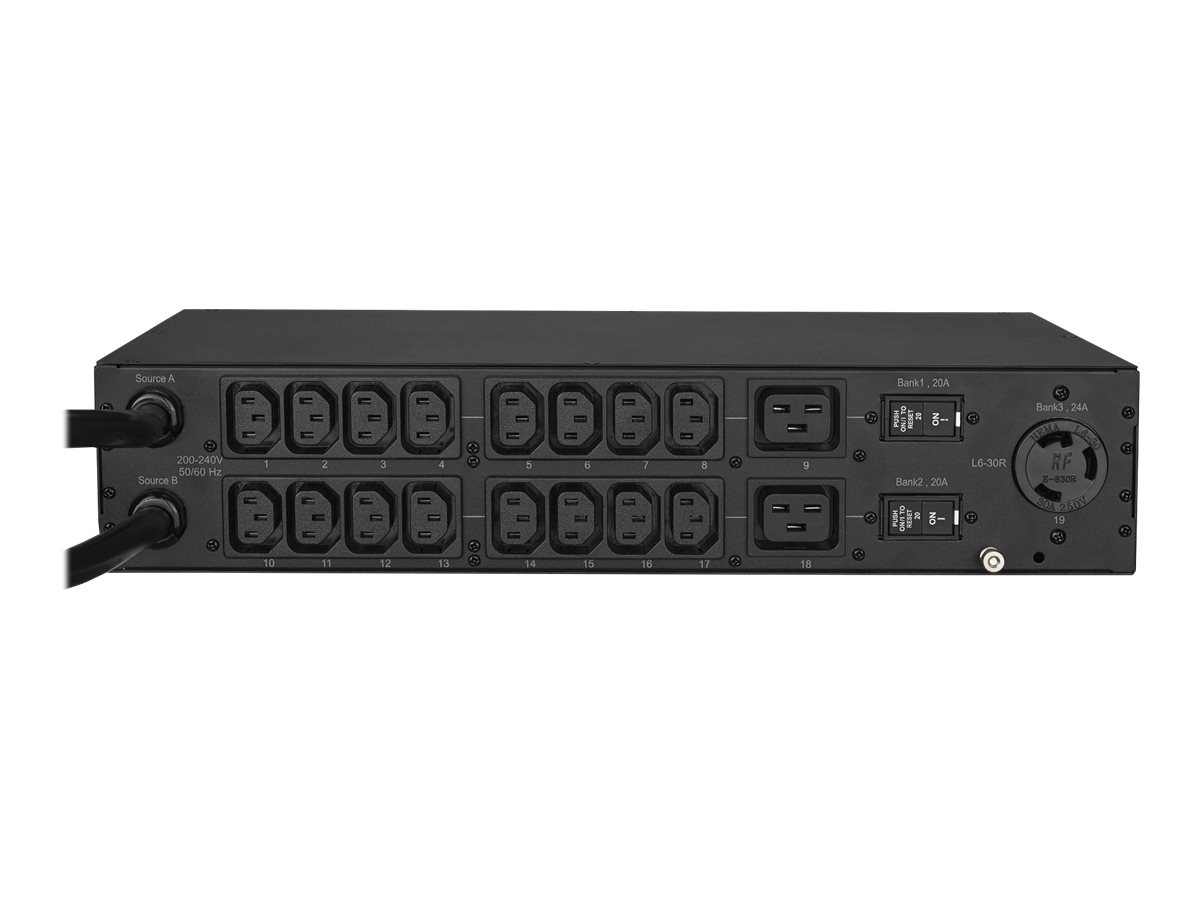

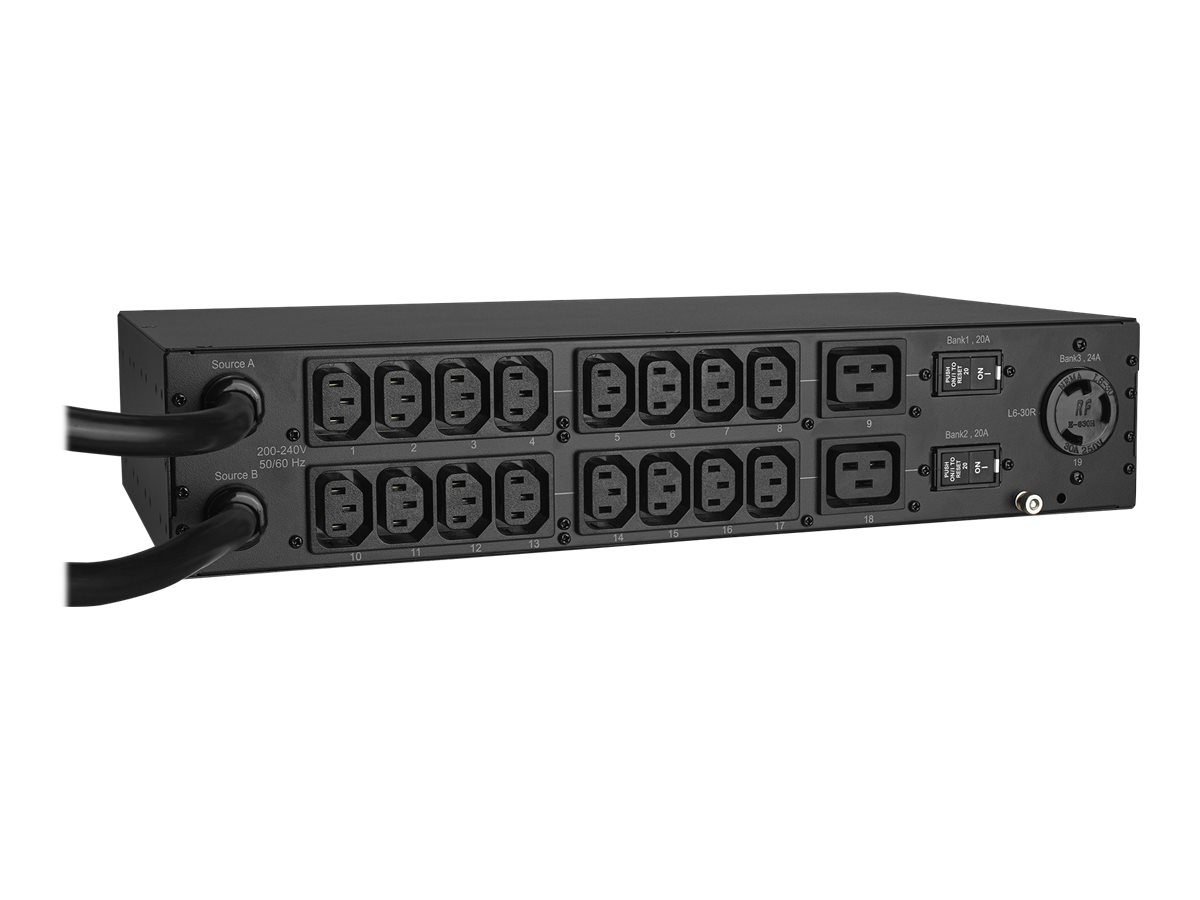

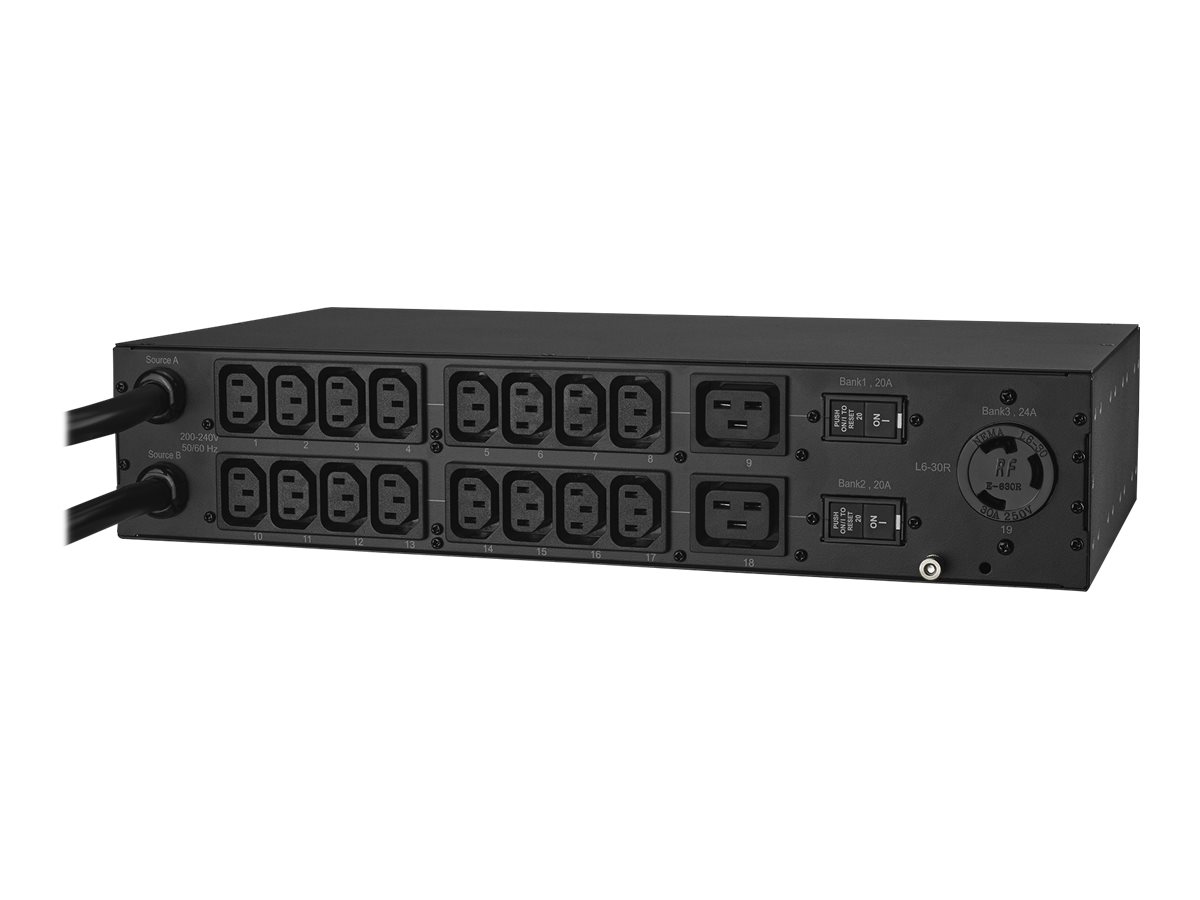

CyberPower Metered ATS Series PDU30MHVT19AT
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
CyberPower Metered ATS Series PDU30MHVT19AT
- Power distribution unit (rack-mountable)
- AC 200-240 V
- RS-232
- input: NEMA L6-30
- output connectors: 19
- 2U
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | PDU30MHVT19AT |
| SHI Part #: | 29252922 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | CyberPower |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | CyberPower Metered ATS Series PDU30MHVT19AT - Power distribution unit (rack-mountable) - AC 200-240 V - RS-232 - input: NEMA L6-30 - output connectors: 19 - 2U |
| Manufacturer | CyberPower |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 23.6 cm |
| Dimensions & Weight / Height | 8.89 cm |
| Dimensions & Weight / Weight | 7 kg |
| Dimensions & Weight / Width | 43.3 cm |
| General / Subcategory | Power distribution devices |
| Header / Brand | Cyberpower |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface | RS-232 |
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 19 |
| Power Device / Voltage Required | AC 200-240 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 3-year warranty |
| Dimensions & Weight | |
| Depth | 23.6 cm |
| Height | 8.89 cm |
| Weight | 7 kg |
| Width | 43.3 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Max Operating Temperature | 45 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x expansion slot |
| Interfaces | 1 x management (RS-232) - RJ-45 |
| General | |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 2U |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Cables Included | 2 x power cable - integrated - 3.05 m |
| Compliant Standards | FCC Class B certified, CSA C22.2, RoHS, ETL, UL 60950-1 |
| Features | Rugged, LCD display, LED indicators, overload protection, Automatic Transfer Switch (ATS), firmware upgradable |
| Included Accessories | Cable retention brackets |
| Rack Mounting Kit | Included |
| Networking | |
| Remote Management Interface | RS-232 |
| Power Device | |
| Frequency Required | 50/60 Hz |
| Input Connectors | 2 x power NEMA L6-30 |
| Input Voltage | AC 200-240 V |
| Max Electric Current | 30 A |
| Output Voltage | AC 200-240 V |
| Power Output Connectors Details |
|
