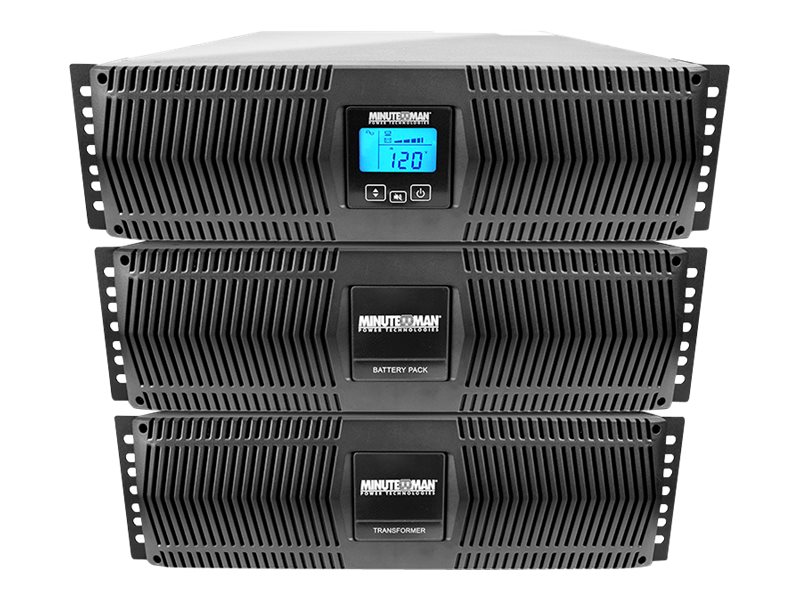

Minuteman Endeavor ED10000RTXL
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Minuteman Endeavor ED10000RTXL
- UPS (rack-mountable / external)
- AC 208 V
- 8000 Watt
- 8889 VA
- RS-232
- output connectors: 10
- PFC
- 9U
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | ED10000RTXL |
| SHI Part #: | 29175932 |
| Category: | Uninterruptible power supplies |
| UNSPSC: | 39121011 |
| Manufacturer: | Minuteman UPS |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Uninterruptible power supplies |
| Description | Minuteman Endeavor ED10000RTXL - UPS (rack-mountable / external) - AC 208 V - 8000 Watt - 8889 VA - RS-232 - output connectors: 10 - PFC - 9U |
| Manufacturer | Minuteman UPS |
| MSRP | $12,725.44 |
| UNSPSC | 39121011 |
| Main Specifications | |
| Dimensions & Weight / Depth | 65.9 cm |
| Dimensions & Weight / Height | 39.18 cm |
| Dimensions & Weight / Weight | 154.1 kg |
| Dimensions & Weight / Width | 44 cm |
| Header / Brand | MINUTEMAN |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface | RS-232 |
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable / external |
| Power Device / Output Connector Qty | 10 |
| Power Device / Power Capacity (VA) | 8889 VA |
| Power Device / UPS Technology | On-line |
| Power Device / Voltage Required | AC 208 V |
| Product Type | UPS |
| Service & Support / Type | 3-year warranty |
| Battery | |
| Run Time (Up To) |
|
| Technology | Lead acid |
| Voltage Provided | 240 V |
| Dimensions & Weight | |
| Depth | 65.9 cm |
| Height | 39.18 cm |
| Weight | 154.1 kg |
| Width | 44 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 60 dBA |
| Expansion / Connectivity | |
| Interfaces | 1 x management (RS-232) - 9 pin D-Sub (DB-9) |
| General | |
| Device Type | UPS - Power Factor Correction (PFC) - rack-mountable / external |
| Height (Rack Units) | 9U |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years |
| Miscellaneous | |
| Compliant Standards | Directive 2011/65/EU, RoHS2, CSA 22.2, cTUVus, FCC Class B certified, UL 1778 |
| Features | LCD display, DSP technology, hot-swappable batteries |
| Networking | |
| Remote Management Interface | RS-232 |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Efficiency | 90%+ |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 40 - 70 Hz |
| Input Connectors | Hardwire |
| Input Voltage | AC 208 V |
| Input Voltage Range | AC 180 - 280 V |
| Output Voltage | AC 208 V ± 2% - 50/60 Hz |
| Output Waveform | Sinewave |
| Power Capacity | 8000 Watt / 8889 VA |
| Power Output Connectors Details |
|
| Surge Energy Rating | 1050 Joules |
| Surge Response Time | 1200 ns |
| Surge Suppression | Yes |
| UPS Technology | On-line |
| Software / System Requirements | |
| Software Included | Minuteman SentryHD |
| Sustainability Information | |
| ENERGY STAR | Yes |
