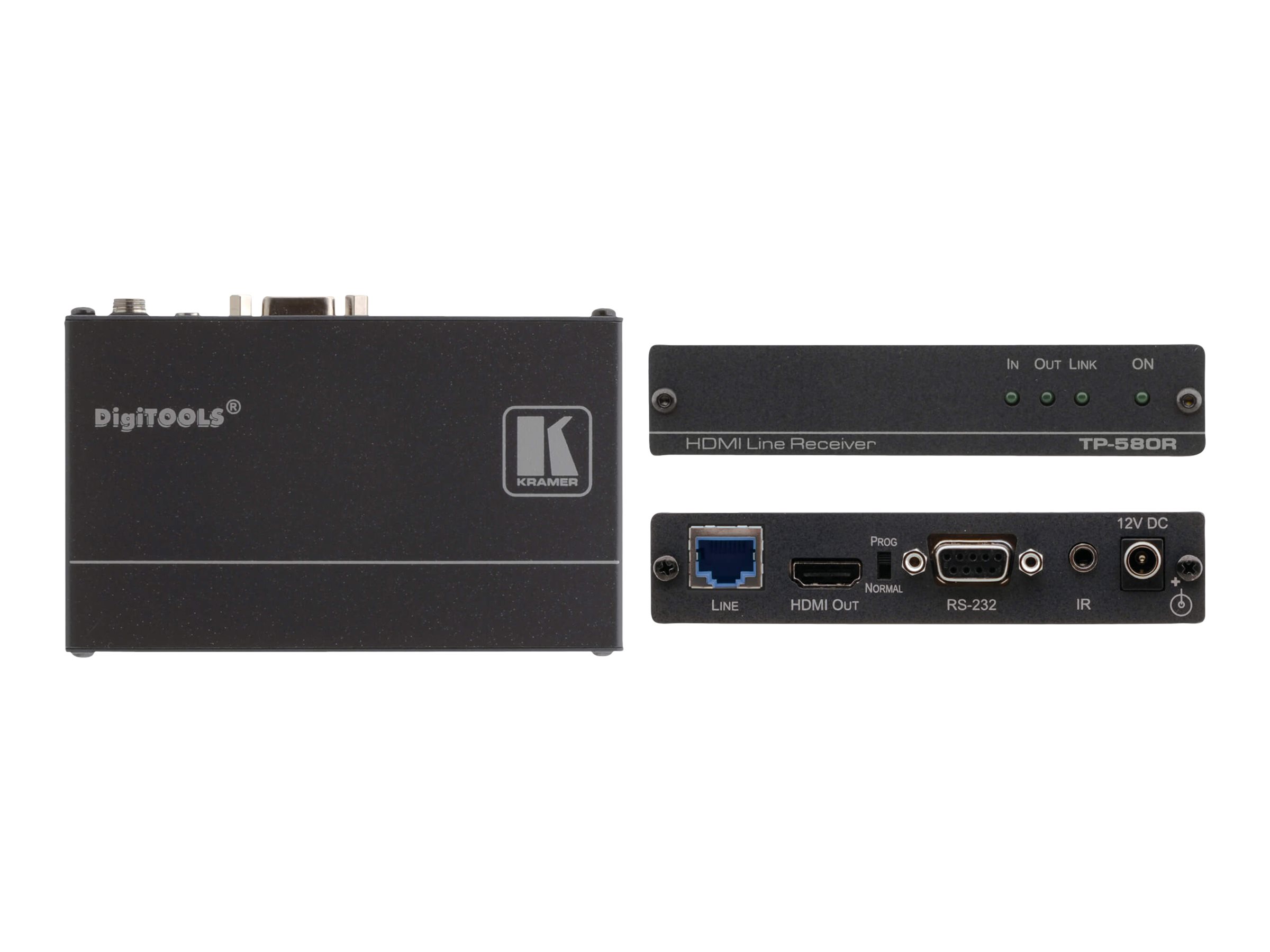

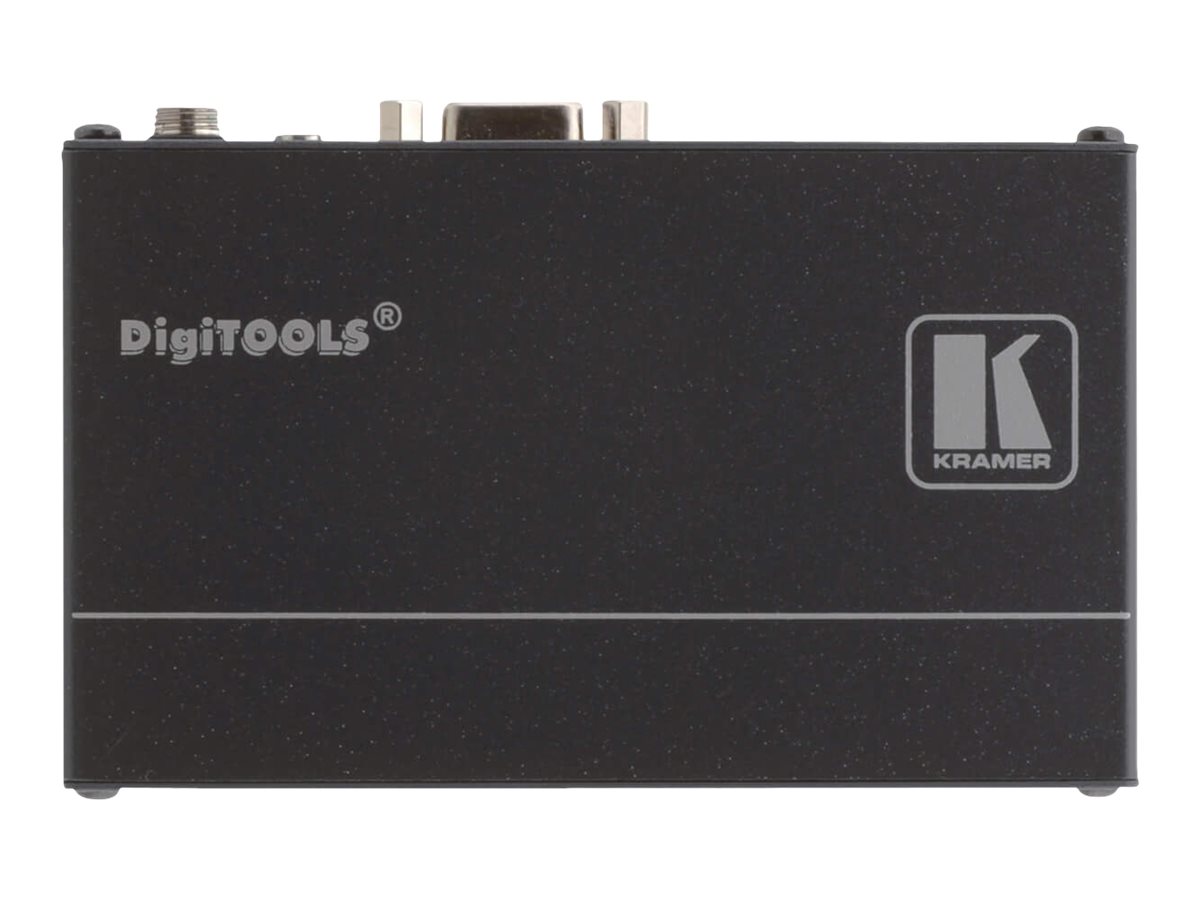

Kramer TP-580R - Video/audio/infrared/serial extender

$294.00
Kramer TP-580R - Video/audio/infrared/serial extender
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • RS-232, HDMI, HDBaseT
  • up to 70 m
  • 1U
Kramer TP-580R - Video/audio/infrared/serial extender
  • RS-232, HDMI, HDBaseT
  • up to 70 m
  • 1U
  Additional Details
Price: $294.00
Mfr Part #: TP-580R
SHI Part #: 27532002
Category: Serial port cards
UNSPSC: 43201559
Manufacturer: Kramer Electronics
Product Type: Hardware
General Information
CategorySerial port cards
DescriptionKramer TP-580R - Video/audio/infrared/serial extender - RS-232, HDMI, HDBaseT - up to 70 m - 1U
ManufacturerKramer Electronics
MSRP$428.00
UNSPSC43201559
Main Specifications
Dimensions & Weight / Depth7.15 cm
Dimensions & Weight / Height2.44 cm
Dimensions & Weight / Weight200 g
Dimensions & Weight / Width12 cm
Dimensions & Weight
Depth7.15 cm
Height2.44 cm
Weight200 g
Width12 cm
Environmental Parameters
Humidity Range Operating10 - 90% (non-condensing)
Max Operating Temperature40 °C
Min Operating Temperature0 °C

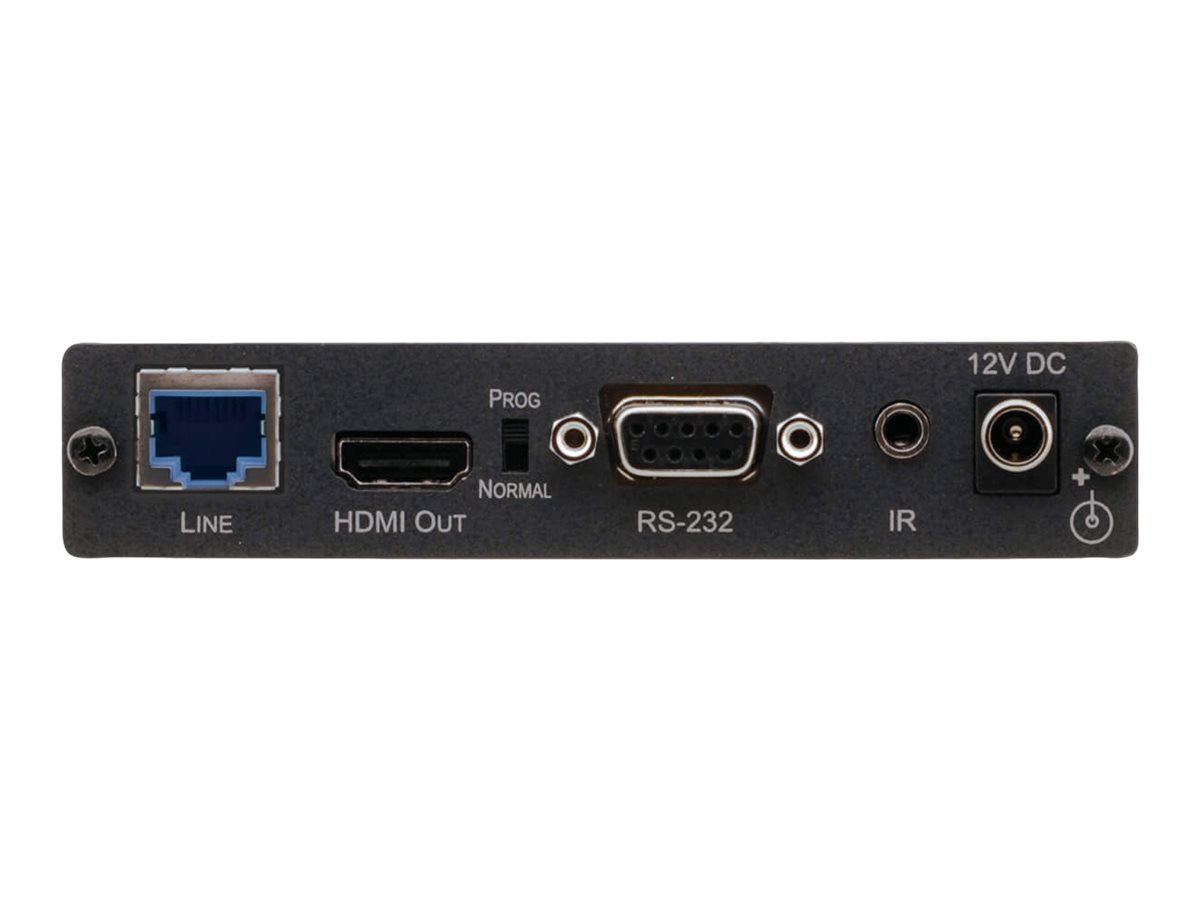

Expansion / Connectivity
Interfaces
  • 1 x HDMI - 19 pin HDMI Type A female
  • 1 x HDBaseT - RJ-45 female
  • 1 x IrDA - mini jack female
  • 1 x RS-232 - DB-9 female
General
Device TypeVideo/audio/infrared/serial extender
Form FactorExternal - 1U
Miscellaneous
Rack Mounting KitOptional
Networking
Connectivity TechnologyWired
Data Link ProtocolRS-232, HDMI, HDBaseT
Data Transfer Rate10.2 Gbps
FeaturesHDTV Compatible, HDCP compliant, 4K resolution support, HDBaseT technology, 3D Pass-Through, EDID Pass-Through, 2K resolution support
Max Transfer Distance70 m

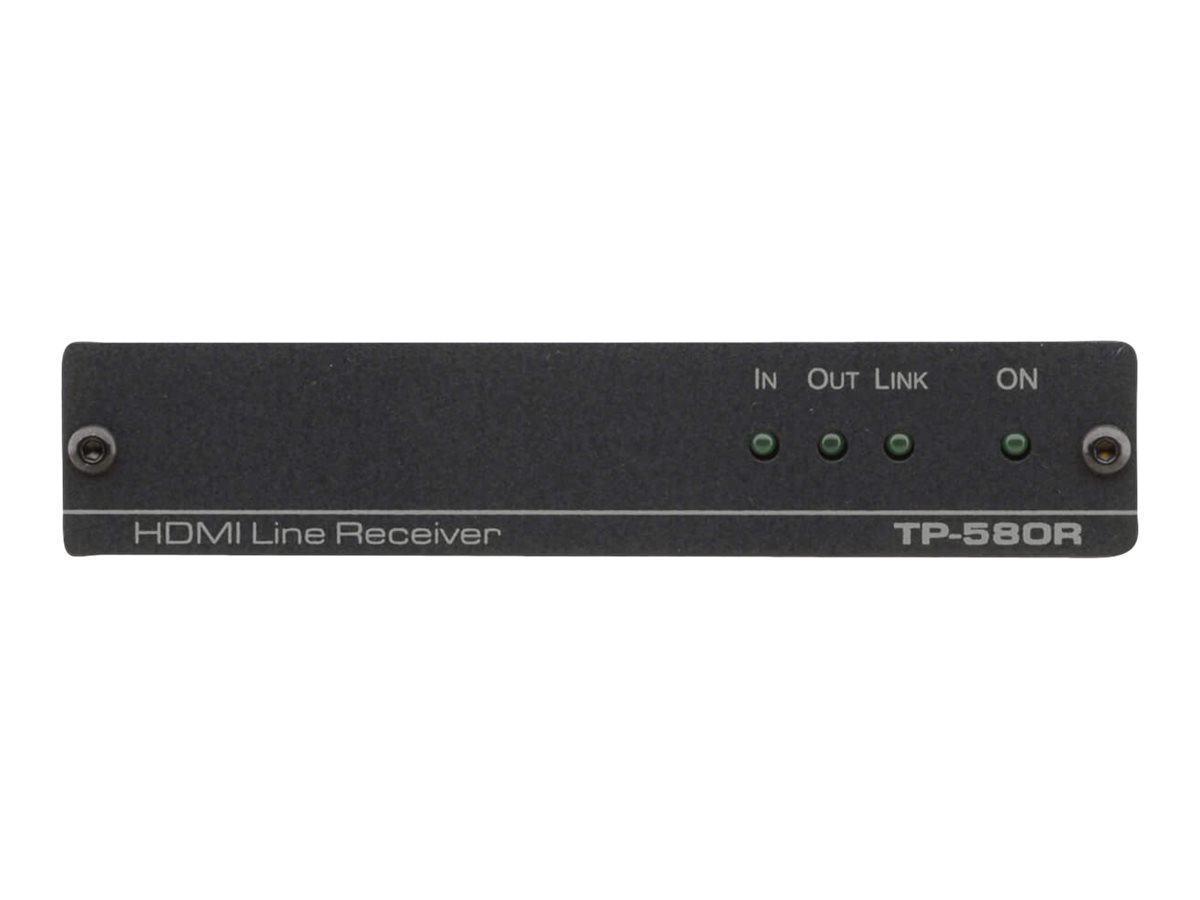

Status IndicatorsPower, link/activity
Power
Power DeviceExternal power adapter
