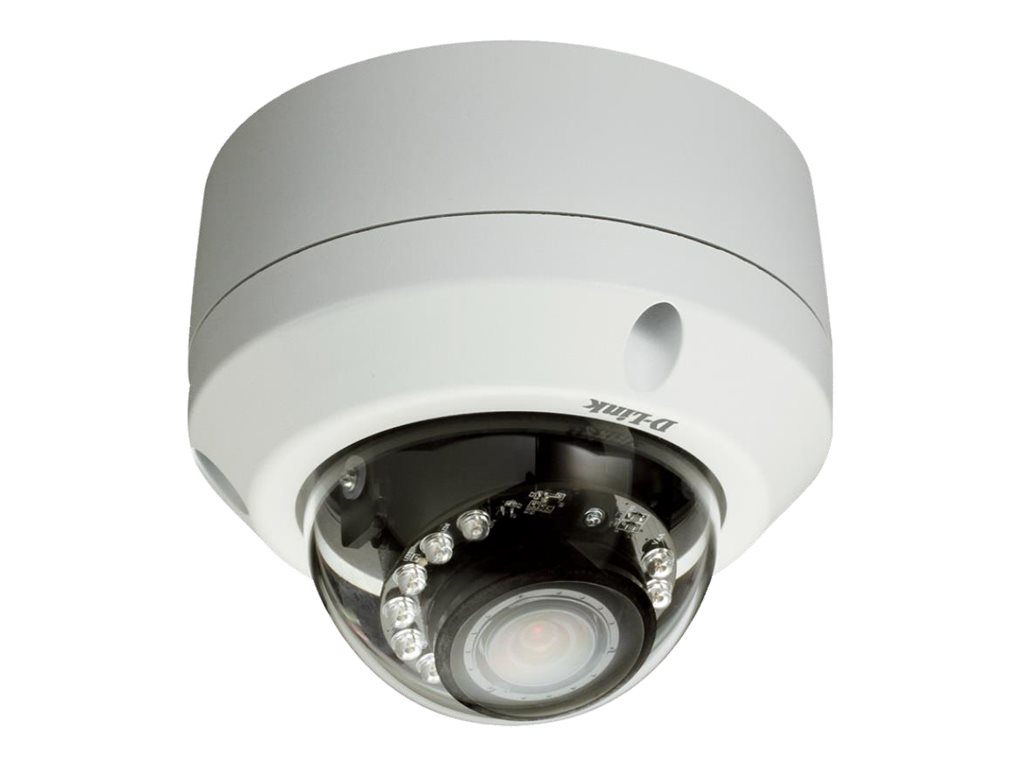

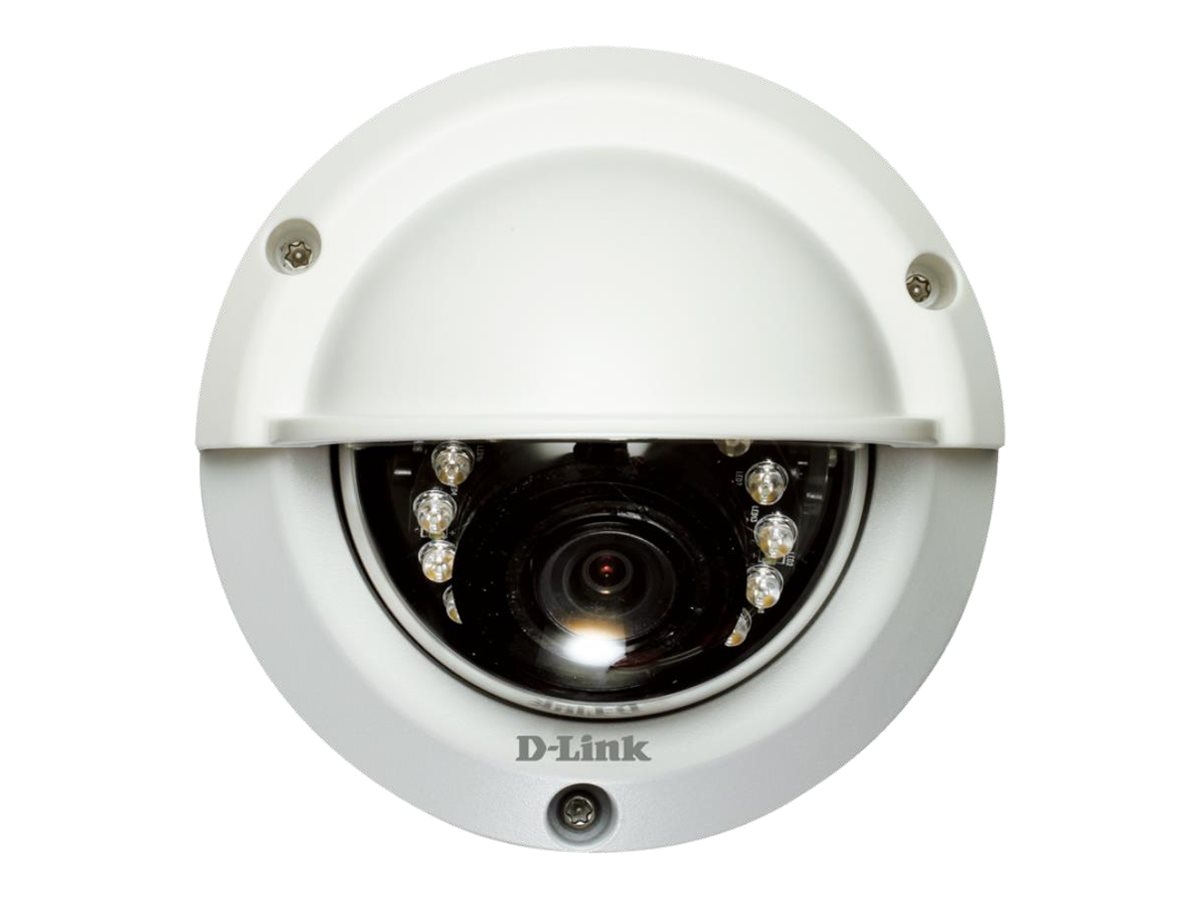

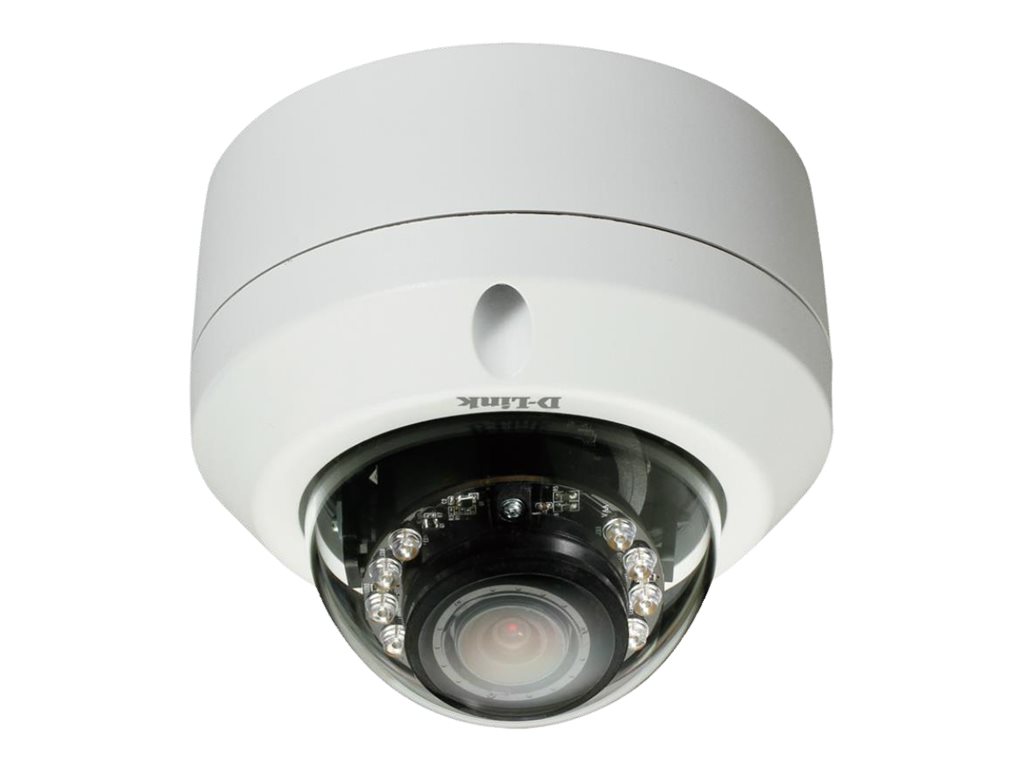

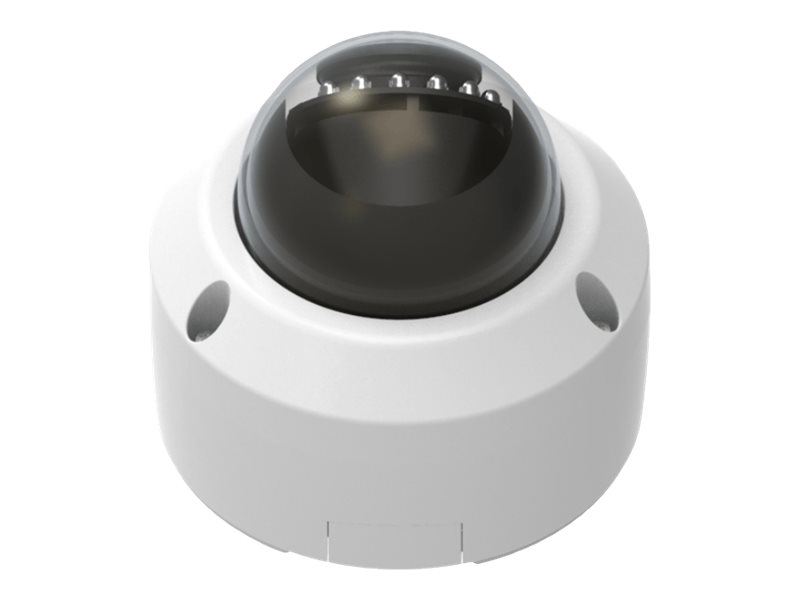

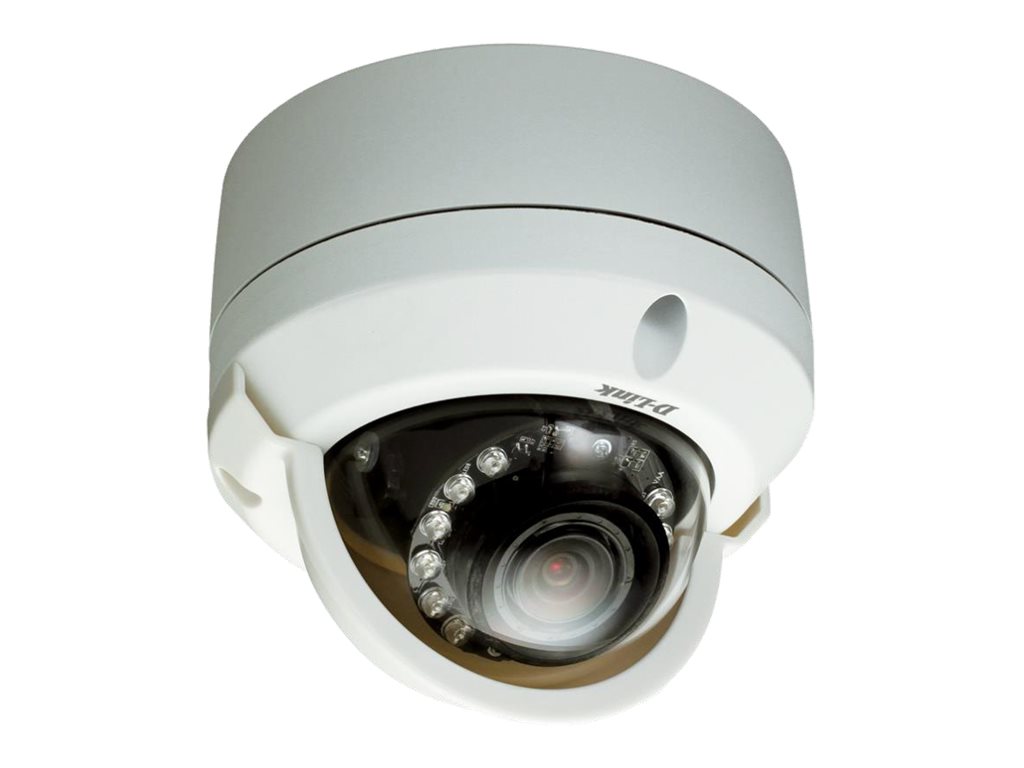

D-Link DCS 6314 Full HD WDR Varifocal Day & Night Outdoor Dome
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
D-Link DCS 6314 Full HD WDR Varifocal Day & Night Outdoor Dome
- Network surveillance camera
- dome
- outdoor
- vandal / weatherproof
- color (Day&Night)
- 1920 x 1080
- audio
- LAN 10/100
- MPEG-4, MJPEG, H.264
- DC 12 V / PoE
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | DCS-6314 |
| SHI Part #: | 27495045 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | D-Link |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | D-Link DCS 6314 Full HD WDR Varifocal Day & Night Outdoor Dome - Network surveillance camera - dome - outdoor - vandal / weatherproof - color (Day&Night) - 1920 x 1080 - audio - LAN 10/100 - MPEG-4, MJPEG, H.264 - DC 12 V / PoE |
| Manufacturer | D-Link |
| MSRP | $819.99 |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 12.8 cm |
| Dimensions & Weight / Height | 12.32 cm |
| Dimensions & Weight / Weight | 1.11 kg |
| Dimensions & Weight / Width | 12.8 cm |
| Header / Brand | D-Link |
| Packaged Quantity | 1 |
| Camera | |
| Digital Video Format | MPEG-4, MJPEG, H.264 |
| Features | Motion sensor, SD card slot, Power over Ethernet, built-in IR illuminator, Virtual Pan/Tilt/Zoom |
| Max Digital Video Resolution | 1920 x 1080 |
| Minimum Illumination |
|
| Supported Image Formats | JPEG |
| Type | Color - Day&Night - fixed - outdoor - vandal / weatherproof |
| Video Capture |
|
| Environmental Parameters | |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | -30 °C |
| Relative Humidity (operating) | 20 - 80% (non-condensing) |
| Expansion / Connectivity | |
| Interfaces Details | 1 x network / power - Ethernet 10Base-T/100Base-TX - RJ-45 |
| Supported Memory Cards | SDHC Memory Card |
| General | |
| Audio Support | Yes: two-way audio capability |
| Connectivity Technology | Wired |
| Depth | 12.8 cm |
| Device Type | Network surveillance camera |
| Form Factor | Dome |
| Height | 12.32 cm |
| Weight | 1.11 kg |
| Width | 12.8 cm |
| Image Sensor | |
| Type | 1/2.8" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ICMP, RTSP, RTP, HTTPS, UPnP, IPv4, IPv6, RTCP, PPPoE, Samba, QOS, CoS |
| Lens Construction | |
| Focal Length | 2.8 mm - 12 mm |
| Horizontal Field of View (degree) | 31.2 - 96.5 |
| Lens Iris | F/2.4 |
| Optical Zoom | 4.3 x |
| Vertical Field of View (degree) | 17.8 - 117.5 |
| Miscellaneous | |
| Compliant Standards | C-Tick, FCC |
| Panning | |
| Range (degree) | 340 |
| Power | |
| Power Device | Power adapter - external 10 Watt |
| Power Requirements | DC 12 V / PoE |
| Tilting | |
| Range (degree) | 75 |
